Part Identification

1

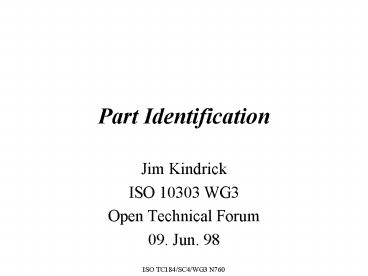

Part Identification

• Jim Kindrick
• ISO 10303 WG3
• Open Technical Forum
• 09. Jun. 98

2
Part Identification

• discuss requirements, issues, and common
  interpretation related to the identification of
  discrete electro-mechanical parts
• information derived from PDM schema activity a
  harmonization effort among the APs 203, 207, 209,
  210, 212, 214, and 232 in the area of product
  data management

3
Requirements and Issues

• unique part identifier
• scope of the namespace
• version identification
• distinction between an official released version
  and a work in-process iteration
• discipline/life cycle view definition
• provides a context for the product definition
• may not be necessary for part identification, but
  important for product assembly structures

4
Requirements and Issues

• effective scope for the part identifier
• organization that assigns the id - role id owner
• mandatory category for the product
• distinguish parts from documents
• distinguish detail from assembly products
• distinguish part and tool - viewpoint dependent
• distinguish part definition from occurrence
• occurrence is a usage of the definition

5
Common Interpretation

• direct correspondence to existing resources
• part 41 product_definition schema
• product, product_definition_formation,
  product_definition, product_category
• part 41 person_organization schema
• organization, person_organization
• part 41 application_context schema
• product_context, product_definition_context

6
PDM schema page 3 of 25
7
PDM schema page 2 of 25
8
PDM schema page 1 of 25
