Facility Planning with Simulation A Case Study

1

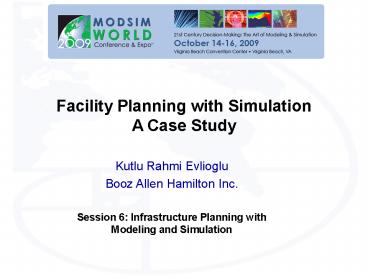

Facility Planning with SimulationA Case Study

• Kutlu Rahmi Evlioglu
• Booz Allen Hamilton Inc.
• Session 6 Infrastructure Planning with Modeling
  and Simulation

2
Agenda

• Problem Statement
• Software Selection
• Simulation Model
• Base Case Results
• Sensitivity Analysis
• Expected Next Steps

3
Problem Statement

• Develop a micro computer simulation model of bus
  operations in a three level facility. The model
  will be used to evaluate
• Current operational efficiency of the facility
• Analyze future scenarios under increased demand
• Assess the impact of proposed physical changes to
  the terminals infrastructure, if ever there is a
  need

4
Problem Statement - Continued

• The simulation model will be packaged with a
  customized user interface as a tool for the
  client so that
• Limited sensitivity runs can be conducted through
  the user interface
• Changes to model can be performed by the client
  with training

5
Software Selection

• Software selection based on 26 criteria
• 8 from statement of work (e.g. flexibility, data
  import/export, visualization)
• 9 as Booz Allen criteria (e.g. familiarity with
  the tool, ease of use)
• 9 as modeling challenges specific to the task
  (e.g. entity tracking, dynamic path changes)
• Out of initial group of 18 software packages,
  selected 4 for in-depth analysis
• Extend (multi-purpose)
• Arena (multi-purpose)
• VISSIM (vehicular traffic)
• Java (custom modeling)

6
Software Selection - Continued

• Comparison of strengths (samples) specific to the
  task

7
Software Selection - Continued

• Comparison of weaknesses (samples) specific to
  the task

8
Software Selection - Continued

• Software selection approach based on best
  practices derived from
• MAUA (Multi Attribute Utility Analysis)
• AHP (Analytic Hierarchy Process)
• Simple grading scale, not weighted, constant and
  exponential weight assignments

VISSIM

• Arena was chosen to be the simulation software
  for this particular modeling effort

9
Simulation Model

• Arena simulation model of the facility was
  developed by using transporters and networks. All
  transporter movements in the model follow these
  shortest-distance paths defined by the system
  map, automatically generated in Arena.

10
Simulation Model - Continued
11
Simulation Model - Continued

• User interface

12
Base Case Results

• For comparison, accumulation levels from the
  model and on-site observations are shown on the
  same chart
• The base case data should not necessarily match
  the on-site observations, as they occurred on
  different days, with different schedules

Only morning and afternoon peaks are shown.
13
Base Case Results - Continued

• Gate Utilization Percentage of time gate is
  occupied during the peak periods.

14
Base Case Results - Continued

• Time in Terminal The difference from the time
  the buses are at the level entry until they exit
  the level, including the dwell time at their
  gates

15
Base Case Results - Continued

• Stopped Delays Buses accumulate stopped delays
  when they are unable to advance to their
  destinations due to congestion, when other buses
  have right of way, etc.

16
Sensitivity Analysis

• Utilization of a bus storage facility with
  immediate access from the bus terminal is
  studied.
• The purpose of the facility is to provide
  temporary storage for buses when they arrive at
  the terminal significantly earlier than the
  scheduled departure time.
• The buses are directed to the storage facility
  based on a pre-determined cut-off time, the
  difference between the time the bus is at the
  beginning of the entry ramp and its scheduled
  departure time.

17
Sensitivity Analysis - Continued

• When a storage facility is utilized, the average
  time buses spend on the busiest level goes down
  as much as 36 percent.

18
Expected Next Steps

• Explore operational improvements by
• Changing gate assignments
• Moving operations between levels
• Expanding operations by adding gates when
  feasible
• Expand the boundaries of the model to include a
  storage facility based on feasibility and use the
  model to
• Determine short-term and long-term storage
  requirements
• Study various layouts

19
Questions
