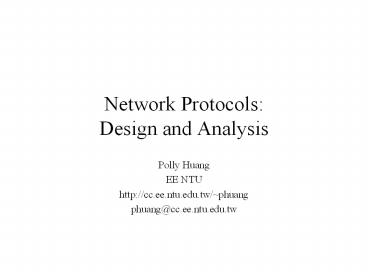

Network Protocols: Design and Analysis

1
Network Protocols Design and Analysis

• Polly Huang
• EE NTU
• http//cc.ee.ntu.edu.tw/phuang
• phuang_at_cc.ee.ntu.edu.tw

2
Internet Routing III

• Tsuchiya88a
• Labovitz00a

3
Landmark Routing Tsuchiya88a
4
Context

• fairly early in the Internet life
• before BGP-3
• before CIDR
• example of SIGCOMM wild idea paper

5
Key Idea

• Self-configuring hierarchy for routing with many
  routers

6
Why Landmark Routing?

• area routing requires knowledge of topology,
  maybe doesnt get best aggregration possible
• LM knows about internal structure of nearby
  nodes, even if in different AS
• dynamic address assignmenteasier to manage
• reduce size of routing table because address are
  automatic, and reassigned on-demand, can get
  better aggregation than area hierarchy
• could be more reliable if congestion because
  supports multiple (?)
• different approach than area routing

7
Landmark Routing Disadvantages

• dont always get shortest path but true about
  all routing protocols that have
  aggregation/policy
• admin control? (paper hints at approaches, but
  not fully explored)
• performance not fully explored?
• less info further away from destination,
  therefore more likely to get poor quality routes
  to it but no different from area routing
• performance of LM placement/config algorithms?
• combines routing and address (but so does area
  routing)
• addressing
• address may not be stable
• LM uses variable length address

8
Landmark hierarchy

• Details about things nearby and less information
  about things far away
• Not defined by arbitrary boundaries
• thus, not well suited to the real world that does
  have administrative boundaries
• (although he says something about adding admin
  boundaries)

9
A Landmark
9
8
6
7
5
11
3
10
4
Router 1 is a landmark of radius 2
1
2
10
Landmark Overview

• Landmark routers have height which determines
  how far away they can be seen (visibility)
• Routers within Radius n can see a landmark router
  LM(n)
• See means that those routers have LM(n)s address
  and know next hop to reach it.
• Router x as an entry for router y if x is within
  radius of y
• Distance vector style routing with simple metric
• Routing table Landmark (LM2(d)), Level(2), Next
  hop

11
LM Hierarchy Definition

• Each LM (Li) associated with level (i) and radius
  (ri)
• Every node is an L0 landmark
• Recursion some Li are also Li1
• Every Li is seen by at least one Li1
• Terminating state when all level j LMs see entire
  network

12
LM addresses

• LM(2).LM(1).LM(0) (x.a.b and y.a.b)
• LM level maps to radius (part of configuration),
  e.g.
• LM level 0 radius 2
• LM level 1 radius 4
• LM level 2 radius 8
• If destination is more than two hops away, will
  not have complete routing information, refer to
  LM(1) portion of address, if not then refer to
  LM(2)..(c would forward based on y in y.a.b)

c
13
LM Routing

• LM does not imply hierarchical forwarding
• It is not a source route
• En route to LM(1) may encounter router that is
  within LM(0) radius of destination address (like
  longest match)
• Paths may be asymmetric

14
LM self-configuration

• Bottom-up hierarchy construction algorithm
• goal to bound number of children
• Every router is L0 landmark
• All routers advertise themselves over a distance
• All Li landmarks run election to self-promote one
  or more Li1 landmarks
• Dynamic algorithm to adapt to topology
  changes--Efficient hierarchy

15
Landmark Routing Basic Idea
- Not shortest path - Packet does not
necessarily follow specified landmarks

• Source wants to reach LM0a, whose address is
  c.b.a
• Source can see LM2c, so sends packet towards c
• Entering LM1b area, first router diverts packet
  to b
• Entering LM0a area, packet delivered to a

16
Landmark Routing Example
17
Routing table for Router g
Router g
r0 2, r1 4, r2 8 hops
Router t
How to go from d.i.g to d.n.t? How does path
length compare to shortest path?
18
Evaluation

• analytic results
• but bounds not very helpful
• simulation
• routing table size (R)
• mean path length
• distance to nearby landmark
• (seems weak)

rtg table size
r/d radius/distance
mean path len
Figure 6 from Tsuchiya88a
19
Questions?
20
BGP Routing Convergence Times Labovitz00a
21
Context

• BGP widely deployed in the Internet
• but poorly understood

22
Key Idea

• convergence time takes longer we expected
• observes 2-3 minute convergence times (6x longer
  than expected!)
• bounds on BGP convergence O(n!) worst case,
  O((n-3)30s) n is number of ASes

23
Why is Convergence Important?

• robustness
• PSTN (telephone) failover times are in
  milliseconds
• Internet failover times are in 10s of seconds
• open research question how can Internet routing
  do much better?

24
Methodology

• experiments over Internet manually injected
  faults propagate across net
• simulation to study worst case behavior
• theoretical analysishelps understand worst case
  bounds
• traces of 2 years of convergence times

25
Methodology Picture
(Labovitz00a Figure 1)
Internet-scale experimentation. What kinds of
complexities arise? Have to be careful with real
routes
26
Observed Convergence Latency
Labovitz00a Figure 2a
Long tailed distribution (up to 15 minutes) more
msgs in longer waits long absolute times
27
Other Observations

• No correlation between network distance (latency,
  router, or AS hops) and convergence times
• Why is long convergence bad?

28
Affects on Traffic
(Labovitz00a figure 4a)
Why does loss go up? Theres always a direct
path? some people use old paths, routing loops
29
How To Tell Whats Going On?

• Simulate BGP
• model one router per AS
• assume full routing mesh
• ignore latency
• synchronous processing via global queue
• simple model that captures key details

30
Whats going on?

• there are many possible routes (indirect through
  other ASes) and it takes a long time w/BGP to
  figure out that none work
• BGP can try all paths of length 2, then 3, then 4
  gt O(n!) steps
• even with min-route-adver it still can take O(n)
  steps

31
BGP Convergence Example
32
What about MinRouteAdver?

• BGP has a minimum advertisement interval timer
• designed to limit updates
• and to encourage aggregation
• How does it affect convergence?
• by delaying announcements, routers figure out the
  pain sooner
• see section 5.2
• result n-3 rounds rather than n!

33
Does this explain measurements?

• Tup/Tshort converge quickly because they shorten
  path length and therefore are quickly accepted
• Tdown/Tlong converge slowly because BGP tries
  hard to find all alternatives
• Tlong actually sometimes goes quicker if its
  not long enough and can preempt some of the
  thrashing

34
Other Observations

• Could do loop detection at sender side and not
  just receiver side
• xxx

35
