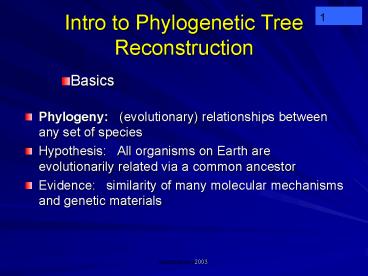

Intro to Phylogenetic Tree Reconstruction

1
Intro to Phylogenetic Tree Reconstruction

• Basics

• Phylogeny   (evolutionary) relationships between
  any set of species
• Hypothesis   All organisms on Earth are
  evolutionarily related via a common ancestor
• Evidence   similarity of many molecular
  mechanisms and genetic materials

2
Intro to Phylogenetic Tree Reconstruction

• Basics

• Phylogeny can be represented as a tree.
• 2 Types of Phylogenetics
• classic phylogenetics based on morphological
  characters
• modern phylogenetics based on information
  extracted from sequence data (DNA, RNA and
  proteins)
• based on characters sites on sequences
• Assumption
• Sequences have descended from common ancestral
  genes/species,but difficult to distinguish
  orthologues from paralogues
• Phylogenetic tree of a group of sequences does
  not necessarily represent the true phylogenetic
  tree of host species

3
Intro to Phylogenetic Tree Reconstruction

• Phylogenetic Trees

• leaves species
• internal nodes (hypothetical) ancestors
• nodes species or character values (states)
• edges evolutionary relationships between nodes
• edge lengths evolutionary distance between
  nodes (evolutionary time)
• restrict ourselves to binary trees only
• ok, as we can use distances of 0
• rooted vs. unrooted trees
• root represents the ultimate ancestor of the
  group of sequences(includes hierarchy)

4
Intro to Phylogenetic Tree Reconstruction

• Phylogenetic Tree Reconstruction (Inference)
  Problem

• Given
• n species
• m characters
• for each species, values for all characters
• Want fully labelled phylogenetic tree that
  'best' explains the given data (i.e. maximize a
  target function (score) )
• Assumptions
• characters are mutually independent
• after two species diverged, their further
  evolution is independent of each other
• Simple Solution check them all out and pick the
  best one
• problem too many possibilities to check
• n species -gt (2n-3)!! different rooted trees
• n 20 -gt 1021 trees

5
Intro to Phylogenetic Tree Reconstruction

• Distance-Based Algorithms

• Idea
• begin with a set of distances di between each
  pair i,j of seq.
• find the tree that predicts the observed sequence
  data as accurately as possible
• How to find the tree
• 1. general idea given pairwise distance dij and
  tree T predicting pairwise distance dij', find
  the T that minimizes SSQ(T) gt Least Squares
  Methodbut NP-complete

6
Intro to Phylogenetic Tree Reconstruction

• Distance-Based Algorithms

• 2. Clustering UPGMA (Unweighted Pair Group
  Method Using Arithmetic Averages)
• Idea cluster sequences at each stage, merge two
  groups and create a new node in the tree
• build the tree bottom up from the leaves
• result rooted tree with molecular clock property
  (MCP)
• 11 correspondence between distance and
  evolutionary time
• not always true in reality some sequences evolve
  faster
• If 'true' tree doesn't have MCP, UPGMA will give
  incorrect results

7
Intro to Phylogenetic Tree Reconstruction

• Distance-Based Algorithms

• 3. Clustering Neighbor Joining
• guarantees to generate correct tree in polynomial
  time if distance is additive
• (weaker than MCP, so more reasonable still, not
  always true)

8

• Phylogenetics and Phylogenetic Trees

9
Why do a phylogenetic analysis

• important for deciphering relationships in gene
  function and protein structure and function in
  different organisms
• helps to utilize genetic information of a model
  organism to analyze a second organism
• helps to sort out gene family relationships
• valuable tool for tracing the evolutionary
  history of genes

10
Performing a phylogenetic analysis

• Start with reasonable multiple sequence
  alignment
• Examine either sequence variation in each column
  or no. of differences between each pair of
  sequences
• Produce a tree representation of the sequences
  based on similarity/differences

11
Methods of evaluating sequence relationships

• sequence A ERKSIQDLFQSFTLFERRLLIEF
• sequence B ERLSISELIGSLRLYERRLIIEY
• sequence C DRKSISDLIGSLRLA---LLIEF
• sequence D DRK---DLISSLRKA---LLIEW
• 1. Account for all column variations
• A,B and C,D form similar groups
  based on col. 1
• A,C,D based on col. 3
• 2. Count differences between sequences
• A,B 17/23 similar, 6/23 different
• C,D 21/23 similar, 2/23 different
• C and D are very closely related by either method

12
What is a tree?

• a graphical representation of the sequence
  similarities among a group of nucleic acid or
  protein sequences

13
?????

• ?????????? ????????? ( Molecular Phylogenetics
  )- ??? ??? ????? ?????? ???????????? ???
  ??????????? ?? ???? ??? ????? ????? ?? ????????
  ????????? ?????? ?????????.
• ????? phylogeny ?????? ?????? ??? ????? ???
  ????? ???' ?? ???????? ( Phylogenetic Tree - PT
  ).

14
??????

• ????? ??? ?? taxonomic units , ?''? ??????
  ???? ?????? ?????? ???????? ?? ??????????.
• ????? ???????? ?? operational taxonomic units
  (OTUs)???????? ?? ??????????? ?? ?? ????? (???? ,
  ?? ????? ???).
• ????? ??????? ??????? ?? ??????????? ?? ?? ?????
  ?? ???????? ????? ????? ?????? ??????????? (??
  ????) ???????? ???' ??????? ????????.
• ????? ??? ???????? ?? ?????? ???? ???' ????? ???
  ?- scaled ?- unscaled edges . ?''? ???? ???? ????
  ????? ???? ?????? ( scaled ) ?? ??.

15
????? 1
Two alternative representations of a phylogenetic
tree for fife OTUs . (a) Unscaled branches
extant OTUs are lined up and nodes are positioned
proportionally to times of divergence. (b) Scaled
branches lengths of branches are proportional to
the numbers of molecular changes.
16
Example 1

• Two alternative representations of a phylogenetic
  tree for fife OTUs .
• (a) Unscaled branches extant OTUs are lined up
  and nodes are positioned proportionally to times
  of divergence.
• (b) Scaled branches lengths of branches are
  proportional to the numbers of molecular changes.

17
?????? - ????

• additive tree ??? ?? ?? ?????? ????? ??
  ?"????" ??? ????/?????????? ???????? ???, ???? ,
  ?- (b) ?? ???? ?????, ????? ????? ??? A ?- B ???
  213.
• ??? ???? ????? ??? ???? ????? ( rooted tree ) ??
  ??? ???? ( unrooted tree ) .

18
????? 2

• Rooted and
• unrooted phylogenetic trees .
• Arrows indicate the unique path leading from the
  root (R) to OTU D .

19
?????? - ????

• additive tree species tree ??? ?? ?????? ????.
• orthologous genes ???? ????? ?????
  ??????????? ?????.
• paralogous genes ???? ????? ????? ????? ????????

• homologous genes ???? ????? ???? ????.
• clade ( monophyletic group ) ???? ?????
  ???????? ??? ?????? ?? ???? ???? ??.

20
????? 3
Phylogenetic tree of birds , reptiles , and
mammals . The reptiles does constitute a natural
clade since they share ancestors with the birds ,
which are included in the Reptilia . Birds
and crocodiles , on the other hand , constitute a
clade ( Archosauria ) since they
share a common ancestor ( black box ) not shared
any other organism.
21
Phylogenetic Prediction

• A phylogenetic analysis of a family of related
  nucleic acid or protein sequences is a
  determination of how the family might have been
  derived during evolution.
• The evolutionary relationships among the
  sequences are depicted by placing the sequences
  as outer branches on a tree.
• The branching relationships on the inner part of
  the tree then reflect the degree to which
  different sequences are related.

22
Phylogenetic Prediction

• Two sequences that are very much alike will be
  located as neighboring outside branches and will
  be joined by a common branch beneath them.
• The object of phylogenetic analysis is to
  discover all of the branching relationships in
  the tree and the branch lengths.
• The chapter 6 of David Mounts Bioinformatics
  presents procedures for phylogenetic analysis,
  with an emphasis on the complexity of the problem
  and advice for solving difficult analyses.

23
Relationship of Phylogenetic Analysis to
Sequence Alignment

• The commonest method of multiple sequence
  alignment (CLUSTALW) is the progressive alignment
  method.
• The progress is supposed to represent a reliable
  history of the evolutionary changes that have
  occurred.
• A sequence alignment reveals which positions in
  the sequences were conserved and which diverged
  from a common ancestor sequence, as illustrated
  in the next slide.

24
Sequence similarity

• Origin of similar sequences.
• Sequences 1 and 2 are each assumed to be derived
  from a common ancestor sequence. Some of the
  ancestor sequence can be inferred from conserved
  positions in the two sequences.
• For positions that vary, there are two possible
  choices at these sites in the ancestor.

25

• Clusterization

26
Methods of tree reconstruction

• ???? ??? ????? ?????? ??
• ? Distance Matrix Method ( DMM )
• ? Maximum Parsimony Methods
• Maximum Likelihood Methods ?
• Method of Invariants ?
• Mount pp248-254

27
Maximum Parsimony Method

• This method predicts the evolutionary tree that
  minimizes the number of steps required to
  generate the observed variation in the sequences.
• A multiple sequence alignment is required to
  predict variation.
• For each aligned position, PT that require the
  smallest number of changes are identified.
• This method is used for sequences that are quite
  similar and for small number of sequences.
• One or more unrooted trees are predicted.

28
Maximum Parsimony Method

• The main programs are in the Phylip package
• 1. DNAPARS treats gaps as a fifth nucleotide
  state.
• 2. DNAPENNY branch and bound search
• 3. DNACOMP
• and so on and so fore

29
Methods of tree reconstruction

• ???? ??? ????? ?????? ??
• ? Distance Matrix Method ( DMM )
• ? Maximum Parsimony Methods
• Maximum Likelihood Methods ?
• Method of Invariants ?
• ??????? ?????? ???? ????? ?"????" ??? ??????
  (???????).
• ?????? ????? ??? ?????? ???? ???????? ??????.
• ?????? ??? ????? ?? ?????? ????? ??? ????
  (??????) ?? ??????? ??? ????? / ?????????? ??????.

30
Least Squares Method

• ????? , ???? ????? NP-complete, ????????? ???? ??
  ??? ?????????? UPGMA
• ( Unweighted Pair Group Method with Arithmetic
  mean ) .
• Input ?? Dij ?? distance matrix,
• ?? Wij ?? weights
• Find the tree T that minimizes SSQ(T)
• n
• SSQ(T) ??wij (Dij dij)²
• i1 i?j

31
UPGMA Unweighted Pair Group Method with
Arithmetic mean

• Initialization
• 1. Initialize n clusters with the given species,
  one species per cluster.
• 2. Set the size of each cluster to 1 .
• 3. In the output tree T, assign a leaf for each
  species.

32
UPGMA Unweighted Pair Group Method with
Arithmetic mean

• Iteration
• 1. Find the i and j that have the smallest
  distance Dij.
• 2. Create a new cluster - (ij), which has n(ij)
  ni nj members.
• 3. Connect i and j on the tree to a new node,
  which corresponds to the new cluster (ij), and
  give the two branches connecting i and j to (ij)
  length each.

33
UPGMA Unweighted Pair Group Method with
Arithmetic mean

• Iteration
• 4. Compute the distance from the new cluster to
  all other clusters (except for i and j, which are
  no longer relevant) as a weighted average of the
  distances from its components
• 5. Delete the columns and rows in D that
  correspond to clusters i and j, and add a column
  and row for cluster (ij), with D(ij),k computed
  as above.
• 6. Return to 1 until there is only one cluster
  left.

34
UPGMA Unweighted Pair Group Method with
Arithmetic mean

• Complexity
• The time and space complexity of UPGMA is O(n2),
  since there are n-1 iterations, with O(n) work in
  each one.

35
????? 4
(a) The true phylogenetic tree. (b) The
erroneous phylogenetic tree reconstructed by
using the UPGMA method , which does not take
into account the possibility of unequal
substitution rates along different branches .
36
Neighbor Joining (NJ)

• ????????? NJ ???? ???? ????? ?????? ??? ??????
  ?? Least Square Method.
• ???? ??? ???? ?? ???? ???? ????????. ?????? ???
  ???? ?? ?- clusters ??? ???? ?????? ??? ???? , ??
  ?????? ???? ???????? .
• ??? ??????? ????????? ???? ????? ?? ?- ancestor
  ????? ?? ??? species ???.
• ??? ????? i????? ui ???? ???? ?????? ??? ?????
  ???' ?????
•

•
  Dik


  ? ui ----------
•
  k?i (n-2)

• ?? ??? ?????? ?? ???????? ?? ???? ????? ??????
  (minimum-evolution criterion), ???????? i ?- j
  ?????? ?- cluster ???? ??? ?? ????????? ?? ???
  ?????? ???? ??
• Dij ui uj ??? ???? ?????. ??????? dk,(ij) ??
  ????? ????? ??????? ???' ????? ?? ???? ?????
  ???????? .

37
Neighbor Joining (NJ)

• Initialization same as in UPGMA
• 1. Initialize n clusters with the given species,
  one species per cluster.
• 2. Set the size of each cluster to 1 .
• 3. In the output tree T, assign a leaf for each
  species.

38
Neighbor Joining (NJ)

• Iteration
•
  Dik 1. For each species ,
  compute ui ? ------
•
  k?i (n-2)

• 2. Choose the i and j for which Dij ui uj
  is smallest .
• 3. Join clusters i and j to a new cluster
  (ij) , with a corresponding node in T .

• Calculate the branch lengths from i and j to
  the new node as
• di,(ij) ½ Dij ½(ui uj)
  , dj,(ij) ½ Dij ½(ui uj).
• 4. Compute the distance between the new cluster
  and each other cluster
• Dik Djk
  - Dij
• D(ij),k
  --------------------
•
  2

39
Neighbor Joining (NJ)

• Iteration
• 5. Delete clusters i and j from the tables, and
  replace them by (ij).
• 6. If more than two nodes ( clusters ) remain ,
  go back to 1. Otherwise , connect the two
  remaining nodes by a branch of length Dij .
• ??? ????? ?? NJ ??? O(n²) , ??? UPGMA.

40
Feng-Doolittle algorithm

• Sequence-sequence alignments usual pairwise.
• Sequence-group the highest scoring pairwise
  alignments determines the s-g alignment.
• Group-group again the best pairwise sequence
  alignment among all pairs.
• After an alignment is completed, gap symbols are
  replaced with a neutral X character.
