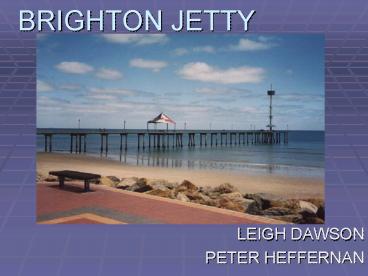

BRIGHTON JETTY

1
BRIGHTON JETTY

• LEIGH DAWSON
• PETER HEFFERNAN

2
HISTORY

• Original jetty built in 1886
• Constructed of timber supported on timber piles
  and crossheads.
• 206 metres long.
• Tee-head at western end.
• Destroyed on 24 May 1994 by heavy storms.

3
DESTRUCTION OF JETTY
4
HISTORY (2)

• New jetty constructed in 1995/96.
• Deck, beams, crossheads piles constructed of
  concrete.
• 209 metres long with jetty head.
• Mobile phone tower placed at centre of jetty head.

5
NEW JETTY
6
AIMS OF PRESENTATION

• Model jetty deck under following conditions
• Dead live load distributed over entire deck.
• Dead load distributed over entire deck, live load
  distributed on half of deck.
• Model one concrete pile under following
  conditions
• Stresses due to normal loading.
• Displacements in z direction.

7
ASSUMPTIONS

• Concrete Strength fc 50 MPa
• (AS3600, Table 4.3 in tidal or splash zone,
  Exposure classification C)
• Fixed at abutments.
• Live load 5 kPa (AS1170.1, Table 3.1, C3).
• Dead Load 7.6 kPa.
• Deck not constructed as a T-beam, but is a plate
  connected to two parallel beams.

8
DECK LAYOUT
9
MODELLING OF DECK

• Constructed by using 23 deck sections, each of
  length 8.54 m long.
• Consists of a deck connected to two beams that
  run below and in the same direction as the deck.
• These sit on cross heads that are in turn
  connected to two piles.

10
MODELLING OF DECK
11
MODELLING OF DECK
12
DECK MODEL

• First analysis involves the dead live load
  distributed over the entire deck.
• Analysed using concrete and also wood, to compare
  roughly how the jetty would have performed prior
  to being destroyed.
• Conclusions stresses remained approximately the
  same, displacements were different but
  displacement shape was the same.

13
DECK DISPLACEMENTS
14
DECK STRESS 11
15
DECK STRESS 22
16
BEAM DISPLACEMENTS
17
BEAM STRESSES
18
DECK MODEL

• Second analysis involved the dead load being
  distributed over entire deck and live load
  distributed on one half of the deck only.
• Analysed for concrete only.
• Conclusions Displacements greater on the side
  with the live load applied, but stresses slightly
  less.

19
DECK DISPLACEMENTS
20
DECK STRESS 11
21
DECK STRESS 22
22
MODDELLING OF PILE
23
PILE MODEL

• octagon cross section with a width of 406
  millimetres.
• 50 MPa concrete
• Length 13.5 metres
• Driven into sand assumed pressure onto pile of 17
  kN/m
• Load on top of pile taken as 16.6Kpa

24
PILE MODEL

• Displacement of the pile into the sand

25
PILE MODEL

• Brick Stress 11 22

26
PILE MODEL

• Plate Stress

27
MOBILE PHONE TOWER
28
MOBILE PHONE TOWER

• Analysis is difficult.
• It is expected that there will be a greater
  concentration of stresses and displacements
  around the base of the phone tower.
• Some resistance to these will be provided by the
  thicker deck section.

29
THATS ALL FOLKS!

• Thankyou and we hope you enjoyed the presentation
  brought to you by a concrete deck, a concrete
  beam and 16 kPa!
