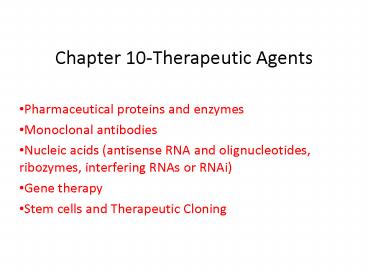

1Chapter 10-Therapeutic Agents
- Pharmaceutical proteins and enzymes
- Monoclonal antibodies
- Nucleic acids (antisense RNA and olignucleotides,
ribozymes, interfering RNAs or RNAi) - Gene therapy
- Stem cells and Therapeutic Cloning
2Table 10.1 Some recombinant proteins approved for
human use (15 billion-2001)
3Recombinant proteins-from http//en.wikipedia.org/
wiki/List_of_recombinant_proteins -10/1/08
- Human recombinants that largely replaced animal
or harvested from human types - Human growth hormone (rhGH) Humatrope from Lilly
and Serostim from Serono replaced cadaver
harvested human growth hormone - Human insulin (rhI) Humulin from Lilly and
Novolin from Novo Nordisk among others largely
replaced bovine and porcine insulin for human
therapy. Some prefer to continue using the
animal-sourced preparations, as there is some
evidence that synthetic insulin varieties are
more likely to induce hypoglycemia unawareness.
Remaining manufacturers of highly-purified
animal-sourced insulin include the U.K.'s
Wockhardt Ltd. (headquartered in India), Poland's
Polfa Tarchomin S.A., Argentina's Laboratorios
Beta S.A., and China's Wanbang Biopharma Co. - Follicle-stimulating hormone FSH replaced
Serono's Pergonal which was previously isolated
from post-menopausal female urine - Factor VIII Kogenate from Bayer replaced blood
harvested factor VIII - Human recombinants with recombination as only
source - Erythropoietin (EPO) Epogen from Amgen
- Granulocyte colony-stimulating factor (G-CSF)
filgrastim sold as Neupogen from Amgen
pegfilgrastim sold as Neulasta - alpha-glactosidase A Fabrazyme by Genzyme
- alpha-L-iduronidase (rhIDU laronidase)
Aldurazyme by BioMarin Pharmaceutical and Genzyme - N-acetylgalactosamine-4-sulfatase (rhASB
galsulfase) Naglazyme (TM) by BioMarin
Pharmaceutical - DNAse Pulmozyme by Genentech
- Tissue plasminogen activator (TPA) Activase by
Genentech - Glucocerebrosidase Ceredase by Genzyme
- Interferon (IF) Interferon-beta-1a as Avonex from
Biogen Idec Rebif from Serono Interferon
beta-1b as Betaseron from Schering - Insulin-like growth factor 1 (IGF-1)
- Animal recombinants
- Bovine somatotropin (bST)
- Porcine somatotropin (pST)
4Cloning and expression of a foreign protein in a
suitable host
- Expression systems are based on the insertion of
a gene into a host cell for its translation and
expression into protein. Host cells include - Bacteria - e.g. Escherichia coli (E.coli),
Bacillus subtilis (B. subtilis) - Yeast
- Cultured insect cells
- Cultured mammalian cells
- The choice of cell type used depends upon the
protein to be expressed. All require DNA to be
cloned into the an appropriate vector. - Advantages of bacterial cells
- simple physiology
- short generation times, as bacteria grow and
multiply rapidly - large yields of product - up to 10 of mass (low
cost) - With B. subtilis and some others, it is possible
to induce secretion of a gene product into the
surrounding medium. This method is in use in the
pharmaceutical industry in the production of
hormones such as insulin and human growth
hormone. - Disadvantages of bacterial cells
- The expressed proteins often do not fold properly
and so are biologically inactive. - The synthesised protein is often toxic to
bacteria preventing the cell cultures from
reaching high densities. A solution to this
problem is to incorporate an inducible promoter,
which may be turned on to transcribe the inserted
gene after the culture has been grown - Lack of enzymes responsible for
post-translational modifications (effect on
function of proteins), eg if the protein to be
expressed is a glycoprotein, there is not
apparatus in the bacterium to 'stick on' the
necessary sugar residues. - Advantages of yeast cells
- Yeast is a simple eukaryote and performs many of
the post-translational modifications required for
human proteins - Can be induced to secrete certain proteins into
the growth medium for harvesting - e.g. Hepatitis
B virus (HBV) vaccine. - Disadvantages of yeast cells
5Use of an appropriate expression vector and host
Example A simple E. coli expression vector
utilizing the lac promoter. (a) The expression
vector plasmid contains a fragment of the E. coli
chromosome containing the lac promoter and the
neighboring lacZ gene. In the presence of the
lactose analog IPTG, RNA polymerase normally
transcribes the lacZ gene, producing lacZ mRNA,
which is translated into the encoded protein,
b-galactosidase. (b) The lacZ gene can be cut out
of the expression vector with restriction enzymes
and replaced by the Granulocyte-Colony
Stimulating Factor G-CSF cDNA. When the resulting
plasmid is transformed into E. coli cells,
addition of IPTG and subsequent transcription
from the lac promoter produces G-CSF mRNA, which
is translated into G-CSF protein.
6Table 10.3 Some therapeutic monoclonal antibodies
approved for human use
7Antibody Structure
- Antibodies are immune system-related proteins
called immunoglobulins. Each antibody consists of
four polypeptides two heavy chains and two light
chains joined to form a "Y" shaped molecule. -
- The amino acid sequence in the tips of the "Y"
varies greatly among different antibodies. This
variable region, composed of 110-130 amino acids,
give the antibody its specificity for binding
antigen. The variable region includes the ends of
the light and heavy chains. Treating the antibody
with a protease can cleave this region, producing
Fab or fragment antigen binding that include the
variable ends of an antibody. - The constant region determines the mechanism used
to destroy antigen. Antibodies are divided into
five major classes, IgM, IgG, IgA, IgD, and IgE,
based on their constant region structure and
immune function.
8Fig. 10.27 Inhibition of translation of specific
RNA by antisense nucleic acid molecules
Promoter antisense cDNA poly A addition signal
-antisense RNA complex
mRNA
antisense oligonucleotide
9Fig. 10.30 Ribozymes A. Hammerhead B. Hairpin
10Fig. 10.34 RNA interference (RNAi)
dsRNA
sense
antisense
Binding of dsRNA-specific nuclease
Nuclease-ssRNA complex Hybridizes to mRNA
cleavage
mRNA is cleaved!
- A cellular nuclease binds to the dsRNA cleaving
it into ssRNAs of 21-23 nucleotides each. - The nuclease-RNA oligonucleotide complex binds
and cleaves specific mRNA.
11Table 10.5 Human gene therapy( clinical trials
1990-1999)
- AIDS (19)
- Amyotrophic lateral sclerosis
- Cancer (280)
- Cardiovasc. dis. (20)
- Cystic fibrosis (24)
- Familial hypercholesterolemia
- Gaucher disease (3)
- Hemophilia A (2)
- Hemophilia B (2)
- Hunters disease
- Multiple sclerosis
- Muscular dystrophy
- Rheumatoid arthritis
- Severe combined immunodeficiency (3)
12Consider somatic vs germline gene therapy the
later is currently banned. Note that gene therapy
is limited to somatic cells and disorders that
are caused by a single gene.
13Two types of gene therapy
- Ex vivo -cells are removed from the body, the
gene of interest is inserted into them, the cells
are cultured to increase cell numbers, and they
are returned to the body by infusion or
transplantation (time consuming and expensive) - In vivo -a gene is introduced directly into
specific cells within the body (quick and
inexpensive), but targeting certain cells (e.g.,
bone marrow stem cells) is difficult
14Vectors/methods used to deliver genes in Human
Gene Therapy
- Retroviruses
- Adenoviruses
- Adeno-associated viruses
- Herpes simplex virus
- Liposomes
- Naked DNA
15(No Transcript)
16Human gene therapy( clinical trials 1990-1999)
- AIDS (19)
- Amyotrophic lateral sclerosis
- Cancer (280)-p53
- Cardiovasc. dis. (20)
- Cystic fibrosis (24)
- Familial hypercholesterolemia
- Gaucher disease (3)
- Hemophilia A (2)
- Hemophilia B (2)
- Hunters disease
- Multiple sclerosis
- Muscular dystrophy
- Rheumatoid arthritis
- Severe combined immunodeficiency (3)
17Severe Combined ImmunoDeficiency (SCID)
- See http//www.scid.net/about.htm
- How is ADA deficiency treated?
- There are no real cures for ADA deficiency, but
doctors have tried to restore ADA levels and
improve immune system function with a variety of
treatments - Bone marrow transplantation from a biological
match (for example, a sibling) to provide healthy
immune cells - Transfusions of red blood cells (containing high
levels of ADA) from a healthy donor - Enzyme replacement therapy, involving repeated
injections of the ADA enzyme - Gene therapy - to insert synthetic DNA containing
a normal ADA gene into immune cells
6-yr-old Ashanthi DeSilva-SCID sufferer treated
with gene therapy-coloring at home in N Olmstead,
OH (March 1993).
18Cystic fibrosis transmembrane conductance
regulator protein (CFTR)
CFTR involved with chloride ion transport out of
cells if defective Cl- builds up inside cells
and draws water inside resulting in a sticky,
sugar-rich extracellular mucus.
19Is gene therapy safe?
- What do you think?
- Jesse Gelsinger story
- Jesse Gelsinger (June 18, 1981 - September 17,
1999) was the first person publicly identified as
having died in a clinical trial for gene therapy.
He was 18 years old. Gelsinger suffered from
ornithine transcarbamylase deficiency, an
X-linked genetic disease of the liver, whose
victims are unable to metabolize ammonia - a
byproduct of protein breakdown. The disease is
usually fatal at birth, but Gelsinger had not
inherited the disease in his case it was the
result of a genetic mutation and as such was not
as severe - some of his cells were normal which
enabled him to survive on a restricted diet and
special medications. - Gelsinger joined a clinical trial run by the
University of Pennsylvania that aimed to correct
the mutation. On Monday, September 13 1999,
Gelsinger was injected with adenoviruses carrying
a corrected gene in the hope that it would
manufacture the needed enzyme. He died four days
later, apparently having suffered a massive
immune response triggered by the use of the viral
vector used to transport the gene into his cells.
This led to multiple organ failure and brain
death. Gelsinger died on Friday, September 17th
at 230 PM. - A Food and Drug Administration (FDA)
investigation concluded that the scientists
involved in the trial, including the lead
researcher Dr. James M. Wilson (U Penn), broke
several rules of conduct - Inclusion of Gelsinger as a substitute for
another volunteer who dropped out, despite having
high ammonia levels that should have led to his
exclusion from the trial - Failure by the university to report that two
patients had experienced serious side effects
from the gene therapy - Failure to mention the deaths of monkeys given a
similar treatment in the informed consent
documentation. - The University of Pennsylvania later issued a
rebuttal 1, but paid the parents an undisclosed
amount in settlement. The Gelsinger case was a
severe setback for scientists working in the
field.
20Stem Cells
- Stem cells are the progenitors of many different
cell types, depending upon which type of stem
cell is used (e.g., bone marrow stem cells,
neural stem cells, embryonic stem cells) - Stem cell therapy-the goal is to repair damaged
tissue (e.g. Parkinsons disease, spinal cord
