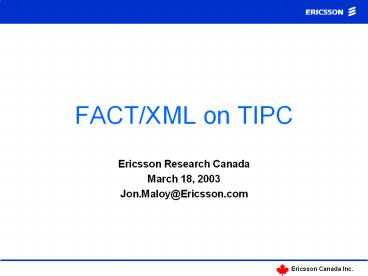

FACT/XML on TIPC

1
FACT/XML on TIPC

• Ericsson Research Canada
• March 18, 2003
• Jon.Maloy_at_Ericsson.com

2
Background

• Ericsson has built a functional prototype of
  FACT using XML over a reliable transport
  protocol TIPC
• TIPC will be included in the Carrier-Grade Linux
  2.0 release and is available as open source under
  GPL http//tipc.sourceforge.net
• One purpose was to investigate if XML is a
  suitable encoding language for ForCES.
• Another purpose was to demonstrate the
  feasibility of TIPC as a base protocol for ForCES
  both during pre-association and post-association
  phases.

3
TIPC

• Logical addressing scheme providing full location
  transparency
• Subscription of availability/non-availability of
  services/nodes
• Agile Connections
• Easily Portable
• Runs on different interconnect technologies Raw
  Ethernet, ATM/AAL5,PCI,UDP,TCP,SCTP..

4
Interconnect Technologies
FACT
FACT
FACT
TIPC
TIPC
TIPC
Ethernet
UDP
SCTP
IP
IP
Ethernet
ATM/AAL5
5
Examples of CE-FE Configurations
CE
CE
CE
RP
RP
RP
RP
RP
RP
B
A
C
A
A
A
B
A
C
Hot/Stand-by
N1 redundancy/ Load Sharing
No redundancy
6
Location Transparency
CE
RP
RP
RP
B
A
C
B
A
C
7
Location Transparent Failover
CE
RP
RP
RP
B
A
C
B
A
C
8
Start Synchronization/Topology Detection
CE
RP
A
9
Start Synchronization/Topology Detection
CE
RP
A
B?
10
Start Synchronization/Topology Detection
CE
RP
RP
B
A
11
Carrier Supervision Redundancy
CE
RP
RP
RP
B
A
C
Eth.Switch
Eth.Switch
B
A
C
Host Processor
NPU
12
Demo

• Design of FACT/XML carried on TIPC done at
  Ericsson Research Canada by Rachid Nait
  Takourout, École Polytechnique de Montréal
• 42000 add-routes/sec between two P4 over Ethernet

13
Demo

• Design of FACT/XML carried on TIPC done at
  Ericsson Research Canada by Rachid Nait
  Takourout, École Polytechnique de Montréal
• 42000 add-routes/sec between two P4 over Ethernet

14
Demo

• Design of FACT/XML carried on TIPC done at
  Ericsson Research Canada by Rachid Nait
  Takourout, École Polytechnique de Montréal
• 42000 add-routes/sec between two P4 over Ethernet

RP
RP
A
B
A
15
Coming Soon

• An internet draft describing TIPC and how it can
  be used as a base protocol both for a pre- and
  post-association Forces Protocol
• http//tipc.sourceforge.net
