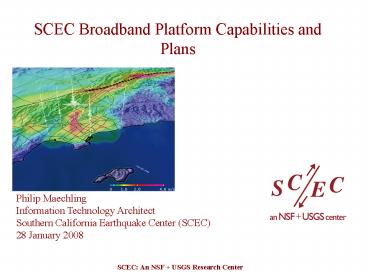

SCEC Broadband Platform Capabilities and Plans

1
SCEC Broadband Platform Capabilities and Plans
Philip MaechlingInformation Technology
ArchitectSouthern California Earthquake Center
(SCEC)28 January 2008
2
Running a Simple BBP Example

• Purpose
• Calculate 10Hz seismograms (and spectral
  amplitudes) using a combinations of codes.
• Combine Results of Available Codes
• Rupture Generators URS and UCSB
• Low Frequency Codes URS and UCSB
• All codes use 1D velocity models for low
  frequency calculations.
• High Freq Codes URS and UCSB and SDSU/ETH

3
Broadband Platform Workflow
Greens Functions
Amps
4
Running a Simple BBP Example

• Select the collection of codes you would like to
  run and type in the number of that set of codes.

5
Input a Rupture Description
6
Input a Station Location File
7
Input a Station 1D Velocity Model
8
Running a Simple BBP Example

• Login into the SCEC computer (intensity.usc.edu)
• User account bband
• Pwd TBD
• Move to the configuration directory
• Type start
• This is an alias that will move you to the
  configuration directory
• Review the three input files
• Eq.src Earthquake Source Description
• Stations.ll Station Locations in Lat/lon
  (decimal degrees)
• BB01-01.vld velocity model
• Run the platform by typing
• Type run_bbp.py
• This is the name of the top level BB Platform
  script

9
BB Platform Directory Structure

• Every simulation is assigned a simulation id
• This is basically a timestamp (epoch seconds)
• Will wrap in about 3 months
• Information about a simulation is keyed to this
  number
• Input, tmp, and output directories are created
  for a simulation and the files related to the
  simulation are stored in these directories
• The user should only need to look at the data
  directory, the output directory that contains the
  broadband seismograms and the metadata file.

10
BB Platform Directory Structure

• To help keep track of how seismograms were
  created, a metadata.txt file is created for
  each simulation.
• This lists the programs and the parameters used
  to create the seismograms.

11
BB Metadata File Structure
12
Broadband Platform Hanging Wall Exercise
13
Broadband Platform Seismograms
14
Broadband Platform Station SA Amplitudes
15
BB Platform Directory Structure

• Platform is designed by creating components
  that can be interchanged.
• A component is a python script that wraps all the
  executables and scripts needed to do that
  processing.

16
BB Platform Directory Structure

• Next Steps
• Distribute programs so that we can run on
  supercomputers.
• Add new components by creating new components
  using new codes
• Integrate capability to run 3D low frequency
  simulations
• Integrate capability to just run HF part to add
  HF to low frequency seismograms.

17
End
