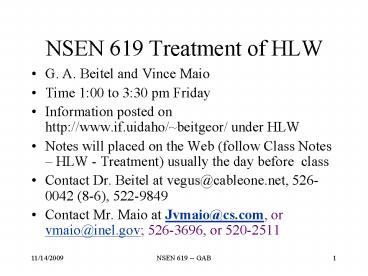

NSEN 619 Treatment of HLW

1
NSEN 619 Treatment of HLW

• G. A. Beitel and Vince Maio
• Time 100 to 330 pm Friday
• Information posted on http//www.if.uidaho/beitge
  or/ under HLW
• Notes will placed on the Web (follow Class Notes
  HLW - Treatment) usually the day before class
• Contact Dr. Beitel at vegus_at_cableone.net,
  526-0042 (8-6), 522-9849
• Contact Mr. Maio at Jvmaio_at_cs.com, or
  vmaio_at_inel.gov 526-3696, or 520-2511

2
Resource Materials

• Text Engineering for Nuclear Fuel Reprocessing,
  by Justin T. Long, American Nuclear Society
  1978,  ISBN 0-89448-012X
• Have used
• Scientific Basis for Nuclear Waste Management,
  Materials Research Society (Volume 333)
  (Conference Proceedings on High Level Waste not
  required, too hard to obtain
• Management Alternative HLW Treatments at INEEL,
  National Academy Press, 1999. Available to read
  free at NAP
• IDB free from Net
• Chart of the Nuclides Required, Recommended
  text.
• 10 CFR 60, 10 CFR 63- Free from Net
• Cs-Sr Separation at Hanford Will be provided
• Handouts and articles
• Manson, Pigford, and Levi recommended Alternative
  to Long excellent resource (100), but out of
  print.

3
Course details

• Topics On Home Page http//www.if.uidaho.edu/bei
  tgeor/
• Then select Programs HLW
• Then Grading On Home page
• Then Lectures

4
Internet document sites

• Lots of documents, free for downloading
• We will share useful sites
• http//www2.em.doe.gov/idb97/
• Also see http//enterprise.eh.doe.gov/
• Use Internet Explorer Netscape wont load menu
• http//www2.em.doe.gov/waps/index.html
• See Links on my Home Page Lots of DOE
  material and Codes and Standards are available
  from Tech library from an INEEL computer that is
  not available from home.
• Unfortunately, 9/11 caused many sites to take
  some of the better material off. Much is coming
  back.

5
Why HLW, not TRU?

• We will learn the difference.
• Originally the course was Treatment of
  Radioactive Waste.
• Split was made to cover Incineration and Cement
  in LLW and Separations and Glass in HLW.
• The Nuclear industry is in doldrums because of
  inability to treat and dispose of HLW TRU is a
  DOE problem. The course title dominates. INEEL
  is attempting to reclassify last of liquid HLW as
  TRU. These are political issues, not academic or
  technical.
• This is very terse. You will be expected to have
  a good command of this distinction.

6
Review of Nuclear PhysicsSimilar to LLW Waste
Class

• Binding Energy
• Fission Yield
• FP Decay
• Long Term Decay

7
(No Transcript)
8
(No Transcript)
9
Typical LWR Commercial Fuel Bundle. Probably a
14x14 in array weighing around 1000 lbs
10
(No Transcript)
11
(No Transcript)
12
Nuclear Waste - Regulations

• 10 CFR 20 10 CFR 60 10 CFR 61 10 CFR 63, and
  40 CFR 191
• These regulations tell what and how well to
  dispose of.
• These regulations do not tell how to treat, but
  define the requirements for disposal.
• We treat to meet the requirements for disposal.

13
Waste Management Regulations

• 10 CFR 20.2001 through 2005 in essence defines
  radioactive
• waste by what you can do with Radioactive
  Material
• You can
• Keep
• Transfer
• Decay
• Vent - if less than Table 2 of Appendix B
• Flush - if less than Table 3 of Appendix B
• Incinerate
• Environmentally Safe 40 CRF 190
• Dispose of per 10 CFR 60, or
• Dispose of per 10 CFR 61
• All are required for HLW treatment
• In DOE, we must also include WIPP WAC

14
Alternatives Requiring Treatment
Vent
Incinerate

• Operation
• Use
• Process
• Store

Radioactive Material
Transfer
Treat
Dispose of
Flush
15
10 CFR 20 Appendix B

• Use for effluents and airborne contaminants in
  occupational areas
• Note only low concentrations (10E-8 to 10E-7
• allowable)
• Appreciate that it is Safety Based
• Human Safety takes precedence over Table values
• With HLW, 10 CFR 20 is primarily applicable to
• the effluent streams.

16
Waste Disposal Regulations

• 10 CFR 60
• High Level Waste the scope of this class
• To the extent that TRU requires the same
  treatment, or is destined for a similar
  repository, or is a fraction of HLW, it will also
  be included.
• 10 CFR 63
• Governs the disposal of HLW at Yucca Mtn.
•  10 CFR 61
• Low Level Radioactive Waste NSE 618
• Also not included in class are UMTRAP, FUSRAP,
  and NARM

17
10 CFR 61 General Requirements

• License based on human health and safety (10
  CFR 61.23)
• Performance Objectives (10 CFR 61.41-44)
• 25 mRem whole body dose or individual organ
• 75 mRem thyroid
• Protect inadvertent intruder (waste form)
• Long term site stability after closure
• (waste form, no voids)
• Control Based on Waste Classes A, B, C
• If Greater Than Class C one should technically
• go to 10 CFR 60, However, this is actually a
• politically sensitive issue)

18
10CFR 61.56 - General Waste Characteristics

• No cardboard containers
• No free liquid (lt 1)
• No explosives
• No toxic or pressurized (1.5 atm) gas
• No pyrophorics
• Minimum hazardous, pathogenic and infectious

19
10 CFR 61.56 - Specific Characteristics (allocable
to waste or container)

• Stability against slumping, collapse, or
  failure
• of the unit
• Stability against moisture, microbes, radiation
• lt1 liquid in container or lt0.5 in stable
  waste
• Minimum void volume (not specified in
  regulation, but it is generally accepted to be
  lt15 vol void

20
High Level Waste

• 10 CFR 60
• Includes Spent Fuel, first cycle raffinate
  (liquid from the first cycle solvent extraction,)
  and solids derived from first cycle raffinate
• We include Transuranic Wastes in this course
• First cycle raffinate derived from fuel
  reprocessing
• We will address 10 CFR 63 later

21
Fuel Reprocessing

• Dissolve clad fuel, (dissolve fuel and cladding
  or declad and dissolve fuel only)
• Extract U, Pu, or both, or FP only
• Fuel is measured in terms of MTHM or MTIHM
• Specifically, MWd/MTIHM (burn-up)
• We will learn to have a sense of concentrations
  of FP and TRU elements

22
MWD/MTIHM

• Megawatt-days/metric ton irradiated heavy metal

23
MWD/MHIHM

• Key measure in Spent fuel and HLW
• MWD is energy
• Energy is E mc2
• m can be computed as tons/ton burnup
• Since m appears as fission products, MWD/MTHM is
  a direct measure of
• activity
• reactivity

True, but the mass, m, is the difference in the
mass of the fissionable material (U-235), and the
masses of the fission products and neutrons and
protons ejected. That mass difference is easier
thought of in terms of binding energy.
24
Primary Program

• Yucca Mountain HLW Repository Wannabe
• Initial Search goes back to 1957
• First approach was Salt Lyons Kansas then
  side-tracked to WIPP
• Nevada always a prime candidate
• Waste Policy Act of 1981 established a 3-way
  search
• Only Nevada Survives

25
Yucca Mountain Status

• See http//www.ymp.gov/

26
Pu Concentrations of Fuel

• Depends on reactor
• Commercial Reactors use 3.5 to 5 U-235 enriched
  fuel (50 kg/ton)
• If you remove the fuel at 1, then Pu may be
  around 2-3 (20 30 kg/ton)
• If you extract 99.5 of the Pu, you have 0.5 (of
  the 2-3 produced) left in the waste (10 15
  g/ton)
• But ton of heavy metal to compare against the
  waste the solids in the HLW from a ton of fuel
  consist principally of the fission products (20
  40 kg) plus some chemicals, lets suppose
  another 20 kg.
• So the concentration of Pu is now 10 g in the 60
  kg of HLW solids or about 200 ppm
• 0.02 200 ppm -- TRU lower limit 2 ppm
• Typically gt100 times the TRU limit.

27
The Problem

• Transuranics (Np, Pu, Am, Cm) and Actinides (Ac,
  Th, Pa, U plus TRU)
• Long-lived beta/gamma emitters
• Ultimately dominated by Actinides Am(241 and
  243), Pu(239 and 240), and Np-237
• and, Fission and Activation products I-129,
  Tc-99, C-14, Nb-94

28
The Problem, cont.

• First 1000 years, HLW has both high Radiation and
  Thermal
• Radiation is high enough to cause material
  damage dislocations, embrittlement, stored
  energy, degradation of polymers, radiolysis
• Thermal implies there is enough heat to raise
  temperatures to 700 - 800 C
• After 1000 yr, HLW equivalent to TRU

29
The Solution

• Deep Geologic Disposal (see 10 CFR 60)
• 10,000 -100,000 year confinement
• Allocate first 1000 years to Waste Container
• Next 10,000 years to Waste Form
• Next 100,000 years to Geologic Media
• 10 CFR 63 changed this to less than one chance in
  10,000 over 10,000 years that Performance Goals
  will be exceeded

30
Geologically Stable Materials
Formations seriously considered for repositories
31
Stable Man-Made Materials

• Glass
• Bricks
• Hydraulic Cements

32
10 CFR 63

• See file Named Key Items in 10 CFR 63 (also read
  10 CFR 63)
• 10 CFR 63 is Yucca Mtn specific
• It allocates everything to the license which
  allocates containment assurance to design and the
  performance assessment
• Does not place requirements on the waste form
• Waste form requirements contained in the Waste
  Acceptance Criteria Document

33
Homework

• See Homework file
