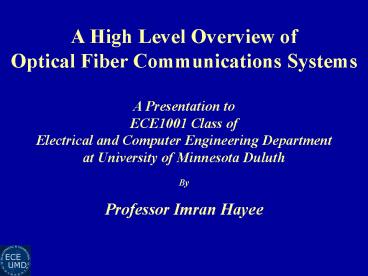

A High Level Overview of Optical Fiber
Communications Systems A Presentation to ECE1001
Class of Electrical and Computer Engineering
Department at University of Minnesota
Duluth By Professor Imran Hayee
2
Worldwide Fiber Deployment
Deploying Fiber at the speed of Mach 3
Optical Fiber
In 2001, fiber was deployed at a rate of 2000
miles every hour
T. Li A.R. Chraplyvy, 2001
3
Outline

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities

4
Outline

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities

5
Optical Fibers

Single Mode Fiber
Core diameter 8µm
r
0
A wonder of total internal reflection
6
Low Attenuation and High Bandwidth
25 Tbit/sec

• Fiber attenuation is 0.2 dB/km at around 1550 nm
• The bandwidth around low attenuation is 25 Tb/sec

7
Generic Optical Communication System
Transmission Fiber
Light Source
Modulator
Detector
Demodulator

Electronic Data
Electronic Data
Transmitter
Receiver
8
Outline

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities

9
Old TDM Optical Fiber Transmission Systems
10
Erbium-Doped Fiber Amplifiers
EDFA
Input
Output
Channels
Channels
Single light wavelength is amplified after
passing through EDFA
11
Erbium-Doped Fiber Amplifiers
EDFA
Input
Output
Channels
Channels
Single light wavelength is amplified after
passing through EDFA not only that!
12
Erbium-Doped Fiber Amplifiers
EDFA
Input
Output
Channels
Channels
Single light wavelength is amplified after
passing through EDFA not only that! Multiple
Wavelengths are amplified without affecting each
other
13
Low Attenuation and High Bandwidth


About 3 Tbits/sec bandwidth could be used using
EDFAs which is still 10 of total fiber bandwidth
14
Wavelength-Division-Multiplexing (WDM)
Optical Fiber
Gain Region
Data _at_ Different Wavelength
Optical amplifiers have opened the door to WDM
Communications onto the single fiber
Alan Willner, IEEE Spectrum, April 1997
15
WDM Optical Fiber Transmission Systems
16
Outline

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities

17
Limitations of Fiber Systems
Amplifiers
PMD
Crosstalk
Nonlinearities
Dispersion
25 Tb/s
We are approaching fundamental limits !!
Experimental
Capacity (Gb/s)
Commercial
80
82
84
86
88
90
92
94
96
98
00
02
Year
18
Mathematical Model of Fiber
Nonlinear Schrödinger Equation

• A Envelope of Optical Wave
• b1 Accounts for Phase Delay
• b2 Accounts for Dispersion
• b3 Accounts for Dispersion Slope
• a Accounts for Loss
• g Accounts for Nonlinearities
• TR Accounts for Raman Gain

19
Outline

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities

20
Origin of Fiber Dispersion
Different wavelengths in the fiber travel with
different speeds
vj
Information Bandwidth of Data
vi
vk
Fourier
vvelocity
0 1 1 0 1 0
transform
freq.
fCarrier
Time
Temporal Pulse Spreading
F distance, (bit rate)2
21
Chromatic Dispersion and Achievable Bit Rate
No distortion of output bit stream
2.5 Gbit/s
Optical fiber
Distance 0 km
100 km
Large distortion of output bit stream
10 Gbit/s
Optical fiber
Distance 0 km
100 km
Dispersion induced 1-dB Power Penalty
2.5 Gb/s 16,640 ps/nm 980 km
SMF 10 Gb/s 1,040 ps/nm
60 km SMF 40 Gb/s 65 ps/nm
4 km SMF
22
Chromatic Dispersion Curve
20
17 ps/nm.km
Conventional
15
Nonzero-dispersion
Dispersion-shifted
10
2 ps/nm.km
5
Dispersion (ps/nm.km)
0
ps/nm.km
0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
? (?m)
-5
-10
-15
-20
While different types of fiber may have different
zero-dispersion points, the dispersion of almost
all commercially available fibers varies with
wavelength.
Tingye Li, Lightwave Communications, 1998
23
Fiber Bragg Grating
?B ?i
Cladding
?i
Core
?j
?B ? Bragg reflection wavelength
24
Chirped FBG
f2
f3
f1
f2
f1
f3
Chirped FBG
?0
Dispersion comp. at
Relative

Time
Delay (ps)
?0
Wavelength (nm)
Linearly Chirped
Dispersion dT/d ? (ps/nm)
25
FBG and Dispersion Compensation
Fiber Dispersion
FBG Disp. Comp.
26
Outline

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities

27
Origin of Fiber Nonlinearities
n(? , P)
n n0(?) n2(P)
Index of Refraction
nonlinear index coefficient

• Self-phase Modulation (SPM)
• Cross-phase Modulation (XPM)
• Four-wave Mixing (FWM)
• Stimulated scattering

A photons behavior in the glass is dependent on
how many other photons are in the vicinity (i. e.
the optical power or intensity)
28
Self- and Cross-Phase Modulation
SPM
XPM
Both self- and cross-phase modulation cause
signal distortion and therefore impose a limit on
bit rate and transmission distance.
29
Four Wave Mixing
Optical third-order inter-modulation.
FWM causes severe inter-channel interference and
therefore severely limits the WDM system
performance
30
Four Wave Mixing
Optical third-order inter-modulation.
FWM causes severe inter-channel interference and
therefore severely limits the WDM system
performance
31
What Does Fiber Nonlinearity Do?
Data
Encoder
FEC
Fiber/Amplifier Chain
Clock
Driver
Decoder
Receiver
DMUX D C U
MU X D C U
Fiber
Mod
Mod
PD LPF
Q
FEC
Gain Equalizer
Laser
Pump-Signal Combiner
RZ
NRZ
WDM Transmitter
WDM Receiver
Raman Pumps
Raman Pumps
Input Eye Diagram
Output Eye Diagram
32
Q-Factor and BER
m
s
,
Eye Diagram
1
1
Decision
Level
Output Voltage
m
s
,
0
0
Sampling Time Interval
33
What Does Fiber Nonlinearity Do?
Data
Encoder
FEC
Fiber/Amplifier Chain
Clock
Driver
Decoder
Receiver
DMUX D C U
MU X D C U
Fiber
Mod
Mod
PD LPF
Q
FEC
Gain Equalizer
Laser
Pump-Signal Combiner
RZ
NRZ
WDM Transmitter
WDM Receiver
Raman Pumps
Raman Pumps
Goal
Longer Distance More Channels
Input Eye Diagram
Output Eye Diagram
34
What Does Fiber Nonlinearity Do?
Data
Encoder
FEC
Fiber/Amplifier Chain
Clock
Driver
Decoder
Receiver
DMUX D C U
MU X D C U
Fiber
Mod
Mod
PD LPF
Q
FEC
Gain Equalizer
Laser
Pump-Signal Combiner
RZ
NRZ
WDM Transmitter
WDM Receiver
Raman Pumps
Raman Pumps
Goal
Longer Distance More Channels
Input Eye Diagram
Output Eye Diagram
35
Nonlinearity Limits the Transmission Distance
Back to Back
5000 km transmission
7500km transmission
Nonlinearity limits the system performance
36
Nonlinearity Limits the Number of Channels
7500km _at_ 10Gb/s
Channel Spacing
With increasing channel spacing,
cross-phase-modulation and four-wave-mixing
decrease and system performance improves.
37
Dispersion Management Techniques
Positive Dispersion Transmission Fiber
Negative Dispersion Element
Dtotal 0
Dispersion (ps/nm)
D
-D
D
-D
D
-D
Distance (km)
38
How Does Dispersion help reduce Nonlinearities?
Fiber Dispersion
0 km
10 km
20 km
39
Raman Amplifier vs. EDFAs
EDFA System
Raman System
Raman amplification allows 30 of fiber
bandwidth to be used
40
How do Raman Amplifiers reduce Nonlinearities?
EDFA
Raman
Path average power in EDFA system is 1 dB larger
than that of Raman System
41
System Performance Comparison
11.5Gb/s _at_ 7500km 75km Spans
Dispersion Managed Raman Q 15.0 dB
Dispersion managed EDFA Q 12.6 dB
Normalized Power
Time (ps)
Time (ps)
42
Summary

• Why Optical Fiber?
• TDM to WDM
• Fundamental Limitations
• - Chromatic dispersion
• - Fiber nonlinearities
