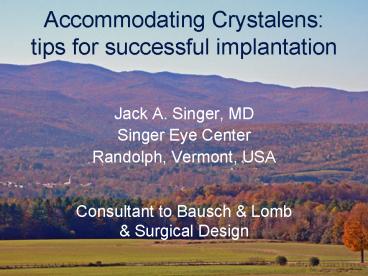

Accommodating Crystalens: tips for successful implantation

1
Accommodating Crystalens tips for successful
implantation

• Jack A. Singer, MD
• Singer Eye Center
• Randolph, Vermont, USA

Consultant to Bausch Lomb Surgical Design
2
Crystalens
3
12.0 mm tip to tip length 4.00 - 16.75D11.5 mm
tip to tip length 17.00 - 33.00D
17.00 27.00D in 0.25 DIOPTER steps
4
Crystalens Accommodative Lens
Increased Pressure
5
Accommodative Arching

• Wavefront analysis
• Transient hot spots in natural crystalline lens
  and in crystalens IOL during accommodation
• Transient myopic astigmatism
• Multi-factorial mechanism of accommodation
• Position shifts of the crystalens optic
• Axial movement
• Flexing
• Arching
• Tilt

6
Crystalens Accommodative Arching
Kevin Waltz, MD
Distance refractive map Near
refractive map 0.186 rms total error
0.464 rms total errror



-0.690.36X078 -2.370.92x008
S/P IOL Rotation by 90
7
Steven Dell, MD Retinal Wave Front Power Map
2002
Power Change 2.5 to 3.0 D
Tracy Technologies
8
Crystalens Refractive Targetcrystalens Five-O

• Accommodative blended vision
• plano to -0.25 in dominant eye
• -0.50 to -0.75 in non-dominant eye
• Skew towards myopia in myopes
• Skew towards plano in low hyperopes

9
Crystalens Refractive TargetCrystalens HD

• Accommodative blended vision not needed!
• Plano in dominant eye
• -0.25 in non-dominant eye

10
Capsulotomy gt optic hinges
AT50SE AT52SE (crystalens Five-O) HD500 HD520
(Crystalens HD)
11
Capsulotomy gt optic hinges
6.0 mm horizontal x 7.0 mm vertical for
Crystalens horizontal
Temporal incision
12
Enlargement of Anterior Capsulorhexis
13
10 Days post-op
14
Crystalens Five-O
8 days
4 weeks
15
Crystalens Five-O
OD 1 week
OS 4 weeks
16
Anterior Capsule LEC removal

• Ultrasonic I/A, curved, 0.2 mm port
• 5 to 15 ultrasound / Free-flow fluidics

17
Anterior Capsule LEC removal

• Titanium curettes for sub-incisional area
• Shepard polishers (Momentum Medical,MomentumMedIn
  c_at_verizon.net)

18
Anterior Capsule LEC removal

• Ultrasonic I/A, curved, 0.2 mm port
• 5 to 15 ultrasound / Free-flow (gravity)
• Shepherd polishers (Momentum Medical)

19
Crystalens Injection
STAAR Surgical MSI-T Titanium injector AQ-FP
cartridge / 2.5 mm incision
20
Crystalens Trailing Haptic Tuck
Push, depress, and guide end of loop into bag
21
Keep Crystalens vaulted posteriorly

• PAH Pre Aspiration Hydration
• Aspirate viscoelastic ant post to IOL
• Inject BSS (26g) while withdrawing I/A tip

If Crystalens vaults anteriorly...

• Re-hydrate all incisions
• Rock rotate IOL while injecting BSS (26g)
  through side port

22
Crystalens Rock Rotate
Uday Devgan, MD
23
Crystalens fixation

• Intraocular carbachol (diluted 51 w/BSS)
• Capsular fibrosis around the polyimide loops
• Stable IOL fixation with posterior vault
• Cycloplegia
• Atropine 1 qD x 2 days
• Atropine 0.4 mg intraocular
• Cyclogyl 2 bid x 7 days

24
YAG Laser Treatment
Posterior Capsulotomy
25
YAG Laser Treatment
Posterior Capsulotomy
26
YAG Laser Treatment
Anterior Capsulotomy
27
crystalens Sept 1, 2007 to Sept 30, 2008
Outcomes at the last postoperative visit
Uncorrected Distance
28
crystalens Sept 1, 2007 to Sept 30, 2008
Outcomes at the last postoperative visit
Uncorrected Intermediate
29
crystalens Sept 1, 2007 to Sept 30, 2008
Outcomes at the last postoperative visit
Uncorrected Near
J1
J1
J2
J3
30
crystalens Sept 1, 2007 to Sept 30, 2008
Outcomes at the last postoperative visit
31
A lens than can do this Consistently
32
Anatomical diagram of accommodative
arching Date 1936
Wavefront mapping of accommodative
arching Date 2006
33
Fincham, Mechanism of Accommodation
34
(No Transcript)
35
HD 5.0 Under 30X Magnification
36
(No Transcript)
37
AT-45, Five-O and HD-100 Monocular Uncorrected
Near VAwithin 0.50 D of intended target
refraction4-6 months postoperativen60
38
AT-45, Five-O and HD-100 Monocular
Distance-Corrected Near VAwithin 0.50 D of
intended target refraction 4-6 months
postoperativen60
39
Depth of Field Comparison
Crystalens HD
AT-45
Wave Front Error
P-V 0.72 RMS 0.57
P-V 0.51 RMS 0.36
Bench Test
Data from Ed Sarver
40
Log Contrast Sensitivity Mesopic Illumination (3
cd/m2) Without Glare
Log contrastsensitivity
41
Log Contrast Sensitivity Mesopic Illumination (3
cd/m2) With Glare (3 Lux)
Log contrastsensitivity
42
One Point of FocusSimulated Images
Accommodating
43
Blended bi-spheric monofocal accommodating lens
44
Monocular Uncorrected Distance Acuity
45
Monocular Uncorrected Intermediate Acuity
46
Monocular Uncorrected Near Acuity
47
Presby-IOL Quality of Vision
Resolution of the human eye is between 6 20
cycles/mm
48
Crystalens tips

• Mini-monovision for crystalens Five-O
• Not for Crystalens HD
• Rhexis gt optic hinges (6 x 7 mm)
• Meticulous LEC removal
• Keep IOL vaulted posterior
• Watertight incision
• Carbachol (diluted 51 w/BSS) or Cycloplegia
• Capsule closure w/in 2 weeks
• Ant cap Yag if not closing
• Anti-inflammatory drops x 2 months

49
Exceed Patient Expectations
50
Thank you for your attention
Singer Eye Center Randolph, Vermont,
USA www.singereye.com/pages/videos.php
