ME 381R Fall 2003

1

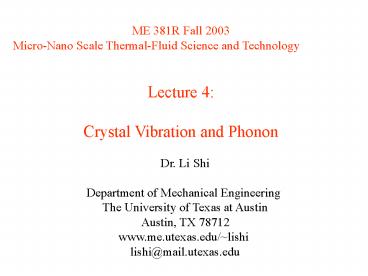

ME 381R Fall 2003 Micro-Nano Scale Thermal-Fluid
Science and Technology Lecture 4 Crystal
Vibration and Phonon
Dr. Li Shi Department of Mechanical Engineering
The University of Texas at Austin Austin, TX
78712 www.me.utexas.edu/lishi lishi_at_mail.utexas.
edu
2
Outline

• Reciprocal Lattice
• Crystal Vibration
• Phonon

• Reading 1.3 in Tien et al
• References Ch3, Ch4 in Kittel

3
Reciprocal Lattice
K wavevector of refracted X ray
K wavevector of Incident X ray
Real lattice
Construction refraction occurs only when
DK?K-Kng1mg2

• The X-ray diffraction pattern of a crystal is a
  map of the reciprocal lattice.
• It is a Fourier transform of the lattice in real
  space
• It is a representation of the lattice in the K
  space

Diffraction pattern or reciprocal lattice
4
Reciprocal Lattice Points
5
Reciprocal lattice K-Space
Lattice constant
1-D lattice
Periodic potential wave function
Wave vector or reciprocal lattice vector G or g
2n?/a, n 0, 1, 2, .
K-space or reciprocal lattice
6
Reciprocal Lattice in 1D
a
Real lattice
x
-?/a
?/a
Reciprocal lattice
k
4?/a
0
2?/a
-2?/a
-4?/a
-6?/a
The 1st Brillouin zone Weigner-Seitz primitive
cell in the reciprocal lattice
7
Reciprocal Lattice of a 2D Lattice
Kittel pg. 38
8
FCC in Real Space

• Kittel, P. 13

• Angle between a1, a2, a3 60o

9
Reciprocal Lattice of the FCC Lattice
Kittel pg. 43
10
Special Points in the K-Space for the FCC
1st Brillouin Zone
11
BCC in Real Space

• Kittel, p. 13

• Rhombohedron primitive cell

0.5?3a
109o28
12
1st Brillouin Zones of FCC, BCC, HCP
Real FCC Reciprocal BCC
Real FCC Reciprocal BCC
Real HCP
13
Crystal Vibration
Interatomic Bonding
Spring constant (C)
s-1
s
s1
x
Mass (M)
Transverse wave
14
Crystal Vibration of a Monoatomic Linear Chain
Longitudinal wave of a 1-D Array of Spring Mass
System
M
us-1
us
us1
us displacement of the sth atom from its
equilibrium position
15
s-1
s
s1
Solution of Lattice Dynamics
Same M
Wave solution u(x,t) uexp(-iwtiKx)
Time dep.
w frequency K wavelength
uexp(-iwt)exp(isKa)exp(?iKa)
cancel
Identity
Trig
16
w-K Relation Dispersion Relation
l wavelength
K 2?/l lmin 2a Kmax ?/a -?/altKlt ?/a
2a
17
Polarization and Velocity
Group Velocity
Speed of Sound
18
Two Atoms Per Unit Cell
M2
M1
f spring constant
Solution
Ka
19
Acoustic and Optical Branches
Ka
optical branch
1/µ 1/M1 1/M2
acoustic branch
What is the group velocity of the optical branch?
What if M1 M2 ?
K
20
Polarization
TA TO
LA LO
Optical Vibrational Modes
Total 6 polarizations
LO
TO
Frequency, w
TA
LA
Wave vector, K
0
p/a
21
Dispersion in Si
22
Dispersion in GaAs (3D)
23
Allowed Wavevectors (K)
A linear chain of N10 atoms with two ends
jointed
x
a
Solution us uK(0)exp(-iwt)sin(Kx), x sa B.C.
us0 usN10
K?2np/(Na), n 1, 2, ,N Na L
Only N wavevectors (K) are allowed (one per
mobile atom)
K -8p/L -6p/L -4p/L -2p/L 0
2p/L 4p/L 6p/L 8p/L p/aNp/L
24
Allowed Wave Vectors in 3D
N3 of atoms
Kz
Ky
Kx
2p/L
25
Phonon

• The linear atom chain can only have
• N discrete K ? w is also discrete
• The energy of a lattice vibration mode at
• frequency w was found to be

• where hw can be thought as the energy of a
• particle called phonon, as an analogue to photon
• n can be thought as the total number of phonons
  with a frequency w, and follows the Bose-Einstein
  statistics

Equilibrium distribution
26
Total Energy of Lattice Vibration
p polarization(LA,TA, LO, TO) K wave vector
