Title: Pathology of the Small Bowel


1

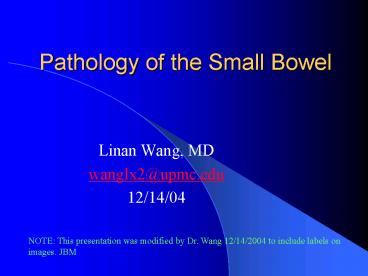

Pathology of the Small Bowel
  • Linan Wang, MD
  • wanglx2_at_upmc.edu
  • 12/14/04

NOTE This presentation was modified by Dr. Wang
12/14/2004 to include labels on images. JBM
2
A Quick Review of Normal Anatomy
  • 6-7 meters in length
  • Duodenum (first 25 cm) is retroperitoneal and has
    no real mesentery
  • Jejunum arbitrarily constitutes the proximal 40
    of introperitoneal portion
  • Ileum the remainder
  • Arterial supply mainly from celiac and superior
    mesenteric artery

3
  • Normal Small Bowel
  • Gross Appearance
  • Luminal Surface

Quick review
4
A Quick Review of Normal Histology
  • The wall of all parts of small intestine has 5
    layers mucosal, submucosal, muscular,
    subserosal, and serosal
  • Mucosa
  • Epithelium
  • Lamina Propria

Muscularis mucosa
Lumen
Submucosa
  • Muscularis Propria
  • Inner circular
  • Outer Longitudinal

5
(No Transcript)
6
Things You Need to Remember If You Plan To Become
A Pathologist
  • Villus-to-crypt height ratio is about 4 to 51
  • Intraepithelial lymphocytes/ epithelial cells
    ratio is less than 20/100.
  • Brunners gland is mainly located in duodenum
  • Peyers patches in terminal ileum can be
    prominent

7
Quick review Normal Small Bowel-Microscopic
Appearance
8
General Concepts
  • Main Function of the GI Tract
  • To digest food and provide nutrients to the body
  • Problems
  • Portal of entry for infectious organisms
  • Malfunction Malnutrition
  • Susceptible to toxic injury
  • Susceptible to vascular compromise (ischemia) and
    hemorrhage
  • Normal mucosa is highly proliferative may make
    a mistake and lead to cancer

9
General Concepts
  • Histologic diagnosis primarily based on HE
    stained tissue sections
  • Histochemical stains (based on chemical
    reactions) can help
  • Giemsa stain highlights H. pylori
  • Trichrome stain highlights fibrosis
  • Immunohistochemical (IHC) stains are very helpful
    and specific (based on antigen-antibody
    reactions)
  • Cytokeratin IHC stain highlights epithelial cells
  • Chromogranin IHC stain highlights neuroendocrine
    cells

10
Pathology Made Easy 8 General Pathologic
Processes
  • Vascular
  • Inflammatory Reactive/Infectious/Immunologic
  • Trauma
  • Anatomical/Congenital
  • Metabolic/Nutritional
  • Idiopathic
  • Neoplastic
  • Anything Else
  • VITAMIN A

11
My Approach to Reach Pathologic Diagnosis
  • Gross appearance
  • Microscopic appearance
  • Architecture (low magnification)
  • Cytology (high magnification)

12
SMALL BOWEL Meckel Diverticulum
  • Most common intestinal congenital anomaly (1-2)
  • Clinically
  • Incidental finding
  • May present with GI bleeding or pain
  • Embryologic remnant forming antimesenteric
    outpouching in terminal ileum (usually within
    85cm of the ileocecal valve)
  • Lined by gastric, small intestinal and/or
    pancreatic-type tissue

13
Meckel Diverticulum
Terminal Ileum
Meckel Diverticulum
14
Meckel Diverticulum
Meckel Diverticulum
Ileum
15
Meckels Diverticulum Histologic Appearance
Gastric Mucosa lining This diverticulum is
located in the small bowel but it is lined w/
gastric-like mucosa.
16
SMALL BOWEL Anatomic/Congenital
  • Major causes of intestinal obstruction, local
    ischemia / infarction
  • Adhesions
  • Intussusception bowel within bowel
  • Volvulus twisting of the bowel
  • Herniation
  • Inguinal hernia
  • Incisional hernia

17
Four different types of small bowel obstruction.
18

19
Small Bowel Intussusception
20
Small Bowel Infarct
Mesentery
Small bowel
21
Small Bowel Adhesion
22
QUESTIONS???
23
SMALL BOWEL Enterocolitis (Gastroenteritis)
  • Diarrheal diseases of the bowel
  • Infectious
  • Usually acquired by ingestion (fecal-oral
    transmission).
  • Necrotizing Enterocolitis
  • AIDS Enteropathy
  • Drug-induced injury
  • Radiation-induced injury

24
Pathology of Infectious Enterocolitis
  • Viral common cause (not covered in this
    lecture)
  • Bacterial
  • Enteroinvasive organisms
  • Yersinia enterocolitica
  • Salmonella
  • Campylobacter jejuni
  • Toxin-producing organisms (not covered in this
    lecture)
  • Vibrio Cholera
  • Clostridium difficile (C. diff colitis)
  • Ingestion of pre-formed toxin (not covered in
    this lecture)
  • Staph aureus
  • Clostridium botulinum
  • Parasites / Protozoa

25
Pathology of Infectious EnterocolitisBacteria
  • Enteroinvasive organisms
  • Proliferate, invade and destroy enterocytes
  • Results in an ulcerative and inflammatory
    response
  • Yersinia enterocolitica
  • Produces mucosal ulceration, hemorrhage, bowel
    wall thickening
  • Can enter Peyers patches and regional lymph
    nodes produce necrotizing granulomas
  • Can mimic Crohns disease
  • Can become systemic peritonitis, pharyngitis,
    pericarditis

26
Yersinia Enterocolitis
Ileo-cecal valve (lesion)
Cecum (Normal)
Ileum (Normal)
27
Yersinia Enterocolitis
Residual lymphoid Tissue
Fissure
28
Pathology of Infectious EnterocolitisBacteria
  • Salmonella (S. typhi, S. paratyphi)
  • Pass though enterocytes
  • Enter lamina propria, Peyers patches
  • Produce endotoxins villus blunting, mucosal
    ulcerations
  • S. typhi can enter blood and disseminate
    throughout the body typhoid fever
  • Campylobacter jejuni
  • Can cause villus blunting, multiple superficial
    ulcers, purulent exudate

29
Salmonella Enterocolitis
Erosions
Normal Mucosa
30
Salmonella Enterocolitis
31
Salmonella Enterocolitis
32
C. Jejuni Enterocolitis
33
Pathology of Infectious EnterocolitisParasites /
Protozoa
  • Worms (not further covered in this lecture)
  • Roundworms
  • Strongyloides, Ascaris, Hookworms
  • Flatworms
  • Tapeworms
  • Flukes
  • Protozoa
  • Giardia
  • Cryptosporidia
  • Entamoeba histolytica
  • Infects the colon (not further covered in this
    lecture)

34
Entamoeba histolytica
Residual Epithelium
Ulcer
35
Entamoeba histolytica
Engulfed RBCs
Amoeba
36

Note RBCs w/in amoeba size of amoeba is many
timesthat of lymphocytes.
37
Pathology of Infectious EnterocolitisProtozoa
  • Giardia lamblia
  • Intestinal protozoan (small bowel)
  • Source Contaminated water
  • Seen in hikers who do not sterilize their
    drinking water
  • Produces diarrhea, malabsorption
  • Pathology Extracellular, attaches to surface,
    normal or blunted villi with mixed inflammation
  • Diagnosis
  • Stool OP (ova parasites)
  • Biopsy

38
(No Transcript)
39
Giardia - EM
40
Pathology of Infectious EnterocolitisProtozoa
  • Cryptosporidia
  • Intestinal protozoan (smallgtlarge bowel)
  • Source
  • Fecal-oral route, contaminated water
  • Produces watery diarrhea, malabsorption in
    immunosuppressed patients
  • Immunocompetent Short course (days)
  • Immunosuppressed Can be life-threatening
  • Pathology
  • Oocysts attach to surface (merozoites released
    into cell are not seen histologically)
  • Mixed inflammation
  • Diagnosis
  • Stool OP
  • Biopsy

41
Cryptosporidia
42
(No Transcript)
43

Strongyloides
44
EnterocolitisNecrotizing Enterocolitis
  • A complication of prematurity and low birth
    weight
  • Usually occurs within the first few days of age
  • Primarily affects the terminal ileum and
    ascending colon (can involve entire small and
    large bowel in severe cases)
  • Acute ischemic process with inflammation, edema,
    hemorrhage and necrosis affecting mucosa or full
    intestinal wall thickness
  • Can cause gangrene and perforation

45
Necrotizing Enterocolitis
Fibrous Band (Adhesion)
Necrosis of small and large bowel.
Consequent fibrous adhesion ? intestinal
obstruction.
46
EnterocolitisAIDS (HIV) Enteropathy
  • ?? Direct mucosal damage by HIV infection
  • Symptoms watery diarrhea
  • Differential Diagnosis infectious etiologies
  • Parasites (Cryptosporidium)
  • CMV
  • Small bowel gt colon
  • Nonspecific findings on biopsy
  • Focal villous blunting
  • Mildly increased lamina propria and
    intraepithelial chronic inflammation
  • Apoptotic and mitotically active enterocytes

47
EnterocolitisDrug-induced Intestinal Injury
  • Small bowel mucosa can be directly injured by
    drugs
  • Can lead to diarrhea, abdominal discomfort,
    malabsorption
  • Most common agent NSAIDs
  • Non-specific findings on biopsy
  • Increased acute and/or chronic inflammation
    within the lamina propria
  • Mild villus atrophy
  • Superficial mucosal erosions
  • If severe, can lead to ulceration / stricture
  • Must not be confused with IBD

48
EnterocolitisRadiation-induced Intestinal Injury
  • Small bowel mucosa can be directly injured by
    radiation
  • Acute injury Can produce diarrhea, abdominal
    discomfort, malabsorption
  • Chronic injury Vague abdominal symptoms,
    malabsorption
  • Ischemic-type findings on biopsy
  • Acute Regenerative epithelial features, crypt
    loss, hemorrhage, edema, inflammation
  • Chronic Architectural distortion, fibrosis,
    atypical stromal and endothelial cells

49
Radiation-induced Intestinal Injury
Normal
Enteritis
Normal
50
Radiation-induced enteritis
Severely blunted villi, hemorrhage (red)
51
QUESTIONS???
52
SMALL BOWEL Malabsorption Syndromes
  • Abnormal absorption of fat, proteins, vitamins,
    carbohydrates, minerals, electrolytes and water
  • Results from defective intraluminal digestion,
    terminal digestion, and/or transepithelial
    transport
  • Consequences of malabsorption can affect many
    organ systems and produce various symptoms
  • Diarrhea, steatorrhea, abdominal cramps/pain,
    weight loss
  • Anemia
  • Osteopenia
  • Dermatologic processes
  • Neuropathy

53
Malabsorption Syndromes
  • Most common in the USA
  • Celiac disease
  • Pancreatic insufficiency (not covered in this
    lecture)
  • Inflammatory Bowel Disease (Crohns disease)
  • Infection
  • Cryptosporidiosis
  • Giardiasis
  • MAI
  • Whipples disease
  • Numerous other causes
  • (see Robbins Table 18-8)

54
Malabsorption SyndromesCeliac Disease
  • AKA Celiac sprue, gluten sensitive enteropathy,
    nontropical sprue
  • Immunologic process
  • Patients form antibodies against gliadin (gluten)
    and other antigens in wheat products
  • Leads to an immune response at the location where
    these antigens are encountered upon absorption
    in the small bowel
  • Cell-mediated immunity with accumulation of
    intraepithelial cytotoxic T-cells and lamina
    propria helper T-cells
  • Association with HLA DQw2 / HLA-B8 and northern
    European descent

55
Malabsorption SyndromesCeliac Disease
  • Clinical Features
  • Diarrhea, anemia and weight loss
  • Circulating antibodies
  • anti-gliadin, anti-endomysial (tissue
    transglutaminase) and anti-reticulin antibodies
  • Can present in infancy (failure to thrive)
  • Many adults diagnosed in their 40s
  • Treatment Gluten-free diet
  • Long-term risk for lymphoma, especially if
    refractory to diet

56
Malabsorption SyndromesCeliac Disease
  • Pathology
  • Grossly (endoscopically) may see Scalloped
    Folds
  • Increased lamina propria lymphoplasmacytic
    inflammation
  • Increased intraepithelial lymphocytes
  • Villous blunting / mucosal atrophy / total loss
    of villi
  • Crypt hyperplasia
  • Affects proximal small bowel gt distal
  • These features are NOT specific for Celiac
    disease (need correlation with serum antibodies)

57
Celiac Disease Gross appearance Scalloped
folds
58
Celiac Disease
59
Malabsorption SyndromesTropical Sprue
  • Unrelated to gluten ingestion
  • Limited to tropics (living in or visiting)
  • May be related to enterotoxigenic organisms (E.
    coli and haemophilus)
  • Responds to antibiotics
  • Have folate or vitamin B12 deficiency
  • Variable morphology ranging from near-normal to
    severe diffuse enteritis

60
Malabsorption SyndromesWhipple Disease
  • Rare systemic condition often affects small
    bowel, CNS and joints
  • Tends to occur in 30-40 y.o. white males
    (malefemale 101)
  • Presents with diarrhea, malabsorption, arthritis,
    CNS complaints
  • Lymphadenopathy and hyperpigmentation is common
  • Caused by Tropheryma whippelii
  • Responds to antibiotic therapy
  • Small bowel biopsy
  • Lamina propria macrophages stuffed with
    diastase-resistant PAS granules
  • Immunohistochemical stain to T. whippelii is
    positive
  • Rod-shaped bacilli seen by electron microscopy
  • Similar macrophages can be seen elsewhere

61
(No Transcript)
62
QUESTIONS???
63
Malabsorption SyndromesInflammatory Bowel Disease
  • Chronic, relapsing inflammatory disorders of
    unknown etiology (idiopathic)
  • Crohns disease
  • Regional enteritis
  • Can affect entire GI tract
  • Commonly affects the terminal ileum
  • Ulcerative colitis
  • Affects the colon mainly (not covered in this
    lecture)

64
Crohns Disease
  • Clinical features extremely variable
  • Intermittent attacks of abdominal pain, diarrhea
    and fever
  • May have extraintestinal manifestations
  • Arthritis
  • Sacroiliitis
  • Primary sclerosing cholangitis
  • Long-term complications
  • Fibrosing strictures
  • Fistulas
  • Malabsorption
  • Adenocarcinoma (5-6x risk)

65
Gross Pathology of Crohns Disease
  • Segmental thickening of the bowel wall
  • Skip lesions
  • Luminal narrowing
  • Creeping fat
  • Mucosal alterations
  • Serpiginous linear ulcers
  • Cobblestone appearance
  • Deep fissuring ulcers
  • Fistula / sinus tracts

66
Crohns disease Gross appearance
Normal
Crohns
67
Crohns diseaseCreeping Fat
68
Crohns, Luminal Narrowing
Crohns
Normal
Thickened wall
69
Crohns, Cobblestone Appearance
70
Real Cobblestone Street
71
Crohns, Aphthoid Ulcer
Aphthoid Ulcer
72
Adenocarcinoma arising in Crohns
Normal
Polypoid Adenocar- cinoma
Crohns Stricture
73
Histopathology of Crohns Disease
  • Inflammation
  • Mucosal
  • Increased lamina propria acute and chronic
    inflammation
  • Gland lift-off
  • Acute cryptitis
  • Occasional crypt abscesses
  • Associated with muscularis propria hypertrophy
    and submucosal neuronal hyperplasia
  • Transmural chronic inflammation
  • Lymphoid aggregates throughout bowel wall and in
    the subserosa
  • Ulceration usually abrupt transition to
    adjacent normal mucosa
  • Superficial (shallow)
  • Deep (fissuring)

74
Histopathology of Crohns Disease (continued)
  • Chronic mucosal damage (the hallmark of IBD)
  • Architectural distortion
  • Villus blunting
  • Crypt branching
  • Mucosal atrophy
  • Pseudopyloric metaplasia
  • Paneth cell metaplasia (in colon)
  • Transmural fibrosis
  • Granulomas seen in childrengtadults
  • Noncaseating
  • Transmural (mucosal, submucosal, intramural,
    subserosal)
  • Also present within regional lymph nodes

75
Crohns disease Histopathology
76
Crohns disease Histopathology
77
Crohns, Non-necrotizing Granuloma
78
QUESTIONS???
79
SMALL BOWELIschemic Injury
  • Vulnerable to ischemic injury
  • Arterial thrombosis
  • Arterial embolism
  • Venous thrombosis
  • Hypoperfusion due to shock
  • Can lead to bowel perforation and acute
    peritonitis (high mortality)

80
SMALL BOWELIschemic Injury
  • Gross features
  • Can be well-demarcated
  • Dusky and hemorrhagic
  • Pathologic features
  • Ischemic necrosis mucosal, mural or transmural

81
(No Transcript)
82
Small Bowel Ischemia Gross appearance
83
Small Bowel Mucosal Ischemia (Ischemic necrosis)
-Hypoperfusion -Early arterial occlusion
84
Small Bowel Congestion and Ischemia - Venous
obstruction
85
Cholesterol Emboli
Cholesterol Cleft
86
SMALL BOWELAngiodysplasia
  • Focal tortuous dilatation of mucosal and
    submucosal blood vessels
  • Usually affects the right colon
  • Difficult to detect if in the small bowel
  • Good indication for wireless capsule endoscopy
  • Rare, but account for 20 of lower GI bleed
  • Pathogenesis speculative

87
Gross Appearance of Angiodysplasia
Angiodysplasia
88
Angiodysplasia (microscopic)
89
Angiodysplasia (microscopic)
Epithelium
Vein
Artery
90
SMALL BOWELPeptic Ulcer Disease
  • Chronic ulcers due to exposure to peptic-acid
    juices in the
  • Duodenum (1st portion)
  • Stomach (antrum)
  • Lower esophagus (GERD)
  • Associated with hypersecretion of gastric acid
    and pepsin (except for peptic ulcers of the
    stomach)
  • Associated with H. pylori infection
  • Not a precursor of malignancy
  • Clinically abdominal pain, melanotic stool, risk
    of hemorrhage

91
  • Peptic Ulcer Disease Duodenum
  • Mucosal erosion with mixed inflammation
  • Gastric foveolar metaplasia
  • Focal Brunners gland hyperplasia

92
QUESTIONS???
93
SMALL BOWELTumors
  • Metastatic tumors are most common
  • Primary tumors are uncommon
  • (most common)
  • Adenomas
  • Mesenchymal tumors (not covered here)
  • Gastrointestinal stromal tumors
  • Leiomyomas
  • Adenocarcinoma (Ampulla of Vater)
  • Carcinoid Tumors (Endocrine cell tumors)
  • Tumor-like lesions
  • Heterotopic gastric mucosa
  • Heterotopic pancreas

94
TumorsAdenomas
  • Most often occur in ampulla of Vater and
    periampullary region
  • Morphologically similar to those of the colon
    (villous, tubulovillous, villous)
  • Large ones frequently undergo malignant
    transformation
  • Can be associated with familial adenomatous
    polyposis (discussed in pathology of the colon)
  • Composed of dysplastic (adenomatous) epithelium

95
Small Bowel Ampullary Adenoma Gross Appearance
96
Small Bowel Ampullary Adenoma
97
TumorsAdenocarcinoma
  • 0.4 per 100,000 per year median age 67
  • Most arise in duodenum (ampullary region), more
    than jejunum and ileum combined
  • Ampullary Adenocarcinoma
  • May present with obstructive jaundice
  • Often arises from pre-existing adenoma
  • May be polypoid, infiltrating or stenosing grossly

98
Small Bowel Adenocarcinoma
Benign Mucosa
Adenocarcinoma
99
TumorsEndocrine tumors
  • Arise from endocrine cells that can generate
    bioactive compounds (hormones)
  • All are potentially malignant (most common
    malignant tumor of the small bowel)
  • May be functional
  • Gastrinoma Zollinger Ellison Syndrome
    duodenum
  • Carcinoid syndrome diarrhea, flushing
  • Nonfunctional terminal ileum
  • Aggressive behavior correlates with (carcinoid
    tumor)
  • Site of origin
  • Tumors in ileum, stomach, and colon are
    frequently malignant and multicentric
  • Tumors in duodenum tend to be low grade
  • Tumors in appendix and rectum are rarely
    malignant
  • Depth of local penetration (beyond submucosa)
  • Size of tumor (gt 2 cm) aggressive and
    malignant-like when larger - metastases

100
Tumors Endocrine tumors
  • Usually small, well-defined submucosal
    elevations, often yellowish in color, covered by
    a flattened mucosa, which may ulcerate or form a
    polypoid projection
  • Monotonous round cells with minimal mitotic
    activity or pleomorphism
  • Immunostain positive for neuroendocrine markers
    (chromogranin, synaptophysin and neuron-specific
    enolase)

101
Small Bowel Carcinoid Tumor
Benign
Carcinoid
102
Small Bowel Carcinoid tumor
Carcinoid
Benign Mucosa
103
TumorsMetastases
  • By far the most common tumor in the small
    intestine (compared with primary small intestinal
    tumors)
  • Mainly include metastatic melanoma, lung and
    breast carcinomas

104
Small Bowel Metastatic Tumor Gross Appearance
Tumor
Benign
Tumor
105
SMALL BOWELLymphoma
  • Primary GI lymphomas exhibit no evidence of lymph
    node, spleen, or bone marrow involvement at
    diagnosis
  • Tend to remain localized for prolonged periods
    before progressing
  • Overall survival good compared with carcinoma
  • May present with intussusception or malabsorption
    when there is diffuse involvement
  • Types of GI Lymphomas
  • MALT (mucosal associated lymphoid tissue)
    lymphoma
  • Most common GI lymphoma
  • Affects stomach gt small bowel gt colon
  • B-cell origin
  • Sprue-associated lymphoma
  • Complication of long-standing malabsorption
    syndromes and refractory Celiac sprue
  • T-cell origin

106
Small Bowel T-cell lymphoma
Residual Epithelium
Lymphoma
107
QUESTIONS???
108
REFERENCE BOOK
  • Kumar, Robbins and Cotran Pathologic Basis of
    Disease, 7th Edition
Write a Comment
User Comments (0)
About PowerShow.com
