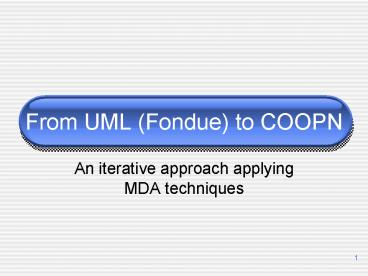

From UML (Fondue) to COOPN

• An iterative approach applying MDA techniques

2
Outline

• Motivation and general approach
• Some background
• Fondue Specification
• The MDA approach
• Some steps towards the transformation
• Relationship between Fondue components and
  COOPN components
• Tools, tools and another process diagram
• Status report

3
Some Background

• Fondue
• What it provides
• Concept Model Defines the static structure of
  the information in the system
• Behavior Model Defines the Input and Output
  communication of the system
• Uses UML for notation (parts of different UML
  diagrams
• Concept Model ? Class Diagram
• Environment Model ? Collaboration Diagram
• Protocol Model ? State Diagram
• Operation Model ?(OCL)
• Describes operations by operation schemas which
  specify operations by pre- and post conditions
  using OCL
• The Fondue process can be outlined by a UML class
  diagram showing usage dependencies between the
  models

4
Some Backgroud (2)

• Fondue - ebanking example
• Environment Model (messages from the user)

loginUserName loginPasswd loginChallenge createPay
ment giveDetailsBeneficiary modifyPaiment deletePa
yment
ltltsystemgtgt eBanking
User
5
Some Background (3)

• Fondue - ebanking example
• Environment Model (messages from the system)

ltltsystemgtgt eBanking
sendChallengeNumber errorUserName errorPasswd erro
rChallenge errorUserBlocked errorPaymentCreation e
rrorPaymentModification
User
6
Some Background (4)

• Fondue - ebanking example
• Concept Model

ltltsystemgtgt eBanking
ltltIdgtgt
0..
0.. 1
HasSessionId
User
7
Some Background (5)

• MDA - Model Driven Architecture
• How models defined in one language can be
  transformed into models in other languages

8
Some steps towards transformation

• Describe CO-OPN as a MOF Model
• Use UML notation to define CO-OPN Meta Model
• Get XMIUML
• Convert XMIUML to XMIMOF
• Generate JMI from XMIMOF
• Use generated JMI to add and browse CO-OPN
  repositories

9
Some steps towards transformation

• Fondue is already described as a MOF Model

10
Some steps towards transformation

• Iteration describing COOPN in early stages

11
Some steps towards transformation

• Environment model ? 1 CO-OPN Context
• Operations ? methods of the context
• Output messages ? Gates

input

• Directly from
• the
• Metamodels

output
12
Some steps towards transformation

• Concept Model
• 1 Class ? 1 CO-OPN Class
• Name ? Name
• Attributes ? Places
• Access methods put, get, read
• Method put_a(x) a y -gt a x
• Gate get_a(x) a x -gt a x
• Gate read_a(x)a x -gt a x
• Associations as classes
• With source and target values
• Instantiation of AADT Bag
• For each class

• Directly from
• the
• Metamodels

put
put
get
13
Some steps towards transformation

• Concept Model
• 1 Class ? 1 CO-OPN Class
• Name ? Name
• Attributes ? Places
• Access methods put, get, read
• Method put_a(x) a y -gt a x
• Gate get_a(x) a x -gt a x
• Gate read_a(x)a x -gt a x

• Directly from
• the
• Metamodels

put
put
get
14
Some steps towards transformation

• Operation Model
• Transform Fondue pre and post-conditions using
  OCL
• Operation Schemas ? (synchronization rules,
  algebraic equations)

• No standard
• approach available!
• Parse OCL and define clear
• transformation rules

15
Tools, tools and another process diagram

• Create(Draw) COOPN Meta Model
• MagicDraw
• Export as XMIUML
• MagicDraw
• Convert XMIUML to XMIMOF
• Uml2mof
• MDR-StandAlone package jmi.jar jmiutils.jar
  mdrapi.jar mof.jar nbmdr.jar openide-util.jar
• UML Standard definition UML_Standard_Profile.xml

• ltXMI xmi.version'1.2' timestamp'Thu Jan 20
  120339 CET 2005' xmlnsUML'omg.org/UML/1.4'gt
• ltXMI.headergt
• ltXMI.documentationgt
• ltXMI.exportergtMagicDraw
  UMLlt/XMI.exportergt
• ltXMI.exporterVersiongt9.0lt/
  XMI.exporterVersiongt
• lt/XMI.documentationgt
• ltXMI.metamodel xmi.name'UML'
  xmi.version'1.4'/gt
• lt/XMI.headergt

lt?xml version '1.0' encoding 'ISO-8859-1'
?gt ltXMI xmi.version '1.2' xmlnsModel
'org.omg.xmi.namespace.Model' timestamp 'Fri
Jan 21 011011 CET 2005'gt ltXMI.headergt
ltXMI.documentationgt ltXMI.exportergtNetbeans
XMI Writerlt/XMI.exportergt
ltXMI.exporterVersiongt1.0lt/XMI.exporterVersiongt
lt/XMI.documentationgt lt/XMI.headergt
16
Tools, tools and another process diagram

• Create Fondue Model
• Together Fondue pluggin
• Use JMI to load both Fondue and COOPN meta
  repositories
• Any Java IDE (e.g. IDEA)
• Add rules to perform transformation

17
Tools, tools and another process diagram
XMI FondueMM
XMI COOPNMM
Transformation tool
FondueMM XMLMOF
COOPN XMLMOF
18
Status report

• All set of SW in place
• COOPN Meta Model
• UML sketches
• XML generation
• Fondue in Mac OS X
• Sample SW to browse Fondue modules

19
Task list

• Prepare some documentation
• Continue the COOPN Meta Model
• Proof of concept small application to browse a
  COOPN model using MetaModel
• COOPN builder module
• Formalization of transformation rules

20
The end
Questions... Comments
