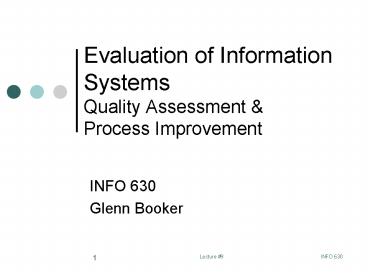

Evaluation of Information Systems Quality Assessment

1
Evaluation of Information SystemsQuality
Assessment Process Improvement

• INFO 630
• Glenn Booker

2
Time for a Sanity Check

• We have defined many ways to measure a project,
  and establish various guides for quality
• Now, as a project is happening, we want to
  determine if we are reaching our goals

3
Assessment versus Audit

• Here, per Kan, distinguish between a quality
  assessment and a quality audit
• A quality assessment is an evaluation of the
  project to see if desired goals are being met,
  and identify problem areas
• A quality audit is used to refer to formal
  external activities, such as an ISO 9000 audit or
  CMMI audit

4
Quality Assessment

• A quality assessment could be done by an
  independent team, or by people within the
  projects QA organization
• Assessments can be done at various points in a
  project
• A typical project might schedule 4-6 major
  quality reviews (Kan, p. 398), evenly spaced
  during the project

5
Quality Assessment

• Each quality assessment typically has three
  phases
• Preparation phase
• Evaluation phase
• Summarization phase
• Recommendations and Risk Mitigation
• The scope of data and measures are key aspects of
  each phase

6
Preparation Phase

• Given the development process used on a project,
  and the project schedule, determine where the
  project stands relative to them
• Need to focus on both qualitative and
  quantitative data to determine development
  progress, find problems, and predict final
  product quality

7
Preparation Phase

• Qualitative data can be obtained from interviews
  (one-on-one or small group) or questionnaires
• May focus on identifying
• Whose input is critical right now? Are affected
  all areas represented?
• Who needs to know whats happening right now?

8
Preparation Phase

• What are the key risks, and our mitigation
  strategy for each?
• How does our status compare to similar previous
  projects?

9
Evaluation Phase

• Now that you have the data on hand, the
  evaluation phase is the act of using various
  techniques to analyze the data, and extract the
  desired information
• Data might be presented using the indicators
  discussed with GQ(I)M

10
Evaluation Phase

• Part of the challenge is understanding when you
  have enough data, and how to put the data in
  perspective of the project as a whole
• Here its critical to choose the right measures
  to evaluate the data, and pick good evaluation
  criteria to judge whats good and bad

11
Summarization phase

• Now we want to blend the qualitative and
  quantitative results into an overall summary of
  the state of the project
• Summary is typically broken into major sections,
  depending on the types of activities currently
  occurring
• Design reviews, code inspections, system testing,
  regression testing, etc.

12
Summarization phase

• Each sections current status might be summarized
  with a basic stoplight scale (red/yellow/green)
  to indicate how severe problems are in that area
• These could be tracked over time to show trends
  in quality

13
Recommendations and Risk Mitigation

• Part of the summary is to give specific
  recommendations
• Look at current risky areas, and describe what
  activities are needed to bring them under better
  control?
• This often links to your projects risk
  management strategy, where you identified
  significant risks, and defined a risk mitigation
  strategy for each

14
Risk Mitigation

• Risk strategies can include
• Contain the risk, using specific activities to
  reduce the chance of it happening (risk
  prevention) and reduce its impact if it does
  occur (risk mitigation)
• Develop a contingency plan to manage the risk if
  it occurs

15
Risk Mitigation

• Transfer to risk to another organization or part
  of the system (let a subcontractor develop a part
  you know poorly, for example)
• Ignore the risk, if it has low impact
• Avoid the risk, by using a different process or
  eliminate a risky feature from the product
  requirements

16
Conducting Assessments

• In planning an assessment, the scope is a
  critical aspect
• Often an assessment will be limited to part of a
  project, to address areas most likely to be
  critical
• The emphasis is still on determining whether the
  project is meeting its goals for quality

17
Conducting Assessments

• Audits are performed in a manner similar to
  assessments
• The difference in focus is that audits focus on
  comparing processes to a process model (CMMI, ISO
  9000), whereas assessments compare project
  outcomes to its own goals
• An audits scope could cover several projects
  within one organization

18
Conducting Assessments

• In addition to the usual models, audits could be
  based on other models
• Bootstrap
• Trillium
• ISO 12207
• ISO 15504
• DOD-STD-2167a (obsolete)
• MIL-STD-498 (obsolete)

19
Conducting Assessments

• Likewise, the scope of an audit could differ
  based on the model selected
• ISO 9000 is facility-based, since it was created
  for a manufacturing environment
• CMMI is organization-based, regardless of where
  the organization is located

20
Process Assessment Cycle

• The conduct of a process assessment or audit
  typically has six major steps
• Preplanning before the audit, get sponsorship
  for the audit and define its scope and purpose
• Planning Select who will conduct the audit,
  when, and provide training if needed

21
Process Assessment Cycle

• Fact gathering determine how data will be
  collected for the audit interviews, documents,
  demonstrations, questionnaires, etc.
• Fact analysis analyze the data, and get
  additional data if needed to fill holes in
  understanding the subject
• Reporting prepare a presentation to give the
  results of the audit

22
Process Assessment Cycle

• Finally, after the audit, determine how its
  results will impact the projects process
  improvement activities
• Assessments follow the same activities described
  above and are typically conducted every few
  months
• Audits have to be repeated every 6-18 months to
  remain valid

23
A Bigger Picture

• Assessment or audit results can be tracked over
  many events to look for chronic problem areas, or
  help refine process improvement plans

24
More Details on Audits

• Kans chapter 17 focuses on more details of how
  process audits are conducted
• Well hit the highlights here
• For more information, go to the SEI website, and
  look for information on SCAMPI

25
CMMI Structure

• The CMMI is broken into five cumulative levels of
  maturity (1-5), plus sometimes level 0 is
  possible
• Level 0 means your project doesnt do everything
  necessary for, e.g. software development
• Level 1 means your project does stuff, but no one
  knows how

26
CMMI Structure

• Level 2 is the first level earned by an
  assessment it means a project performs basic
  project and process management activities
• Level 3 means that an organization (note the
  shift from project) has processes which are
  consistently tailored across several projects

27
CMMI Structure

• Level 4 means the organization has measured and
  tracked key activities consistently for so long
  that statistical process control is in place
• Level 5 means the organization actively prevents
  defects from occurring, and is experimenting with
  even better processes (continuous process
  improvement)

28
Staged versus Continuous

• CMMI can be used in staged or continuous
  representation (form)
• Staged is the approach just described the
  organization must perform certain types of
  activities to earn an overall maturity rating
• Continuous form means that each type of activity
  is rated separately, so theres no overall rating

29
Staged versus Continuous

• In practice, most organizations get audited using
  the staged approach
• That CMMI Level 5 plaque on the wall is
  impressive!
• But the work of preparing for audits often
  follows the continuous approach
• Assess what kind of activities are most in need
  of help (process, project, technical, etc.), and
  work on them first

30
The Bottom Line

• The overall goal for a CMMI-based assessment is
  to determine if the project or organization
  fulfills the goals of the model
• Are the goals of each type of activity being met
  consistently across the organization?
• Often called institutionalization of the activity
  its a way of life for them

31
More Structure

• CMMI is broken into about 23 Process Areas (PA)
  each is a type of activity mentioned earlier
• Each PA has a few Specific Goals, which are the
  heart of that activity
• Then there are more general activities defined
  for each PA doing all of them constitutes
  institutionalization

32
More Structure

• The general process area structure includes
• Commitment to Perform means that program
  management defines a policy to do the stuff in
  this PA
• Ability to Perform means that program
  management provides the resources and training
  needed to do these activities, and plans to do
  them

33
More Structure

• Directing Implementation means that program
  management manages the processes involved in this
  activity, ensures quality, and coordinates with
  other stakeholders on the project
• Verifying Implementation covers review of
  activities with higher management, and conducting
  independent process audits

34
More Structure

• Then the specific goals of each PA are defined in
  more detail by its Specific Practices
• These describe the types of activities which,
  done together, will fulfill the goals of the
  process area
• In addition, based on the desired maturity level,
  there are Generic Goals which apply to every PA

Pretty simple, huh?
35
CMMI and Measurement

• The measurement focus for CMMI is
• 1) Define a plan of activities,
• 2) Track actual progress, then
• 3) Measure actual and planned performance, and
  make decisions based on it
• At higher levels of maturity, analysis of data
  and prediction occur

36
CMMI and Measurement

• For example, at Level 2, the Measurement and
  Analysis process area has specific goals of
• Measurement objectives and activities are aligned
  with identified information needs and objectives.
• Measurement results that address identified
  information needs and objectives are provided.

From here
37
CMMI and Measurement

• At level 4, the Quantitative Project Management
  process area has specific goals of
• The project is quantitatively managed using
  quality and process-performance objectives.
• The performance of selected subprocesses within
  the project's defined process is statistically
  managed.

38
CMMI in Brief

• CMMI is mostly looking to see if you say what
  youre going to do, make it possible to do so, do
  it, and measure what you did
• Following a process improvement path takes lots
  of time and commitment from all levels of
  management
