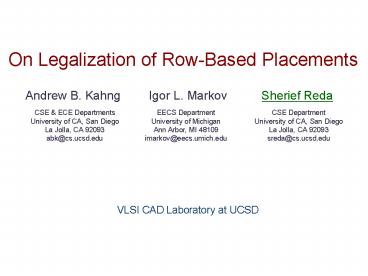

Title: On Legalization of Row-Based Placements


1
On Legalization of Row-Based Placements
Andrew B. Kahng
Sherief Reda
Igor L. Markov
CSE ECE Departments University of CA, San
Diego La Jolla, CA 92093 abk_at_cs.ucsd.edu
CSE Department University of CA, San Diego La
Jolla, CA 92093 sreda_at_cs.ucsd.edu
EECS Department University of Michigan Ann Arbor,
MI 48109 imarkov_at_eecs.umich.edu
VLSI CAD Laboratory at UCSD
2
Outline
  • Introduction and Previous Work
  • Legalization Objectives
  • Legalization Method
  • Experimental Results
  • Conclusions

3
Introduction Objectives Used in Legalization
An Illegal Placement due to Overlaps
row
Overlap
cell
  • Overlap may be due buffer insertion, gate
    sizing, etc
  • Overlap must be removed, sample objectives
    include minimizing
  1. Total distance moved, i.e., total perturbations
  2. Total increase in HPWL (wirelength)
  3. The maximum distance moved by a cell

4
Comparisons to Previous Work
  • Overlap removal algos in well-known VLSI
    placers (separate from detail placement
    optimization)
  • Simulated annealing in TimberWolf and Dragon
  • Greedy cell-shifting in Capo
  • Network flow in GORDIAN and BonnPlace
  • Dynamic programming in FengShui
  • Additional work
  • Whitespace allocation via dynamic programming
    by Kahng, Tucker and Zelikovsky
  • This Work
  • Develop a generic dynamic-programming algorithm
    that optimizes one of several objectives
  • Study the effect of the objective choice on
    total wirelength and routability

5
Outline
  • Introduction and previous work
  • Legalization Objectives
  • Legalization Method
  • Experimental Results
  • Conclusions

6
Overview of the Legalization Procedure
We propose a two-phase approach for overlap
removal
  • Phase I Juggle cells to meet row capacity
    constraints.
  • Phase II Remove the overlaps within each row
    using a generic dynamic-programming approach
    according to a number of objectives.

7
Phase I Cell Juggling
Under-capacity rows
Over-capacity rows
  • Juggle cells to meet row capacity constraints by
    moving cells from over-capacity rows to
    under-capacity rows.

8
Phase I Cell Juggling Algorithm
  1. Sort the rows in a non-increasing order according
    to over capacity
  2. For each over-capacity row ro in order

3. Repeat until row ro is under capacity
4. For each cell c in the row ro find an
under-capacity row ru such that moving c to ru
yields the smallest increase in HPWL
(wirelength) 5. Move the cell that yields the
smallest increase in HPWL in Step 3.
9
Phase II Overlap Removal Within Rows
Overlap
Overlap
  • Phase I outcome is a placement where the set of
    cells in every row meets the row capacity, but
    with possible overlaps.
  • A generic dynamic-programming technique removes
    all overlap while minimizing a number of
    objectives

10
Overlap Removal Using Dynamic Programming
row
start node
sites
1
2
3
4
5
6
7
8
9
10
11
12
cell 1
cell 2
cell 3
cell n
end node
  • Each chain represents the possible sites that a
    cell can be placed at
  • The order of chains correspond to the order of
    cells from left to right in a row

11
Overlap Removal Using Dynamic Programming
row
1
2
sites
1
2
3
4
5
6
7
8
9
10
11
12
cell 1
cell 2
cell 3
cell n
Start and end sites
There are many paths from the start and end nodes
? select the one that optimizes one of our
objectives
Sites that cell will be placed at
Empty sites
Sites not included in calculation
12
Min Total Distance Overlap Removal
row
c
2
1
1
0
2
3
4
5
6
7
8
9
1
2
0
1
2
3
4
5
6
7
8
  • Label a diagonal edge starting at some column j
    and chain c by the difference in distance between
    j and current location of cell c.
  • 2. Label all horizontal edges by cost 0
  • 3. Find the shortest path from start to end
    nodes using lexicographical sorting.

13
Min HPWL Overlap Removal
Bounding box of a net connected to c
row
c
3
2
0
1
0
0
0
0
0
0
1
2
2
3
1
0
0
0
0
0
0
0
1
  • Label a diagonal edge starting at some column j
    and chain c by the difference in HPWL between
    placing cell c at j and its current location
  • 2. Label all horizontal edges by cost 0
  • 3. Find the shortest path from start to end
    nodes using lexicographical sorting.
  • This objective can be iterated (iterated
    minHPWL) a number of times until the percentage
    improvement in HPWL drops below 1
  • Min HPWL has similarities to Optimization of
    Linear Placements for Wirelength with Free
    sites, Kahng, Tucker and Zelikovsky, ASPDAC99.

14
Min-Max Displacement Overlap Removal
row
c
2
1
1
0
2
3
4
5
6
7
8
9
1
2
0
1
2
3
4
5
6
7
8
  • Label a diagonal edge starting at some column j
    and chain c by the difference in distance between
    j and current location of cell c.
  • 2. Label all horizontal edges by cost 0
  • 3. Find the path from start to end nodes that
    minimizes the maximum edge using lexicographical
    sort .

15
Outline
  • Introduction and Previous Work
  • Legalization Objectives
  • Legalization Method
  • Experimental Results
  • Conclusions

16
Experimental Results (IBM01)
  • We execute Capo (without its built-in legalizer)
    Legalizer

Mode Overlaps HPWL Runtime(s) Impr ()
ibm01 Capo illegal 964 5.517 -
ibm01 Capo legalizer 0 5.586 -
ibm01 QPlace eco 0 5.639 1.0
ibm01 min HPWL 0 5.519 6.9 2.13
ibm01 min Dist 0 5.623 1.3 0.28
ibm01 min-max Disp 0 5.699 1.3 -1.06
ibm01 Iterated minHPWL 0 5.462 39.1 3.14
  • Improvement percentage is relative to QPlace -eco

17
Experimental Results (IBM02)
Flow Capo ? illegal placement ? Legalizer
Mode Overlaps HPWL Runtime(s) Impr ()
ibm02 Capo illegal 1502 1.599 -
ibm02 Capo legalizer 0 1.602 -
ibm02 QPlace eco 0 1.624 12.0
ibm02 min HPWL 0 1.579 15.2 2.77
ibm02 min Dist 0 1.604 2.1 1.23
ibm02 min-max Disp 0 1.607 2.2 1.05
ibm02 Iterated minHPWL 0 1.560 76.3 3.94
  • Improvement percentage is relative to QPlace -eco
  • Similar results are attained for remaining IBM
    benchmarks

18
Experimental Results
Flow Capo ? illegal placement ? Legalizer ?
Cadences WarpRoute
benchmark Objective HPWL Global Routing Metrics Global Routing Metrics Violations
benchmark Objective HPWL Overtrack Overcapacity
ibm01 min-max disp 5.773 4489 3755 11743
ibm01 min dist 5.846 4489 3755 11743
ibm01 minHPWL 5.625 4616 3799 12602
  • The min dist and min-max dist objectives attempt
    to preserve the whitespace map ? preserves
    routability
  • Min HPWL objective optimizes wirelength, but may
    alter the whitespace map

19
Conclusions
  • The effect of cut directions on the amount of
    overlap is studied
  • A two-phase legalizer is proposed
  • A generic dynamic-programming that handles a
    number of legalization objectives
  • Minimum-total displacement
  • Minimum-total HPWL
  • Minimum-Max displacement
  • The effect of various objectives on routability
    and wirelength are evaluated

20
Thanks
21
Introduction Source of Overlaps in Min-cut
Placement
  • Min-cut placement recursively partitions a
    circuits netlist and places the partitioned
    netlist in partitioned placement areas

Figure I
Figure II
Figure III
A vertical cut on a single row can be adjusted to
fit the partition size
A horizontal cut cannot be adjusted to fit the
partition size ? overlap may occur
A vertical cut on a number of subrows creates
twice the number of subrows ? future overlaps
when horizontal cuts are executed on them
  • If a partition has more total cell weight that
    its capacity ? overlap occurs

1
2
Overlap
22
Effect of Cut-Sequence on Amount of Overlaps
Relationship between number of vertical cuts,
total Wirelength, and number of overlaps.
  • Vertical cuts on a number of rows are the main
    reason for overlaps in min-cut placement
