Department of Electronics and Computer Science

1

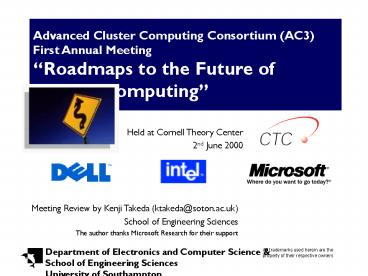

Advanced Cluster Computing Consortium (AC3) First
Annual Meeting Roadmaps to the Future of Cluster
Computing
Held at Cornell Theory Center 2nd June 2000
Meeting Review by Kenji Takeda (ktakeda_at_soton.ac.u
k) School of Engineering Sciences The author
thanks Microsoft Research for their support
2
Talk Outline
Talk Outline

• Industry Standard Cluster Computing RD to the
  Enterprise
• Future of High Performance Computing Intel
  Roadmap
• Cluster Computing Roadmap Dell
• Cluster Benchmarks Dell and CTC
• Cluster Computing with Windows 2000 MSR
• Cluster Computing Made Easy New Tools for
  Scalable Servers and Services (CTC)
• Mining Large Databases Present and Future (CTC)
• Performance, Scalability and Future Planes MSTI
• Cluster Computing at NCSA
• Panel Sessions
• Reflections and Conclusions

3
AC3 Background
Thomas Coleman, Director, Cornell Theory Center

• Cornell Theory Center has many years of
  supercomputing experience
• Needed a new mission once IBM SP2 work ended
• Support computational science and push boundaries
• Formed AC3 with major industry partners Dell,
  Intel and Microsoft

Increase the space/domain where large-scale
problems of computational science are effectively
solved using industry standard cluster computing
4
Industry Standard Cluster Computing RD to the
Enterprise
David Lifka, Associate Director, Cornell Theory
Center

• Cluster computing is ready for Prime Time.
• It doesnt have to be hard David Lifka, CTC
• Proof by example
• Installed 256 CPU Dell Velocity Cluster with 64 x
  quad 550MHz Xeons with Giganet interconnect
• Site-installation took 10 hours
• Two weeks from installation to full production
  service
• Over 100 Cornell projects now use cluster
• Over 60 corporate partners involved
• Want to use Windows and move away from UNIX

5
Industry Standard Solutions
David Lifka, Associate Director, Cornell Theory
Center

• Microsoft Windows NT/2000
• Market volumes drive market in new directions
• 80 market is Windows NT/2000
• Administration skill base widely available
• Future killer apps
• New generation brought up on Windows. Expect high
  level of feature functionality and more than a
  command-line interface
• Big Iron Supercomputers
• 4-5 times more expensive than Windows cluster
  solution
• High maintenance costs
• Performance and reliability gap closed

6
Windows 2000 Issues
David Lifka, Associate Director, Cornell Theory
Center

• Major reliability improvements over NT 4.0
• Windows preserves all aspects of the server
  market
• Deployable across the enterprise
• Coordinated development
• Desktop to Teraflops with one OS, leading to
  lower TCO and consistent user interfaces
• CTC moving all its services to Windows 2000
• Email, print servers, backup, file servers, web
  servers, etc

7
CTC Systems Growth
David Lifka, Associate Director, Cornell Theory
Center

• AC3 Velocity cluster has spawned huge interest
• New clusters coming online
• Velocity 64 x dual 733MHz PIII system with
  Giganet
• National Plant Genomics Cluster. 48 CPUs, Gbit
  ethernet
• Social Economics Research Cluster 32
  CPUs.Cheaper than upgrading memory on existing
  SGI system! Looking to move US National Census
  data servers to Windows 2000 soon
• AFS servers for Windows 2000 7 x dual PIII
  systems
• 8 serial nodes, Poweredge 2450 servers with 1
  Gbyte/node
• Testing 16- and 32-way systems (Unisys, Sequent
  and NEC)
• Early Testing of Itanium and Windows 2000 64-bit

8
Future of High Performance Computing Roadmap
Intel
Timothy Mattson, Senior Research Scientist, Intel
Coroporation

• Intel in supercomputer business for a long time
• ASCI Red still worlds fastest machine,PIII
  upgrade
• Changing definition of the supercomputer
• 1980s Vector SMP (all custom components)
• 1990s MPP (COTS CPUs, everything else custom)
• 2000s Clusters (COTS everything)
• Why has clustering only now taken off
• PCs have closed performance gap
• COTS networking has hit major performance leagues
  with Gigabit ethernet, Giganet, Myrinet

9
Intel Processor Roadmap
Timothy Mattson, Senior Research Scientist, Intel
Coroporation
Itanium highlights 800MHz and up 20 ops/clock
cycle ?2 Gflops on LINPACK 1000 2.1 Gbytes/s bus
for 4-way SMP 128-bit integer and FP registers
Madison
Deerfield
McKinley
Itanium
Future IA32
Foster
Cascades
Xeon
10
COTS Networking VIA
Timothy Mattson, Senior Research Scientist, Intel
Coroporation

• VIA (Virtual Interface Architecture) spearheaded
  by Intel, MS and Compaq, and 130 other companies
• Setup direct data channel that bypasses the
  kernel
• VIA is here today mature and stable
• VIA has its problems though
• PCI bottleneck, although improving with 2nd
  generation PCI-66 cards
• Targeted at clusters, not mass-market
• Infiniband is the future.

11
COTS Networking Infiniband
Timothy Mattson, Senior Research Scientist, Intel
Coroporation

• Scalable, high-performance I/O for mass-market
• Extend native message passing from CPU ? Memory
  ? SAN ? and beyond
• Done using Host Channel Adapter (HCA) to
  different I/O devices, including other nodes
• 1st generation devices due Q3 2001
• Probably not best for HPC. Optimised for
  small-medium (e-business) clusters
• Intel aiming to be the leader in Infiniband for
  clustering and e-business solutions

Infiniband is a great hardware implementation of
VIA
12
Community Cluster Development Kit
Timothy Mattson, Senior Research Scientist, Intel
Coroporation

• Clusters are good for research labs but too
  fiddly
• They are too hard to setup and use, there is
  little support, too many options with no clear
  winners, and too many learning curves to climb
• Need fully integrated common cluster computing
  stacks, therefore Intel is supporting the
• Community Cluster Computing Development Kit
• A snapshot of best-known methods, but not a new
  standard
• Its the software, stupid!

13
Cluster Computing Roadmap Dell
Reza Rooholamini, Cluster Development, Dell

• Scalable Enterprise Computing
• Convergence of High Availability and High
  Performance Computing
• HPC is a building block for SEC
• Firewalls
• Application clusters
• Data mining engines

14
Dell Cluster Solutions
Reza Rooholamini, Cluster Development, Dell

• HPC Product Approach
• Collaborate with universities and research
  institutes
• Partner major component providers
• Prototyping, benchmarking and sizing
• Case studies and white papers

PowerEdge Servers Operating Systems PowerVault Storage
VIA Parallel Apps Message Passing
Application Dev Tools Configuration Tools Fast Interconnect
15
Cluster Benchmarks (Dell)
JenWei Hsiehi, Cluster Development, Dell and
George Coulouris, CTC

• 32-CPU Dell test systems
• 8 x Dell 6350 4-way SMPs. Fast ethernet, Gigabit
  ethernet, Giganet and Myrinet
• 16 x Dell 2450 2-way SMPs. Fast ethernet, Gigabit
  ethernet, Giganet and Myrinet
• NAS Parallel benchmarks
• Quad-processor significantly slower (30) than
  dual processor.
• Single processors faster than dual processor
  systems
• BUT 4-way has best price/performance
• Giganet (MPI/Pro) better than Myrinet (MPICH-GM)

16
Cluster Benchmarks (CTC)
JenWei Hsiehi, Cluster Development, Dell and
George Coulouris, CTC

• Giganet Bandwidth
• 113 mbytes/s using raw Giganet cLAN driver
• 87 mbytes/s using MPI/Pro, up to 103 mbytes/s for
  very large messages
• NAS Parallel benchmarks
• LU and BT scales linearly with Giganet, up to 16
  nodes with fast Ethernet

17
Real Application Benchmarks (CTC)
JenWei Hsiehi, Cluster Development, Dell and
George Coulouris, CTC
ops

• Protein folding simulations
• Windows-based visualisation tools developed, see
  www.tc.cornell.edu/reports/NIH/
  resource/CapBiologyTools
• FEM code with 1.5 million degrees of freedom
• Superlinear scaling to 128 CPUs with PIII-733MHz
  and Giganet
• Per node CPU utilisation decreases as number of
  SMP CPUs increases

Blue Horizon SP2 (222MHz) 44.3
Pentium Xeon 550MHz (W2k) 46.0
Pentium III 650MHz (Linux) 59.1
Pentium 733MHz (W2k) 59.2
PIII Cluster
speedup
SP2
processors
18
Cluster Computing with Windows 2000
Todd Needham, Manager of Research Programs,
Microsoft

• 3 million annual commitment to HPC research
• Supported projects include
• MPICH on Windows 2000. Argonne National Labs
• NCSA VMI driver for Myrinet and Giganet
• Maui scheduler (from Utah). www.cs.byu.edu
• UTK SInRG Grid Environment
• Globus. Ported to Windows NT. Working on Windows
  2000 support using Active Directory services
• Condor scheduler
• Parallel visualisation. Kai Li using OpenGL on
  Windows 2000
• NCSA. High Performance DCOM over VIA

19
Enterprise Windows 2000
Todd Needham, Manager of Research Programs,
Microsoft

• Union of HPC and e-business technology
• 100 overlap of tools. eg cluster management
• Need to improve out-of-the-box experience.
• MS built 800 CPU Celeron 400MHz cluster to test
  EP applications and DCOM scalability
• MSR Cambridge
• Performance prediction tools as runtime component
  in user application
• MS Redmond
• Winsock Direct, data mining, scalable servers

20
Future Technologies for Windows HPC
Todd Needham, Manager of Research Programs,
Microsoft

• Parallel file systems
• Development tools and debuggers
• Toolworks and Totalview
• Parallel and Scalable commercial applications
• Better desktop ? cluster transparency. eg Jack
  Dongarras Excel interface to NetSolve
• Visual Studio v7. IDE for 3rd party plug-ins
• 64-bit Windows 2000

21
Cluster Computing Made Easy New Tools for
Scalable Servers and Services
Ken Birman, Professor, Computer Science, Cornell
University

• ISIS, HORUS and ENSEMBLE Virtual Synchrony
  execution model (1987-98)
• Groups of processes with multicast comms between
  them
• Notification of failures and rejoins
• State transfer, allow addition of nodes to
  running job
• HORUS and ENSEMBLE are modular, with plug play
  software components
• NYSE, Swiss Stock Exchange
• French Air Traffic Control
• Next Generation AEGIS System

22
QUINTET
Ken Birman, Professor, Computer Science, Cornell
University

• Focus on management
• e-Business solutions. Huge real clusters managed
  as single entities, such as Hotmail
• Exploit high performance networks
• Scalable cluster management
• Cluster-aware application development
• Enterprise clusters come in many flavours
• No single management system is suitable for all
  needs

23
5 Lessons Learned for Scalability
Ken Birman, Professor, Computer Science, Cornell
University

1. Turn scale to an advantage
2. Progress under all circumstances
3. Avoid transparency side at the server side (it
   always hurts, the last 5 is impossible)
4. Do not solve all problems in the communications
   stack
5. Exploit intelligent, non-portable runtimes

24
Quintet Design
Ken Birman, Professor, Computer Science, Cornell
University

• Build a component framework for design and
  construction of cluster management systems
• Farm Manager
• node membership and failure detection
• reliable comms and lightweight state-sharing
• Farm Services
• Cluster Designer
• Tool to construct islands of specialised clusters
  with farms
• Generate cluster profiles
• Collection of User Interfaces and Visualisation
  tools

25
Quintet Configuration
Ken Birman, Professor, Computer Science, Cornell
University

• Automatic component configuration for core comms
• Exploit SANs
• Security/secrecy
• Failure detection
• Membership consensus
• Message ordering
• Consensus membership (on AC3 Velocity cluster)
• Changes clean 200 ?s, dirty 500-7000 ?s
• Component membership changes, 50-70 ?s
• Fault tolerant distributed lock manager
• Lock acquire 70-100 ?s
• Node initialisation400 ?s for 40,000 locks

26
Cluster Profiles
Ken Birman, Professor, Computer Science, Cornell
University

• Application development cluster
• Process, job, installation and version control
• Debug service, distributed logging, MS Visual
  Studio integration and resource measurement
• Game server cluster
• 10,000 user Quake server
• Client management services, application load
  request routing, synchronisation, state sharing,
  shared VM services
• Wolfpack/MS Cluster Services compatible profile
• Quintet first public release (Alpha) in Q3 2000

27
Mining Large Databases Present and Future
Johannes Gehrke, Assistant Professor, Computer
Science, Cornell University

• Data mining reaching maturity.
• DBMS technology High availability,
  maintainability, seamless integration with
  business processes
• Current technology
• Scalable data mining algorithms
• Consolidation in the industry
• Talks about crossing the chasm

28
Data Mining Future Technology
Johannes Gehrke, Assistant Professor, Computer
Science, Cornell University

• Autopilot, automatic algorithms and parameter
  selection
• Privacy, internet may provide first tools for
  users to control access to data about themselves
• Scalability. Market basket data and clickstream
  data. eg Yahoo logs 2-4 Gbytes/hr to data mine
• Data Stream model.
• Model maintenance
• Change detection
• Trend detection, find sequences in slow moving
  data

29
Performance, Scalability, Future Plans MPI
Software Technology
Rossen Dimitrov, MPI Software Technology

• MSTIs objectives in software design
• Performance
• Scalability
• Functionality
• Ease of Use
• Reliability
• Robustness
• Achieve production quality of support at
  reasonable price
• Mitigate risk, control cost of ownership

30
MPI/Pro Features
Rossen Dimitrov, MPI Software Technology

• User-level thread safety
• Asynchronous and synchronous completion
  notification. User runtime switch (½ RTT quoted)
• Interrupt driven for lower CPU overhead, higher
  latency (42 ?s)
• Polling, low latency, higher CPU utilisation (19
  ?s)
• Independent message progress
• Low CPU overhead, high degree of overlapping
• Optimied collective communications, derived
  datatype, persistent mode of communications
• Increased internal concurrency
• Multi-driver support Giganet, SMP and TCP

31
MSTI Future Developments
Rossen Dimitrov, MPI Software Technology

• Support Model
• Value proposition is quality and support
• Support only model (free downloads available)
• Goal is to make cluster computing a business
• MPI/Pro
• MPI-2 support (2001)
• Interconnect configuration tool
• Cluster CoNTroller
• Time sharing through Windows sessions
• Gang scheduling
• Windows 2000 Directory Services

32
Cluster Computing at NCSA
Rob Pennington, Technical Program Manager,
Cluster Computing, NCSA

• NCSA, NSF funded National Center 1986-present
• Large number of parallel computer systems
• 7 x SGI Origin 2000 systems 1536 processors
• 1 x Exemplar 64 processors
• 256 processor NT supercluster
• 100 Windows NT CPUs in test beds and for serial
  jobs
• 100 Tbytes disk store. Generate about 1 Tbyte
  every 2 weeks
• Applications move easily to clusters, due to
  source level portability

33
Challenges
Rob Pennington, Technical Program Manager,
Cluster Computing, NCSA

• Technical and application challenges
• Compilers, performance tools, MPI debugging
• Storage performance, biggest problem as cluster
  are unbalanced system architectures
• Administration tools
• Heterogeneous systems
• Integration with the Grid
• Organisational challenges
• Integration with existing infrastructure
• Managing user accounts

34
Clusters in the Alliance
Rob Pennington, Technical Program Manager,
Cluster Computing, NCSA

• Three large clusters for members of the Alliance
• NT Supercluster _at_ NCSA. 256 CPUs
• Roadrunner cluster _at_ University of New Mexico.
  512 CPUs
• Argonne National Lab IBM cluster. 512 CPUs
• Develop locally, run globally
• Local clusters used for development and parameter
  studies
• Require compatible environments for development
  and job scheduling across Windows and UNIX
• Constantly evaluating technologies OS, CPUs,
  interconnect, middleware

35
Evolution of Cluster Systems
Rob Pennington, Technical Program Manager,
Cluster Computing, NCSA
1600 cluster CPUs in 2000
192 cluster CPUs in 1998

• Job startup streamlined. From 15 mins (in 1998)
  for 128 node job to 1 minute now
• Significant user requirement for serial nodes
• Reliability issues
• Windows NT nodes NEVER blue screen
• One hardware failure per 100 machines per month
• Peripheral failures only, not motherboards or
  CPUs
• Use OpenGL cluster monitor tool to keep track of
  nodes

36
NCSA Cluster Performance
Rob Pennington, Technical Program Manager,
Cluster Computing, NCSA

• Quantum Chromo Dynamics memory-intensive code
• Memory leaks found in HPVM, now fixed (version
  1.9)
• 5 slower using dual CPUs than single CPUs
• Not suitable for quad-processor systems at all
• ARPI3D CFD code
• Code has inefficient MPI. Recoded to improve
  performance
• Compute time works well now, MPI part stays
  constant
• I/O is a major bottleneck with this code
• NT Scales better for I/O than Linux

37
Clusters Futures
Rob Pennington, Technical Program Manager,
Cluster Computing, NCSA

• 2000 Teraflop clusters possible with 1000 1GHz
  IA-32 nodes
• 2001 Teraflop machines with around 350 IA-64
  nodes (assuming 3 GFlop CPU performance)
• Major problem is I/O bottleneck though, and SANs
  are expensive!
• Possible to use I/O nodes, with fibre-channel and
  Myrinet TCP to cross-mount file systems

38
High Performance Computing with Clusters Panel
Session I

• For big application codes, use Cygwin tools for
  building (www.sourceware.cygwin.com)
• Use scripts to wrap native Windows compilers,
  make them look like UNIX ones
• Can be tedious to get around compiler flag and
  filename conventions
• Wish list
• C standard compliance
• C compiler robustness
• Performance and debugging tools

39
High Performance Computing with Clusters Panel
Session II

• Molecular dynamics code users are happy
• Velocity (550 MHz Xeons) 2.2 - 2.4 faster than
  previous SP2
• Velocity (733MHz PIII) 1.3 - 1.4 faster than
  Velocity cluster
• Intel C compiler about 30 faster than MS Visual
  C on stochastic processes code (lots of random
  number generation)
• Windows 2000 runs faster than Windows NT on real
  applications

40
Future for HPC Software on Windows Platform
Panel Session I

• Open question (from NAG), can Windows provide
  transparent cluster? Pieces are coming together
• Software vendors cite supporting different
  flavours of Linux as a problem
• Intel maintains that HPC is very important to
  them
• Todd Needham of Microsoft speculates
• Windows 2000 on Itanium Rocks!
• Microsoft sees 100 overlap in OS components for
  Enterprise Computing and HPC

41
Future for HPC Software on Windows Platform
Panel Session II

• MPI Software Technology Inc see many different
  types of HPC users
• Support Windows NT, Windows 2000, and different
  UNIXes
• Different problems with different OSs
• Windows Pinning time for memory higher than
  Linux. Better security than Linux. Lack of tools
  on Windows is crippling
• Linux SMP support not great. Many variants a
  problem
• Windows cluster out-of-the-box experience not
  great
• Not many production settings of Windows clusters,
  so people are not taking it seriously yet!
• Beowulf group has a quasi-community that is
  strong

42
Future for HPC Software on Windows Platform
Panel Session III

• Five-year prognosis for Windows Clusters
• Performance Security IT TCO issues prevail
• Bright future with a level playing field. Good
  for competition
• Academia will be biased towards using Linux
• Outside Academia will be more Windows 2000
  oriented
• User Beware! Petaflop computing will need a new
  paradigm though, to supersede MPI

43
Reflections and Conclusions

• Cornell Theory Centre has demonstrated Industry
  Standard Windows Clusters by example
• Performance is as good, or better than Big Iron
• HPC is becoming mainstream as a business tool
• Convergence in hardware and software between
  e-business/Enterprise Computing and HPC
• Cluster management software is maturing fast
• Lack of software development tools is a key
  problem

44
More Information

• For more information about Cornell Theory Centre
  Advanced Cluster Consortium (AC3) see
  http//www.tc.cornell.edu/
• For more information about Windows Clusters in
  general see
• http//www.windowsclusters.org
