Analyzing Tabular Requirements Specifications Using Infinite State Model Checking

1

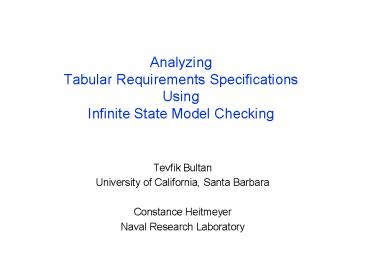

Analyzing Tabular Requirements Specifications
Using Infinite State Model Checking

• Tevfik Bultan
• University of California, Santa Barbara
• Constance Heitmeyer
• Naval Research Laboratory

2
Outline

• SCR Toolset
• Action Language Verifier
• SCR to Action Language
• Two Examples
• Experiments

3
HISTORY OF SCR APPROACH

• 1978 Heninger,Parnas publish A-7/SCR
  requirements document
• Tabular notation
• Events and conditions
• Mode classes and terms
• 1980s-early 1990s SCR applied to a wide range of
  systems
• Telephone networks (ATT Bell Labs)
• Submarine communications (NRL)
• Control software for nuclear plants (Ontario
  Hydro)
• Avionics software (Grumman)
• Early 1990s Development of Four Variable Model
  and CoRE
• Parnas introduce and apply Four Variable Model
• Softw. Productivity Consortium develops CoRE
  method (based on SCR)
• Lockheed applies CoRE and SCR tables to C-130J
  flight program
• 1994-present NRL develops formal SCR model and
  tools

SCR ? Software Cost Reduction
4
SCR GOAL MAKE FORMAL METHODS PRACTICAL

• Usable, scalable tabular notation
• Integrated set of robust software tools
• light-weight tools whose use does not
• require math. sophistication/thm proving
• heavy-duty tools (e.g., theorem prover)

5

SCR REQUIREMENTS TOOLSET
SCR BASIC TOOLS
requirements spec
DEPENDENCY GRAPH BROWSER
SPECIFICATION EDITOR

• Designed to help a developer specify and analyze
  requirements
• most mature tools
• installed at 200 organizations in industry,
  govt., and academia

modes
terms
CONSISTENCY CHECKER
conditions
cont vars
SIMULATOR
events
mon vars
MODEL CHECKER
MORE ANALYSIS TOOLS
THEOREM PROVER (TAME)

• TAME - interface to PVS designed to prove
  properties of state machine models

6
Action Language Tool Set
Action Language Specification

• A symbolic CTL model checker
• Supports infinite state model checking
• unbounded integer variables, Presburger
  arithmetic
• Composite symbolic representation
• Polyhedra and automata representation for
  Presburger arithmetic, BDDs for Boolean and
  bounded variables, shape graphs for heap
  variables
• Uses conservative approximations for fixpoints
• widening and truncated fixpoints
• Supports parameterized verification
• parameterized constants
• parameterized modules

Counter example
Verified
Action Language Parser
Composite Symbolic Library
Omega Library
CUDD Package
MONA
Presburger Arithmetic Manipulator
BDD Manipulator
Automata Manipulator
7
Composite Symbolic Library
Symbolic

• intersect()
• union()
• complement()
• isSatisfiable()
• isSubset()
• pre()
• post()

CUDD Library
OMEGA Library
8
Composite Symbolic Library, Extended
Symbolic

• union()
• isSatisfiable()
• isSubset()
• forwardImage()

OMEGA Library
CUDD Library
MONA
9
Composite Symbolic Library, Further Extended
Symbolic

• union()
• isSatisfiable()
• isSubset()
• forwardImage()

BoolSym
HeapSym
IntSym
representation BDD
representation list of ShapeGraph
representation list of Polyhedra

• union()

• union()

• union()

CUDD Library
OMEGA Library
10
SCR to Action Language

• SCR Tabular specifications
• Mode transition tables
• Condition tables
• Event tables
• Events
• _at_T(c) ?c ? c
• In Action Language !c and c
• _at_T(c) WHEN d ?c ? c ? d
• In Action Language !c and c and d

11
SCR to Action Language

• Each row in an SCR table can be translated to a
  formula on current and next-state variables
• The transition relation of a table is defined by
  the disjunction of the formulas that correspond
  to its rows
• The transition relation of the whole system is
  defined by the conjunction of the transition
  relations of its tables
• The initial expression in Action Language is used
  to define the initial states
• The restrict expression in Action Language is
  used to restrict the domains of the variables
  according to their type definitions

12
SCR to Action Language

• module main()
• enumerated CruiseCtrl Off, Inactive, Cruise,
  Override
• boolean IgnOn
• enumerated Throttle accel, maintain, decel,
  off
• initial CruiseModeOff and !IgnOn and
  Throttleoff
• r1 CruiseCtrlOff and
• !IgnOn and IgnOn and
• CruiseCtrlInactive
• r2 CruiseCtrlInactive and
• IgnOn and !IgnOn and
• CruiseCtrlOff
• CruiseCtrl r1 r2 ...
• Throttle ...
• main CruiseCtrl Throttle ...

CruiseCtrl
Source Mode Event Destination Mode
Off _at_T(IgnOn) Inactive
Inactive _at_F(IgnOn) Off

Throttle
Mode Condition
Cruise

Throttle accel
13
Two Example SCR Specifications

• Cruise Control System (CCS)
• Monitored variables IgnOn, Speed, Brake, Lever,
  EngRunning
• Mode class CruiseCtrl
• Term DesiredSpd
• Controlled variable Throttle
• The transition relation in Action Language
• 26 Boolean and 8 integer variables
• Safety Injection System (SIS)
• Monitored Variables Block, Reset, WaterPres
• Mode Class Pressure
• Term Overridden
• Controlled Variable SafetyInjection
• The transition relation in Action Language
• 14 Boolean and 2 integer variables

14
Verification of Invariants

• An invariant of CCS
• Brake ? Throttleoff
• Action Language Verifier checks the corresponding
  CTL property
• AG(Brake gt Throttle off)
• The fixpoint converges in two iterations, takes
  0.76 seconds.
• Another invariant of CCS
• CruiseCtrl Off ? ? IgnOn
• Action Language Verifier checks the corresponding
  CTL property
• AG(CruiseCtrl Off ? ? IgnOn)
• The fixpoint converges in one iteration, takes
  0.32 seconds.

15
Transition Invariants

• In SCR some properties are specified as
  transition invariants
• ?EngRunning ? EngRunning ? Throttleoff
• In the Action Language translation
• We create a new Boolean variable for each
  transition invariant
• (!EngRunning and EngRunning gt Throttleoff)
  ltgt b
• We initialize this new boolean variable to true
• Then check the property AG(b)
• For this transition invariant the Action Language
  Verifier converges in two iterations and takes
  0.36 seconds.

16
Consistency Checking with ALV

• Disjointness check in SCR
• SCR tables should not assign more than one value
  to a dependant variable in any system state
• In each SCR table, for each mode, every pair of
  conditions should be disjoint
• Disjointness check with Action Language Verifier
• EX( dvd ? ? mvm ) ? AX( ? mvm ? dvd)
• We set the initial condition to true, and then
  check the above CTL property
• With ALV disjointness check takes 8.07 seconds
  for CCS and 2.07 seconds for SIS

m?M
m?M
17
Consistency Checking with ALV

• Coverage check in SCR
• Ensures that each SCR table defines a total
  function
• The coverage check for a condition table reduces
  to checking that the disjunction of the set of
  conditions in each row of the table is equivalent
  to true
• Coverage check in Action Language Verifier
• We create an auxiliary boolean variable for each
  variable defined by a condition table
• This boolean variable is set to true initially
  and it is set to false shen no condition in the
  condition table evaluates to true
• We set the initial condition to true and then we
  check that the property AX(b) holds
• With ALV consistency check takes 0.06 seconds for
  CCS and 0.02 seconds for SIS

18
Use of Multiple Symbolic Representations

• Support for multiple symbolic representations in
  the Composite Symbolic Library is helpful when
  analyzing SCR specifications
• Automata vs. Polyhedra representations for
  integers
• Disjointness property for CCS
• Polyhedra 8.07 seconds, 6.6 Mbytes
• Automata 50.78 seconds, 2.7 Mbytes
• Disjointness property for SIS
• Polyhedra 2.07 seconds, 257.8 Mbytes
• Automata 1.13 seconds, 2.2 Mbytes
• It is hard to figure out the relative efficiency
  of these two representations statically

19
Explicit vs. Symbolic Model Checking

• For specifications with large number of initial
  and reachable states explicit state model
  checkers such as Spin can run out of memory
• For symbolic model checkers the important factor
  for performance is the size of the symbolic
  representation not the size of the state space
• In one version of the SIS specification that was
  verified with Spin the initial value of the
  WaterPres was specified as
• WaterPres 14
• We modified this initial condition to
• 0 ? WaterPres ? 900
• Interestingly, this more general initial
  condition does not influence ALVs verification
  performance
• i.e., it does not effect the size of the symbolic
  representation

20
Finite vs. Infinite State Model Checking

• In a finite state version of the SIS
  specification the WaterPres variable is
  restricted to the following domain
• 0 ? WaterPres ? 2000
• We changed this to 0 ? WaterPres
• Among the 4 properties of SIS, 2 of them (S1 and
  S3) converge with exact fixpoint computations for
  the infinite state case
• For the other two properties exact fixpoint
  computation does not converge, but we can still
  verify (or falsify) them using approximate
  fixpoint computations (using widening and
  truncated fixpoints)
• For the property S4 for the finite case the
  fixpoint computation takes
• 12.82 seconds, 11.9 Mbytes and 1,102 iterations
• For the property S4 for the infinite case the
  approximate fixpoint computation takes
• 0.77 seconds, 1.8 Mbytes and 11 iterations
• And the result of the approximate fixpoint
  computation is strong enough to prove the property

21
Parameterized Verification

• In addition to variables with infinite domains,
  ALV can also handle parameterized constants
• In the SIS specification, two constants determine
  the boundaries of the modes for the Pressure mode
  class
• Low 900 and Permit 1000
• We created a version of SIS in which Low and
  Permit are paramterized constants that satisfy
  the following constraint
• 0 ? Low lt Permit
• ALV able to verify the properties of the SIS
  specification on this parameterized version
• The counter-example for the property S2 in the
  original version is a path that consists of 887
  states
• The counter-example for the property S2 in the
  parameterized version is a path that consists of
  only 2 states

22
Abstraction and Symbolic Representation

• Dependency analysis
• SCR toolset has a dependency analyzer which is
  able to automatically removes variables that do
  not influence a property
• Using dependency analysis together with ALV
  improves the efficiency of verification with ALV
  by reducing the number of variables in the
  specification (which reduces the size of the
  symbolic representation)
• Data abstraction
• SCR toolset also supports a data abstraction
  technique to deal with large domains such as
  integers
• The data variable is converted to an enumerated
  variable where each value of the enumerated
  variable corresponds to a range of values in the
  concrete data domain
• This type of abstraction can be used instead of
  infinite state model checking in cases where the
  abstraction is strong enough to verify the
  property

23
Invariant Generation

• SCR toolset has an invariant generation tool
  which constructs invariants from the SCR tables
• ALV supports approximate reachability
  computations which also result with an invariant
• Shortcomings of using ALVs forward fixpoint
  comptuation for generating invariants
• The quality of the invariant generated by ALV is
  sensitive to the initial condition specification.
  If the initial condition is over-specified the
  generated invariant may be too restrictive.
• The invariant formula generated by a forward
  fixpoint computation may be a huge formula which
  may be hard to read and understand. SCR invariant
  construction algorithms generate invariants in
  certain forms which are easy to read and
  understand.

24
Model Checking vs. Theorem Proving

• In the experiments we conducted, verification
  with ALV seem to be more efficient than automated
  theorem proving using TAME
• However, TAME is capable of verifying a larger
  class of systems than ALV, so this performance
  improvement is mainly due to the fact that ALV is
  a more specialized verification tool.
• The user interaction in ALV is limited to
  choosing from a set options (the type of symbolic
  representation, the type of approximation, etc.),
  whereas TAME can be used interactively as a
  semi-automated proof tool.
• In a lot of cases where ALV is able to verify a
  property automatically TAME also automatically
  proves the property.
• ALV can generate counter-example behaviors for
  the properties which are violated.
• Although TAME does not generate counter-examples
  if the proof fails it generates a set of dead
  ends and problem transitions which correspond to
  a characterization of all the ways that a
  property can be violated.

25
Conclusions

• ALV would be a useful addition to the SCR toolset
  especially for verification of infinite state
  and/or parameterized specifications
• Using ALV for consistency checking could be an
  overkill since SCR toolset already supports
  efficient consistency checking tools which are
  specialized for this problem
• Two examples we analyzed are not very big. For
  large specifications infinite state model
  checking techniques maybe too expensive
• We need to conduct experiments on larger systems
• Usability of ALV is not as good as the SCR
  toolset. SCR toolset generates easy to understand
  feedback for software developers.
