Title: Understanding and Using Asphalt Emulsions


1

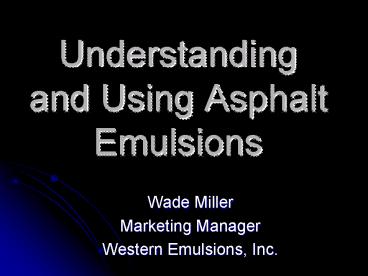

Understanding and Using Asphalt Emulsions
  • Wade Miller
  • Marketing Manager
  • Western Emulsions, Inc.

2
(No Transcript)
3
Petroleum Asphalt Flow Chart
4
(No Transcript)
5
Emulsions are used in every phase of asphalt road
construction
6
Asphalt is a semi-solid road building material
7
(No Transcript)
8
(No Transcript)
9
Asphalt must be cut back or heated with fuel.
10
Asphalt and water can be mixed in a process
called emulsification
11
Milk is an emulsion of butterfat droplets in water
12
Asphalt emulsion is a liquid form of asphalt
13
(No Transcript)
14
Emulsion is a dispersion of minute oil droplets
in water
15
(No Transcript)
16
Water-Continuous phase Asphalt-Dispersed phase
17
Dissimilar liquids like oil and water usually
separate
18
(No Transcript)
19
(No Transcript)
20
Emulsion break or cure is designed to vary
21
(No Transcript)
22
Chemical Emulsion Types
  • Cationic
  • Anionic
  • Non-ionic

23
Emulsion grades
  • RS (Rapid Set)
  • MS (Medium Set)
  • SS (Slow Set)
  • QS (Quick Set)

24
Emulsion Designations
25
(No Transcript)
26
(No Transcript)
27
The asphalt particle in an emulsion droplet is
about 3 microns in diameter. A strand of human
hair is about 9 microns in diameter.
28
(No Transcript)
29
(No Transcript)
30
Virtually all aggregates are negative.
31
Cationics adhere to virtually all aggregates
32
(No Transcript)
33
Asphalt droplets coalesce into an asphalt film.
34
(No Transcript)
35
Factors Affecting Stability
  • Asphalt
  • Water
  • Chemical Additives
  • Handling

36
(No Transcript)
37
Asphalt emulsions are stabilized by
  • Thermal energy
  • Mechanical energy
  • Surface active chemicals

38
Emulsion Breakage
  • Evaporation
  • Chemical
  • Surface contact
  • Temperature

39
Tests attempt to predict field performance
40
Common Test of Emulsified Asphalt
Water Resistance Test Cement Mixing Test Particle
Charge Test Sieve Test Distillation Test Specific
Gravity Test
Saybuilt-Fural Viscosity Test Settlement
Test Storage Stability Test Demulsibility
Test Coating Ability and
41
Field Performance
Test
Viscosity Settlement Sieve Particle charge pH
Handling Storage Stability Storage Stability Chemi
cal type Chemical type
42
(No Transcript)
43
Factors Affecting Viscosity
  • Asphalt content
  • Temperature
  • Type of manufacture
  • Handling

44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
Emulsion Handling
  • Storage
  • Heating
  • Pumping
  • Blending
  • Avoiding contamination

49
Storage
  • Vertical tanks
  • Gentle agitation
  • Heating

50
(No Transcript)
51
Heating
  • Avoid boiling
  • Avoid hot spots
  • No live steam

52
Pumping
  • Positive displacement
  • Low speed
  • No air leaks
  • Positive suction head

53
(No Transcript)
54
Avoid Contaminants
  • Hard water
  • Oil distillates
  • Different emulsions
  • Rust
  • Silty water

55
Special Handling Guidelines for Asphalt Emulsions
  • Never mix anionic and cationic emulsions
  • Do not dilute rapid setting (RS) emulsions with
    water
  • Vertical tank storage is preferable so as to
    reduce the area available for surface skimming
  • Care is required in heating asphalt emulsions in
    order to avoid local overheating
  • Avoid entrapment of air in emulsion transport in
    order to prevent foaming
  • Use proper pump type with adequate clearance
    between casing and rotors.
  • Always add water to an emulsion when diluting

56
Consult your emulsion supplier Wade
Miller Western Emulsions, Inc. (949)
337-5133 wade_at_westernemulsions.com
