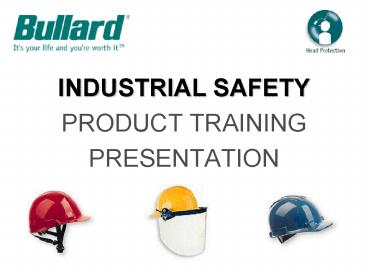

INDUSTRIAL SAFETY

1

• INDUSTRIAL SAFETY
• PRODUCT TRAINING
• PRESENTATION

2
HISTORY

• 1898 - E.D. Bullard Company was founded
• 1919 - Bullard introduces the first hard hat
  known
• as the Hard-Boiled Hat.
• 1938 - Bullard created the first aluminum hard
  hat.
• 1940 - Fiberglass hard hats became the standard
  and Bullard developed the distinctive three-rib
  design.
• 1950 - Thermoplastics became the preferred
  material for head protection products.

3
HISTORY

• 1953 - Bullard first to injection mold hard hats.
• 1971 - Occupational Safety and Health Act (OSHA)
  is passed.
• 1988 - Bullard introduces the revolutionary
  Advent helmet.
• 1997 - ANSI releases the latest revision to the
  Z89.1 Industrial head protection standard -
  Z89.1-1997.
• 1998 - Bullard celebrates 100 years of safety.
• 1999 - Bullard celebrates the 80th birthday of
  the hard hat.

4
TYPES OF HARD HATS

• Conventional hard hats are designed to reduce the
  force of the
• impact to the head, neck, and spine.
• This is considered a TYPE I helmet.
• New designs offer additional impact protection to
  the front, sides,
• and back, as well as the top of the head.
• This is considered a TYPE II helmet

5
TYPES OF HARD HATS

• Bullard TYPE I Bullard TYPE II
• 3000 model Advent (A1 and A2) helmet
• 302RT model Vector helmet
• 303 model
• 5100 model
• 4100 model
• ATLAS model
• 5100MT model
• 911C model
• 911H model
• 5100P model
• 502 model

6
How Hard Hats Work

• A hard hat consists of two components
• 1) Shell
• a) offers penetration protection while holding
  the impact absorbing suspension in place.
• b) offers impact protection by deflecting the
  blows when struck.
• c) helps absorb the energy of the impact

7
How Hard Hats Work

• A hard hat consists of two components
• 2) Suspension System
• a) consists of three components (straps, keys,
  and headband.
• b) controls the shock transmitted to the head.
• i. keys wedge themselves into the key
  sockets, reducing the impacts transmitted
  force.
• ii. straps elongate, helping absorb the
  impact.
• iii. the area between the head and shell
  serves as a buffer.

8
Regulations Standards

• OSHA (29 CFR 1910.135) requires head protection
  if any aspect of the work environment presents a
  risk of head injury.
• ANSI (Z89.1-1997) developed the following
  requirements for industrial head protection
• 1. IMPACT PROTECTION
• 2. PENETRATION PROTECTION
• 3. ELECTRICAL INSULATION PROTECTION

9
Classes of Hard Hats

• There are three different electrical
  classifications a hard hat can be classified as
• Class E (Electrical) limited electrical
  insulation in tests using 20,000 volts
• Class G (General) limited electrical
  insulation in tests using 2,200 volts
• Class C (Conductive) not tested for electrical
  insulation

10
Classes of Hard Hats

• Old Standard New Standard
• Z86.1-1996 Z89.1-1997 Application
• B E Electrical
• A G General
• C C Conductive

11
Types and Classes

• Examples
• Advent A2 model
• Meets/exceeds ANSI Z89.1-1997, Type II, Class E.
• 502 model
• Meets/exceeds ANSI Z89.1-1997, Type I, Class G.

12
Advanced Head Protection

• ADVENT - TYPE II HELMET
• Unique 8-point Sure-Lock ratchet
• suspension offers a comfortable fit.
• Integral 2-point (model A1) or
• 3-point (model A2) quick-release chin strap
• provide a secure fit that will not slip during
  use.
• Polycarbonate outer shell.
• EPS foam impact liner.
• Accessory slots for adaptability to faceshields,
  hearing protectors, and communication devices.

13
Advanced Head Protection

• VECTOR - TYPE II HELMET
• Among the lightest weight helmets
• in its class.
• 4-point suspension in standard self-sizing
• or ratchet style offers a comfortable fit.
• Accepts optional chin strap for added security
• Polyethylene outer shell
• EPS foam impact liner
• Replaceable brow pad and accessory slots for
  accessory adaptability.

14
(No Transcript)
15
Classic Series

• 3000 model - TYPE I HELMET
• Features a wide brim for increased
• protection from rain, snow, dust, and
• harmful UV rays.
• 6-point suspension with 1 wide nylon straps
• Replaceable Sportek brow pad
• Accessory slots accept a wide
• variety of attachments

16
Classic Series

• 302RT model - TYPE I HELMET
• Features a wide brim for increased
• protection from rain, snow, dust, and
• harmful UV rays.
• Brim has rain-trough to channel away
• rain, snow, and condensation.
• 6-point suspension with 1 wide nylon straps
• Replaceable Sportek brow pad
• Accessory slots accept a wide
• variety of attachments

17
Classic Series

• 303 model - TYPE I HELMET
• Features a full brim for increased
• protection from rain, snow, dust, and
• harmful UV rays.
• 6-point suspension with 1 wide nylon straps
• Replaceable Sportek brow pad
• No accessory slots on full brim models.

18
(No Transcript)
19
Economy Series

• 5100 model - TYPE I HELMET
• Features a rain trough for extra protection
• against snow, rain, dust, and dirt.
• Shell has a flat front that allows for a
• lamp bracket attachment.
• One of the lightest caps on the market!
• 4-point suspension with 3/4 nylon straps
• Accessory slots accept a wide variety of
  attachments.

20
Economy Series

• 4100 model - TYPE I HELMET
• Combines a traditional look with a
• narrow profile.
• Anatomically designed shell allows for
• increased air circulation, creating a more
• comfortable fit.
• One of the lightest caps on the market!
• 4-point suspension with 3/4 nylon straps
• Accessory slots accept a wide variety of
  attachments.

21
Economy Series

• Atlas model - TYPE I HELMET
• Ventilated hard hat for worker comfort.
• Comfortable, replaceable soft vinyl brow pad.
• Meets/exceeds ANSI Z89.1-1997,
• Type I, Class C. No electrical protection.
• 6-point suspension - only available with pinlock
  sizing.

22
(No Transcript)
23
Bump Caps

• MK2V bump cap
• Ventilated, lightweight, and durable.
• Replaceable 4-point suspension and soft
• vinyl brow pad.
• Available with a bracket and visor attachment
• (GL5 bracket) making it a cost
• effective combination.
• Protects against minor bumps and scrapes.
• Not intended for use where ANSI approved
• head protection is required.

24
Bump Caps

• First Base bump cap
• Designed for comfort, safety, and style.
• ABS inner liner protects against bumps
• and scrapes.
• Eight large, sewn eyelet holes provide
• superior ventilation.
• Foam pad provides all-day user comfort.
• Custom monogramming available.

25
High Heat Series

• 911C model - TYPE I HELMET
• High heat resistant thermoplastic shell.
• Same material as our rugged firefighter
• helmets.
• Ideal for utilities, welding, foundries, and
  steel mills.
• Available in 6-point self-sizing or ratchet
  suspension.
• No accessory slots - brackets are available for
• spring mounted attachment.

26
High Heat Series

• 911H model - TYPE I HELMET
• High heat resistant thermoplastic
• full brim shell. Same material as
• our rugged firefighter helmets.
• Ideal for utilities, welding, foundries, and
  steel mills.
• Available in 6-point self-sizing or ratchet
  suspension.
• No accessory slots - brackets are available for
• spring mounted attachment.

27
High Heat Series

• 5100P model - TYPE I HELMET
• High heat resistant thermoplastic
• shell. Same material as our rugged
• firefighter helmets.
• Ideal for utilities, welding, foundries, and
  steel mills.
• Available in 4-point self-sizing or ratchet
  suspension
• Only high heat cap with accessory slots to accept
• a wide variety of attachments.

28
High Heat Series

• 502 model - TYPE I HELMET
• High-heat resistant fiberglass outer shell.
• Ideal for utilities, welding, foundries,
• and steel mills.
• Better chemical resistance than high-heat
• thermoplastic shells.
• Available in 6-point self-sizing or ratchet
  suspension
• Meets/exceeds ANSI Z89.1-1997, Type I, Class G
  requirements.

29
(No Transcript)
30
Face Protection

• Brackets and visors work together to protect the
  face from numerous industrial hazards.
• Bullard offers a full line of brackets and
  visors for just about any work environment.

31
Face Protection

Brackets Available in corrosion and heat
resistant aluminum - Goldline - and
- Non-conductive nylon - Dielectric Brackets
are available to fit every Bullard cap/hat model
32
Face Protection

Visors Materials Acetate Polycarbonate Polyest
er Mesh Screens Tinted Visors When used with
Bullard brackets, Bullard visors conform to ANSI
Z87.1-1989, the standard for eye and face
protection.
33
Technical Bulletins

• Technical Bulletins
• Wearing a Hard Hat Backwards
• Objects Inside a Hard Hat
• Use of Stickers and Decals on a Hard Hat
• High Heat Hats and Caps
• Bullard Faceshields
• Industrial Head Protection User Information
  Guide
