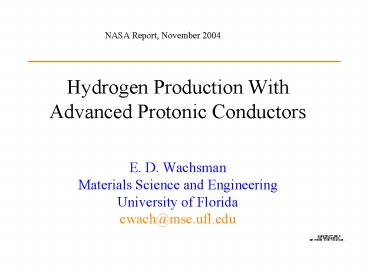

Title: Hydrogen Production With Advanced Protonic Conductors


1
Hydrogen Production With Advanced Protonic
Conductors
NASA Report, November 2004
  • E. D. WachsmanMaterials Science and
    EngineeringUniversity of Floridaewach_at_mse.ufl.ed
    u

2
Outline
  • Introduction
  • Fundamentals and Materials Development
  • Membrane Reactor Fabrication
  • Recent Accomplishments

3
DOEs Future Gen
  • Hydrogen and electricity co-generation from coal
  • Zero emissions and CO2 capture

Hydrogen Production from Fossil Fuels with
Proton and Oxygen-Ion Transport Membranes, E. D.
Wachsman and M. C. Williams, Interface, Volume
13, No.3, Fall 2004
4
H2 PRODUCTION FROM HYDROCARBON FUEL WITH PROTON
CONDUCTING MIEC
  • H2 permeates through membrane
  • No further separation required
  • No total oxidation products formed

Hydrogen Production from Fossil Fuels with
Proton and Oxygen-Ion Transport Membranes, E. D.
Wachsman and M. C. Williams, Interface, Volume
13, No.3, Fall 2004
5
Catalytic Membrane Fuel Processing Unit - CMFPU
  • Conceptual design of an autothermal catalytic
    membrane fuel processing unit for conversion of
    hydrocarbon fuels to pure H2 showing functions
    of O2 and H2 transport membranes
  • Combines exothermic Oxidation with endothermic
    Steam Reforming

6
Autothermal Temperature as a Function of Heat
Transfer Efficiency
  • Is the heat of reaction sufficient to bring the
    CMFPU reactor to the required H2 membrane
    temperature? -gt Yes !!
  • O2/H2O 0.3 Tgt 1000C

CH4 0.375 O2 1.25 H2O CO2 3.25 H2
7
Cost of Hydrogen Production
CH4 0.375 O2 1.25 H2O CO2 3.25 H2
  • 3.25 H2/CH4
  • CH4 0.20C/m3
  • 0.15/m3 H2
  • 0.015 /liter H2

Assumes 100 conversion and selectivity, air
and water are free, and ignores capital cost
8
Outline
  • Introduction
  • Fundamentals and Materials Development
  • Membrane Reactor Fabrication
  • Recent Accomplishments

9
ADDING ELECTRONIC CONDUCTIVITY TO A PROTON
CONDUCTOR
  • Two phase membrane
  • Ion conducting phase (BaCeO3, SrCeO3)
  • Electron conducting phase (Pd)
  • Single phase membrane
  • Add multivalent M3/2 cation
  • BaCe1-xMxO3-d, SrCe1-xMxO3-d

10
H2 FLUX RELATIONSHIP
  • Flux across an oxide membrane calculated using
    Wagner equation
  • Assumes that bulk diffusion is rate limiting step
  • ?t is the total conductivity
  • ?i zi q ui i, (i OHO, VO, e)
  • Transference number, ti ?i / ?t
  • F is Faradays constant
  • Requires integration of both O2 and H2 potential
    gradients
  • 1/Membrane thickness (L)

11
Effect of Membrane Thickness
  • At high temperature (gt750C) permeation is bulk
    transport controlled
  • Flux is linear with 1/L
  • At lower temperature permeation is surface
    kinetic controlled

12
Effect of Surface Modification
  • Modification of the surface with simple Pt paste
    (solid lines) significantly increases flux (2X)

13
FUNDAMENTALS Summary
  • High temperature protonic conductors offer
    tremendous potential for H2 production
  • Adding electronic conductivity significantly
    increases H2 flux
  • Two phase Pd-BCGO
  • Single phase multivalent Eu3/2
  • 0.5 cc/cm2 min H2 flux through 2 mm thick
    membrane
  • Complex defect equilibria
  • Flux modeling requires O2/H2O/H2 activities
  • Mixed bulk/surface control?
  • UF Proprietary material has potential for even
    better H2 flux at Water Gas Shift temperature
    range

14
Outline
  • Introduction
  • Fundamentals and Materials Development
  • Membrane Reactor Fabrication
  • Recent Accomplishments

15
H2 Membrane Fabrication
Conventional tape casting of Ni-GDC support tube
material
NiO-GDC green tape
Partially sinter then coat with membrane
Roll tape to form tube
Eu- doped SrCeO3-d layer
16
Closed End NiO-GDC Tube Before and After
Pre-sintering
17
H2 Membrane Fabrication
Eu-doped SrCeO3-d
NiO-GDC
1400oC 5 hrs co-fired Eu-doped SrCeO3-d / NiO-GDC
18
Microstructures of Eu-doped SrCeO3 on NiO-GDC
support
Before hydrogen treatment
After hydrogen treatment
19
Outline
  • Introduction
  • Fundamentals and Materials Development
  • Membrane Reactor Fabrication
  • Recent Accomplishments

20
Chemical Reactivity Between SrCe0.95Eu0.05O3-d
and Support Tube Materials
GDC
GDC Ce0.8Gd0.2O2-d
GDC
SC SrCe0.9Eu0.1O3-d
GDC
No Reaction
SC
GDC
Intensity (a.u)
GDC
SC
SC
GDC SC
GDC SC
SC
SC
GDC
SC
SC
NiO- Eu-doped SrCeO3
21
Gadolium doped Cerium oxide Thermal expansion of
NiO-GDC and SrCe0.90Eu0.10O3-d
22
Yttrium stabilized zirconium oxide (YSZ) Thermal
expansion of NiO-YSZ and SrCe0.90Eu0.10O3-d
23
10 mol Eu-doped SrCeO 3-d Thermal expansion of
NiO-SrCeO3 and SrCe0.90Eu0.10O3-d
24
Hydrogen Membrane Cell Fabrication Shrinkage
behavior according to the firing temperature
Pre-sintering region
Final sintering region
25
Hydrogen Membrane Cell Fabrication Conventional
dip-coating method
After dried
After coated
26
Coating equipment for Hydrogen membrane thin
film To prevent pin-holes
Rubber for partially sintered support tube
Partially sintered NiO-SrCeO3 porous support tube
10mol Eu-doped SrCeO 3-d coated layer
Glass chamber
Vacuum pump (to decrease the air pressure in the
glass chamber)
27
Hydrogen Membrane Cell Fabrication Modified
dip-coating method
Solvent
Eu-doped SrCeO3 powder
Coated layer
Porous support tube
Coated layer
Porous support tube
After dried
After coated
28
Hydrogen Membrane Cell Fabrication
Microstructures for Eu-doped SrCeO3 films on
NiO-SrCeO3 support tube
Before hydrogen treatment
1425oC 5hrs
29
Hydrogen Membrane Cell Fabrication Eu-doped
SrCeO3-d via Citrate Process
Before hydrogen treatment
After hydrogen treatment
Pre-sintering cond. 1150oC/4 hrs, Final
sintering cond. 1425oC/5 hrs
30
Successfully Achieved MAJOR Milestone
31
NEXT PHASEHydrogen Membrane Reactor Fabrication
32
FUTURECatalytic Membrane Fuel Processing Unit
  • Conceptual design of an autothermal catalytic
    membrane fuel processing unit for conversion of
    hydrocarbon fuels to pure H2 showing functions
    of O2 and H2 transport membranes
  • Combines exothermic Oxidation with endothermic
    Steam Reforming

Also, DOE Proposal with Praxair
33
ACKNOWLEDGMENTS
  • Group
  • Dr. Xin Guo (Group Leader)
  • Dr. H. Yoon (Porous tube fabrication)
  • J. Rhodes (PhD student, single phase BaCeO3)
  • G. Zhang (PhD student, UF Proprietary compound)
  • T.K. Oh (PhD student, SrCeO3 composition
    optimization)
  • J. Li (PhD student, catalyst incorporation)
  • S.J. Song (PhD May 2003, SrCeO3 Cahn
    Microbalance)
  • R. Bagul (MS August 2004, colloidal deposition)
  • B. Krishnamurthi (MS May 2000, two phase
    Pd-BaCeO3)
  • Support
  • NASA
  • Consortia for Conversion of Natural Gas (CANMET)
  • US DOE (Argonne National Lab)
