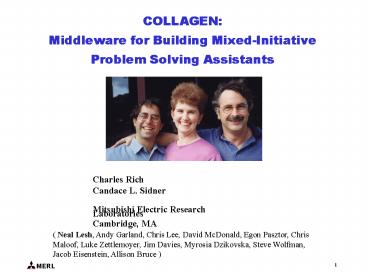

COLLAGEN:

1
COLLAGEN
Middleware for Building Mixed-Initiative Problem
Solving Assistants
Charles Rich Candace L. Sidner Mitsubishi
Electric Research Laboratories Cambridge, MA
( Neal Lesh, Andy Garland, Chris Lee, David
McDonald, Egon Pasztor, Chris Maloof, Luke
Zettlemoyer, Jim Davies, Myrosia Dzikovska, Steve
Wolfman, Jacob Eisenstein, Allison Bruce )
2
Outline of the Talk

• Introduction
• Demo DiamondHelp
• Some Theory
• Some Architecture
• Some More Technical Details
• Related Work

3

Mixed-Initiative and Collaboration
Mixed Initiative efficient, natural
interleaving of contributions by users
and automated services Horvitz
Collaboration A process in which two or more
participants coordinate their actions
toward achieving shared goals. Grosz Sidner
4
Collaboration

• usually involves some form of communication
  (discourse) between the participants, e.g., in
  natural language.

• covers a wide spectrum of interactions
  depending, among other factors, on
• - the relative knowledge of the participants
• - which participant predominantly has the
  initiative
• - the primary goal of the collaboration
• e.g., tutoring versus assistance

5
Demo
6
Outline of the Talk

• Introduction
• Demo DiamondHelp
• Some Theory
• Some Architecture
• Some More Technical Details
• Related Work

7
(No Transcript)
8
Discourse Segments and Purposes
(fixing an air compressor, E expert, A
apprentice)
E Replace the pump and belt please. A Ok, I
found a belt in the back. A Is that where it
should be? A removes belt A Its done. E
Now remove the pump. E First you
have to remove the flywheel. E Now
take the pump off the base plate. A Already
did.
(Grosz, 1974)
9
SharedPlan Discourse State Model
Focus Stack
Plan Tree
replace pump and belt
current focus space
replace belt
replace pump and belt
replace pump
replace belt
E Replace the pump and belt please. A Ok, I
found a belt in the back. A Is that where it
should be? A removes belt A Its done
replace pump and belt
replace belt
(Grosz Sidner, 1986)
10
SharedPlan Discourse Interpretation Algorithm
Updating the discourse state in response to new
discourse events (communications or
manipulations)
A
Plan Tree
Focus Stack
live
g
B
live
C
live
B
A
live
live
live
d user
e user
f agent
g user
1. User performs e.
2. User performs d.
3. Agent performs f.
(Lochbaum, 1998)
4. Agent says Please perform g.
11
User says "What next?" Agent says "What do you
want to do?" Choosing the fabric and stain.
User says "Choose the fabric and stain." Done
choosing the fabric. Done successfully
navigating. Done user successfully
popping up the fabric load selection display.
Agent says "Please press the Fabric Load
picture to pop up the fabric choices."
Agent points to where you press the Fabric Load
picture to pop up the fabric choices.
User pops up the fabric load selection display.
User closes the current pop-up window (by
pressing OK in the window corner). User says
"What next?" Choosing the stain. Done
successfully navigating. Done user
successfully popping up the stain selection
display. Agent says "Please press the
Stain picture to pop up the stain choices."
Agent points to where you press the Stain
picture to pop up the stain choices. User
pops up the stain selection display. Next
expecting optionally to select a stain.
Next expecting to close the current pop-up
window (by pressing OK in the window corner).
Expecting optionally to adjust detailed
settings. Expecting optionally to run the
selected cycle.
12
Discourse Theory vs. Problem-Solving Theory

• Even though it includes an intentional (plan
  tree) component, SharedPlan discourse theory is
  not a complete problem-solving theory
• For example, it does not tell you how to build
  new recipes (for that, you might use, e..g.,
  first-principles planning or case-based
  reasoning)
• If a problem solver does not collaborate, then
  it does not need a discourse model!
• However, a mixed-initiative problem solving
  assistant needs both a discourse model and a
  problem-solving model (e.g., BDI).

13
Discourse Theory vs. Problem-Solving Theory

• The discourse model constrains the problem
  solving model
• For example, the discourse model constrains which
  subproblem to work on next based on the focus of
  attention in the collaboration.
• This modularity is possible because SharedPlan
  discourse theory captures structure that is
  independent of the domain and the problem solving
  model, i.e., structure that is fundamentally
  about the collaboration process itself.
• The discourse model also provides structure
  needed for linguistic processing, such as
  reference resolution (via focus spaces).

problem solving model
discourse model
desires
intentions
discourse interpretation
first-principles planning
plan recognition
beliefs
14
Outline of the Talk

• Introduction
• Demo DiamondHelp
• Some Theory
• Some Architecture
• Some More Technical Details
• Related Work

15
The COLLAGEN Project
Theoretical Orientation Applying SharedPlan
collaborative discourse theory to improve
human-computer interaction. Practical
Goal Building collaborative agents
(mixed-initiative problem solving assistants) for
a wide range of applications with a maximum
degree of software reuse.
MERL Charles Rich Candace Sidner
USC/ISI Jeff Rickel MITRE
Abigail Gertner TU Delft David
Keyson, Elyon Dekoven MIT Media Lab Justine
Cassell, Tim Bickmore
16
Task-Oriented Human Collaboration
focus stack
plan tree
communicate
observe
observe
interact
interact
17
Software Reuse Prototypes Built with Collagen
MERL
LOTUS/IBM
MERL
MERL/MELCO
USC/ISI
MERL/MELCO
MERL/MELCO
MITRE
MERL
MERL
MERL
MERL
18
Collagen Architecture
Task Model (Recipes)
Discourse State
Interpret
user event
Respond
Weak Problem-Solving Model
Choose
Generate
agent event
agenda
Lesh, Rich, Sidner (1999-2001) -- plan
recognition Grosz, Sidner, Kraus, Lochbaum
(1974-1998) -- discourse interpretation Rich,
Lesh, Rickel, Garland (2002) -- plugins
19
Outline of the Talk

• Introduction
• Demo DiamondHelp
• Some Theory
• Some Architecture
• Some More Technical Details
• Related Work

20
Fragment of Gas Turbine Task Model
EngageEngine
StartGenerator
OpenBleedValve
Purge
Engage
OpenFuelValve
TurnOn
( Hierarchical Task Network )
Truth maintenance system
21
Plan Recognition Reduces Explicit Communication
X
X
plan recognition
U
(Lesh, Rich Sidner, 1999)
22
without plan recognition
with plan recognition
USER "Let's work on email." USER "Let's work
on email." AGENT "You have 5 unread
messages. AGENT "You have 5 unread
messages." USER "Let's read a message." USER
select message from Chuck USER select
message from Chuck USER "Let's read message
in its own window." USER open
message USER open message USER "Let's do
something using message." USER visit
http//foo.bar.com USER visit
http//foo.bar.com ...long lunch...
...long lunch... USER "What was I
doing?" USER "What was I doing?" AGENT
"Working on email. AGENT "Working on email.
Reading message from Chuck. Reading
message from Chuck. Reading message in its
own window. Reading message in its
own window. Done something using
message. Done something using
message. visit http//foo.bar.com
visit http//foo.bar.com
Expecting to react to message (opt)."
Expecting to react to message (opt)." USER
"Let's react to message." USER "Let's send
email." USER start new message USER
start new message USER "Let's fill in
message." USER address message to
Dan USER address message to
Dan AGENT "Why are you sending email to
Dan? (a) reacting to message from
Chuck (b) as a new goal " USER "I am
reacting to message from Chuck." ...additional
editing actions... ...additional editing
actions... USER "Done filling in
message." USER "Done filling in
message." AGENT "Let's send, cancel or save
message." AGENT "Let's send, cancel or save
message." USER "Please save message." USER "P
lease save message." AGENT save
message AGENT save message
23
Natural Language Processing
Task Model (Recipes)
Discourse State
Interpret
user event
Respond
Choose
Generate
agent event
agenda
24
Artificial Discourse Language
(1) Formal semantics in terms of beliefs and
intentions
speaker PROPOSE(b) Believe(speaker,
b) Intend(speaker, Achieve(speaker,
Believe(hearer, b) hearer ACCEPT(b) Believe(s
peaker, b) Believe(hearer, b) Believe(speaker,
Believe(hearer, b)) Believe(hearer,
Believe(speaker, b)) Believe(speaker,
Believe(hearer, Believe(speaker, b))) ...
mutual belief
(Sidner, 1994)
25
Artificial Discourse Language
(2) Translation to and from natural languages
speech recognition
Lets work on email.
natural language understanding
PROPOSE(SHOULD(DoEmail(...)))
26
Related Work (vs. Collagen)

• multiple participant collaboration (vs. two
  participants)
• e.g., Tambe et al.
• other theoretical models of collaboration (vs.
  SharedPlan)
• e.g., Levesque Cohen, Carberry
• application-specific collaborative dialogue
  systems (vs. middleware)
• e.g., MERIT, MIRACLE, DenK, TRIPS
• other interface agents (without discourse model)
• e.g., Maes, and many others
• other agent-related middleware (without
  discourse model)
• e.g., PRS, and other BDI interpreters

Recently evolving into CPS middleware
27
Conclusions
(Free research licenses available)
Questions?
