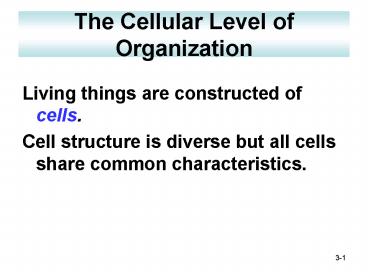

The Cellular Level of Organization

1
The Cellular Level of Organization

• Living things are constructed of cells.
• Cell structure is diverse but all cells share
  common characteristics.

2

• The cell theory states
• All organisms are composed of one or more cells.
• Cells are the basic unit of structure and
  function in organisms.
• All cells come only from other cells.

3

• Cells are small so they can exchange materials
  with their surroundings.

4
Eukaryotic Cells

• Eukaryotic cells have a nucleus that controls the
  workings of the cell.
• All cells are surrounded by a plasma membrane
  made of phospholipids and proteins.

5
(No Transcript)
6

• The plasma membrane regulates what enters and
  exits the cell.
• Inside the plasma membrane, the nucleus is
  surrounded by cytoplasm.
• Plant cells have a cell wall in addition to the
  plasma membrane.

7

• Animal and plant cells have organelles.
• Organelles compartmentalize functions within the
  cell.
• The organelles of animal and plant cells are
  similar to each other except that centrioles are
  present only in animal cells, and chloroplasts
  are present only in plant cells.

8
Animal cell anatomy
9
Plant cell anatomy
10
Animal cell anatomy
11
Nucleus and nuclear envelope
12
Structure of the Nucleus

• Chromatin DNA and proteins
• Nucleolus Chromatin and ribosomal subunits
• Nuclear envelope Double membrane with pores
• Nucleoplasm semifluid medium inside the nucleus.

13
Animal cell anatomy
14
Ribosomes

• Protein synthesis occurs at tiny organelles
  called ribosomes.
• Ribosomes are composed of a large subunit and a
  small subunit.
• Ribosomes can be found alone in the cytoplasm, in
  groups called polyribosomes, or attached to the
  endoplasmic reticulum.

15
Animal cell anatomy
16
The Endomembrane System

• The endomembrane system consists of
• Nuclear envelope
• Endoplasmic reticulum
• Golgi apparatus
• Vesicles

17
The endoplasmic reticulum

• The endoplasmic reticulum (ER) is a system of
  membranous channels and saccules.
• Rough ER is studded with ribosomes and is the
  site of protein synthesis and processing.
• Smooth ER lacks ribosomes and is the site of
  synthesis of phospholipids and the packaging of
  proteins into vesicles, among other functions.

18
The endoplasmic reticulum
19
Animal cell anatomy
20
The Golgi apparatus

• The Golgi apparatus consists of a stack of curved
  saccules.
• The Golgi apparatus receives protein and also
  lipid-filled vesicles from the ER, packages,
  processes, and distributes them within the cell.
• This organelle may also be involved in secretion.

21
The Golgi apparatus
22
Lysosomes and vacuoles

• Lysosomes are vesicles produced by the Golgi
  apparatus.
• Lysosomes contain hydrolytic enzymes and are
  involved in intracellular digestion.
• Vacuoles (large) and vesicles (small) are
  membranous sacs in the cell that store substances.

23
Peroxisomes

• Peroxisomes are vesicles than contain enzymes.
• The enzymes in these organelles use up oxygen and
  produce hydrogen peroxide.
• Peroxisomes are abundant in the liver where they
  produce bile salts and cholesterol and break down
  fats.

24
Animal cell anatomy
25
Energy-Related Organelles

• The two energy-related organelles of eukaryotes
  are chloroplasts and mitochondria.

26
Plant cell anatomy
27
Chloroplast structure
28
Chloroplasts

• A chloroplast is bounded by two membranes
  enclosing a fluid-filled stroma that contains
  enzymes.
• Membranes inside the stroma are organized into
  thylakoids that house chlorophyll.
• Chlorophyll absorbs solar energy and
  carbohydrates are made in the stroma.

29
Plant cell anatomy
30
Mitochondria

• Mitochondria are found in plant and animal cells.
• Mitochondria are bounded by a double membrane
  surrounding fluid-filled matrix.

31
Mitochondrion structure
32
The inner membranes of mitochondria are
cristae. The matrix contains enzymes that break
down carbohydrates and the cristae house protein
complexes that produce ATP.
33
http//www.itg.uiuc.edu/exhibits/gallery/pages/
34
(No Transcript)
35
(No Transcript)
36
The Cytoskeleton

• The eukaryotic cytoskeleton is a network of
  filaments and tubules that extends from the
  nucleus to the plasma membrane.
• The cytoskeleton contains three types of elements
  responsible for cell shape, movement within the
  cell, and movement of the cell
• Actin filaments
• Microtubules
• Intermediate filaments

37
Actin filaments
38

• Actin filaments occur in bundles or mesh-like
  networks.
• Actin filaments play a structural role and
  interact with motor molecules, such as myosin.

39
Microtubule structure
40

• Microtubules small,hollow cylinders.
• Microtubules
• help maintain the shape of the cell
• act as tracks along which organelles and
  chromosomes can move.

41
Structure of intermediate filaments
42

• Intermediate filaments -ropelike assemblies of
  fibrous polypeptides
• support the plasma membrane
• support the nuclear envelope.

43
Centrioles

• Centrioles are short cylinders with a 9 0
  pattern of microtubule triplets.
• May be involved in
• microtubule formation and disassembly
• organization of cilia and flagella.

44
Centriole structure
45
Cilia and flagella

• Cilia and flagella - 9 2 pattern of
  microtubules
• Involved in movement (cell, eggs, debris)
• Each cilium and flagellum has a basal body at its
  base.

46
Structure of a flagellum or cilium
47
Prokaryotic Cells

• Prokaryotic cells include the bacteria and
  archaea.
• Bacterial cells have these constant features
• Outer Boundary Cell wall
• Plasma membrane
• Cytoplasm Ribosomes
• Thylakoids
  (Cyanobacteria)
• Many enzymes
• Nucleoid Chromosome (DNA only)

48

• Bacterial cells may have plasmids, small
  accessory rings of DNA.

49
Evolution of the eukaryotic cell
