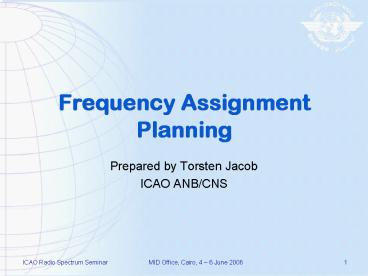

Title: Frequency Assignment Planning


1
Frequency Assignment Planning
  • Prepared by Torsten Jacob
  • ICAO ANB/CNS

2
General Methodology
  • The electromagnetic compatibility of radio
    equipment should be calculated by the following
    method
  • determine the desired signal level at the victim
    receiver front end
  • determine the resulting level of interference at
    the victim receivers front end
  • determine the interactive effects among wanted
    signals, interference and receiver
    characteristics for various frequency or distance
    separations
  • determine the appropriate propagation model to be
    used and
  • determine, from these data, a relationship
    between the frequency separation and distance
    separation that the interference is considered
    tolerable.

3
Free Space Propagation Model
  • The propagation loss that would occur if the
    antennas were replaced by isotropic antennas
    located in a perfectly dielectric, homogeneous,
    isotropic and unlimited environment, the distance
    between the antennas being retained (see
    Recommendation ITU-R P.525).

4
Aeronautical Standard Propagation Model
  • Aeronautical standard propagation model (ASPM) is
    derived from the ITU-R Recommendation P.528. For
    distances up to the radio horizon, free space
    propagation is assumed. Beyond the radio horizon,
    a constant attenuation factor a, which depends on
    the frequency band under consideration, is used.

5
Radio horizon
  • If both heights hTX and hRX are expressed in feet
    (ft), the distance d in Nautical Miles (NM), the
    Earth radius RE  6360 km and if the atmospheric
    conditions are assumed to be normal (effective
    Earth radius factor k  4/3), the following
    practical formula can be used to calculate the
    radio horizon

6
Aeronautical Standard Propagation Model
  • The propagation loss in dB between two isotropic
    antennas located in a perfectly dielectric,
    homogeneous, isotropic and unlimited environment
    can be calculated as follows

7
VHF COM
  • General principles for VHF voice communication
  • To protect a service with a circular operational
    coverage (circular service), the distances from
    the edge of the service to another airborne or
    ground transmitter must be 5 times the range of
    that circular service if the other transmitter
    is below the radio horizon from that service edge
    and the radio horizon distance is also less than
    5 times circular service range then radio horizon
    distance is to be used

8
VHF COM
  • General principles for VHF voice communication
  • To protect a service with a non-circular
    operational coverage area the ground or airborne
    transmitter of the other service must be below
    the radio horizon
  • the protection criteria for both the requested
    service and the existing assignment must be met
    for a valid assignment.

9
VHF COM
10
ILS
  • Co-channel protection requirement for ILS
    localizer
  • Minimum separation between undesired facility
    (ILS2) and the Protection Point of the desired
    facility (ILS1) of 80 NM

ILS localizer protection point at 25 NM distance
and 6250 ft height
Minimum separation between second facility and
the protection point of the first facility
80 NM
ILS 1
UNDESIRED SIGNAL
ILS 2
11
VOR
  • Co-channel protection requirement
  • Minimum uplink free-space desired-to-undesired
    signal ratio (D/U) of 20 dB at all points within
    the desired facilitys service volume

UNDESIRED SIGNAL
INTERFERENCE SOURCE
VOR 2
VOR 1
12
DME
  • Ground facilities channel assignment
  • Minimum uplink free-space desired-to-undesired
    signal ratio (D/U) at all points within the
    desired facilitys service volume
  • Specific free-space D/U values are selected in
    order to guarantee an effective post-processing
    D/U of 8 dB taking into account frequency and
    code rejection capabilities of the interrogator
    receiver

INTERFERENCE SOURCE(S)
DME 2
DME 1
13
More information
  • More information on assignment planning
    principles for systems such as NDB, GBAS, HF
    voice and data, VDL Mode 2, 3 and 4 etc can be
    found at
  • ICAO Annex 10
  • ICAO RF Handbook Doc 9718
  • Publications of ICAO Regional Offices such as
  • FMG Frequency Management Manual
  • National regulations on aeronautical assignment
    planning

14
Thank You Any questions?
