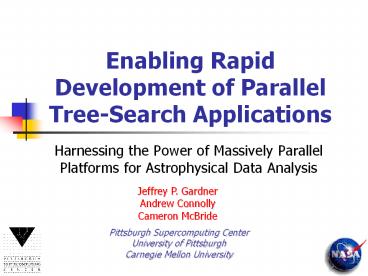

Enabling Rapid Development of Parallel
Tree-Search Applications

• Harnessing the Power of Massively Parallel
  Platforms for Astrophysical Data Analysis

Jeffrey P. Gardner Andrew Connolly Cameron McBride
Pittsburgh Supercomputing Center University of
Pittsburgh Carnegie Mellon University
2
How to turn astrophysics simulation output into
scientific knowledge
Using 300 processors (circa 1995)
Step 1 Run simulation
3
How to turn astrophysics simulation output into
scientific knowledge
Using 1000 processors (circa 2000)
Step 2 Analyze simulation on server (in serial)
Step 1 Run simulation
4
How to turn astrophysics simulation output into
scientific knowledge
Using 4000 processors (circa 2006)
(unhappy scientist)
X
Step 2 Analyze simulation on ???
Step 1 Run simulation
5
Exploring the Universe can be (Computationally)
Expensive

• The size of simulations is no longer limited by
  computational power
• It is limited by the parallelizability of data
  analysis tools
• This situation, will only get worse in the future.

6
How to turn astrophysics simulation output into
scientific knowledge
Using 1,000,000 cores? (circa 2012)
X
Step 2 Analyze simulation on ???
Step 1 Run simulation
By 2012, we will have machines that will have
many hundreds of thousands of cores!
7
The Challenge of Data Analysis in a
Multiprocessor Universe

• Parallel programs are difficult to write!
• Steep learning curve to learn parallel
  programming
• Parallel programs are expensive to write!
• Lengthy development time
• Parallel world is dominated by simulations
• Code is often reused for many years by many
  people
• Therefore, you can afford to invest lots of time
  writing the code.
• Example GASOLINE (a cosmology N-body code)
• Required 10 FTE-years of development

8
The Challenge of Data Analysis in a
Multiprocessor Universe

• Data Analysis does not work this way
• Rapidly changing scientific inqueries
• Less code reuse
• Simulation groups do not even write their
  analysis code in parallel!
• Data Mining paradigm mandates rapid software
  development!

9
How to turn observational data into scientific
knowledge
Observe at Telescope (circa 1990)
Step 1 Collect data
10
How to turn observational data into scientific
knowledge
Use Sky Survey Data (circa 2005)
X
Sloan Digital Sky Survey (500,000 galaxies)
Step 2 Analyze data on ???
Step 1 Collect data
11
How to turn observational data into scientific
knowledge
Use Sky Survey Data (circa 2012)
3-point correlation function several petaflop
weeks of computation
Large Synoptic Survey Telescope (2,000,000
galaxies)
12
Tightly-Coupled Parallelism(what this talk is
about)

• Data and computational domains overlap
• Computational elements must communicate with one
  another
• Examples
• Group finding
• N-Point correlation functions
• New object classification
• Density estimation

13
The Challenge of Astrophysics Data Analysis in a
Multiprocessor Universe

• Build a library that is
• Sophisticated enough to take care of all of the
  nasty parallel bits for you.
• Flexible enough to be used for your own
  particular astrophysics data analysis
  application.
• Scalable scales well to thousands of processors.

14
The Challenge of Astrophysics Data Analysis in a
Multiprocessor Universe

• Astrophysics uses dynamic, irregular data
  structures
• Astronomy deals with point-like data in an
  N-dimensional parameter space
• Most efficient methods on these kind of data use
  space-partitioning trees.
• The most common data structure is a kd-tree.
• Build a targeted library for distributed-memory
  kd-trees that is scalable to thousands of
  processing elements

15
Challenges for scalable parallel application
development

• Things that make parallel programs difficult to
  write
• Work orchestration
• Data management
• Things that inhibit scalability
• Granularity (synchronization, consistency)
• Load balancing
• Data locality

Structured data Memory consistency
16
Overview of existing paradigms DSM

• There are many existing distributed shared-memory
  (DSM) tools.
• Compilers
• UPC
• Co-Array Fortran
• Titanium
• ZPL
• Linda
• Libraries
• Global Arrays
• TreadMarks
• IVY
• JIAJIA
• Strings
• Mirage
• Munin
• Quarks
• CVM

17
Overview of existing paradigms DSM

• The Good These are quite simple to use.
• The Good Can manage data locality pretty well.
• The Bad Existing DSM approaches tend not to
  scale very well because of fine granularity.
• The Ugly Almost none support structured data
  (like trees).

18
Overview of existing paradigms DSM

• There are some DSM approaches that do lend
  themselves to structured data
• e.g. Linda (tuple-space)
• The Good Almost universally flexible
• The Bad These tend not to scale even worse than
  simple unstructured DSM approaches.
• Granularity is too fine

19
Challenges for scalable parallel application
development

• Things that make parallel programs difficult to
  write
• Work orchestration
• Data management
• Things that inhibit scalability
• Granularity
• Load balancing
• Data locality

DSM
20
Overview of existing paradigms RMI
Remote Method Invocation
rmi_broadcast(, (myFunction))
Computational Agenda
Master Thread
RMI layer
Proc. 0
Proc. 3
Proc. 1
Proc. 2
RMI layer
RMI Layer
RMI Layer
RMI Layer
myFunction()
myFunction()
myFunction()
myFunction()
myFunction() is coarsely grained
21
RMI Performance Features

• Coarse Granulary
• Thread virtualization
• Queue many instances of myFunction() on each
  physical thread.
• RMI Infrastucture can migrate these instances to
  achieve load balacing.

22
Overview of existing paradigms RMI

• RMI can be language based
• Java
• CHARM
• Or library based
• RPC
• ARMI

23
Challenges for scalable parallel application
development

• Things that make parallel programs difficult to
  write
• Work orchestration
• Data management
• Things that inhibit scalability
• Granularity
• Load balancing
• Data locality

RMI
24
N tropy A Library for Rapid Development of
kd-tree Applications

• No existing paradigm gives us everything we need.
• Can we combine existing paradigms beneath a
  simple, yet flexible API?

25
N tropy A Library for Rapid Development of
kd-tree Applications

• Use RMI for orchestration
• Use DSM for data management
• Implementation of both is targeted towards
  astrophysics

26
A Simple N tropy ExampleN-body Gravity
Calculation

• Cosmological N-Body
• simulation
• 100,000,000 particles
• 1 TB of RAM

100 million light years
27
A Simple N tropy ExampleN-body Gravity
Calculation
ntropy_Dynamic(, (myGravityFunc))
Computational Agenda
Master Thread
N tropy master RMI layer
Proc. 3
Proc. 0
Proc. 1
Proc. 2
N tropy thread RMI layer
N tropy thread RMI layer
N tropy thread RMI layer
N tropy thread RMI layer
myGravityFunc()
myGravityFunc()
myGravityFunc()
myGravityFunc()
P1

P2
Pn

Particles on which to calculate gravitational
force
28
A Simple N tropy ExampleN-body Gravity
Calculation

• Cosmological N-Body
• simulation
• 100,000,000 particles
• 1 TB of RAM

To resolve the gravitational force on any single
particle requires the entire dataset
100 million light years
29
A Simple N tropy ExampleN-body Gravity
Calculation
Proc. 0
Proc. 3
Proc. 1
Proc. 2
N tropy thread RMI layer
N tropy thread RMI layer
N tropy thread RMI layer
N tropy thread RMI layer
myGravityFunc()
myGravityFunc()
myGravityFunc()
myGravityFunc()
N tropy DSM layer
N tropy DSM layer
N tropy DSM layer
N tropy DSM layer
Work
Data
30
N tropy Performance Features

• DSM allows performance features to be provided
  under the hood
• Interprocessor data caching for both reads and
  writes
• lt 1 in 100,000 off-PE requests actually result in
  communication.
• Updates through DSM interface must be commutative
• Relaxed memory model allows multiple writers with
  no overhead
• Consistency enforced through global
  synchronization

31
N tropy Performance Features

• RMI allows further performance features
• Thread virtualization
• Divide workload into many more pieces than
  physical threads
• Dynamic load balacing is achieved by migrating
  work elements as computation progresses.

32
N tropy Performance
10 million particles Spatial 3-Point 3-gt4 Mpc
Interprocessor data cache, Load balancing
Interprocessor data cache, No load balancing
No interprocessor data cache, No load balancing
33
Why does the data cache make such a huge
difference?
Proc. 0
myGravityFunc()
34
N tropy Meaningful Benchmarks

• The purpose of this library is to minimize
  development time!
• Development time for
• Parallel N-point correlation function calculator
• 2 years -gt 3 months
• Parallel Friends-of-Friends group finder
• 8 months -gt 3 weeks

35
Conclusions

• Most approaches for parallel application
  development rely on providing a single paradigm
  in the most general possible manner
• Many scientific problems tend not to map well
  onto single paradigms
• Providing an ultra-general single paradigm
  inhibits scalability

36
Conclusions

• Scientists often borrow from several paradigms
  and implement them in a restricted and targeted
  manner.
• Almost all current HPC programs are written in
  MPI (paradigm-less)
• MPI is a lowest common denominator upon which
  any paradigm can be imposed.

37
Conclusions

• N tropy provides
• Remote Method Invocation (RMI)
• Distributed Shared-Memory (DSM)
• Implementation of these paradigms is lean and
  mean
• Targeted specifically for problem domain
• This approach successfully enables astrophysics
  data analysis
• Substantially reduces application development
  time
• Scales to thousands of processors
• More Information
• Go to Wikipedia and seach Ntropy
