Botnets

1

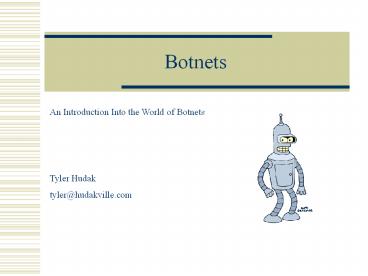

Botnets
An Introduction Into the World of
Botnets Tyler Hudak tyler_at_hudakville.com
2
What will we cover?

• What are botnets?
• History
• How do they work?
• What are they used for?
• Who cares?
• Detection and Prevention Methods

3
Botnets

• Collection of software robots, or bots, which
  run autonomously1
• A group of programs, installed on different
  computers, all running under one command and
  control structure (CC)
• Typically controlled by one person or a group of
  people (aka. The botmaster)

4
History

• Originally used in IRC as a way to allow
  automated tasks to be done
• Protect a channel, kick a user out of a
  channel,etc
• Eventually evolved into a way to automate
  malicious tasks
• Started with DoS/DDoS against servers
• TFN, stacheldraht, trinoo (1999)

5
History

• Attackers created easier ways to control bots
• IRC, HTTP, P2P
• Bots started to become payloads for worms
• Allowed for faster compromises, bigger botnets
• Sobig/SDBot/Rbot/Agobot/Phatbot
• Today, botnets are big business!
• Over 10,000 bots have been reported in a single
  botnet.

6
How do they work?
Victim
Botmaster
IRC Server
7
How are they spread?

• Exploiting known vulnerabilities
• Social Engineering
• Spam/Phishing
• Website Downloads
• Instant Messaging
• P2P networks

8
Command and Control

• Number of different ways to control bots
• Dynamic DNS services often used
• Most common is through IRC (public or private)
• Bots log into a specific IRC channel
• Bots are written to accept specific commands and
  execute them (sometimes from specific users)
• Disadvantages with IRC
• Usually unencrypted, easy to get into and take
  over or shut down

9
Command and Control
Source http//swatit.org/bots/gallery.html
10
Command and Control
Source http//swatit.org/bots/gallery.html
11
Command and Control
Source http//swatit.org/bots/gallery.html
12
Command and Control

• CC interfaces starting to become more complex
• HTTP CC interface
• Advantages
• IRC not always allowed through corporate
  firewalls, HTTP almost always is
• Websites are found everywhere

13
Command and Control
Source Websense Security Labs
14
Command and Control

• More CC interfaces emerging
• Phatbot/Nugache worm uses encrypted P2P network
  (WASTE)
• Much more difficult to find botmaster or shut
  down botnet

15
What are they used for?

• Phishing
• Spam
• Distributed Denial of Service
• Click Fraud
• Adware/Spyware Installation
• Identity Theft
• Making Additional Income!!!

16
DDoS Botnets

• DDoS has been available in bots since the
  beginning
• All too common
• Used for extortion
• Take down systems until they pay threats work
  too!
• Take out competition
• BlueSecurity anti-spam service

17
Additional Income???

• Botnets can be very profitable
• Extortion
• Fraud
• Identity Theft
• Adware
• Renting out botnets!

18
Botnet Email Ad
Tired of being scammed?Tired of servers
downtime?Tired of high latency?Being Blocked or
Blacklisted too fast? FORGET ABOUT THAT!Get rid
of asian datacenters and choose a better Spam
friendly solution with us.We have the latest
development in Bulletproof Webservers that
willhandle your high complaint loads. Contact us
for pricing!-----------------------------ICQ
MSN MessengerAIMyahoo Botnet Hosting
Servers-------------------------------5 Ips
that changes every 10 minutes (with different
ISP)Excellent ping and uptime.100 percent
uptime guarantee. Easy Control Panel to add or
delete your domains thru webinterface.Redhat /
Debian LINUX OS.SSH Root Access.FTP
Access.APACHE2 PHP CURL ZEND MYSQL FTP SSH. We
have Direct Sending Servers, and we also do Email
Lists Mailings.
Source SpywareGuide Blog
19
Why should you care?

• Botnets are becoming more common
• Once a bot is on your machine (or your companys
  machines) you no longer own that box
• Do you really want your machine to be used to
  attack others?

20
Detection Methods

• Watch anti-virus/anti-spyware logs
• Use IDS to watch for
• IRC/P2P activity
• DoS traffic coming FROM your network
• Attacks coming from your network
• Network flow analysis

21
Prevention

• Patch, patch, patch
• Teach users safe computing habits
• Use updated anti-virus

22
Additional Resources

• Know Your Enemy Botnets
• Swatit Botnets Resource
• Shadowserver group
• Google

23
Thank you! Any questions? http//www.hudakville.c
om/infosec
