NAVAL AVIATION BATTERY CHARGERS SINCE 1972

1

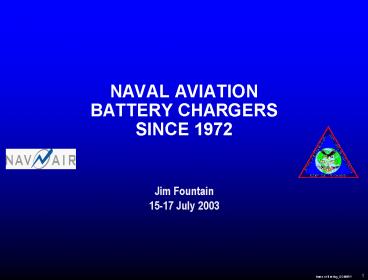

NAVAL AVIATION BATTERY CHARGERS SINCE 1972

• Jim Fountain
• 15-17 July 2003

2
Agenda

• NADEP Jacksonville Battery Shop
• NBC-1,-1A (1972) UTAL Research Development Co.
• 2400 AND 1410 (1976) UTAL Research Development
  Co.
• BCU-20 (1980) NSWC Crane
• AIMD SE Jacksonville Prototype Battery Charge
  Station
• Prototype Chargers
• Battery Tenders, Deltran (3/6 Amps)
• Schumacker (6/2 Amps)
• New Navy Battery Charger Acquisitions
• 4159 (2003) Power Products
• MSD-970-1 (2003) Eagle-Picher
• Summary

3
NADEP Jacksonville Battery Shop
4
NBC-1A Charger (NI-CAD)
NBC-1A Chargers
Charged P-3 ASN-42, ASN-84, and LIT
72 Batteries, Etc.
5
MSD-970-1 Charger
Jim Fountain (NATEC DET JAX)
Greg Miller (Eagle-Picher)
MSD-970-1 Charger
6
4159 Charger
Charged EA-6B At 200 MA
Operational Placard
Dan Anderson
7
Chargers and Batteries
1410 Discharger
Mike Doll
Optima 12 Volt
2400 Charger (Lead-Acid)
24 V 30 AH Lead-Acid
8
F-18 Charger and Battery
BCA-1210 Charger
S-3 Battery
9
A-7 Battery Charger Station
ASN-90 Battery (Cell) Charger Station
Harold McLEODD
10
BCU-20 (100 MA) CHARGER
BCU-20 Charger (10 MA)
11
S-3/F-14 CHARGER
BAC-154 Analyzer Discharger
Charger For S-3 F-14 Batteries
12
AIMD SE Jacksonville Prototype Battery Charge
Station
13
Charge Station, NOT a Battery Shop.
Battery Charging Station NOT A Battery Shop
14
AIMD SE Jax
Sealed 24 Volt Batteries
Optima 12 Volt Batteries
15

• 30.00 charging Tools, Sears, NAPA, NAS
  AutoPort, Etc, (COTS).

6/2 AMP Chargers Prototype
16
12-Volt Battery Charger, 6/2 Amps.
SCHUMACKER CHARGER
17
Optima Batteries
18
Battery Tender Sealed Battery
24-Volt Battery Tender Max 3 Amps
24 Volt 30 AH Sealed Battery
.
19
12 Volt Battery Tender
Green Light Indicates Charge Complete
12-Volt 6 AMP Battery Tender
20
SE Battery Charged In Equipment
21

50 Foot Extention Secured To Battery Tender Cord
22
50 Foot Extension Plugged Into 120 V 60 HZ
23
24 Volt Battery Tender
24 VOLT 3 AMP BATTERY TENDER
24

Two Optima Batteries In Series (24 Volts) On
Charge
25
New Navy Battery Charger Acquisitions
26
Power Products Inc - 4159 Charger

• Excellent Charger For Air Capable Ships (but not
  limited)
• .100 To 25 Amps, CC, CV, 50 Amp Cap Test
• Power Requirements -
• 120 Volts 60 Hz
• Easy To Carry 67 lbs
• Operating Instructions on charger (lid)
• NSN 4920-01-498-2543

27
Activator 282 - 2 Amp Charger
Power Products Inc

• Charges Lead-Acid / Ni-Cad Batteries (2 Amps)
• Charges 24/7 unattended
• Requires 12 to 16 hour charge time
• Can be left connected to prevent self discharge
  ( 30, 60, 90, 180 days etc.)
• NSN
• 6130-01-465-2674

28
MSD-970-1 Charger

• 0.05 To 70 Amps, CC, CV, 70 Amp Cap Test
• Currently Profiles 75 Different Navy Batteries
  (can add /delete profiles as needed)
• Operates by Part Number via Keypad
• Charges and Discharges Automatically
• Capability to send battery charging data to
  computer
• NSN 6130-01-508-3397

Eagle-Picher Inc
29
Contact Information

• DSN 942-4265 Ext - 19
• Comm 904-542-4265 Ext - 19
• Fax [phone]/DSN 942-3373
• Address
• Jim Fountain
• NATEC DET JAX
• NAS, BOX 75 Bldg 200 2nd Deck
• Jacksonville, FL 32212-0075
