CHAPTER 17 OPTIMAL DESIGN FOR EXPERIMENTAL INPUTS

1

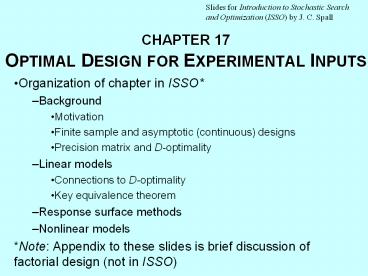

CHAPTER 17 OPTIMAL DESIGN FOR EXPERIMENTAL
INPUTS
Slides for Introduction to Stochastic Search and
Optimization (ISSO) by J. C. Spall

• Organization of chapter in ISSO
• Background
• Motivation
• Finite sample and asymptotic (continuous) designs
• Precision matrix and D-optimality
• Linear models
• Connections to D-optimality
• Key equivalence theorem
• Response surface methods
• Nonlinear models
• Note Appendix to these slides is brief
  discussion of factorial design (not in ISSO)

2
Optimal Design in Simulation

• Two roles for experimental design in simulation
• Building approximation to existing large-scale
  simulation via metamodel
• Building simulation model itself
• Metamodels are curve fits that approximate
  simulation input/output
• Usual form is low-order polynomial in the inputs
  linear in parameters ?
• Linear design theory useful
• Building simulation model
• Typically need nonlinear design theory
• Some terminology distinctions
• Factors (statistics term) ? Inputs (modeling
  and simulation terms)
• Levels ? Values
• Treatments ? Runs

3
Unique Advantages of Design in Simulation

• Simulation experiments may be considered special
  case of general experiments
• Some unique benefits occur due to simulation
  structure
• Can control factors not generally controllable
  (e.g., arrival rates into network)
• Direct repeatability due to deterministic nature
  of random number generators
• Variance reduction (CRNs, etc.) may be helpful
• Not necessary to randomize runs to avoid
  systematic variation due to inherent conditions
• E.g., randomization in run order and input levels
  in biological experiment to reduce effects of
  change in ambient humidity in laboratory
• In simulation, systematic effects can be
  eliminated since analyst controls nature

4
Design of Computer Experiments in Statistics

• There exists significant activity among
  statisticians for experimental design based on
  computer experiments
• T. J. Santner et al. (2003), The Design and
  Analysis of Computer Experiments, Springer-Verlag
• J. Sacks et al (1989), Design and Analysis of
  Computer Experiments (with discussion),
  Statistical Science, 409435
• Etc.
• Above statistical work differs from experimental
  design with Monte Carlo simulations
• Above work assumes deterministic function
  evaluations via computer (e.g., solution to
  complicated ODE)
• One implication of deterministic function
  evaluations no need to replicate experiments for
  given set of inputs
• Contrasts with Monte Carlo, where replication
  provides variance reduction

5
General Optimal Design Formulation (Simulation or
Non-Simulation)

• Assume model
• z h(?,?x) v ,
• where x is an input we are trying to pick
  optimally
• Experimental design ? consists of N specific
  input values x ?i and proportions (weights) to
  these input values wi
• Finite-sample design allocates n ? N available
  measurements exactly asymptotic (continuous)
  design allocates based on n ? ?

6
D-Optimal Criterion

• Picking optimal design ? requires criterion for
  optimization
• Most popular criterion is D-optimal measure
• Let M(?,??) denote the precision matrix for an
  estimate of ? based on a design ?
• M(?,??) is inverse of covariance matrix for
  estimate
• and/or
• M(?,??) is Fisher information matrix for estimate
• D-optimal solution is

7
Equivalence Theorem

• Consider linear model
• Prediction based on parameter estimate and
  future measurement vector hT is
• Kiefer-Wolfowitz equivalence theorem states
• D-optimal solution for determining ? to be used
  in forming is the same ? that minimizes the
  maximum variance of predictor
• Useful in practical determination of optimal ?

8
Variance Function as it Depends on Input Optimal
Asymptotic Design for Example 17.6 in ISSO
9
Orthogonal Designs

• With linear models, usually more than one
  solution is D-optimal
• Orthogonality is means of reducing number of
  solutions
• Orthogonality also introduces desirable secondary
  properties
• Separates effects of input factors (avoids
  aliasing)
• Makes estimates for elements of ? uncorrelated
• Orthogonal designs are not generally D-optimal
  D-optimal designs are not generally
  orthogonal
• However, some designs are both
• Classical factorial (cubic) designs are
  orthogonal (and often D-optimal)

10
Example Orthogonal Designs, r 2 Factors
x
x
k
2
k
2
x
x
k
1
k
1
r
Cube (2
design)
Star (2r
design)

11
Example Orthogonal Designs, r 3 Factors
xk3
12
Response Surface Methodology (RSM)

• Suppose want to determine inputs x that minimize
  the mean response z of some process (E(z))
• There are also other (nonoptimization) uses for
  RSM
• RSM can be used to build local models with the
  aim of finding the optimal x
• Based on building a sequence of local models as
  one moves through factor (x) space
• Each response surface is typically a simple
  regression polynomial
• Experimental design can be used to determine
  input values for building response surfaces

13
Steps of RSM for Optimizing x

• Step 0 (Initialization) Initial guess at optimal
  value of x.
• Step 1 (Collect data) Collect responses z from
  several x values in neighborhood of current
  estimate of best x value (can use experimental
  design).
• Step 2 (Fit model) From the x, z pairs in step 1,
  fit regression model in region around current
  best estimate of optimal x.
• Step 3 (Identify steepest descent path) Based on
  response surface in step 2, estimate path of
  steepest descent in factor space.
• Step 4 (Follow steepest descent path) Perform
  series of experiments at x values along path of
  steepest descent until no additional improvement
  in z response is obtained. This x value
  represents new estimate of best vector of factor
  levels.
• Step 5 (Stop or return) Go to step 1 and repeat
  process until final best factor level is
  obtained.

14
Conceptual Illustration of RSM for Two Variables
in x Shows More Refined Experimental Design Near
Solution
Adapted from Montgomery (2005), Design and
Analysis of Experiments, Fig. 11-3
15
Nonlinear Design

• Assume model
• z h(?,?x) v ,
• where ? enters nonlinearly and x is
  r-dimensional input vector
• D-optimality remains dominant measure
• Maximization of determinant of Fisher information
  matrix (from Chapter 13 of ISSO Fn(?, X) is
  Fisher information matrix based on n inputs in
  n??r matrix X)
• Fundamental distinction from linear case is that
  D-optimal criterion depends on ?
• Leads to conundrum
• Choosing X to best estimate ?, yet need to know
  ? to determine X

16
Strategies for Coping with Dependence on ?

• Assume nominal value of ? and develop an optimal
  design based on this fixed value
• Sequential design strategy based on an iterated
  design and model fitting process.
• Bayesian strategy where a prior distribution is
  assigned to ?, reflecting uncertainty in the
  knowledge of the true value of ?

17
Sequential Approach for Parameter Estimation and
Optimal Design

•   Step 0 (Initialization) Make initial guess at
  ?, Allocate n0 measurements to initial
  design. Set k 0 and n 0.
• Step 1 (D-optimal maximization) Given Xn , choose
  the nk inputs in X to maximize
• Step 2 (Update ? estimate) Collect nk
  measurements based on inputs from step 1. Use
  measurements to update from to
• Step 3 (Stop or return) Stop if the value of ? in
  step 2 is satisfactory. Else return to step 1
  with the new k set to the former k 1 and the
  new n set to the former n nk (updated Xn now
  includes inputs from step 1).

18
Comments on Sequential Design

• Note two optimization problems being solved one
  for ?, one for ?
• Determine next nk input values (step 1)
  conditioned on current value of ?
• Each step analogous to nonlinear design with
  fixed (nominal) value of ?
• Full sequential mode (nk 1) updates ? based
  on each new input?ouput pair (xk , zk)
• Can use stochastic approximation to update ?
• where

19
Bayesian Design Strategy

• Assume prior distribution (density) for ?, p(?),
  reflecting uncertainty in the knowledge of the
  true value of ?.
• There exist multiple versions of D-optimal
  criterion
• One possible D-optimal criterion
• Above criterion related to Shannon information
• While log transform makes no difference with
  fixed ?, it does affect integral-based solution
• To simplify integral, may be useful to choose
  discrete prior p(?)

20
Appendix to Slides for Chapter 17 Factorial
Design (not in ISSO)

• Classical experimental design deals with linear
  models
• Factorial design is most popular classical method
• All r inputs (factors) changed at one time
• Factorial design provides two key advantages over
  one-at-a-time changes
• Greater efficiency in extracting information
  from a given number of experiments
• Ability to determine if there are interaction
  effects
• Standard method is 2r factorial 2 comes about
  by looking at each input at two levels low (?)
  and high ()
• E.g., if r 3, then have 23 8 input
  combinations
• (? ? ?), ( ? ?), (? ?), (? ? ),
• ( ?), ( ? ), (? ), ( )

21
Appendix to Slides (contd) Factorial Design
with 3 Inputs

• Consider r 3 linear model
• zk ?0 ?1xk1 ?2xk2 ?3xk3 ?4xk1xk2
  ?5xk1xk3 ?6xk2xk3 ?7xk1xk2xk3
  noise,
• where ? ?0,? ?1,,? ?7T represents vector of
  (unknown) parameters and xki represents i?th term
  in input vector xk
• 23 factorial design allows for efficient
  estimation of all parameters in ?
• In contrast, one-at-a-time provides no
  information for estimating ?4 to ?7
• However, 23 factorial design must be augmented in
  some way if wish to add quadratic (e.g., )
  or other higher-order polynomial terms to model

22
Appendix to Slides (contd) Illustration of
Interaction with 2 Inputs

• Example responses for r 2 no interaction and
  interaction between input variables
• Left plot (no interaction) shows that change in
  zk with change in xk2 does not depend on xk1
  right plot (interaction) shows change in zk does
  depend on xk1

No interaction
Interaction
zk
Xk1 high
( ?)
(? )
Xk1 low
(? ?)
( )
xk2
