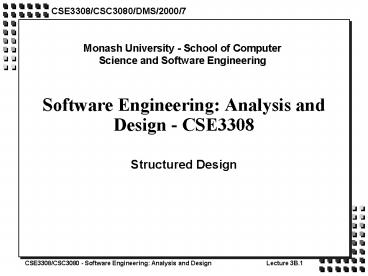

Software Engineering: Analysis and Design CSE3308

1
Software Engineering Analysis and Design -
CSE3308
CSE3308/CSC3080/DMS/2000/7
Monash University - School of Computer Science
and Software Engineering

• Structured Design

2
Lecture Outline

• The Structure Chart
• Qualities of Good Design
• Coupling
• Cohesion
• Factoring
• Fan-out
• Fan-in
• Transform Analysis

3
The Structure Chart

• Principal tool of Structured Design
• Based on dividing a system into modules à la
  Structured Programming and then mapping the
  connections between the modules
• A module is defined as a collection of program
  statements with four attributes
• input and output - what the module gets from its
  invoker and what the invoker receives from the
  module
• function - what it does to its input to produce
  its output
• mechanics - the code or logic by which it carries
  out its function
• internal data - its own private workspace, data
  to which it alone refers
• SD is only concerned with the outside view of the
  module

4
Connections between modules

• A connection indicates that one module calls
  another module

A
Get Customer Details
Calling Module
B
Find Customer Name
Called Module
5
Showing Data and Information

• Need to show the movement of data and the
  movement of information about data (flags)

Get Customer Details
Flag going from caller to called
Data going from caller to called
Customer Name
Customer Account Number
Flag going from called to caller
Account Number is OK
Data going from called to caller
Find Customer Name
6
Difference between Data and Flags

• Data is processed, flags are not.
• A flag is typically set and tested.
• Data relates to the problem.
• Flags communicate information about the data.

7
Iteration and Decision on a Structure Chart
Symbol for showing decisions
Symbol for showing iteration
Issue pay cheques for all employees
Calculate Pay for Salaried Worker
Calculate Pay for Casual Worker
Get Employee Pay Record
Print Pay Cheque
8
Example Structure Chart
9
Exercise - Enrol Students

• 4 main modules for Enrol Students
• Confirm Student Details (needs Student ID)
• Determine Subjects (needs Student ID)
• Calculate Fees (has two sub-modules)
• Calculate HECS Fee (needs Subject Details)
• Calculate Amenities Fee (needs Student ID)
• Print Fee Advice (needs Total Fees)

10
Your Answer
11
Coupling

• Coupling indicates the degree of interdependence
  between two modules
• Aim for low coupling by
• eliminating unnecessary relationships
• reducing the number of necessary relationships
• easing the tightness of necessary relationships
• Example of low coupling
• Stereo System

12
Advantages of Loose Coupling

• The fewer connections between modules, the less
  chance of a defect in one causing a defect in
  another
• The risk of having to change other modules as a
  result of changing one module is reduced
• The need to know about the internals of other
  modules is reduced when maintaining the details
  of other modules.
• But of course we have to have some coupling!

13
Principles of Coupling

• Narrow is better than Broad
• Direct is better than Indirect
• Local is better than Remote
• Obvious is better than Obscure
• Flexible is better than Rigid

14
Types of Coupling

• Data Coupling
• Stamp Coupling
• Control Coupling

Good Coupling

• Common Coupling
• Content Coupling
• Hybrid Coupling

Bad Coupling
15
Data Coupling

• Two modules are data coupled if they communicate
  via parameters, each parameter being an
  elementary piece of data
• Data coupling is necessary in a program and is
  harmless if kept to a minimum
• Avoid tramp data which moves around the structure
  chart aimlessly

Assess House Affordability
Term
Interest rate
Repayment rate
Sum borrowed
Calculate Mortgage Repayment
16
Tramp Data Example
17
Stamp Coupling

• Stamp coupling is where one module passes to
  another a composite piece of data, i.e. a piece
  of data with meaningful internal structure
• Stamp coupling results in some indirectness,
  therefore not as desirable, but okay if the
  composite is natural to the application
• Never pass composite data when only part of the
  data is required
• Never bundle data into an artificial composite

18
Stamp Coupling Examples
Bad
Good
Play Chess
Generate Customer Rental Bill
Customer Rental Record
Move
Customer Rental Record
New Chess Board
Basic Rental Charge
Gasoline Charge
Chess Board
Calculate Basic Rental Charge
Calculate Gasoline Charge
Make Move
19
Bundling
Number of items
Price per item
Purchase data
Total cost
Total cost
Sales tax
Discount type
Calculate Total Purchase Cost
Calculate Total Purchase Cost
20
Control Coupling

• Control coupling is when one module passes to
  another a piece of information intended to
  control the internal logic of the other
• Generally not a good thing!
• Poor partitioning
• Inversion of authority
• However flags which are descriptive can be fine
• Account Number is invalid
• End of file has been reached

Match Customer Records
Master Record
What to do flag
Transaction Record
System I/O Control
21
Summary of Acceptable Coupling
22
Coupling Evils - Common Coupling

• Two modules are common coupled if they both refer
  to the same global data area
• defect in a common coupled module may show up
  anywhere
• common coupling is usually by a specific name,
  therefore reduces flexibility
• remoteness in time between the coupling
• easy to abuse by using the same data item for
  different meanings in different modules
• very hard to maintain and understand due to
  difficulty in working out the actual coupling
• difficult to work out what modules must be
  changed if data is changed and vice versa

23
Coupling Evils - Content Coupling and Hybrid
Coupling

• Content coupling is where one module refers to
  the inside of another in any way
• one module changes the data inside another
• one module alters a statement in another
• Defies the principle of modularity
• Hybrid coupling is where different meanings are
  assigned to different parts of a range of data,
  it is both a data flag and a control flag
  simultaneously

24
Hybrid Coupling Example
Special 90XXX Range means mail literature to
whole region represented by last three digits
91000
99999
91999
00001
Account Number
90000
90999
Normal Range
Special 91XXX Range means Extra Credit Period
25
Impact of coupling
Depends on the breadth (the number of
individual items) of the interface If the
convention used in the hybrid data has to be
changed, ripple effect can be devastating
poor mainly because of problems in interface and
cohesion of one of the modules
26
Cohesion

• Is the measure of the strength of functional
  relatedness of elements within a module
• Element means
• an instruction
• a group of instructions
• a data definition
• a call to another module
• i.e. any piece of code that accomplishes some
  work or defines some data.
• We want strong cohesion modules whose elements
  are functionally related
• Measure of how well we have partitioned the system

27
Types of Cohesion
Maintainability

• Functional
• Sequential
• Communicational
• Procedural
• Temporal
• Logical
• Coincidental

• Black Box
• Not quite as Black Box
• Not quite as Black Box
• Grey Box
• Grey Box
• White Box
• White Box

28
Functional Cohesion

• Where a module contains elements that all
  contribute to the execution of one and only one
  problem related task
• Examples
• Compute Cosine of Angle
• Read Transaction Record
• Calculate Net Salary
• Assign Seat to Airline Customer
• Best type of cohesion, but not all modules can be
  defined as performing one function

29
Sequential Cohesion

• Where a module has elements which are involved in
  activities such that output data from one
  activity serves as input data to the next
• Example
• Usually has good coupling
• Easily maintained
• Not as reuseable

Formatted Cross-Validated Record
Raw Record
Format and Cross- Validate Record
30
Communicational Cohesion

• Where a module has elements that contribute to
  activities that use the same input or output data
• Example

module determine customer details use customer
account number find customer name find customer
loan balance return customer name, customer loan
balance endmodule

• Are quite maintainable but problems include
• Unecessary data when reusing
• Temptation to share code among the activities in
  the modules making it difficult to change one and
  not the other

31
Problem with Communicational Cohesion
Employee Salary Table
Average Salary
Customer Account Number
Customer Name
Produce Employee Salary Report and Calculate
Average Salary
Customer Name
Find Customer Name
Customer Account Number
Customer Loan Balance
Employee Salary Report Details
AND
Determine Customer Details
Customer Account Number
Customer Loan Balance
should become
Write
Calculate Customer Loan Balance
32
Procedural Cohesion

• Where a module has elements that are involved in
  different and possible unrelated activities in
  which control flows from one activity to the next
• Example

Table A Average

• Procedure is the same for the different data
• Data is unrelated
• Maintenance can become very complex - i.e. what
  happens if size of one table changes?

Table A
Table B Average
Table B
Compute Table A Average and Table B Average
33
Temporal Cohesion

• Where a module has elements which are involved in
  activities that are related in time
• Example - Get Ready for Bed Module
• Put out garbage can
• Put out cat
• Turn off TV
• Brush teeth
• Activities are unrelated except for being carried
  out at a particular time.
• Classic example is an Initialisation module
• Does not lead to good maintainability

34
Logical Cohesion

• Where a module has elements which contribute to
  activities of the same general category in which
  the activity or activities to be executed are
  selected from outside the module
• Example

Destination
Arrival Flag
module travel to new destination uses
destination, travel type flag if travel type flag
BUS go destination by BUS if travel type flag
TRAIN go destination by TRAIN if travel type
flag CAR go destination by CAR return arrival
flag endmodule
Travel Type Flag
Travel to New Destination
35
Problems with Logical Cohesion

• Code of different activities is knotted together
• Example

All the records have different character
lengths when INPUT-FLAG 1 RECORD-A is written
to NEW MASTER FILE RECORD-B is set to next TRAN
FILE1 record RECORD-C is undefined when
INPUT-FLAG 2 RECORD-A is used as an auxiliary
input flag RECORD-B is set to next TRAN FILE1
record (only if RECORD-A set to
SPACES otherwise undefined RECORD-C is set to
the next TRAN FILE2 record when INPUT-FLAG
3 RECORD-A is set to the next MASTER FILE2
record RECORD-B is set to next TRAN FILE1 record
RECORD-C is set to the next MASTER FILE2 record
36
Coincidental Cohesion

• Where the elements of a module have no meaningful
  relationship to each other
• Elements are not related by flow of data or flow
  of control

Account
Transaction Record
Matnum
Account
Operator Message
Error Flag
Func flag
Miscellaneous Functions
37
Impact of cohesion
38
Results of Cohesion
39
Factoring

• The separation of a function contained as code
  into a new module of its own
• Reasons
• to reduce module size
• to aid in the understanding of the system and to
  make modifications more localised
• to avoid duplication of a function in more than
  one module
• to separate work (calculating and editing) from
  management (calling and deciding)
• to provide more reusable modules
• to simplify implementation

40
Fan-Out and Fan-In

• Fan-out the number of immediate subordinates to
  a module
• limit fan-out to no more than seven
• Fan-in the number of immediate bosses that a
  module has
• Is a good thing - indicates reuse
• Modules with fan-in must have good cohesion,
  preferably functional
• each interface to the module must have the same
  number and types of parameters

41
Transform Analysis

• Method for converting DFDs into Structure chart
• Analyse the DFDs in terms of transactions
• For each transaction, identify the central DFD
  process (called the central transform)
• Central transform is the portion of the DFD that
  contains the essential functions of the system
  and is independent of the implementation of the
  input and output
• Make the central transform the top level module
  in structure chart
