Title: Corba and QuO

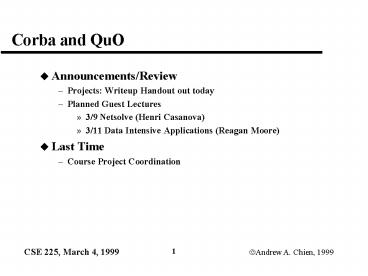

1
Corba and QuO
  • Announcements/Review
  • Projects Writeup Handout out today
  • Planned Guest Lectures
  • 3/9 Netsolve (Henri Casanova)
  • 3/11 Data Intensive Applications (Reagan Moore)
  • Last Time
  • Course Project Coordination

2
Todays Outline
  • Corba 2
  • IDL, IIOP
  • Additional Services
  • Java/Corba Integration
  • Object Web -- merging of the web and ORBs
  • Adding Quality of Service

3
Beyond RPC gt Corba
  • RPC enables
  • Remote interaction with procedure call model
  • Management of heterogeneity / interoperation
  • Distributed Objects associate Data with the
    procedure calls
  • Invocation on an object (with state)
  • Procedure implementation defined by the object
    (polymorphism / object orientation)
  • How do we make this work?
  • At the start of the OMG (1991?), many diverse
    distributed object models.

4
Common Object Request Broker Architecture
  • Define a standard set of interfaces
    (client-server)
  • Define a standard IDL (data description)
  • Define language bindings (C, C, Ada, Cobol,
    etc.)
  • Enable the construction of orbs which would allow
    these things to interoperate
  • gt these concepts are the core of the other
    systems weve discussed (ejb, dcom)

5
Corba 1.1 (1992)
  • Basic ORB
  • Basic Object Adapter (BOA)
  • C bindings
  • Naming
  • Events
  • Life cycle
  • Persistence

6
Generalize platform standardize, standardize,
standardize...
  • Corba 2.0 (1995)
  • IIOP
  • C Bindings
  • Transactions
  • Concurrency
  • Compound documents
  • Security
  • Time
  • .

7
Corba is a work in progress
  • Corba 2.2 is standard now, 2.3 in the works,
    Corba Component spec in the works (several
    proposals)
  • Messaging (MoM)
  • POA (server portability)
  • Java Beans, EJB, Objects-by-value
  • Corba/DCOM
  • Mobile Agents
  • Automatice Persistence
  • IIOP Firewall support
  • Workflow
  • Domain level frameworks

8
High Performance Distributed Computing
  • Support for Quality of Service?
  • Support for Real Time?
  • Support for high performance?

9
Java/Corba Marriage
  • Shotgun wedding pushed by the gang of four
  • IBM, Netscape, Oracle, Sun
  • Integrate Java Beans and Corba
  • Enable integration of web and Corba, Object Web
  • Product is Enterprise Java Beans (and the IIOP
    and Corba IDL integration present there)
  • Who swallowed whom? Alignment vs. DCOM

10
Motivation the Object Web
  • Applet Model (present or past?)
  • download, connect back to server
  • launch server computations via CGI-BIN
  • Problems
  • slow launch, expensive
  • how to get to other services?

11
Object Web
http
iiop
corba
  • Integrate http and iiop
  • http -gt corba client
  • active objects in web page, corba invocations for
    server interactions
  • generalize security model
  • entrée to multiple server interactions?

12
Discussion
  • What kinds of capabilities does this enable?
  • What kinds of problems does it raise?
  • Can you generalize this model to get beyond
    client server to multiparty?
  • How does this relate to high performance
    distributed computing applications?

13
Corba and Evolution
  • Corba as a federation infrastructure for
    distributed objects
  • Corba as a distributed platform (w/ many
    services)
  • Corba merging with Java as a distributed platform

14
BBN QuO Project
  • Motivation
  • Most distributed applications (e.g. Corba)
    developed without regard for wide area issues
  • Most distributed application programmers dont
    deal with with these conditions
  • IDL hides many of the issues about this (dont
    see the distribution directly)
  • Dealing with this in current Corba makes it hard
    to reuse solutions to these problems.
  • Solution
  • Add Quality of Service Annotations for Corba
    Objects

15
QUality of service for Objects
  • Describe quality of service for Corba objects,
    make these first class entities, kept with the
    functional software and interfaces
  • Reduce the variance of these qualities by masking
    (?)
  • Documents the key decisions (assumptions) of an
    objects design
  • Make them reusable
  • gt add a QDL Quality Description Language for
    the interfaces to objects
  • gt used for instantiation, monitoring, and
    management
  • gt documents the design assumptions, can reuse
    code around similar QDL

16
Three Part System
  • Add QDL description at interface
  • latency, bandwidth, jitter
  • availability, etc.
  • Add monitoring interface
  • check that quality is met
  • Add adaptation interface
  • failure to meet spec triggers callback mechanism
  • system or application level management to
    reconfigure
  • gt how to adapt is an open area of research.

17
Readings
  • Today
  • Object Management Group, Corba 2.2 Specification
    (available from www.omg.org)
  • Orfali and Harkey, Client/Server Programming with
    Java and Corba, J. Wiley and Sons.
  • Corbus http//www.bbn.com/products/dpom/dualuse.h
    tm
  • QuO http//www-csag.ucsd.edu/teaching/cse225-w99/
    papers/quotapos.ps and quotapos.pdf
