Tissue Bank

1

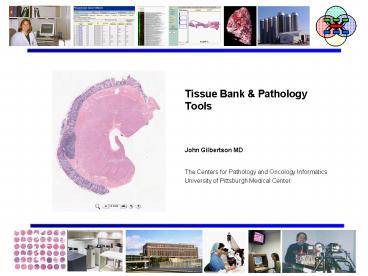

Tissue Bank Pathology Tools

• John Gilbertson MD
• The Centers for Pathology and Oncology
  Informatics
• University of Pittsburgh Medical Center

2
Informatics at Pittsburgh

• The Centers for Pathology and Oncology
  Informatics
• 18 Faculty and 120 Staff in one integrated
  facility
• Support Clinical Systems at UPMC as well as
  Research Initiatives
• Most Faculty are members of the Department of
  Pathology
• Active part of the Pathology Led University of
  Pittsburgh Health Science Tissue Banking System

3
caBIG Pathology Team

• Michael Becich MD PhD
• John Gilbertson MD (Faculty Lead)
• Rajnish Gupta MS (Systems Architect)
• Bill Gross (Systems Manager)
• Sharon Winters (Director of Cancer Registry)
• Rajiv Dhir MD (Director of the Tissue Bank)
• Yimin Nie, Vicky Chu, Harpreet Singh, John
  Milnes, Ashok Patel, Susan Urda

4
Partners
15 Institutions use, and have helped develop,
our tissue banking and pathology software

• Pennsylvania Cancer Alliance Bio-informatics
  Initiative
• Fox Chase, U Penn, Thomas Jefferson, Wistar, Penn
  State
• Shared Pathology Informatics Network
• Harvard, UCLA, Indiana (Regenstrief)
• Collaborative Prostate Cancer Tissue Resource
• GWU, Howard Univ, Wisconsin, NYU, VA
• AHRQ Patient Safety Initiative in Pathology
• Kaiser, Iowa, Henry Ford, West Penn

5
Tissue Banking and Pathology

• Important both clinically and in research
• The Pathology 70/70 Rule
• High Quality Human Tissues are Central to
  Oncology Research
• High Quality Annotation Makes Banked Tissues
  Valuable
• A link between the clinical world and research
  world
• A potential link between research systems and the
  large operational (clinical) systems that drive
  cancer centers
• Involves all patients and all specimens over long
  periods of time
• 5 of patient get involved in a clinical trial
• Paraffin blocks are part of the tissue bank

6
UPMC Tissue Banking Informatics

• Components of a Tissue Bank Strategy
• Universal Consent to bank tissue and aggregate
  data
• Medical Center wide Inventory including
  barcoding, paraffin and imaging
• Detailed, on-going Tissue Annotation through
  clinical systems in a warehouse architecture
• Open Sharing of Data and Applications with
  Clients (Researchers) and Partners (Tissue Banks)

Clinical and Research Systems
AP-LIS
CP-LIS
Cancer Registry
Clinical Trials
Inventory
Tissue Annotation Data Set
Honest Brokers
De-identification
Prostate
Melanoma
Lung
Other
Breast
Organ Specific Query Engines
7
UPMC Tissue Banking Informatics
Pathology
8
UPMC Tissue Banking Informatics
Pathology
9
UPMC Tissue Banking Informatics
Pathology
10
UPMC Tissue Banking Informatics
Cancer Registry
11
UPMC Tissue Banking Informatics
Pathology
12
UPMC Tissue Banking Informatics
Inventory
13
The Tissue Bank Space

• The IT and data management capabilities of tissue
  banks is highly variable
• Political and control issues are highly variable
  across institutions
• The scope of individual tissue banks are highly
  variable
• Appropriate consent to bank tissue remains a
  major issue at many cancer centers
• The value of banked tissue is often a function of
  its annotation.
• Annotation is complex, expensive process.
• The nature of tissue annotation varies markedly
  between banks
• Tissue Banks do not share data well - either with
  researcher or with other banks
• There is data elements used in tissue banking and
  sample annotation varies, nor are there
  consistent rules of how data elements are
  interpreted or managed. However, there are a
  number of candidates.
• Given these circumstances, were do we begin.

14
A Plan?

• We propose a project with three related phases
  running in parallel depending on feedback from
  the adopter sites
• The basic systems to support best practices in
  tissue banking
• Universal Consent, Sample Inventory, Manual
  Annotation using local data elements, Web Based
  Query and Display of Tissue Bank Data
• Existing UPMC or Adopter production software will
  be used
• Common Data Elements and Application
  Definitions for Sharing of Data and Applications
  in caBIG
• Applications based on a Meta-data Registry
• Application to map Local Data Elements to CDE)
• Existing production software will have to be
  hardened and extended
• Automated Tissue Annotation
• Direct annotation from clinical systems (AP-LIS,
  CP-LIS, Cancer Registry, WSI) and Major Research
  Labs
• Software available at UPMC, but local expertise
  and implementation is necessary
• Free text De-identification (production) and UMLS
  Concept Coding (beta) software is available

15
System Design
To describe the system architecture, it is useful
to strip of the clinical system integration
Clinical and Research Systems
AP-LIS
CP-LIS
Cancer Registry
Clinical Trials
Tissue Bank
Tissue Annotation Data Set
Honest Brokers
De-identification
Prostate
Melanoma
Lung
Other
Breast
Organ Specific Query Engines
16
System Design
This basic set of data entry, storage and display
systems are called Organ Specific Database
System (for historical reasons)
Basic Tissue Bank Systems
Consented Patients
Manual Annotation
Inventory
Tissue Annotation Data Set
Honest Brokers
De-identification
Prostate
Melanoma
Lung
Other
Breast
Organ Specific Query Engines
17
System Design

• The OSD (Organ Specific Databases) is a
  multi-tiered java application implemented in
  Oracle 9i on a SUN Solaris Unix Server
• Web operations require Oracle Apache Services and
  http Services running on the Server
• Languages
• Java, PL/SQL
• Tools
• Jclass, Jbuilder, Oracle Tools Toad
• CM
• CVS
• Bug Tracking
• Home Grown

Basic Tissue Bank Systems
Consented Patients
Manual Annotation
Inventory
Tissue Annotation Data Set
Honest Brokers
De-identification
Prostate
Melanoma
Lung
Other
Breast
Organ Specific Query Engines
18
System Design

• Multi-tiered Application
• Schema Layer - actual data and data relations.
  All data is stored in numbers and keys
• Meta Data Layer - in which all data is defined in
  terms of data elements and groups of data
  elements. Data descriptions such as data
  attributes(), display attributes(), valid
  values(), DB Link(), validation rules and
  documentation are supported in meta data. The
  meta data layer defines the application layer.
• Procedures/Function Layer - a set of dynamic
  procedures/functions (in PL/SQL or Java) with
  control data transformation at the back end. The
  procedures accommodate changes in the meta data
  and immediately reflect the changes in the
  application layer
• Application Layer (Form Builder) - a set of
  applications including meta-data dictionary
  builder and manager, user management, data entry,
  query, display, etc. Depending on the domain
  (breast, prostate, etc.) the appearance will be
  different. These differences are driven by the
  meta-data

Data (Schema) Layer
Meta Data Layer
Procedure Layer
Application (display)
Application (data entry)
Application (admin)
Application (query)
19
Component Details

• We divide the OSD structure into several main
  areas
• Phase I Basic Tissue Banking Functionality
• Consented Patient List
• Tissue Bank Inventory System
• Manual Annotation
• Case Display
• Summary Displays
• Query Engine and Display
• Phase II Meta Data Management and Mapping
• Phase III Data Extraction from Clinical Systems
  (Automated Annotation)

Consented Patient List
Tissue Bank Inventory
Manual Annotation System(s)
All driven by the same meta-data dictionary
Database System Meta Data
De-identification
Honest Broker
Query Engine (Prostate)
Query Engine (Lung)
Query Engine (Breast)
20
Component Details

• Consented Patient List A set of patients and
  identifiers (at UPMC we use Name, DOB, SSN and
  AP-LIS number) managed by the tissue bank used to
  keep track of patients who have given universal
  consent for banking of unused clinical specimens
  and aggregation of clinical data for sample
  annotation.
• Inventory Allows rapid accessioning of samples
  and tissue bank specific data. Barcoding,
  reporting and inventory management. Documents all
  transactions.
• Annotation For each organ system, an
  administrator can use the OSD to define a set of
  data elements and relationships (including valid
  values, data entry rules and the way the elements
  are displayed on a form. These forms are then
  used for clinical annotation (demographics,
  exposures, progression, vital status, pathology,
  staging, tumor markers, etc.)
• Case Display All data on a case (Patient or
  Accession) can be displayed on a form created
  through the meta data dictionary.
• Summary Displays Aggregate or Average data on an
  organ system can by generated in the procedure
  layer of OSD (see section System Design above).
  Unlike the creation of a form, this requires
  programming support as the procedures are written
  in Java or PL/SQL.
• Query Engine and Display All data in a data sets
  (usually an organ type) can be queried through a
  click and point interface in which cases are
  selected by selecting data elements and valid
  values (ie African American AND Age at Diagnosis
  40 49 AND Gleason Score 7, 8 and 9. The
  resultant data set can be examined in a series of
  default and user defined views (ie Demographics,
  Progression, Prostatectomy Data, Inventory, etc).
  Data can also be moved to Excel.

21
Component Details
A set of tools that build and manipulate a common
set of meta data drive all of the applications
22
(No Transcript)
23
Component Details
24
Component Details
25
Component Details
26
Component Details
Data Entry
27
Component Details
28
Component Details
29
Component Details
30
Component Details
31
Meta Data Management and MappingPlan Phase II

• Currently, all applications are driven through a
  meta-data dictionary
• This allows multiple compatible applications to
  build and modified fairly easily
• Also allows externalization of meta data in
  applications
• Data extracted from clinical systems (ie AP LIS
  or Cancer Registry) needs to be mapped to the
  canonical data elements supported by the
  dictionary. This is now done through procedures.

Current Environment
Data
Local Meta-data
Mapping Application
Translator
Canonical Elements
AP LIS
Tissue Bank Application(s)
CP LIS
CRS
32
Sharing Data and Applications Plan Phase II

• Goals of phase II of the project would be to
• Formalize a beginning set of caBIG Common Data
  Elements on the basis of best existing elements
  (if possible)
• Formalize a set of Domain Application
  Definitions that represent real things that
  can be used to build - and enforce standards on -
  compatible applications
• Develop a mapping engine so that local elements
  can be mapped to the CDE

Current Environment
Local Meta-data
Mapping Application
Translator
Canonical Elements
AP LIS
Tissue Bank Application(s)
CP LIS
CRS
33
Sharing Data and Applications Plan Phase II
Makes Use Of
Follows
EVS
caBIG CDE
caBIG Domain Application Definitions
Objects or Work Flow
caDSR
Functions/Steps
National Local
Definitions of Basic Concepts
Copied To
Definitions of Real World Things such as a
Patient, Specimen or Tumor
caBIG Domain Application Definitions
Translator
caBIG CDE
Use
Use
Local Canonical Elements
Tissue Bank Application(s)
Translator
Use
Clinical Systems
Applications built with the same definitions
should be compatible
34
Meta Data Management and MappingPlan Phase II
Data
Meta Data Registry
Local Data Elements
caBIG CDE
caBIG Domain Application Definitions
Tissue Bank Application(s)
35
Automated AnnotationPlan Phase III

• Phase III Automated annotation is an important
  component of our tissue banking infrastructure
• Largely a warehousing effort and requires local
  expertise
• Issues include
• Gateways, interfaces from operational systems
• Identifying patients across systems
• Aggregate, validate (and compress) data across
  systems
• Map data to canonical elements
• Load data into system

Clinical and Research Systems
AP-LIS
CP-LIS
Cancer Registry
Clinical Trials
Tissue Bank
Tissue Annotation Data Set
Honest Brokers
De-identification
Prostate
Melanoma
Lung
Other
Breast
Organ Specific Query Engines
36
Automated AnnotationPlan Phase III
PATIENT HISTORY The patient is a AGEltin
60sgt-year-old male with elevated PSA levels. OSS
SLIDE-NUMBER 12/00, PLACE PRE-OP DIAGNOSIS
Elevated PSA. POST-OP DIAGNOSIS Same. PROCEDURE
Prostate biopsies. 1. Left
apex. 2. Left body. bjs FINAL
DIAGNOSIS PART 1 PROSTATE, LEFT APEX, NEEDLE
BIOPSY (OSS SLIDE-NUMBER 12/00) A. INVASIVE
MODERATELY DIFFERENTIATED PROSTATIC
ADENOCARCINOMA WITH A COMBINED GLEASON SCORE
OF 3 3 6. B. THE CARCINOMA INVOLVES ONE OUT
TWO (1/2) CORE FRAGMENTS AND COMPRISES
APPROXIMATELY 5 OF THE PROSTATE TISSUE EXAMINED.
C. NO EVIDENCE OF PERINEURAL INVASION IS
SEEN. PART 2 PROSTATE, LEFT BODY, NEEDLE
BIOPSY (OSS SLIDE-NUMBER 12/00) BENIGN
PROSTATE TISSUE WITH NO EVIDENCE OF HIGH GRADE
PROSTATIC NEITHER INTRAEPITHELIAL NEOPLASIA NOR
CARCINOMA SEEN. mb INITIALSltQQQ/QQQgt COMMENT
All the foci of prostatic carcinoma found small
in size and constitute less than 5 of the
material submitted. Mb NAMEltVVV NAMEltWWW
Q. XXXgt, M.D., Ph.D. Fellow/Chief Resident
NAMEltUUU Q. TTTgt, M.D. NAMEltSSS RRR QQQ
PPP OOO VVV NAMEltWWW Q. XXXgt, M.D., Ph.D.
DATElt6/25/00gt 1150 ____________________________
___________________________________ OUTSIDE
ACCESSION SLIDE-NUMBER 8 CONSULT SLIDES
SLIDE-NUMBER 8 CONSULT BLOCKS OUTSIDE
NAMEltSSSgt RECEIVED Y CONSULT MATERIAL
DESCRIPTION Received for consultation from
NAMEltYYY Q. ZZZgt, D.O. are eight (8) consult
slides labeled SLIDE-NUMBER and eight (8)
consult blocks labeled SLIDE-NUMBER from
PLACE, ADDRESS, PA along with an
accompanying surgical pathology report. bjs

• Two special cases
• Free Text De-identification
• UPMS Software (not open source) de-identifies
  documents to HIPPA Safe Harbor
• Studied and Tested extensively
• Approved by University of Pittsburgh IRB and UPMC
  Security Office
• Takes ASCII text (HL-7) and uses a set of
  heuristics, dictionaries and thesauri
• Free Text UMLS Autocoding (SPIN)
• UPMC and NCI beta software (open source)
• Modular Java application with GATE
• Input pathology reports
• Outputs UMLS code text in CHIRPS (NCI) schema
• Handles negation
• Being discussed by the CDE group

37
Imaging

• Just an idea...
• Whole Slide Imaging is a source system for tissue
  annotation (early beta)
• Slides are bar coded with a tissue bank
  (de-identified) number
• Imaging system associates the number with the
  image(s)
• Tissue Bank displays the number as a http call to
  the image system
• Imaging system opens a viewer and displays the
  images

38
Relevant Standards
39
Size of Project Installed Base

• Phase One Software used at 15 institutions
  beyond UPMC

Basic Tissue Bank Systems
Consented Patients
Manual Annotation
Inventory
Tissue Annotation Data Set
Honest Brokers
De-identification
Prostate
Melanoma
Lung
Other
Breast
Organ Specific Query Engines
40
Does Other Software Exist?

• There are a variety of software available to meet
  some tissue bank needs, and we do not expect that
  all sites will require all software available.
  However, there is no dominant player and there
  are no good (simple) solutions for all of the
  problems associated with tissue banking,
  especially the important and expensive issue of
  tissue annotation and standards.
• There are several open source projects that could
  be considered for parts of this project, in
  particular the EDRN informatics groups has
  developed a mapping tool that may be useful in
  this area.
• There are several CDE groups that may be useful
  in tissue banking, including the NAACCR data
  elements for clinical information and the CAP
  protocols (not real data elements). These should
  be available at most institutions. Furthermore,
  there are specific sets of data elements for
  specific tissue types such as the CPCTR and CBCTR
  elements.
• Finally there are distinct but parallel efforts
  in tissue finding such as the NCI SPIN project in
  which NLP is used to extract tissue and pathology
  data from de-identified pathology reports (See
  above).

41
Points of Interoperability with other caBIG
systems

• Links between the Clinical Trials Management
  System and the Tissue Bank warehouse. The Current
  OSD system receives limited data from the UPCI
  CTMS. (which clinical trials a patient is (or
  was) on and his current status in each trial).
• Links between research projects and tissue banks
  should be investigated.
• UMLS vocabulary in all caBIG Common Data
  Elements, even better, if the there are useful
  caBIG data elements in the first year, the
  current architecture in which the meta data
  dictionary (eventually a formal registry)
  enforces standards on applications means that if
  we can define caBIG approved data objects we can
  enforce them in our applications.
• Close contact with the architecture and CDE
  groups

42
What Resources are proposed to achieve caBIG
interoperability

• Essentially, all resources will be used to
  achieve caBIG interoperability
• Central to our plan is the mapping (translating)
  of local data elements (from local database or
  from local clinical systems) to a set of caBIG
  meta data (data elements and application
  definitions). Tissue bank applications will run
  under a meta data registry that will enforce the
  use of caBIG meta-data in all tissue bank
  applications.
• Essentially the entire plan is to enforce caBIG
  standards on applications and on top of (or
  parallel to) local data standards.
• Finally, we plan to place UPMC personnel in
  adopter sites as needed during the caBIG
  initiative.

43
A 12 month plan...

• The UPMC Tissue Bank and Pathology Tools plan has
  three phases that may run concurrently. Details
  have to be worked out with adopter sites.
• Phase I Within the first three to nine months
• We will evaluation the tissue bank informatics
  needs/interests at the adopter sites
• If necessary we will provide existing software
  including
• Universal Consent for Tissue Banking and Data
  Aggregation
• Consented Patient List
• Tissue Bank Inventory System
• OSD Tissue Annotation System (manual)
• OSD Query and Display System
• Goal will be to create/assure a baseline
  functionality and solid working relationship
  between institutions

44
A 12 month plan...

• Phase II Within the first 9 - 12 months
• We will develop a set of Inventory and Annotation
  CDE, a set of domain application definitions, a
  Meta data Registry similar to the existing meta
  date dictionary, and a mapping engine (linked to
  the Registry) that will map local data elements
  to the caBIG elements.
• This will effectively involve hardening the
  existing dictionary so that it can support both
  CDE and Domain Application Definitions.
• At the end of this phase, local data will be
  mapped to caBIG elements and data (in caBIG
  elements) can be queried and displayed through a
  OSD Query Engine built on caBIG elements. Goal is
  caBIG interoperability.

45
A 12 month plan...

• Phase III Within the first 9 - 12 months
• We will share de-id and SPIN autocoding software
  so that adopter sites will be able to UMLS code
  archival pathology reports.
• In the next 12 months
• We will work with adopter sites to develop
  mechanisms to pull clinical data directly from
  clinical systems such as AP LIS, CP LIS, Clinical
  Trials and Cancer Registry.
