Advanced Operating Systems

1

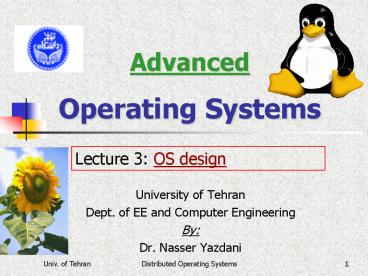

Advanced Operating Systems
Lecture 3 OS design

• University of Tehran
• Dept. of EE and Computer Engineering
• By
• Dr. Nasser Yazdani

2
How to design an OS

• Some general guides and experiences.
• References
• The Computer for the 21st Century, Mark Weiser
• Exokernel An Operating System Architecture for
  Application Level Resource Management, Dawson
  R., Engler M, Frans Kaashoek, et al.
• On Micro-Kernel Constructions,

3
Outline

• New applications/requirements
• Organizing operating systems
• Some microkernel examples
• Object-oriented organizations
• Spring
• Organization for multiprocessors

4
New vision

• Two important problems location and scale.
• Ubiquitous computing tiny kernels of
  functionality
• Virtual Reality
• Mobility
• Intelligent devices
• distributed computing" make networks appear like
  disks, memory, or other nonnetworked devices.

5
Ubiquitous computing

• Transparent computing is the ultimate goal
• Computers should disappear into the background
• Computation becomes part of the environment
• Computing everywhere
• Desktop, Laptop, Palmtop
• Cars, Cell phones
• Shoes, Clothing, Walls (paper / paint)
• Connectivity everywhere
• Broadband
• Wireless
• Mobile everywhere
• Users move around
• Disposable devices

6
Ubiquitous Computing

• Structure
• Resource and service discovery critical
• User location an issue
• Interface discovery
• Disconnected operation
• Ad-hoc organization
• Security
• Small devices with limited power
• Intermittent connectivity
• Agents
• Sensor Networks

7
Grid Computing

• Federated system
• No single controlling authority
• Scheduling
• Processors, bandwidth and other resources
• Policy is an important issue
• Reliability, security, of who can use, and what
  one is willing to use.
• Systems
• Globus toolkit
• Condor
• Related but not grid CORBA, DCOM, DCE
• Applications
• Distributed supercomputing

8
Peer-to-Peer Computing

• Locating Cooperative elements
• Scalability
• OS support
• Security
• Policies

9
P2P File Sharing Issues

• Naming
• Data discovery
• Availability
• Security
• Encryption
• Fault tolerance
• Conflict resolution
• Replication

10
Other Peer to Peer Technologies

• Ad-hoc networking
• Untrusted nodes used to relay messages
• Multiple routes (distributed and replicated)
• Extends range, reduces power, increases aggregate
  bandwidth.
• Increases latency, management more difficult.
• Sensor networks
• An application of ad-hoc networking
• Add processing/reduction in the network

11
What is the big deal?

• Performance
• Border crossings are expensive
• Change in locality
• Copying between user and kernel buffers
• Application requirements differ in terms of
  resource management

12
Operating System Organization

• What is the best way to design an operating
  system?
• Put another way, what are the important software
  characteristics of an OS?
• What should be in OS kernel or application or
  partitioning.
• Is there a minimal set for kernel?

13
Important OS Software Characteristics

• Correctness and simplicity
• Power and completeness
• Performance
• Extensibility and portability
• Flexibility
• Scalability
• Suitability for distributed and parallel systems
• Compatibility with existing systems
• Security and fault tolerance

14
Common OS Organizations

• Monolithic
• Virtual machine
• Layered designs
• Kernel designs
• Microkernels
• Object-Oriented
• Note that individual OS components can be
  organized these ways
• Trade off between generality and specialization

15
What are we shooting for?

• OS should be thin (like a microkernel) providing
  only mechanisms not embodying policies (i.e.
  management)
• Fine grain access to system resources while
  avoiding border crossings as much as possible
  (like DOS)
• Allow flexible extensions for management of
  resources (like a microkernel) without
  sacrificing safety (like a monolithic kernel)

16
Monolithic OS Design

• Build OS as single combined module
• Hopefully using data abstraction,
  compartmentalized function, etc.
• OS lives in its own, single address space
• Examples
• DOS
• early Unix systems
• most VFS file systems

17
Pros/Cons of Monolithic OS Organization

• Highly adaptable (at first . . .)
• Little planning required
• Potentially good performance
• Hard to extend and change
• Eventually becomes extremely complex
• Eventually performance becomes poor
• Highly prone to bugs

18
Virtual Machine Organizations

• A base operating system provides services in a
  very generic way
• One or more other operating systems live on top
  of the base system
• Using the services it provides
• To offer different views of system to users
• Examples - IBMs VM/370, the Java interpreter

19
Pros/Cons of Virtual Machine Organizations

• Allows multiple OS personalities on a single
  machine
• Good OS development environment
• Can provide good portability of applications
• Significant performance problems
• Especially if more than 2 layers
• Lacking in flexibility

20
Old idea

• VM 370
• Virtualization for binary support for legacy apps
• Why resurgence today?
• Companies want a share of everybodys pie
• IBM zSeries mainframes support virtualization
  for server consolidation
• Enables billing and performance isolation while
  hosting several customers
• Microsoft has announced virtualization plans to
  allow easy upgrades and hosting Linux!
• You can see the dots connecting up
• From extensibility (a la SPIN) to virtualization

21
Possible virtualization approaches

• Standard OS (such as Linux, Windows)
• Meta services (such as grid) for users to install
  files and run processes
• Administration, accountability, and performance
  isolation become hard
• Retrofit performance isolation into OSs
• Linux/RK, QLinux, SILK
• Accounting resource usage correctly can be an
  issue unless done at the lowest level (e.g.
  Exokernel)
• Xen approach
• Multiplex physical resource at OS granularity

22
Full virtualization

• Virtual hardware identical to real one
• Relies on hosted OS trapping to the VMM for
  privileged instructions
• Pros run unmodified OS binary on top
• Cons
• supervisor instructions can fail silently in some
  hardware platforms (e.g. x86)
• Solution in VMware Dynamically rewrite portions
  of the hosted OS to insert traps
• need for hosted OS to see real resources real
  time, page coloring tricks for optimizing
  performance, etc

23
Xen principles

• Support for unmodified application binaries
• Support for multi-application OS
• Complex server configuration within a single OS
  instance
• Paravirtualization for strong resource isolation
  on uncooperative hardware (x86)
• Paravirtualization to enable optimizing guest OS
  performance and correctness

24
Xen VM management

• What would make VM virtualization easy
• Software TLB
• Tagged TLB gtno TLB flush on context switch
• X86 does not have either
• Xen approach
• Guest OS responsible for allocating and managing
  hardware PT
• Xen top 64MB of every address space. Why?

25
Layered OS Design

• Design tiny innermost layer of software
• Next layer out provides more functionality
• Using services provided by inner layer
• Continue adding layers until all functionality
  required has been provided
• Examples
• Multics
• Fluke
• layered file systems and comm. protocols

26
Pros/Cons of Layered Organization

• More structured and extensible
• Easy model and development
• Performance Layer crossing can be expensive
• In some cases, unnecessary layers, duplicated
  functionality.

27
Kernel OS Designs

• Similar to layers, but only two OS layers
• Kernel OS services
• Non-kernel OS services
• Move certain functionality outside kernel
• file systems, libraries
• Unlike virtual machines, kernel doesnt stand
  alone
• Examples - Most modern Unix systems

28
Pros/Cons of Kernel OS Organization

• Many advantages of layering, without disadvantage
  of too many layers
• Easier to demonstrate correctness
• Not as general as layering
• Offers no organizing principle for other parts of
  OS, user services
• Kernels tend to grow to monoliths

29
Object-Oriented OS Design

• Design internals of OS as set of privileged
  objects, using OO methods
• Sometimes extended into application space
• Tends to lead to client/server style of computing
• Examples
• Mach (internally)
• Spring (totally)

30
Object-Oriented Organizations

• Object-oriented organization is increasingly
  popular
• Well suited to OS development, in some ways
• OSes manage important data structures
• OSes are modularizable
• Strong interfaces are good in OSes

31
Object-Orientation and Extensibility

• One of the main advantages of object-oriented
  programming is extensibility
• Operating systems increasingly need extensibility
• So, again, object-oriented techniques are a good
  match for operating system design

32
How object-oriented should an OS be?

• Many OSes have been built with object-oriented
  techniques
• E.g., Mach and Windows NT
• But most of them leave object orientation at the
  microkernel boundary
• No attempt to force object orientation on
  out-of-kernel modules

33
Pros/Cons of Object Oriented OS Organization

• Offers organizational model for entire system
• Easily divides system into pieces
• Good hooks for security
• Can be a limiting model
• Must watch for performance problems
• Not widely used yet

34
Microkernel OS Design

• Like kernels, only less number of abstractions
  exported (threads, address space, communication
  channel)
• Try to include only small set of required
  services in the microkernel
• Moves even more out of innermost OS part
• Like parts of VM, IPC, paging, etc.
• System services (e.g. VM manager) implemented as
  servers on top
• High comm overhead between services implemented
  at user level and microkernel limits
  extensibility in practice
• Examples - Mach, Amoeba, Plan 9, Windows NT,
  Chorus, Spring, etc.

35
Pros/Cons of Microkernel Organization

• Those of kernels, plus
• Minimizes code for most important OS services
• Offers model for entire system
• Microkernels tend to grow into kernels
• Requires very careful initial design choices
• Serious danger of bad performance

36
Organizing the Total System

• In microkernel organizations, much of the OS is
  outside the microkernel
• But that doesnt answer the question of how the
  system as a whole gets organized
• How do you fit together the components to build
  an integrated system? While maintaining all the
  advantages of the microkernel

37
Some Important Microkernel Designs

• Micro-ness is in the eye of the beholder
• Mach
• Spring
• Amoeba
• Plan 9
• Windows NT

38
Mach

• Mach didnt start life as a microkernel
• Became one in Mach 3.0
• Object-oriented internally
• Doesnt force OO at higher levels
• Microkernel focus is on communications facilities

• Much concern with parallel/distributed systems

39
Mach Model
User processes
User space
Software emulation layer
4.3BSD emul.
SysV emul.
HP/UX emul.
other emul.
Kernel space
Microkernel
40
Whats In the Mach Microkernel?

• Tasks Threads
• Ports and Port Sets
• Messages
• Memory Objects
• Device Support
• Multiprocessor/Distributed Support

41
Mach Tasks

• An execution environment providing basic unit of
  resource allocation
• Contains
• Virtual address space
• Port set
• One or more threads

42
Mach Task Model
Address space
Process
User space
Thread
Process port
Bootstrap port
Exception port
Registered ports
Kernel
43
Mach Threads

• Basic unit of Mach execution
• Runs in context of one task
• All threads in one task share its resources
• Unix process similar to Mach task with single
  thread

44
Task and Thread Scheduling

• Very flexible
• Controllable by kernel or user-level programs
• Threads of single task can execute in parallel
• On single processor
• Multiple processors
• User-level scheduling can extend to
  multiprocessor scheduling

45
Mach Ports

• Basic Mach object reference mechanism
• Kernel-protected communication channel
• Tasks communicate by sending messages to ports
• Threads in receiving tasks pull messages off a
  queue
• Ports are location independent
• Port queues protected by kernel bounded

46
Port Rights

• mechanism by which tasks control who may talk to
  their ports
• Kernel prevents messages being set to a port
  unless the sender has its port rights
• Port rights also control which single task
  receives on a port

47
Port Sets

• A group of ports sharing a common message queue
• A thread can receive messages from a port set
• Thus servicing multiple ports
• Messages are tagged with the actual port
• A port can be a member of at most one port set

48
Mach Messages

• Typed collection of data objects
• Unlimited size
• Sent to particular port
• May contain actual data or pointer to data
• Port rights may be passed in a message
• Kernel inspects messages for particular data
  types (like port rights)

49
Mach Memory Objects

• A source of memory accessible by tasks
• May be managed by user-mode external memory
  manager
• a file managed by a file server
• Accessed by messages through a port
• Kernel manages physical memory as cache of
  contents of memory objects

50
Mach Device Support

• Devices represented by ports
• Messages control the device and its data transfer
• Actual device driver outside the kernel in an
  external object

51
Mach Multiprocessor and DS Support

• Messages and ports can extend across
  processor/machine boundaries
• Location transparent entities
• Kernel manages distributed hardware
• Per-processor data structures, but also
  structures shared across the processors
• Intermachine messages handled by a server that
  knows about network details

52
Machs NetMsgServer

• User-level capability-based networking daemon
• Handles naming and transport for messages
• Provides world-wide name service for ports
• Messages sent to off-node ports go through this
  server

53
NetMsgServer in Action
User space
User space
User process
User process
NetMsgServer
NetMsgServer
Kernel space
Kernel space
Receiver
Sender
54
Mach and User Interfaces

• Mach was built for the UNIX community
• UNIX programs dont know about ports, messages,
  threads, and tasks
• How do UNIX programs run under Mach?
• Mach typically runs a user-level server that
  offers UNIX emulation
• Either provides UNIX system call semantics
  internally or translates it to Mach primitives

55
Windows NT

• More layered than some microkernel designs
• NT Microkernel provides base services
• Executive builds on base services via modules to
  provide user-level services
• User-level services used by
• privileged subsystems (parts of OS)
• true user programs

56
Windows NT Diagram
User Processes

Protected Subsystems
User Mode
Win32
POSIX
Kernel Mode
Executive
Microkernel
Hardware
57
NT Microkernel

• Thread scheduling
• Process switching
• Exception and interrupt handling
• Multiprocessor synchronization
• Only NT part not preemptible or pageable
• All other NT components runs in threads

58
NT Executive

• Higher level services than microkernel
• Runs in kernel mode
• but separate from the microkernel itself
• ease of change and expansion
• Built of independent modules
• all preemptible and pageable

59
NT Executive Modules

• Object manager
• Security reference monitor
• Process manager
• Local procedure call facility (a la RPC)
• Virtual memory manager
• I/O manager

60
Typical Activity in NT

Win32 Protected Subsystem
Client Process
Executive
Kernel
Hardware
61
Windows NT Threads

• Executable entity running in an address space
• Scheduled by kernel
• Handled by kernels dispatcher
• Kernel works with stripped-down view of thread -
  kernel thread object
• Multiple process threads can execute on distinct
  processors--even Executive ones

62
Microkernel Process Objects

• A microkernel proxy for the real process
• Microkernels interface to the real process
• Contains pointers to the various resources owned
  by the process
• e.g., threads and address spaces
• Alterable only by microkernel calls

63
Microkernel Thread Objects

• As microkernel process objects are proxies for
  the real object, microkernel thread objects are
  proxies for the real thread
• One per thread
• Contains minimal information about thread
• Priorities, dispatching state
• Used by the microkernel for dispatching

64
More On Microkernels

• Microkernels were the research architecture of
  the 80s
• But few commercial systems of the 90s really use
  microkernels
• To some extent, microkernel is now a dirty word
  in OS design
• Why?

65
Microkernel Construction

• Most Microkernels do not perform well
• Is it inherent in the approach or
• Implementation?
• IPC, microkernel bottleneck, can implemented an
  order of magnitude faster.
• Not supervise memory
• Minimal address space management, grant, map,
  flush.
• Fast kernel-User Switch, usually 20-30 us but 3
  in L3 implementation

66
Exokernel

• Traditional operating systems fix the interface
  and implementation of OS abstractions.
• Abstractions must be overly general to work with
  diverse application needs.

67
Example
Traditional OS
68
The Issues

• Performance
• Denies applications the advantages of
  domain-specific optimizations
• Flexibility
• Restricts the flexibility of application builders
• Functionality
• Discourages changes to the implementations of
  existing abstractions

69
Performance

• Example A DB can have predictable data access
  patterns, that doesn't fit with OS LRU page
  replacement, causing bad performance.
• Cao et al. Found that application-controlled file
  caching can reduce running time by as much as
  45.
• There is no single way to abstract physical
  resources or to implement an abstraction that is
  best for all applications.
• OS is forced to make trade-offs
• Performance improvements of application-specific
  policies could be substantial

70
Flexibility

• Fixed high-level abstractions hide information
  from applications.
• Makes it difficult or impossible for applications
  to implement their own resource management
  abstractions.

71
Functionality

• Only one available interface between applications
  and hardware resources.
• Because all applications must share one set of
  abstractions, changes to these abstractions occur
  rarely, if ever

72
The Solution

• Separate protection from management
• Allow user level to manage resources
• Application libraries implement OS abstractions
• Exokernel exports resources
• Low level interface
• Protects, does not manage
• Expose hardware

73
Exokernel Philosophy

• Applications know better than Operating Systems
  what the goal of their resource management
  decisions should be
• Applications should be given as much control as
  possible over those decisions
• Implementation view

Exokernel
Frame Buffer TLB Network Memory Disk
HW
74
Example
Exokernel Application level resource management
Exokernel
Hardware
75
Implementation Overview

• Library O.S., which uses the low-level exokernel
  interface to implement higher-level abstractions.

Library O.S.
Exokernel
Frame Buffer TLB Network Memory Disk
HW
76
Implementation Overview

• Applications link to library kernel, leveraging
  their higher-level abstractions.

Library O.S.
Library O.S.
Application
Application
Exokernel
Frame Buffer TLB Network Memory Disk
HW
77
End-to-End Argument

• if something has to be done by the user program
  itself, it is wasteful to do it in a lower level
  as well.
• Why should the OS do anything that the user
  program can do itself?
• In other words - all an OS should do is securely
  allocate resources.

78
Exokernel design
79
Exokernel tasks

• Track ownership
• Guard all resources through bind points
• Revoke access to resources

80
Design principle

• Expose hardware (securely)
• Expose allocation
• Expose names
• Expose revocation

81
Secure binding

• Decouples authorization from use
• Allows kernel to protect resource without
  understanding their semantics
• Example TLB entry
• Virtual to physical mapping performed in the
  library (above exokernel)
• Binding loaded into the kernel used multiple
  times
• Example packet filter
• Predicates loaded into the kernel
• Checked on each packet arrival

82
Implementing secure bindings

• Hardware mechanisms
• Capability for physical pages of a file
• Frame buffer regions (SGI)
• Software caching
• Exokernel large software TLB overlaying the
  hardware TLB
• Downloading code into kernel
• Avoid expensive boundary crossings
• Similar to the SPIN idea

83
Examples of secure binding

• Physical memory allocation (hardware supported
  binding)
• Library allocates physical page
• Exokernel records the allocator and the
  permissions and returns a capability an
  encrypted cypher
• Every access to this page by the library requires
  this capability

• Page fault
• Kernel fields it
• Kicks it up to the library
• Library allocated a page gets an encrypted
  capability
• Library calls the kernel to enter a particular
  translation into the TLB
• by presenting the capability

84

• Download code into kernel to establish secure
  binding
• Packet filter for demultiplexing network packets
• Exactly similar to SPIN
• How to ensure authenticity?
• Only trusted servers (library OS) can download
  code into the kernel
• Other use of downloaded code
• Execute code on behalf of an app that is not
  currently scheduled
• E.g. application handler for garbage collection
  could be installed in the kernel

85
Visible resource revocation

• Most resources are visibly revoked
• E.g. processor physical page
• Library can then perform necessary action before
  relinquishing the resource
• E.g. needed state saving for a processor
• E.g. update of page table

86
Abort protocol

• Repossession exception passed to the library OS
• Repossession vector
• Gives info to the library OS as to what was
  repossessed so that corrective action can be
  taken
• Library OS can seed the vector to enable
  exokernel to autosave (e.g. disk blocks to which
  a physical page being repossessed should be
  written to)

87
Aegis an exokernel
88
Aegis processor time slice

• Linear vector of time slots
• Round robin
• An application can mark its position in the
  vector for scheduling
• Timer interrupt
• Beginning and end of time slices
• Control transferred to library specified handler
  for actual saving/restoring
• Time to save/restore is bounded
• Penalty? loss of a time slice next time!

89
Aegis processor environments

• Exception context
• Program generated
• Interrupt context
• External e,g. timer
• Protected entry context
• Cross domain calls
• Addressing context
• Guaranteed mappings implemented by software TLB
  mimicking the library OS page table

90
Aegis performance
91
Aegis - Address translation

• On TLB miss
• Kernel installs hardware from software TLB for
  guaranteed mappings
• Otherwise application handler called
• Application establishes mapping
• TLB entry with associated capability presented to
  the kernel
• Kernel installs and resumes execution of the
  application

92
ExOS library OS

• IPC abstraction
• VM
• Remote communication using ASH (application
  specific safe handlers)
• Takeaway
• significant performance improvement possible
  compared to a monolithic implementation

93
The Exokernel

• A thin veneer that multiplexes and exports
  physical resources securely.
• Simplicity allows efficiency
• The lower the level of a primitive, the more
  efficiently it can be implemented, and the more
  latitude it grants to implementers of higher
  level abstractions.

94
The Exokernel

• Resource management is restricted to
• allocation,
• revocation,
• sharing
• ownership tracking

95
Library operating systems

• Use the low level exokernel interface
• Higher level abstractions
• Special purpose implementations
• An application can choose the library which best
  suits its needs, or even build its own.

96
Another Example
97
Design Challenge

• How can an Exokernel allow libOSes to freely
  manage physical resources while protecting them
  from each other?
• Track ownership of resources
• Secure bindings libOS can securely bind to
  machine resources
• Guard all resource usage
• Revoke access to resources

98
Secure Bindings

• Exokernel allows libOSes to bind resources using
  secure bindings
• Multiplex resources securely
• Protection for mutually distrusted apps
• Efficient

99
Secure Bindings

• Secure Binding a protection mechanism that
  decouples authorization from actual use of a
  resource
• Allows the kernel to protect resources without
  having to understand them

100
Guard all resource usage

• Invisible resource revocation
• -Efficient application layer not involved
• -Traditional OS
• Visible resource revocation
• -Allows libOS to guide deallocation and track
  availability of resources.
• -Exokernel

101
Revoke access to resources

• Abort protocol Allows exokernel to break secure
  bindings of an uncooperative libOS by force

102
Conclusion

• An Exokernel securely multiplexes available
  hardware raw hardware among applications
• Application level library operating systems
  implement higher-level traditional OS
  abstractions
• LibOSes can specialize an implementation to suit
  a particular application

103
Conclusion

• The lower the level of a primitive
• the more efficiently it can be implemented
• the more latitude it gives to higher level
  abstractions
• So, separate management from protection and
• implement protection at a low level (exokernel)
• implement management at a higher level (libOS)

104
Some Features

• It is possible to have different libOSes, for
  example, one could export a Unix API and another
  a Windows API

105
Exokernel vs. Microkernel

• A micro-kernel provides abstractions to the
  hardware such as files, sockets, graphics etc.
• An exokernel provides almost raw access to the
  hardware.

106
Exokernel

• Implementation Overview
• Allows the extension, specialization, and even
  replacement of abstractions.
• Example Page Table implementations can vary from
  libOS to libOS, and applications can choose
  whichever is most suitable for their needs.

107
Exokernel

• Implementation Principles
• Provide libOS'es maximum freedom while protecting
  them from each other. It is achieved through
  separation of protection and resource management.

• Resources should only be managed to the extent
  required for protection. LibOS'es handle how best
  to use resources, with exokernel arbitrating
  between competing libraries.
• LibOS's should be able to request specific
  physical resources (like specific physical
  pages).
• Resources should not be implicitly allocated the
  LibOS should participate in every allocation.

108
Exokernel Design

• Secure Bindings
• Downloading Code
• Visible Revocation
• Abort Protocol

109
Exokernel

• Secure Bindings
• Protection mechanism that decouples authorization
  (bind time) from actual use of the resource
  (access time).
• Authorization performed at bind time.
• Expressed in simple operations that the exokernel
  can implement quickly and efficiently.
• Can protect resources without understanding them.

• Example
• When a page fault occurs, virtual to physical
  address mapping is performed, the page is loaded
  by the exokernel (bind time), and then used
  multiple times (access time).

110
Exokernel

• Downloading Code
• Code can be downloaded into the exokernel, for
  execution at defined events (like packet
  arrival).
• Reduces kernel crossings.
• Can execute even when the application isn't
  scheduled.
• Can initiate events (e.g. - initiate response
  message to packet)
• Example
• A packet filter is downloaded into the exokernel
  (bind time), and then run on every incoming
  packet to determine the intended target
  application (access time), and can even initiate
  a response.

111
Exokernel

• Visible Resource Revocation
• Traditionally, OS's revoke (deallocate) resources
  invisibly, without application involvement (e.g.
  - physical memory).
• Advantage lower latency
• Disadvantage applications cannot guide
  deallocation
• Exokernel uses visible revocation for most
  resources. The libraryOS is notified of the
  intention to deallocate, and has the capability
  of guiding the process.
• Example libOS is told that exokernel will
  deallocate physical page 5, it can use this
  information to update it's page table, or even to
  suggest a less important page for deallocation.

112
Exokernel

• Abort Protocol
• Mechanism to take away resources when libOS's
  fail to respond satisfactorily to visible
  revocation requests.
• A Repossession Vector is used to keep track of
  forcibly deallocated resources.
• Library OS's can pre-load the vector with
  information that can be used to write state or
  data about the resource when it is deallocated
  (e.g. - define disk blocks for memory paging).
• OS's normally require certain allocations to be
  permanent, so exokernel can guarantee a small
  number of resources that cannot be forcibly
  deallocated.
• Example page tables, exception areas

113
Exokernel

• Implementation
• Aegis Exokernel
• Exports processor, physical memory,
  TLB,exceptions, interrupts, and network
  interface.
• ExOS Library OS
• Implements processes, virtual memory, user-level
  exceptions, interprocess abstractions, and
  network protocols (ARP,IP,UDP,NFS)
• Compared to Ultrix

114
Exokernel

• Aegis
• Processor Time Slices
• Time Slices partitioned and allocated at the
  clock granularity. Scheduled using round robin.
• Advanced Scheduling can be implemented by libOS
  through requesting specific positions in the time
  slices.
• Long running apps can allocate contiguous time
  slices, while interactive apps can allocate
  several equidistant slices

115
Exokernel

• Aegis
• Exceptions
• Interrupts
• Address Translations
• Guarantees address mappings for small number of
  pages, to simplify boot strapping.
• Protected Control Transfers
• For IPC abstractions
• Changes program counter to agreed location, sets
  appropriate data for context for callee, and
  donates current time slice.
• Dynamic Packet Filter

116
Exokernel

• ExOS
• IPC Abstractions
• pipe ExOS uses shared memory buffer, order of
  magnitude faster than Ultrix, which uses standard
  unix pipes.
• Application Level Virtual Memory
• 150x150 integer matrix mult doesn't use any
  special ExOS or Aegis abilities shows
  application level VM doesn't incur noticeable
  overhead (.1 second difference)
• All other tests performs comparably with Ultrix
  (reading pages, flipping protection bits, etc...)
• Downloaded code for networking handler
• Round Trip latency for RPC faster than FRPC

117
Exokernel

• ExOS Extensibility
• Extensible Page-Table structures
• Implemented inverted page tables
• Extensible Schedulers
• Stride Scheduling (proportional share scheduling)
• The processes are succesfully scheduled at a
  ration of 321

118
Exokernel

• Conclusion
• Experiments with Aegis and ExOS show
• Simple exokernel primitives can be implemented
  efficiently
• Fast low-level hardware multiplexing can be
  implemented efficiently
• Traditional OS abstractions can be implemented as
  User Level
• Applications can create special-purpose
  implementations by modifying libraries

119
Exokernel

• Other Exokernel Work
• Porting Multithreading Libraries to an Exokernel
  SystemErnest Artiaga, Albert Serra, Marisa
  GilDept. of Computer ArchitectureUniversitat
  Politecnica de CatalunyaACM SIGOPS European
  Workshop, ACM 2000, pp. 121-126
• Ported Cthreads to Exokernel
• Slightly faster execution than without threading

120
Exokernel

• Other Exokernel Work
• Fast and Flexible Application-Level Networking on
  Exokernel SystemGergory Ganger, Dawson Engled,
  et al.CMU, Stanford, MIT and Vividon, Inc.ACM
  Transactions on Computer Systems, vol. 20, no. 1,
  pp. 49--83, 2002
• Implemented TCP, HTTP server, and web
  benchmarking tool
• TCP 50-300 higher throughput
• HTTP 3-8 higher throughput
• Benchmarking Can produce loads 2-8 times heavier

121
Key points of the paper

• Microkernel should provide minimal abstractions
• Address space, threads, IPC
• Abstractions machine independent but
  implementation hardware dependent for performance
• Myths about inefficiency of micro-kernel stem
  from inefficient implementation and NOT from
  microkernel approach

122
What abstractions?

• Determining criterion
• Functionality not performance
• Hardware and microkernel should be trusted but
  applications are not
• Hardware provides page-based virtual memory
• Kernel builds on this to provide protection for
  services above and outside the microkernel
• Principles of independence and integrity
• Subsystems independent of one another
• Integrity of channels between subsystems
  protected from other subsystems

123
Microkernel Concepts

• Hardware provides address space
• mapping from virtual page to a physical page
• implemented by page tables and TLB
• Microkernel concept of address spaces
• Hides the hardware address spaces and provides an
  abstraction that supports
• Grant?
• Map?
• Flush?
• These primitives allows building a hierarchy of
  protected address spaces

124
Address spaces
R
R
A2, P2
V2, NIL
A1, P1
V1, R
(P1, v1)
(P1, v1)
map
A3, P3
V3, R
R
(P2, v2)
A2, P2
V2, R
(P3, v3)
(P1, v1)
flush
R
A3, P3
V3, NIL
(P2, v2)
(P1, v1)
grant
125

• Power and flexibility of address spaces
• Initial memory manager for address space A0
  appears by magic (similar to SPIN core service
  BUT outside the kernel) and encompasses the
  physical memory
• Allow creation of stackable memory managers (all
  outside the kernel)
• Pagers can be part of a memory manager or outside
  the memory manager
• All address space changes (map, grant, flush)
  orchestrated via kernel for protection
• Device driver can be implemented as a special
  memory manager outside the kernel as well

126
PT
M2, A2, P2
Map/grant
M1, A1, P1
PT
PT
M0, A0, P0
processor
Microkernel
127
Threads and IPC

• Executes in an address space
• PC, SP, processor registers, and state info (such
  as address space)
• IPC is cross address space communication
• Supported by the microkernel
• Classic method is message passing between threads
  via the kernel
• Sender sends info receiver decides if it wants
  to receive it, and if so where
• Address space operations such as map, grant,
  flush need IPC
• Higher level communication (e.g. RPC) built on
  top of basic IPC

128

• Interrupts?
• Each hardware device is a thread from kernels
  perspective
• Interrupt is a null message from a hardware
  thread to the software thread
• Kernel transforms hardware interrupt into a
  message
• Does not know or care about the semantics of the
  interrupt
• Device specific interrupt handling outside the
  kernel
• Clearing hardware state (if privileged) then
  carried out by the kernel upon driver threads
  next IPC
• TLB handler?
• In theory software TLB handler can be outside the
  microkernel
• In practice first level TLB handler inside the
  microkernel or in hardware

129
Unique IDs

• Kernel provides uid over space and time for
• Threads
• IPC channels

130
Breaking some performance myths

• Kernel user switches
• Address space switches
• Thread switches and IPC
• Memory effects
• Base system
• 486 (50 MHz) 20 ns cycle time

131
Kernel-user switches

• Machine instruction for entering and exiting
• 107 cycles
• Mach measures 900 cycles for kernel-user switch
• Why?
• Empirical proof
• L3 kernel 123 cycles (accounting for some TLB,
  cache misses)
• Where did the remaining 800 cycles go in MACH?
• Kernel overhead (construction of the kernel, and
  inherent in the approach)

132
Address space switches

• Primer on TLBs
• AS tagged TLB (MIPS R4000) vs untagged TLB (486)
• Untagged TLB requires flush on AS switch
• Instruction and data caches
• Usually physically tagged in most modern
  processors so TLB flush has no effect
• Address space switch
• Complete reload of Pentium TLB 864 cycles

133

• Do we need a TLB flush always?
• Implementation issue of protection domains
• SPIN implements protection domains as Modula
  names within a single hardware address space
• Liedtke suggests similar approach in the
  microkernel in an architecture-specific manner
• PowerPC use segment registers gt no flush
• Pentium or 486 share the linear hardware address
  space among several user address spaces gt no
  flush
• There are some caveats in terms of size of user
  space and how many can be packed in a 232
  global space

134

• Upshot?
• Address space switching among medium or small
  protection domains can ALWAYS be made efficient
  by careful construction of the microkernel
• Large address spaces switches are going to be
  expensive ALWAYS due to cache effects and TLB
  effects, so switching cost is not the most
  critical issue

135
Thread switches and IPC
136
Segment switch (instead of AS switch) makes cross
domain calls cheap
137
Memory Effects System
138
Capacity induced MCPI
139
Portability Vs. Performance

• Microkernel on top of abstract hardware while
  portable
• Cannot exploit hardware features
• Cannot take precautions to avoid performance
  problems specific to an arch
• Incurs performance penalty due to abstract layer

140
Examples of non-portability

• Same processor family
• Use address space switch implementation
• TLB flush method preferable for 486
• Segment register switch preferable for Pentium
• gt 50 change of microkernel!
• IPC implementation
• Details of the cache layout (associativity)
  requires different handling of IPC buffers in 486
  and Pentium
• Incompatible processors
• Exokernel on R4000 (tagged TLB) Vs. 486 (untagged
  TLB)
• gt Microkernels are inherently non-portable

141
Summary

• Minimal set of abstractions in microkernel
• Microkernels are processor specific (at least in
  implementation) and non-portable
• Right abstractions and processor-specific
  implementation leads to efficient
  processor-independent abstractions at higher
  layers

142
Performance
143
Key points

• Goal extensibility akin to SPIN and Exokernel
  goals
• Main difference support running several
  commodity operating systems on the same hardware
  simultaneously without sacrificing performance or
  functionality
• Why?
• Application mobility
• Server consolidation
• Co-located hosting facilities
• Distributed web services
• .

144
Multiprocessor OS

• Synchronization
• Communication
• Scheduling
• We have seen these issues already in the other
  readings in this section of the course

145
Key Issues

• Modern parallel machines
• Large system sizes stressing bottlenecks in
  system software (e.g. global data structures)
• Higher memory latencies
• NUMA effects (i.e. symmetric assumption does not
  hold
• Cache hierarchy
• Write sharing expensive due coherence traffic
• False sharing due to large cache lines

146
Thesis of Tornado paper

• In designing multiprocessor OS
• Pay attention to locality
• Reduce shared system data structures
• Reduce distance between accessing processor and
  target memory module

147
Effect of global data structure shared counter
148
Tornado design approach

• Object-oriented design for scalability
• Clustered objects
• Protected procedure call with a view to
  preserving locality while ensuring concurrency
• Semi automatic garbage collection for localizing
  locking
• OS objects have multiple implementations
• Low overhead version when scalability is not
  required
• Resort to scalable implementation when
  performance critical
• Optimize common case
• Object invocation should be fast object
  creation/destruction can be slower
• Page fault handling should be fast memory region
  creation/deletion can be slower

149
Next Lecture

• Process and Thread
• Cooperative Task Management Without Manual Stack
  Management, by Atul Adya, et.al.
• Capriccio Scalable Threads for Internet
  Services, by Ron Von Behrn, et. al.
• The Performance Implication of Thread Management
  Alternative for Shared-Memory Multiprocessors,
  Thomas E. Anderson, et.al.
