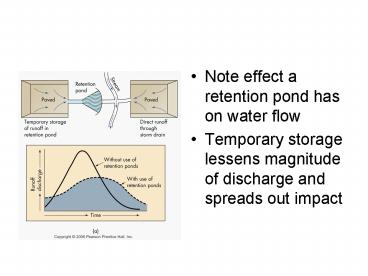

Note effect a retention pond has on water flow

1

• Note effect a retention pond has on water flow
• Temporary storage lessens magnitude of discharge
  and spreads out impact

2
Channelization

• Pros
• Flood and erosion control
• Better navigation
• Cons
• Disturbs ecosystems
• Plants, animals, feeding/breeding areas changed
• Aesthetics upset

3
Flood frequency

• Recurrence interval
• Length of time in years separating floods of a
  similar size measured as volume of flow of
  stream
• Larger floods have a longer time interval
• We speak of the 100-yr flood, one that has a 1
  probability of occurring once in a given year
• 20-yr flood would have a 5 likelihood of
  occurring in a given year
• Oak Creek to the south of Flagstaff experienced
  three 100-yr floods in a decade due to
  combinations of rare conditions

4
Types of floods

• Flash
• Localized areas, usually thunderstorms common in
  deserts
• Examples
• Antelope Canyon, AZ August 1997 11 died
• Big Thompson Canyon, CO July 1976 145 died
• Need to consider where storms areseldom directly
  overhead but up drainage area
• Regional, downstream
• Prolonged rain which saturates ground or delayed
  snowmelt
• Floodplain covered

5
Flash flood vs downstream flood
6
Large rivers in conterminous U.S.
7
Mississippi River basin facts

• Greatest inundation floods in US occur here 3rd
  largest river basin in world
• 11 of 28 largest rivers in US are part of the
  Mississippi River system
• Avg flow 645,000 cu ft/sec
• 1 cu ft 7.5 gal, so this is 4.83 million
  gals/sec or 100 swimming pools PER SEC

8
Major flooding between 1993 and 1997
9
Missouri River in 1993
10
Our response to flooding

• Dams
• Only provide some flood protectionnot control
  if full, lakes must be drained failure of dam is
  major problem
• Levees
• Create false sense of security if water breeches
  levee, it doesnt drain well
• Sandbagging
• Very short term solution
• Zoning and insurance
• Cant build in 100-yr floodplain most people
  dont buy floodplain insurance knowing fed govt
  will bail them out
• Channelization
• Clear, deeper, wider, straighter paths for water
  everything goes against idea of graded stream
  one seeking equilibrium

11
Levee erosion and results
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Contributing factors and results for Tucson
floodingOct 1983

• Tropical storm Octave dropped 60 annual rainfall
  in a few days
• Increased development increases pavement and roof
  tops
• Desert flooding generates bank erosion rather
  than inundation

16
Flooding in Tucson Oct 1983
Pantano Wash
17
Bank erosion is major problem in deserts Tucson
Oct 1983
18
Glacial control Channeled Scablands of WA state
19
(No Transcript)
20
(No Transcript)
21
D Best
