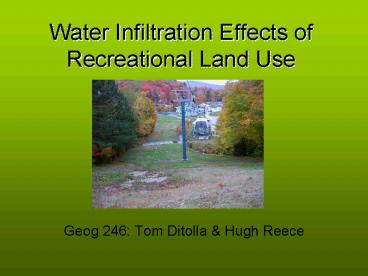

Water Infiltration Effects of Recreational Land Use

1
Water Infiltration Effects of Recreational Land
Use

• Geog 246 Tom Ditolla Hugh Reece

2
Introduction

• What are the effects of Ski areas on the
  mountain?
• Vegetation absorbs ground water that would
  otherwise flow downstream
• Without water infiltration the landscape would be
  altered
• Difference in soil types could also contribute
  due to density and compaction
• Ski resort can create compaction and areas with
  high slope and no vegetation.

3
Mad River Glen

• The study sites are well trafficked areas of
  Mad River Glen Ski resort in Waitsfield, VT
• MRG does not make their own snow
• This is private propertyit turns out that you do
  need permission

4
Study Site

• The study site is 700 acres. 115 of which are
  ski trails (16.4)

5
Objectives

• Measure infiltration rates and bulk density
• Compare data to storm characteristics
• Calculate study site area

6
Water Infiltration

• We poured water into the infiltrometer and
  measured the rate at which it was absorbed into
  the ground
• Materials
• Infiltrometer
• Graduated cylinder
• Pitcher
• Knife
• Broken Ski Pole

7
Soil Density

• Samples were collected by digging 353 cm3 into
  the ground and keeping the middle 118 cm3. The
  soil was then taken to the lab, where the water
  was extracted
• We then heated the samples in a stove to extract
  the water. That gave us our bulk density rates.
• Materials
• Auger
• Broken ski pole

8
Infiltration Rates
The wooded areas were able to absorb water much
faster
9
West Branch Precipitation, Stowe VT
Past storm event measurements indicate that the
even the trails can absorb most of the water
10
Soil Density
The soil on the ski trails are significantly more
dense
11
Data Correlations

• Areas with low density had high infiltration
  rates, while areas with high density had a very
  low infiltration rate

12
Discussion

• Large trails can affect the landscape by altering
  the amounts of water it can absorb
• Although the ski trails dramatically change the
  landscapes ability to absorb water, the change is
  not great enough to cause damage
• Understanding specifically what areas are at risk
  and focus on how to lower any negative effects
