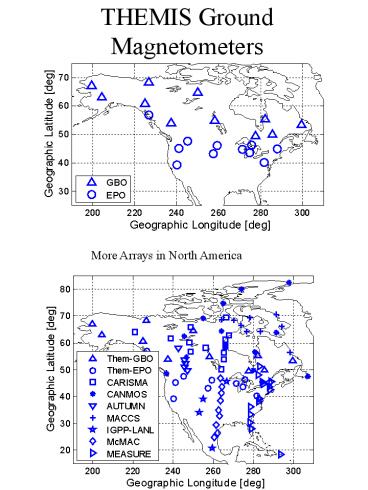

THEMIS Ground Magnetometers

1
THEMIS Ground Magnetometers
More Arrays in North America
2
THEMIS Stations
Station (Code) Geogr. Lat. (deg) Geogr. Long. (deg) MAG Lat. (deg) MAG Long. (deg) L Inv. Lat. (deg) CGM Long. (deg)
GBO GBO GBO GBO GBO GBO GBO GBO
Chibougamau (CHBG) 49.9 285.6 59.9 356.7 3.92 59.7 3.7
Flin Flon (TPAS) 54.8 258.1 63.0 320.3 5.18 63.9 322.2
Goose Bay (GBAY) 53.3 299.6 63.0 15.2 4.18 60.7 23.2
Inuvik (INUV) 68.3 226.7 70.9 271.9 9.64 71.2 275.7
Kapuskasing (KAPU) 49.4 277.6 59.2 346.5 3.95 59.8 351.8
Kiana (KIAN) 67.0 199.6 65.1 248.8 5.67 65.2 253.5
Kuujjuarapik (KUUJ) 55.3 282.3 65.2 352.0 5.66 65.1 359.2
Lac de Gras (EKAT) 64.6 250.0 71.4 303.2 10.5 72.1 306.8
McGrath (MCGR) 63.0 204.4 62.2 256.6 4.47 61.8 259.8
Prince George (PGEO) 53.9 237.4 59.3 296.3 3.83 59.3 295.9
White Horse (WHIT) 60.7 224.9 63.7 278.3 4.98 63.4 279.4
EPO EPO EPO EPO EPO EPO EPO EPO
Bay Mills (BMLS) 46.24 275.66 55.92 344.48 3.33 56.8 348.9
Carson City (CCNV)  39.19 240.22 45.35 304.84 2.00 45.0 303.5
Derby (DRBY) 44.95 287.87 54.93 359.67 2.97 54.5 6.4
Fort Yates (FYTS) 46.09 259.35 54.54 324.71 3.12 55.5 325.5
Hot Springs (HOTS) 47.59 245.34 54.31 307.96 2.98 54.6 307.2
Loysburg (LOYS) 40.17 281.62 50.08 352.21 2.48 50.6 357.2
Petersburg (PTRS) 56.83 226.84 60.33 283.11 3.98 59.9 283.3
Pine Ridge (PINE) 43.11 257.40 51.39 323.14 2.67 52.3 323.3
Remus (RMUS) 43.60 274.84 53.25 343.78 2.92 52.2 347.6
Shawano (SWNO) 44.78 271.40 54.24 339.46 3.09 55.3 342.6
Ukiah (UKIA) 45.13 241.07 51.30 304.02 2.55 51.2 302.9
3
THEMIS Data Server
THEMIS ground magnetometer data center at UCLA
(URL http//www-ssc.igpp.ucla.edu/uclamag/themis_
center/)
4
IGPP-LANL/SMALLMagnetometer Data Server
http//www-ssc.igpp.ucla.edu/uclamag/data_center/
5
Sino-Magnetic Array at Low Latitudes (SMALL)
Installed at 14 locations in 1990s.
6
Falcon Magnetometer Array (New)

• The first Falcon magnetometer was installed at
  Stanford, CA in August 2008 the second system
  has been shipped to Pueblo, CO for installation.
