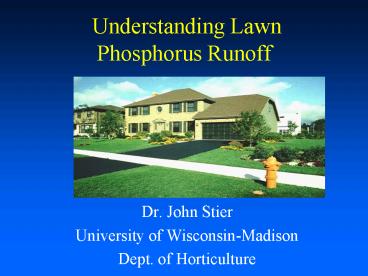

Understanding Lawn Phosphorus Runoff

1
Understanding Lawn Phosphorus Runoff

• Dr. John Stier
• University of Wisconsin-Madison
• Dept. of Horticulture

2
Runoff

• Definition Water that is discharged laterally on
  or through the ground
• Surface runoff
• Seepage flow from ground water
• Both Runoff Volume and Contamination must be
  considered
• Concentration level has little impact if only few
  ounces or quarts runoff from large area

3
Runoff Depends on

• Rate of precipitation/irrigation
• Pre-existing soil moisture
• Slope
• Infiltration percolation capacity of soil
• Soil type (sand gt loam gt clay)
• Time of year (frozen vs. unfrozen)
• Vegetation height and density

4
Need for Nutrients

• 413 uptake
• N is ephemeral, new additions needed
• Most P recycled once in plant
• Soils have sufficient P, K for most of growing
  season
• Exceptions
• New establishment
• Cold weather
• Root rots
• Some soils low P

5
Need for Nutrients

• Dense turf reduces runoff
• Volume
• Sediment
• Dissolved nutrients

Poorly fertilized
Well fertilized
6
Phosphorus is Phosphorus

• Natural sources (Compost, sewage, etc.)
• Low NP ratio, e.g., 6-2-0
• If apply 1 lb N/1000 ft2, then 0.33 lb P2O5
• If use 25-3-4 then only 0.12 lb P2O5

7
How Our Environment Has Changed

• Impervious vs Pervious surfaces
• Pre-Development Forests, Fields, Wetlands
• Post-Development Rooftops, driveways, sidewalks,
  streets, parking lots
• Post-Development Lawns, Rain Gardens, Ditches,
  Detention Ponds
• Stormwater fees

8
Problems with Runoff

• Sediment
• Deposits in surface waters, sewers, etc.
• Carries adsorbed chemicals nutrients (P)
• Nutrients
• N P
• Algal blooms oxygen deprivation

9
Phosphorus in Soil

• 200 2000 lb P/Acre in soil
• 100 1000 ppm or 0.01 to 0.1 of soil mass
• Tightly bound to soil, Fe, Al, Ca, Mg
• 20-80 soil P is organic (Brady Weil, 1996)

Only 0.01 of P is available for plant
uptake (0.02 to 0.2 lb P or 0.01 to 0.1 ppm)
10
Phosphorus Sources in Runoff

• Organic sources
• Pollen, seeds
• Leaves (living and dead)
• Animal waste
• Manure spread on frozen fields
• Wildlife
• Waterfowl 27 new P in NC lake (Wambach
  Mallin, 2001)
• Mississipi Flyway now 1.4 million geese with 6
  annual increase
• 100 avg geese 5.3 oz P/day (Sherer et al.,
  1995) 5x gt storm drain P in NE urban lake (Moore
  et al., 1998)
• Pets Avg dog 2.6 lb P2O5/yr
• Aquatic animals/plants

11
Phosphorus Sources in Runoff

• Inorganic sources Soil particles/dust
• Bare/exposed soil
• Agricultural operations
• Building construction
• 8.6 tons sediment/12.1 lb P/A/yr in WI (Daniel et
  al., 1979)
• Geography of area
• Deicing agents
• MDOT (1993) 14-26 ppm P
• New York Ag Dept. salt-sand mixes 55-163 ppm P

12
The Scientific Method

• Observe a condition
• Read existing information
• Develop theory
• Test theory
• Accept, reject, or alter theory

13
Multiple Runoff Studies Conducted

• 1970 current
• Water quantity, nutrients, pesticides
• Crops, turf, fields/prairies

Runoff plots at UW-Madison
14
Sediment in Runoff from Crops, Turf, and
Grasslands
15
Phosphorus in Runoff from Crops, Turf, and
Grasslands
16
Fertilization Effect on Phosphorus Losses from
Lawn Turf
Source Kussow, 1997
17
Seasonal Effects on Runoff
Frozen soils Non-frozen soils
2003-04 Dane County Wisconsin
lb P / acre
Prairie 0.65 0.07 Turf 0.58
0.02
Steinke et al., 2007, J. Environ. Qual.
36426-439.
18
Tree Leaf Phosphorus

• P in street runoff (Waschuch et al., 1999)
• Madison, WI
• No trees lt0.1 ppm P
• 80 tree canopy 0.8 ppm P
• Weekly street sweeping ? P runoff by 42 (Shapiro
  and Pfannkuch, 1973, Univ. Minn.)

19
Key Points

• Baseline levels of P exist
• Sediment, animal, atmospheric deposition
• Paved areas/drains funnel runoff to lakes
• Scientific data do not show lawn fertilizers add
  P runoff
• Turf cover no sediment loss
• Existing models based on bare ag soils
• 80 of lawn runoff occurs during winter thaw
• Natural P not better than synthetic sources
• Underfertilization will increase runoff volumes
  and P amounts
