JAVA

1

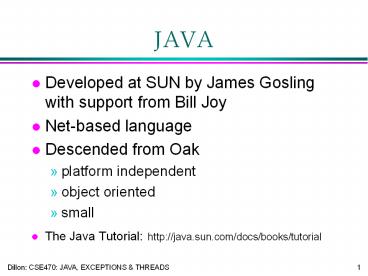

JAVA

• Developed at SUN by James Gosling with support
  from Bill Joy
• Net-based language
• Descended from Oak
• platform independent
• object oriented
• small
• The Java Tutorial http//java.sun.com/docs/books/
  tutorial

2
Goals for Java

• Simple
• easy to learn
• based on C/C
• small
• Object oriented
• single inheritance
• Distributed
• libraries supply protocols

Robust strongly typed safe pointer
model Secure Platform independent virtual
machine Portable no implementation dependent data
types
3
Goals for Java (cont.)

• Compiled and interpreted
• Multithreaded
• Dynamic

4
Java Virtual Machine

• Compiler translates Java into J-code
• Stack-based virtual machine (JVM)
• No undefined or platform specific data types
• Other languages can be translated to J-code
• Interpreter is lightweight, easy to implement
• use widely available language, like C
• J-code is highly optimized
• J-code can be compiled on the fly

5
How it Works
Java compiler (javac)
Java source
Native code
e.g., AWT
Java interpreter (a JVM)
Platform dependent
Platform independent

• The JVM may be
• an interpreter
• an applet viewer
• a web browser
• part of an OS

• Classes could be loaded from filesystem or over a
  network
• JVMs use an environment variable, CLASSPATH, to
  find byte code (.class files) to execute

6
Java combines benefits of

• A strongly typed, OO language
• Flexibility of an interpreted language
• Lisp, Perl, Tcl
• A smalltalk virtual machine with security
  protection
• Java byte code verifier reduces runtime checks
• Package structure for organizing classes into
  subsystems

7
Other benefits of Java

• Exception handling
• Support for multi-threading
• Based on Hoares monitors
• Highly optimized
• Easy debugging
• make debugging statements dependent on a constant
  value, which programmer sets when done debugging
• compiler automatically removes unexecutable
  statements

8
Three levels of Security

• Security manager
• controls access to system resources
• highlight windows of untrusted applications
• Class loader
• restricts classes loaded from network to interact
  with classes from the same location
• Verifier
• checks that incoming classes cant forge
  pointers, violate access permissions, over/under
  flow operator stack, etc.
• ensures type safety

9
Java doesnt have

• Macros and preprocessor
• mostly used for platform dependencies
• Operator overloading, except for
• (Very many) automatic type coercions
• Pointer arithmetic
• references are a higher level type and can only
  point to class objects, not to class methods
• Explicit memory management
• provides automatic garbage collection

10
Java and the Web

• A web browser can incorporate a JVM and run Java
  applets as executable code
• Life of an applet
• Loaded by a web browser and asked to initialize
  itself
• Informed each time it is displayed and hidden
• Informed when it is no longer needed
• Security manager prevents applet from accessing
  system resources or interacting with outside
  applications

11
Java classes

• Class is the basic computation unit
• encapsulates data and associated operations
• found and loaded dynamically as needed
• 22 architecture specific classes gateway to the
  real world
• networking, windowing, filesystem, etc.
• Rest of Java is written in Java

12
Inheritance in Java

• Single inheritance hierarchy
• Multiple inheritance of interfaces
• Interface specifies the operations but not the
  implementations
• A class can implement multiple interfaces

13
Java coding conventions

• Class names begin with upper case letters
• Variables and method names begin with lower case
  letters
• Constants are all upper case
• Separate words with uppercase letter instead of
  underscores
• e.g. aVariableName AClassName
• aMethodName ACONSTANT

14
Classes in Java

• Define an abstract data type
• operations called methods
• data called variables or fields
• Many class instances or objects can exist
• each instance may have a different state
• e.g., different values for variables
• all instances have the same methods
• Arranged in a hierarchy
• each class has a unique superclass (parent)
• subclass (child) can add or modify methods or
  variables of the superclass

15
Variables in Java

• Maintain state of a class instance
• Belong to some class or class instance
• static variable -- one per class
• instance variable -- one per class instance
• All variable values are by reference
• point to their values, which are maintained on a
  heap
• Initial value is null
• access to null value raises the
  NullPointerException exception

16
A simple Java applet
import java.applet.Applet import
java.awt.Graphics public class Simple extends
Applet StringBuffer buffer public
void init( ) buffer new
StringBuffer( ) addItem(initializing
) public void start( )
addItem(starting )
17
A simple Java applet (cont.)
public void stop( )
addItem(stopping ) public void
destroy( ) addItem(starting )
public void addItem(String newWord )
System.out.println(newWord)
buffer.append(newWord) repaint( )

18
A simple Java applet (cont.)
public void paint (Graphics g)
//Draw a rectangle around the applets display
area g.drawRectangle(0, 0, size(
).width-1, size( ).height-1)
//Draw the current string inside the rectangle
g.drawString(buffer.toString( ), 5, 15)

19
Lifetime of an Applet
leave page/stop( )
iconify/stop( )
quit/destroy( )
load/init( )start( )
running
stopped
de-iconify/start( )
return to page/start( )
reload/stop( ) destroy( ) init( )
20
Part of the Java Class Hierarchy
Object
Component
Container
Button
Window
Panel
Applet
Simple
21
Subclassing and Inheritance

• A subclass extends, refines, or specializes a
  superclass
• A subclass can extend only one superclass
• A subclass inherits the public methods and
  variables from its superclass
• Does not inherit private members (in Java)
• The subclass is considered a subtype of the
  superclass
• All visible superclass operations apply to
  subclass

22
Subclassing Example
Container
Container( ) add(Component) doLayout(
) getComponent(int)
paint(Graphics) print(Graphics) remove(Component)
. . .
Panel
Window
Panel( ) Panel(Layout) addNotify( )
Simple
Applet
getImage(URL, String) getParameter(String) play(U
RL) . . .
Applet( ) init( ) start( ) . . .
init( ) start( ) stop( ) destroy ( ) paint
(Graphics)
23
Interfaces in Java

• An interface class describes a protocol of
  behavior
• Members are constants and abstract methods
• Abstract methods have no implementations
• Can be implemented by any class anywhere in the
  class heirarchy
• Cannot be instantiated
• Implementing classes agree to implement all
  methods declared in the interface
• Class can implement multiple interfaces
• Interface can be implemented by multiple classes
• Does not force a class relationship

24
Interface Example

• Objects can register themselves with an
  AlarmClock object to be woken up after some
  specified time
• Objects call the letMeSleepFor method

public synchronized boolean letMeSleepFor(
Sleeper theSleeper, long time) int index
findNextSlot ( ) if (index NOROOM)

return false else
sleepers index theSleeper
sleepFor index time
new AlarmThread( index ).start( )
return true
25
Interface Example (cont.)

• An object that wants to use AlarmClock must
  implement the wakeUp method
• This is enforced by the type of theSleeper

Public interface Sleeper public void
wakeUp ( ) public long ONE_SECOND 1000
// in milliseconds public long
ONE_MINUTE 60000 // in milliseconds
26
Interface Example (cont.)

• Any object that implements this interface can be
  passed to letMeSleepFor

Class GUIClock extends Applet implements Sleeper
. . . public void wakeUp ( )
repaint ( ) clock.letMeSleepFor(
this, ONE_MINUTE)
GUIClock updates its display every minute
(showing the current time)
27
Abstract class v.s. Interface class

• Why not use an abstract class for Sleeper?

Abstract class Sleeper public abstract
void wakeUp ( )
Only objects that are subclasses of Sleeper would
be able to use AlarmClock Conceptually,
AlarmClock should not force a class relationship
on its users
28
Exceptional Conditions

• Handling exceptional conditions can more than
  double the size of the code
• Systems can respond to errors in many ways
• crash
• give error message and crash
• give error message and let user retry
• minimize work that must be redone
• allow user to decide how much work must be redone
• correct the error
• allow user to confirm that correction is valid

29
Approaches for Handling Exceptional Conditions

• Each method handles the exceptional conditions
  that arise during its execution
• A low level class/method handles all exceptional
  conditions that may arise
• All methods return status information so that
  client methods can respond to exceptional
  conditions
• ALL OF THESE APPROACHES HAVE PROBLEMS

30
I. Each method handles its own exceptional
conditions
info1 (in case an exception arises)
info1, info2 (in case an exception arises)
Code to detect and handle exception
Code to detect and handle exception (use info1)
Code to detect and handle exception (use info1,
info2)
31
I. Each method handles its own exceptional
conditions

• No modularity or consistency
• changes to error handling affect all the methods
• May need to pass considerable information many
  levels to maintain context information
• hard to provide user friendly response w/o
  knowing clients context
• Must return status information so calling method
  can determine if it should proceed or terminate

32
II. A low level class/method handles exceptional
conditions
Exception handling class
33
II. A low level class/method handles exceptional
conditions

• Error processing handled in a more consistent
  and modular fashion
• changes to error handling only affect the error
  handling class/method
• May need to pass considerable information many
  levels to maintain context information
• hard to provide user friendly response w/o
  knowing clients context
• Must return status information so calling method
  can determine if it should proceed or terminate

34
III. Methods return status information so that
client methods can respond to exceptional
conditions

• Calling method must always check status
  information
• Calling methods must be able to respond to status
  information

call Foo(bar, status1, status2, , statusN) if
status1 then do repair1 else if status2
then do repair2 else if . . . else
normal processing using bar endif
35
Exceptions were added to languages to help with
error processing

• A method that detects a problem can handle the
  exception locally and then raise/throw/signal an
  exception to the methods in its calling context

handler for E1
throw E1
36
A method can catch an exception and specialize
its response
handler for E2
handler for E1 throw E2
throw E1
37
Exception Handling Mechanisms

• Signal/raise/throw an exception
• predefined
• user defined
• Exception handlers
• local
• non-local
• propagate through call stack
• one level only
• multiple levels

38
Exception Handling Mechanisms (cont.)

• Execution after handler
• resumption model return to signal location
• termination model terminate execution of method
• Java supports predefined and user defined
  exceptions, local and multi-level propagation,
  with termination

39
Exceptions in Java

• Indicates an unusual situation (error)
• Thrown at the point in the code where the error
  occurs
• Caught by an exception handler
• Can be handled locally
• Can look back through call stack for the first
  handler
• Methods must declare the exceptions they throw

40
Handling Exceptions
try i s.pop( ) catch(
EmptyStackException i)
system.out.println( Oops! The stack
is empty! ) i 0
41
Handling multiple exceptions
try readFromFile( foo ) catch(
FileNotFoundException e)
system.out.println( Oops! The file is
missing! ) catch( IOException e )
system.out.println( Oops! Cant read
the file! ) finally readFromFile(
foo.bak)
42
Try/Catch Statement

• Exceptions raised in the try body are handled in
  the catch statements
• Catch statements are evaluated in order
• first match leads to execution of the catch body
• Usually list exceptions from most specific to
  least specific
• If there is a finally clause then it is always
  executed
• May not execute all statements in try body
• could be interrupted by an exception

43
Finding Exception Handlers

• Look in enclosing blocks
• Look in calling methods
• If no exception handler is found in call stack,
  program crashes

handler for E1
propagate E1
throw E1
44
Multiple Levels of Propagation
getContent( _) try
openConection( ) readData ( )
catch (IOException e)
//handle IO error

openConnection ( ) throws IOException
openSocket( ) sendRequest( )
. sendRequest ( ) throws IOException
write (body) //write error
45
Explanation

• Write throws the exception
• sendRequest doesnt handle the exception but must
  indicate that it propagates the exception
• Same for openConnection
• getContent catch statement handles the exception
• May never execute the readData( ) statement in
  getContent

46
Throwing Exceptions
int Dequeue (Queue q) throws QueueEmpty if
( q.head q.tail )
throw new QueueEmpty ( ) else
q.head q.head 1
return q.contents q.head - 1
class QueueEmpty extends Exception
47
Types of Java Exceptions

• General exceptions
• Must be explicitly thrown
• Should be handled by all programs
• Runtime exceptions
• Frequent runtime problems
• No need to explicitly state that such an
  exception might be thrown
• Runtime message generated if they are not caught

48
Summary of Exception Handling

• Exceptions allow the programmer to separate the
  handling of unusual cases from expected ones
• Program should catch predefined exceptions and
  throw more specific exceptions when possible
• Exception handling is difficult, even with
  exception handlers
• Exception handling is an important part of most
  programs

49
Concurrent System

• Multiple threads of execution
• Logically concurrent share a single processor
• Physically concurrent multiple processors
• Run independently, for the most part
• Typically, need to communicate
• Share data
• Pass messages
• Typically, need to synchronize their activities

50
Threads in Java

• A thread is a sequential flow of control within a
  program
• has a beginning, an execution sequence, and an
  end
• cannot be run on its own, but exists only within
  a larger program

A program with three threads
51
Defining the behavior of a thread

• The behavior of a thread in Java is given by a
  special method
• the run method
• Two techniques for providing a run method for a
  thread
• Subclass Thread and override the run method
• Implement the Runnable interface

52
Defining thread behavior Subclassing Thread

• A thread that computes names larger than a given
  value

class PrimeThread extends Thread long
minPrime PrimeThread ( long minPrime )
this.minPrime minPrime
public void run ( ) // compute primes
larger than minPrime . . .

• Code to create a PrimeThread thread and start
  running it

PrimeThread p new PrimeThread(143) p.start ( )
53
Defining thread behavior Implementing runnable

• A thread that computes names larger than a given
  value

class PrimeRun implements Runnable long
minPrime PrimeRun ( long minPrime )
this.minPrime minPrime public
void run ( ) // compute primes larger
than minPrime . . .

• Code to create a PrimeThread thread and start
  running it

PrimeRun p new PrimeRun(143) new Thread( p
).start ( )
54
When should you implement Runnable?

• If a class needs its own thread and must subclass
  some other class, you should implement Runnable
• Example Suppose you want an applet that displays
  the time, updating it every second
• It has to subclass Applet to run in a browser
• It needs its own thread in order to continuously
  update its display without taking over the
  process that its running in

55
Life Cycle of a Thread in Java
running
waiting
new Thread ( . . . )
start ( )
not runnable
new
executing
run method terminates
stopped

• Transitions to not runnable
• invokes its sleep method
• invokes a wait method for some condition
• blocks on an IO operation

• Transitions to running
• specified time elapses
• notify method is invoked to signify the condition
  is met
• the IO operation completes

56
Synchronizing Threads in Java

• A lock is associated with objects containing
  synchronized methods
• The object is locked when a thread enters one of
  its synchronized methods
• Other threads cannot enter a synchronized method
  on the same object until the object is unlocked
• Lock is acquired and released automatically by
  the Java Runtime System

57
Synchronizing Threads in Java (cont.)

• Threads that use synchronized methods are
  coordinated using wait and notify (or notifyAll)
• Invoking the wait method blocks the thread and
  releases the lock
• An object invokes notify to wake up a thread that
  is waiting on it

58
Producer/Consumer Example

public class CubbyHole private int
contents private boolean available
false public synchronized int put ( )
//CubbyHole is locked by the Producer
. . . //CubbyHole is unlocked by
the Producer public synchronized int
get ( ) //CubbyHole is locked by the
Consumer . . . //CubbyHole
is unlocked by the Consumer
59
Producer/Consumer Example (cont.)
public synchronized int get ( ) while (
available false ) try
// wait for Producer to put value
wait ( ) catch (
InterruptedException e)
available false // notify Producer that
value has been retrieved notifyAll ( )
return contents
60
Producer/Consumer Example (cont.)
public synchronized void put ( int value )
while ( available true ) try
// wait for Consumer to get
value wait ( ) catch
( InterruptedException e)
contents value available true
// notify Consumer that value has been set
notifyAll ( )
61
Concurrency Summary

• A thread is a sequential flow of control
• Multiple threads execute concurrently within the
  same program
• Objects with synchronized methods implement
  monitors
• monitors use the wait and notify methods to
  coordinate the activities of the threads that
  they serve
