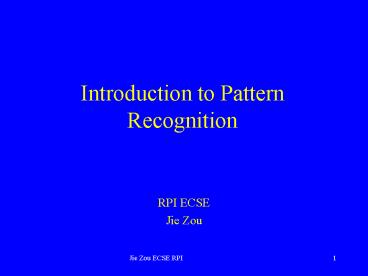

Introduction to Pattern Recognition

1
Introduction to Pattern Recognition

• RPI ECSE
• Jie Zou

2
Pattern Recognition System
input
Sensing
Segmentation
Feature extraction
Classification
Post-processing
Decision
3
Design Cycle
Start
Data Collection
Choose Features
Prior Knowledge
Choose Model
Training Set
Train Classifier
Evaluation Set
Evaluate classifier
End
4
Feature Extractor and Classifier
More Heuristic
More Theoretical
Abstract Representation
5
Common Image Features

• Color
• Color Coordinate System (RGB, YUV, HSI, )
• Color Histogram and Its Moments
• Global Shape
• Moments (Hu, Zernike)
• Fourier Descriptor
• Texture
• Co-occurrence Matrix
• Gabor and Wavelet Transform
• Local Shape
• Curvature, Turning Angles

6
Common Voice Features

• Pitch
• Voiced / Unvoiced
• Formants
• Silence
• Phoneme

7
Pre-Normalization

• Image
• Rotation
• Translation
• Scaling

• Voice
• Automatic Gain Control
• Time warping

8
Feature Extraction

• Heuristic
• Application Specific
• However, there are some general rules for
  picking features.
• The dimension of feature vectors should be far
  less than the number of samples. (The curse of
  dimensionality)
• Principal Component Analysis (PCA)
• Discriminant Analysis (Fisher Linear
  Discriminant)

9
Principal Component Analysis

• PCA seeks a projection that best represents the
  data in a least-squares sense.

PCA reduces the dimensionality of feature space
by restricting attention to those directions
along which the scatter of the cloud is greatest.
10
Fisher Linear Discriminant (1)

• Fisher linear discriminant seeks a projection
  that is efficient for discrimination.

11
Fisher Linear Discriminant (2)
12
Fisher Linear Discriminant (3)

• The discrimination ability of a particular
  feature.

13
Features (Summary)

• Heuristic and Application Dependent.
• Curse of Dimensionality
• Principal Component Analysis
• Fisher Linear Discriminant

14
Types of Pattern Classification

• Supervised Classification
• With Training Samples
• Unsupervised Classification (Clustering)
• Without Training Samples

15
Approaches to Pattern Recognition

• Heuristic
• Nearest Neighbor
• Statistical
• Bayesian Classifier
• Parameter Estimation
• Decision Tree
• Neural Networks
• Syntactic Method

16
Nearest Neighbor (1)

• Suppose there are n training samples, and let x
  be the training sample nearest to a test sample
  x. Then classifying x is to assign it the label
  associated with x.

The test point would be labeled as red.
17
Nearest Neighbor (2)

• Very simple.
• Computation intensive. There are data structures
  and algorithms to speed up. (KD tree, BD tree).
• Metric or Distance function.
• In practice, if there are a large number of
  training samples, the performance of nearest
  neighbor rule is good.
• In theory, with an unlimited number of training
  samples, the error rate is never worse than twice
  the Bayes error.

18
K-nearest-neighbor

• The k-nearest-neighbor rule starts at the test
  point and grows until encloses k training
  samples, and it labels the test point by a
  majority vote of these samples.

k3
The test point would be labeled as white.
19
Bayesian Classification (1)
20
Bayesian Classification (2)
21
Bayesian Classification (3)
22
Bayesian Classification (4)
Example of 1D Gaussian with two classes
Scanned from Pattern Classification by Duda,
Hart, and Stork
23
Bayesian Classification (5)
Example of 1D Gaussian with two classes
Scanned from Pattern Classification by Duda,
Hart, and Stork
24
Bayesian Classification (6)
Decision boundary is a circle
Scanned from Pattern Classification by Duda,
Hart, and Stork
25
Bayesian Classification (7)
Decision boundary are lines.
Scanned from Pattern Classification by Duda,
Hart, and Stork
26
Bayesian Classification (8)
Decision boundary ellipse
Scanned from Pattern Classification by Duda,
Hart, and Stork
27
Bayesian Classification (9)
Decision boundary is a parabola
Scanned from Pattern Classification by Duda,
Hart, and Stork
28
Bayesian Classification (10)
Decision boundary is a hyperbola
Scanned from Pattern Classification by Duda,
Hart, and Stork
29
Bayesian Classification (11)
Example of 2D Gaussian with several classes
Scanned from Pattern Classification by Duda,
Hart, and Stork
30
Bayesian Classification (Summary)

• The basic idea underlying Bayesian
  classification is very simple. To find the
  maximum posterior probability.

• If the underlying distributions are multivariate
  Gaussian, the decision boundaries will be
  hyperquadrics.

• Bayesian error rate is the minimum error rate.

• In practice, the likelihood (class conditional
  distribution) is unknown.

31
Decision Tree (Basic)
Cut the feature space with straight lines which
are parallel to the axes.
How do we find the cut automatically?
32
Decision Tree (Impurity Measurement)
Entropy
Gini Index
Misclassification
33
Decision Tree (Impurity Measurement)
Scanned from Pattern Classification by Duda,
Hart, and Stork
34
Decision Tree (Construction)
35
Decision Tree (Overfitting Problem)
We can eventually make the leaf nodes contain
training samples from only one class. Is it good??
No, because we are going to classify unseen test
samples, not training samples.
If there is no convincing prior knowledge, less
complex classifier should be preferred.
Especially if the number of training samples are
small.(Occams Razor)
There are ways to decide when to stop splitting
experimentally. (Cross-validation)
Which curve do you prefer?
36
Decision Tree (Summary)

• Cut the feature space with straight lines
  (hyperplane) parallel to the axes.
• Impurity measurement is used to select the best
  cut. The idea is to make the children as pure as
  possible.
• To avoid overfitting problem.
• CART, ID3, C4.5

37
Parameter Estimation

• Non-parametric method (Histogram)

• Parametric method (Parameter Estimation)

Parameter Estimation determines the value of
parameters from a set of training samples.

• Maximum-Likelihood (ML) Estimation
• Maximum-A-Posteriori (MAP) Estimation
• Bayesian Estimation (Bayesian Learning)

38
ML Parameter Estimation
Assume that the true parameters are fixed.The
goal is to find the values from a set of training
samples.
39
ML Parameter Estimation - Example
Variance is known, we want to estimate mean.
What is the value of ML estimation for this
example?
40
MAP Parameter Estimation
Similar to ML, except maximize posterior
41
Bayesian Parameter Estimation (1)
Consider the parameters to be random variables.
What is the difference between p(x) and p(xD)?
42
Bayesian Parameter Estimation (2)
43
Bayesian Parameter Estimation (3)
Incremental Learning (Online Learning)
44
Bayesian Parameter Estimation (4)
Example, Bayesian estimation of a Gaussian mean.
Scanned from Pattern Classification by Duda,
Hart, and Stork
45
Parameter Estimation(Summary)

• Both ML and Bayesian methods are used for
  parameter estimation of parametric model.
• Generally, the estimation results we get from
  both methods are nearly identical.
• However, their approaches are conceptually
  different. Maximum-Likelihood views the true
  parameters to be fixed. Bayesian Learning
  considers the parameters to be random variables.

46
Advanced Topic

• Hidden Markov Model
• Support Vector Machine
• Bayesian Belief Networks

47
Clustering

• K-means
• E-M Algorithm

48
Applications

• Optical Character Recognition (OCR)
• Printed Character
• Handwritten Character
• Online Handwritten Character
• Face Recognition
• Fingerprint Identification
