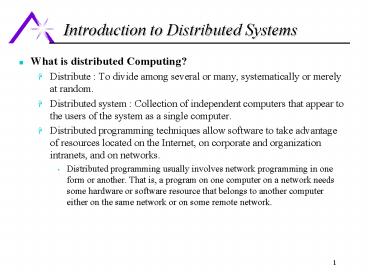

Introduction to Distributed Systems

1
Introduction to Distributed Systems

• What is distributed Computing?
• Distribute To divide among several or many,
  systematically or merely at random.
• Distributed system Collection of independent
  computers that appear to the users of the system
  as a single computer.
• Distributed programming techniques allow software
  to take advantage of resources located on the
  Internet, on corporate and organization
  intranets, and on networks.
• Distributed programming usually involves network
  programming in one form or another. That is, a
  program on one computer on a network needs some
  hardware or software resource that belongs to
  another computer either on the same network or on
  some remote network.

2
Introduction to Distributed Systems

• A Distributed System

3
Introduction to Distributed Systems

• Examples of Distributed Systems
• Network of workstations (NOW) a group of
  networked personal workstations connected to one
  or more server machines.
• The Internet
• An intranet a network of computers and
  workstations within an organization, segregated
  from the Internet via a protective device (a
  firewall).
• Actual example of a large-scale distributed
  system eBay
• Actual example of a small-scale distributed
  system smart home
• Computers in a distributed system
• Workstations computers used by end-users to
  perform computing
• Server machines computers which provide
  resources and services
• Personal Assistance Devices handheld computers
  connected to the system via a wireless
  communication link.

4
Introduction to Distributed Systems

• The network really is the computer.
• Tim OReilly, in an address at 6/2000 Java One
• By now, it's a truism that the Internet runs on
  open source. Bind, the Berkeley Internet Name
  Daemon, is the single most mission critical
  program on the Internet, followed closely by
  Sendmail and Apache, open source servers for two
  of the Internet's most widely used application
  protocols, SMTP and HTTP.
• Early killer apps
• - usenet distributed bulletin board
• - email
• - talk
• Recent killer apps
• - the web
• - collaborative computing

5
Introduction to Distributed Systems
Centralized vs. Distributed Computing
6
Introduction to Distributed Systems

• Monolithic mainframe applications vs. distributed
  applications
• The monolithic mainframe application
  architecture
• Separate, single-function applications, such as
  order-entry or billing
• Applications cannot share data or other resources
• Developers must create multiple instances of the
  same functionality (service).
• Proprietary (user) interfaces
• The distributed application architecture
• Integrated applications
• Applications can share resources
• A single instance of functionality (service) can
  be reused.
• Common user interfaces

7
Introduction to Distributed Systems

• Evolution of pardigms
• Client-server Socket API, remote method
  invocation
• Distributed objects
• Object broker CORBA
• Network service Jini
• Object space JavaSpaces
• Mobile agents
• Message oriented middleware (MOM) Java Message
  Service
• Collaborative applications

8
Introduction to Distributed Systems

• Cooperative distributed computing projects
• Cooperative distributed computing projects (also
  called distributed computing in some literature)
  these are projects that parcel out large-scale
  computing to workstations, often making use of
  surplus CPU cycles.
• Example seti_at_home project to scan data
  retrieved by a radio telescope to search for
  radio signals from another world.
• Why distributed computing?
• Economics distributed systems allow the pooling
  of resources, including CPU cycles, data storage,
  input/output devices, and services.
• Reliability a distributed system allow
  replication of resources and/or services, thus
  reducing service outage due to failures.
• The Internet has become a universal platform for
  distributed computing

9
Introduction to Distributed Systems

• The Weaknesses and Strengths of Distributed
  Computing
• In any form of computing, there is always a
  tradeoff in advantages and disadvantages
• Some of the reasons for the popularity of
  distributed computing
• The affordability of computers and availability
  of network access
• Resource sharing
• Scalability
• Fault Tolerance
• The disadvantages of distributed computing
• Multiple Points of Failures the failure of one
  or more participating computers, or one or more
  network links, can spell trouble.
• Security Concerns In a distributed system, there
  are more opportunities for unauthorized attack.

10
Introduction to Distributed Systems

• The Architecture of Distributed Applications

11
Introduction to Distributed Systems

• Network standards and protocols
• On public networks such as the Internet, it is
  necessary for a common set of rules to be
  specified for the exchange of data.
• Such rules, called protocols, specify such
  matters as the formatting and semantics of data,
  flow control, error correction.
• Software can share data over the network using
  network software which supports a common set of
  protocols.
• Protocols
• In the context of communications, a protocol is a
  set of rules that must be observed by the
  participants.
• In communications involving computers, protocols
  must be formally defined and precisely
  implemented. For each protocol, there must be
  rules that specify the followings
• How is the data exchanged encoded?
• How are events (sending , receiving) synchronized
  so that the participants can send and receive in
  a coordinated order?
• The specification of a protocol does not dictate
  how the rules are to be implemented.

12
Introduction to Distributed Systems

• The network architecture
• Network hardware transfers electronic signals,
  which represent a bit stream, between two
  devices.
• Modern day network applications require an
  application programming interface (API) which
  masks the underlying complexities of data
  transmission.
• A layered network architecture allows the
  functionalities needed to mask the complexities
  to be provided incrementally, layer by layer.
• Actual implementation of the functionalities may
  not be clearly divided by layer.

13
Introduction to Distributed Systems

• The OSI seven-layer network architecture

14
Introduction to Distributed Systems

• Network Architecture
• The division of the layers is conceptual the
  implementation of the functionalities need not be
  clearly divided as such in the hardware and
  software that implements the architecture.
• The conceptual division serves at least two
  useful purposes
• Systematic specification of protocols it allows
  protocols to be specified systematically
• Conceptual Data Flow it allows programs to be
  written in terms of logical data flow.

15
Introduction to Distributed Systems

• The TCP/IP Protocol Suite
• The Transmission Control Protocol/Internet
  Protocol suite is a set of network protocols
  which supports a four-layer network architecture.
• It is currently the protocol suite employed on
  the Internet.

16
Introduction to Distributed Systems

• The TCP/IP Protocol Suite -2
• The Internet layer implements the Internet
  Protocol, which provides the functionalities for
  allowing data to be transmitted between any two
  hosts on the Internet.
• The Transport layer delivers the transmitted data
  to a specific process running on an Internet
  host.
• The Application layer supports the programming
  interface used for building a program.

17
Introduction to Distributed Systems

• Network Resources
• Network resources are resources available to the
  participants of a distributed computing
  community.
• Network resources include hardware such as
  computers and equipment, and software such as
  processes, email mailboxes, files, web documents.

• An important class of network resources is
  network services such as the World Wide Web and
  file transfer (FTP), which are provided by
  specific processes running on computers.
• One of the key challenges in distributed
  computing is the unique identification of
  resources available on the network, such as
  e-mail mailboxes, and web documents.
• Addressing an Internet Host
• Addressing a process running on a host
• Email Addresses
• Addressing web contents URL

18
Introduction to Distributed Systems
The Internet Topology
19
Introduction to Distributed Systems

• The Internet Topology
• The internet consists of an hierarchy of
  networks, interconnected via a network backbone.
• Each network has a unique network address.
• Computers, or hosts, are connected to a network.
  Each host has a unique ID within its network.
• Each process running on a host is associated with
  zero or more ports. A port is a logical entity
  for data transmission.

20
Introduction to Distributed Systems

• The Internet addressing scheme
• In IP version 4, each address is 32 bit long.
• The address space accommodates 232 (4.3 billion)
  addresses in total.
• Addresses are divided into 5 classes (A through
  E)

21
Introduction to Distributed Systems

• The Internet addressing scheme - 2

22
Introduction to Distributed Systems

• Example
• Suppose the dotted-decimal notation for a
  particular Internet address is129.65.24.50. The
  32-bit binary expansion of the notation is as
  follows
•
• Since the leading bit sequence is 10, the
  address is a Class B address. Within the class,
  the network portion is identified by the
  remaining bits in the first two bytes, that is,
  00000101000001, and the host portion is the
  values in the last two bytes, or
  0001100000110010. For convenience, the binary
  prefix for class identification is often included
  as part of the network portion of the address, so
  that we would say that this particular address is
  at network 129.65 and then at host address 24.50
  on that network.

23
Introduction to Distributed Systems

• Another example
• Given the address 224.0.0.1, one can expand it as
  follows
•
• The binary prefix of 1110 signifies that this is
  class D, or multicast, address. Data packets
  sent to this address should therefore be
  delivered to the multicast group
  0000000000000000000000000001.

24
Introduction to Distributed Systems

• The Internet Address Scheme 3
• For human readability, Internet addresses are
  written in a dotted decimal notation
  nnn.nnn.nnn.nnn, where each nnn group is a
  decimal value in the range of 0 through 255
• Internet host table (found in /etc/hosts file)
• 127.0.0.1 localhost
• 129.65.242.5 falcon.csc.calpoly.edu falcon
  loghost
• 129.65.241.9 falcon-srv.csc.calpoly.edu
  falcon-srv
• 129.65.242.4 hornet.csc.calpoly.edu hornet
• 129.65.241.8 hornet-srv.csc.calpoly.edu
  hornet-srv
• 129.65.54.9 onion.csc.calpoly.edu onion
• 129.65.241.3 hercules.csc.calpoly.edu
  hercules

25
Introduction to Distributed Systems

• IP version 6 Addressing Scheme
• There are three types of addresses
• Unicast An identifier for a single interface.
• Anycast An identifier for a set of interfaces
  (typically belonging to different nodes).
• Multicast An identifier for a set of interfaces
  (typically belonging to different nodes). A
  packet sent to a multicast address is delivered
  to all interfaces identified by that address.
• The Domain Name System (DNS)
• For user friendliness, each Internet address is
  mapped to a symbolic name, using the DNS, in the
  format of
• ltcomputer-namegt.ltsubdomain hierarchygt.ltorganizatio
  ngt.ltsector namegt.ltcountry codegt
• e.g., www.csc.calpoly.edu.us

26
Introduction to Distributed Systems
27
Introduction to Distributed Systems

• The Domain Name System
• For network applications, a domain name must be
  mapped to its corresponding Internet address.
• Processes known as domain name system servers
  provide the mapping service, based on a
  distributed database of the mapping scheme.
• The mapping service is offered by thousands of
  DNS servers on the Internet, each responsible for
  a portion of the name space, called a zone. The
  servers that have access to the DNS information
  (zone file) for a zone is said to have authority
  for that zone.
• Top Level Domain Names
• .com For commercial entities, anyone in the
  world, can register.
• .net Originally designated for organizations
  directly involved in Internet operations. It is
  increasingly being used by businesses when the
  desired name under "com" is already registered by
  another organization. Today anyone can register a
  name in the Net domain.
• .org For miscellaneous organizations, including
  non-profits.
• .edu For four-year accredited institutions of
  higher learning.
• .gov For US Federal Government entities
• .mil For US military
• Country Codes For individual countries based on
  the International Standards Organization. For
  example, ca for Canada, and jp for Japan.

28
Introduction to Distributed Systems

• Domain Name Hierarchy

29
Introduction to Distributed Systems

• Name lookup and resolution
• If a domain name is used to address a host, its
  corresponding IP address must be obtained for the
  lower-layer network software.
• The mapping, or name resolution, must be
  maintained in some registry.
• For runtime name resolution, a network service is
  needed a protocol must be defined for the naming
  scheme and for the service.
• Example
• The DNS service supports the DNS
• the Java RMI registry supports RMI object lookup

• JNDI is a network service lookup protocol.

30
Introduction to Distributed Systems

• Addressing a process running on a host logical
  ports

31
Introduction to Distributed Systems

• Well Known Ports
• Each Internet host has 216 (65,535) logical
  ports. Each port is identified by a number
  between 1 and 65535, and can be allocated to a
  particular process.
• Port numbers between 1 and 1023 are reserved for
  processes which provide well-known services such
  as finger, FTP, HTTP, and email.

32
Introduction to Distributed Systems

• Choosing a port to run your program
• For our programming exercises when a port is
  needed, choose a random number above the well
  known ports 1,024- 65,535.
• If you are providing a network service for the
  community, then arrange to have a port assigned
  to and reserved for your service.
• The Uniform Resource Identifier (URI)
• Resources to be shared on a network need to be
  uniquely identifiable.
• On the Internet, a URI is a character string
  which allows a resource to be located.
• There are two types of URIs
• URL (Uniform Resource Locator) points to a
  specific resource at a specific location
• URN (Uniform Resource Name) points to a specific
  resource at a nonspecific location.

33
Introduction to Distributed Systems

• A URL has the format of
• protocol//host addressport/directory
  path/file namesection

34
Introduction to Distributed Systems

• More on URLs
• The path in a URL is relative to the document
  root of the server. On the CSL systems, a users
  document root is /www.
• A URL may appear in a document in a relative
  form
• lt a hrefanother.htmlgt
• and the actual URL referred to will be
  another.html preceded by the protocol, hostname,
  directory path of the document .

35
Introduction to Distributed Systems

• Design Issues in Distributed Systems
• Transparency is the most important issue in
  truly distributed systems is to make a group of
  machines appear as if it is an old timesharing
  system.
• Different types of transparency
• Location Transparency Users can not tell where
  the resources are located (hardware, software
  resources, CPU, printers, files, databases, etc.)

• Migration Transparency Resources must be free
  to move from one machine to another without
  changing their names. E.g. Moving the mount
  points of remote file systems. /usr/dist on the
  sun cluster.
• Replication Transparency Users can't tell how
  many copies exist. System may make multiple
  copies for reliability (a disk failure), improved
  performance (heavily used files). As long as the
  users don't observe anomalous behavior
  (coherency) it should not matter.

36
Introduction to Distributed Systems

• Concurrency Transparency Multiple users can
  share resources automatically.
• Multiple readers OK
• Multiple writers Provide automatic mechanisms
  to sequentialize this to maintain correctness.
• Parallelism Transparency Activities may happen
  in parallel without the users knowing about it.
  Hard to achieve. Advanced users may want to
  exploit the presence of multiple processors.
  Because the state-of-the-art is not close to
  achieving this automatically. The end is not in
  sight!!!!
• Sometimes users don't want total transparency.
• Use a special printer
• Use a special hardware accelerator attached to a
  particular machine.

37
Introduction to Distributed Systems

• Reliability
• One machine goes down -gt another one performs the
  computation.
• User never sees the difference, except perhaps in
  the performance level.
• E.g. 5 file servers that have duplicate data.
• Probability of one failing 0.05.
• Probability of all of them failing simultaneously
  is 0.54 0.000006 practically negligible.
  (Logical OR of the individuals)
• In practice distributed systems depend on
  several pieces all working simultaneously for the
  system to work. (Logical AND of the components)
  Distributed system is one on which I cannot get
  any wok done because some machine I have never
  heard of has crashed. (Lamport)

38
Introduction to Distributed Systems

• Reliability has several facets
• Availability
• Fraction of the time the system is available for
  use.
• Use as few components that need to work as
  simultaneously as possible. (reduce the logical
  AND)
• Allow redundancy (increase logical OR). Replicate
  key pieces of hardware and software.
• However one has to worry about the issues of
  consistency as the degree of redundancy
  increases. Tradeoff.
• Security
• Also a key issue in reliability
• Easier to authenticate in centralized systems
  Use password and OK after that.
• Distributed systems Messages between machines.
  How do you authenticate? Anybody can put any kind
  of message on the network.

39
Introduction to Distributed Systems

• Fault tolerance
• How easily / transparently does the system get
  out of a failure of some kind? E.g. A machine
  goes down? What happens to the process that was
  running? Can it be restarted in some other place
  exactly at the point the original process left
  off.
• Important in business/banking systems.
• Performance
• An important aspect of distributed systems
• Many different metrics can be used
• response time/turnaround time
• system utilization
• network capacity utilization
• Performance measurements depend a great deal on
  the types of situation. E.g. large number of
  compute bound jobs with little/no I/O Vs. large
  database applications.

40
Introduction to Distributed Systems

• Granularity of computation
• Fine grained e.g. simple operations that can be
  done with a few instructions. Lots of
  interaction, coordination, I/O, etc. Distributing
  them would be too much overhead.
• Coarse-grained long computation times. little
  I/O, coordination, interaction, Better suited for
  distribution.
• Scalability
• Designed for 100s of CPUs. How will it work for
  100, 000 CPUs?
• E.g. French PTT system
• What principles to use?
• Avoid centralized components, e.g. single mail
  servers, single file servers.
• Avoid centralized tables, databases, etc., e.g.
  telephone directory
• Avoid centralized algorithms, .e.g an algorithm
  that first collects information about the whole
  system before computing an optimal route to send
  a message.

41
Introduction to Distributed Systems

• Characteristics of decentralized algorithms
• Lack of complete information about the whole
  system
• Make decisions based on local information
• If one machine is down, the algorithm should
  still work.
• No assumption about a global clock
• General Discussion
• Distributed To divide the computation among
  several what ?
• Processors/nodes
• Processor CPU (include cache, etc.)
• Nodes single/multiprocessor, memory, I/O,
  possibly network interface
• Communication The work has to be divided and
  distributed so, communication is central.
• Bus (processor) or Network (node)
• The parameters CPU, Memory, I/O, Network,
  System Software

42
Introduction to Distributed Systems

• Many types of Systems
• The differences are difficult to clearly state.
• Some believe that it is a continuum.
• Centralized Single system
• Decentralized multiple systems, but no
  coordination
• Distributed multiple systems with coordination
• Homogeneous All systems are same/similar
• Heterogeneous Dissimilar nodes in the system
• Server A system providing some services, e.g.
  file systems usually more powerful and complex
  hardware
• Client A system with minimal resources, depends
  on servers to get tasks accomplished.

43
Introduction to Distributed Systems

• Networked System
• High degree of autonomy of machines
• Loosely-coupled hardware and loosely coupled
  software
• Machines run their own OS
• May have their own local disk
• Operations have explicit names of the machines
• rlogin Eagle
• May have a file server but the view from
  different machines is different.
• True Distributed System
• Tightly-coupled software on loosely coupled
  hardware
• Create an illusion of a Single System Image ,
  Virtual Uniprocessor
• Uniform view of file system, uniform protection
  mechanisms
• Uniform communication schemes

44
Introduction to Distributed Systems

• Multiprocessor Systems
• Tightly coupled software on tightly coupled
  hardware
• Typically single run queue
• Shared (logically) memory
• File system is like the centralized system
• Cluster Systems
• Parallel or distributed system
• Consists of a collection of interconnected whole
  computers
• Utilized as a single computing resource
• Peer relationship between the nodes in a cluster
• Nodes of a cluster do not maintain their internal
  anonymity

45
Introduction to Distributed Systems

• Networked Distributed Multiprocessor Cluster
• Number of Nodes 1000s 1000s 1000s 10s
• Performance Metric Response Time Response
  Time TurnaroundTime TurnAroundTime
• Virtual Processor View No Yes Yes Yes
• Node Individualization Yes Yes No No
• Operating Systems Heterogenous
  Homogeneous Homogeneous Homogeneous
• Copies of OS N N 1 N
• Communication Shared Files Messages Shared
  Memory Messages
• Network Protocol Required Required Not
  Required Not Required
• Run Queue No No Yes No
• Inter-node Security None Required None Required

46
Introduction to Distributed Systems

• Summary
• We discussed the following topics
• What is meant by distributed computing
• Rationale for distributed Systems
• Centralised versus distributed Systems
• Basic concepts in data communication in
  distributed systems
• Network architectures the OSI model and the
  Internet model
• Naming schemes for network resources
• The three-layered architecture of distributed
  applications presentation layer, application or
  business logic, the service layer
• Design issues in distributed systems
