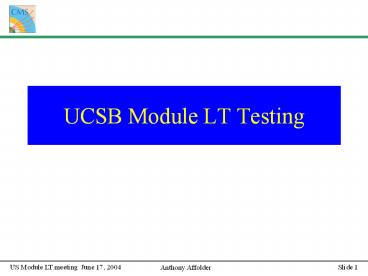

UCSB Module LT Testing
2
Data Taking

• Scenarios used
• Standard LT scenario (night.lt)
• 1 thermal cycle, tests at 20 C, -20 C, 20 C
• Qualification scenario (3day-1daycold.lt)
• 1 day thermal cycling, 1 day -20 C, 1 day thermal
  cycling
• No verification/fault finding done by UCSB
• Patrick has been analyzing the data for us,
  telling us if runs OK
• Not a good idea for production. Would have
  lag-times in which we would have to find modules
  and re-test them.
• We need the tools to do this semi-automatically
• No comparison of data to ARCS data done yet
• We currently take a noise and LED run on the ARCS
  to confirm nothing changed. If anything does,
  then we look at root file
• We definitely need a tool to compare ARCS and LT
  data to check for differences, confirm good data

3
second sensor which failed
Vienna
Strasbourg
4
Pre-series II sensors optical inspection

• systematic optical inspection done, but only for
  the 10 first sensors tested (corresponding to 4
  different batches)
• all of them were fine before the test (not
  touched since they left STM)
• after the test stains and mainly dots seen for
  ALL of them (see next)
• Þ clear ageing effect again!

5
ID 34572225 which failed the test
only the most terrible pictures!
6
Database

• Currently we are doing nothing at UCSB with
  database, xml generation, validation, or
  uploading
• Again, Patrick has been saving us over the short
  term
• Clearly, we need to do this on site as well
• Preferably in a semi-automatic way which could
  also check the quality of the data
• We need to develop tools similar to the gantry
  database which will automatically move the root
  files to a common area, generate the xml, check
  the xml quality, and finally upload the data
• I believe that the Defect Analyzer package
  Patrick has recently been using could do most of
  the work
• We will need to write a tool for checking the xml
  quality

7
Equipment

• We are short 1 PAACB from running 10 slots
• Does FNAL have a spare 1 (or 2 if they have more
  spares)?
• So far, our 5V LV supply failed/overheated and
  we have blown two fuses on the Vienna box power
  supply
• We have spares of both
• After replacing backplane and using extensions, 2
  slots not working
• We need help in de-bugging these 2 slots and a
  set of procedures on how to de-bug these failures
  in the future.

8
Data Handling Short Term

• Patrick will show FNAL/UCSB how to use LTmacro
  and the Defect Analyzer
• Need volunteers at FNAL/UCSB to run programs
• Check data visually
• Need macro to make all plots needed (I-t
  especially)
• Manually check xml files until we believe results

• Manually update data

9
Data Handling Long Term

• Need a tool of move root file to analysis area
  (if necessary)
• Need to tune/confirm LTmacro and Defect Analyzer
• Hopefully Patrick
• Need a tool to automatically run LTmacro in files
  in area
• Need volunteer
• Need a tool to automatically run Defect Analyzer
• Need volunteer
• Need a tool to confirm data is good in xml file
• Need volunteer at both sites
• Need a tool to upload xml files
• Need volunteer
• Need a tool to compare ARCS and LT data
• Either compare macro outputs or bad channel flags
  in database
• I believe the comparing bad channel flags in the
  database will be easier to maintain over the
  production
• Again another volunteer
