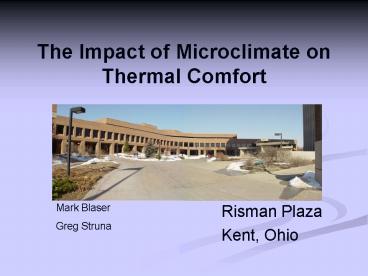

The Impact of Microclimate on Thermal Comfort

1
The Impact of Microclimate on Thermal Comfort

• Risman Plaza
• Kent, Ohio

Mark Blaser Greg Struna
2
Risman Plaza location

Kent State University Campus Map
Risman Plaza (red)
3
Risman Plaza

• Designed by Richards, Bauer Moorhead,
  Architects Engineers of Toledo, Ohio
• Built as part of the current Kent State Student
  Center and constructed in 1972
• Serves as an outdoor common area between the
  Student Center and the main Library
• An L shaped plaza, about 2 acres in size
• Typical building height around plaza is 40-50
  feet tall, except the library tower which is
  approximately 160 feet tall.
• All buildings surrounding the plaza are clad in
  brick and the plaza is paved in brick and
  concrete with planting beds mixed in.

4
Design Intent of Plaza

• The plaza is an outdoor common area on campus
  which serves as a gathering place for the
• university community.

5
Research Questions

• Does the design of Risman Plaza create a
  microclimate that affects the thermal comfort of
  the space?
• Does the wind velocity inside the plaza differ
  from the wind outside?
• How turbulent are those winds?
• What impact does the vegetation in the plaza have
  on thermal comfort?

6
Microclimate

• Microclimate - the climate of a small location
  within an area as compared with the climate of
  the entire region.
• Local features such as buildings creates
  variations in the microclimate which should be
  considered when designing.

7
Microclimate

• One of the main reasons for considering
  microclimate in the design of outdoor spaces is
  to create thermally comfortable spaces.
• Four climatic conditions
• Temperature gt difficult to affect
• Humidity gt difficult to affect
• Wind velocity gt can be affected
• Mean Radiant Temperature gt can be affected

8
Thermal Comfort

• Six factors that affect thermal comfort
• Temperature
• Wind Velocity
• Mean Radiant Temperature
• Humidity
• Clothing Insulation Factor
• Metabolic Heat Rate

9
To create a space that affects the microclimatic
conditions in a way that improves thermal comfort
is the goal of an outdoor gathering space.

This can be accomplished by using the buildings
to create a microclimate that brings sunlight and
blocks the wind in winter and reduces the amount
of sunlight and brings in a gentle wind in the
summer. (Brown, DeKay, 2001)
10
Hypothesis

• Increased wind velocity in early spring
  reduces thermal comfort in Risman Plaza.

11
Method Process

• Data Analyzed
• Wind Gust
• Wind Velocity (Average of 1 min.)
• Solar Radiation (Mean Radiant Temperature)
• Dry Bulb Temperature
• Humidity
• Surveys
• Silver Meadows Weather Station Data

12
Data Tools

• Kestrel 4000 Pocket Weather Tracker
• Measures
• Dry Bulb Temperature
• Humidity
• Wind Gust
• Wind Velocity

13
Data Tools

• Globe Thermometer
• Measures
• Mean Radiant Temperature
• Construction
• RadioShack Indoor/Outdoor
• Digital Thermometer.
• Ping Pong Ball
• Spray Painted Matte Black and attached to
  outdoor sensor.

14
Data Collection

• Data Collection Days
• Three consistent times
• 900A.M. 100P.M. 500P.M
• Data Set 1 (Winter Conditions)
• Date range 03/03/05 03-14-05
• Data Set 2 (Spring Conditions)
• Date range 04/06/05 04-15-05

15
Data Location Points (17)
16
(No Transcript)
17
Prevailing Wind Direction
18
Predominant Wind Direction
19
AVERAGE
20
900 4/09/05
21
1200 4/09/05
22
500 4/09/05
23
Surveys

• 10 Questions
• First questions set subjects into a demographic.
• ASHRAE seven point thermal comfort scale.
• Last question is to determine which factors are
  affecting the subjects thermal comfort.
• Wind, Temperature, Solar radiation, Humidity

ASHRAE Thermal Sensation Scale
24
Survey Results

• Data Set 1 - Winter (23 total)
• (3/10/05) 1200P.M.
• 9 surveys collected
• Average Mean Vote -2.2 (Cool)
• Largest Factor Out of 9 subject who ranked
  which factors were affecting their comfort the
  most
• 6 (67) ranked wind velocity the greatest
  factor
• 3 (33) ranked temperature the greatest factor
• In all 9 surveys wind speed and temperature were
  first or second ranked
• Atmospheric Science Thermal Comfort Calculator
• Predicted Mean Vote based on measurements
• -2.4 (Cool)
• Predicted Percentage Dissatisfied 92.0

25
Survey Results

• Data Set 2 Spring (20 total)
• (4/9/05) 1200P.M.
• 20 surveys collected
• Average Mean Vote -1.2 (Slightly Cool)
• Largest Factor Out of 14 subject who chose to
  rank which factors were affecting their comfort
  the most
• 12 (85) ranked wind velocity the greatest
  factor
• Atmospheric Science Thermal Comfort Calculator
• Predicted Mean Vote based on measurements
• -1.4 (Slightly Cool)
• Predicted Percentage Dissatisfied 44.5

26
Winter Comfort
27
Spring Comfort
28
Buildings and Wind

29
Solution

30
REFERENCES

• Brown, Robert Gillespie, Terry J. (1995)
  Microclimatic Landscape Design Creating Thermal
  Comfort and Energy Efficiency. Wiley Sons,Inc
  New York
• Chang, Cheng-Hsin Meroney, Robert N. (2003)
  Concentration and flow distributions in urban
  street canyons wind tunnel and computational
  data. Journal of Wind Engineering Industrial
  Aerodynamics, vol. 91. 9. 1141
• Compagnon, R. (2004) Solar and daylight
  availability in the urban fabric. Energy
  Buildings, vol. 36. 4. 321.
• de la Flor, Francisco Sánchez Domínguez,
  Servando Alvarez. Modelling microclimate in
  urban environments and assessing its influence on
  the performance of surrounding buildings. Energy
  Buildings, v. 36 issue 5, 2004, p. 403.

• Dimoudi, Argiro Nikolopoulou, Marialena. (2003)
  Vegetation in the urban environment
  microclimatic analysis and benefits. Energy
  Buildings, vol. 35. 1. 69.
• Emery, Richard. (1988) Microclimate and the
  performance of buildings. Landscape design, vol.
  174. 70.
• Goode, David. (1997) The nature of cities.
  Landscape design, 263. 14-16.
• Kim, Jae-Jin Baik, Jong-Jin. (2004) A numerical
  study of the effects of ambient wind direction on
  flow and dispersion in urban street canyons using
  the RNG kx03B5 turbulence model. Atmospheric
  Environment, vol. 38. 19. 3039.

31
REFERENCES

• Longley, I.D., et al. (2004) Short-term
  measurements of airflow and turbulence in two
  street canyons in Manchester. Atmospheric
  Environment, vol. 38. 1. 69.
• Nikolopoulou, Marialena Baker, Nick. (2001)
  THERMAL COMFORT IN OUTDOOR URBAN SPACES
  UNDERSTANDING THE HUMAN PARAMETER. Solar Energy,
  vol. 70. 3. 227.
• Olgyay, V. (1963). Design with Climate
  Bioclimatic approach to architectural
  regionalism. Princeton Princeton University
  Press
• Picot, X. (2004) Thermal comfort in urban spaces
  impact of vegetation growth
• Case study Piazza della Scienza, Milan,
  Italy. Energy Buildings, vol. 36. 4. 329.

• Sharag Eldin, Adil. (2001) Analysis of Thermal
  Comfort Requirements of the Elderly in
  Environmentally Controlled Conditions. AMS
• Wei-wu, Wang Li-zhong, Zhu Ren-chao, Wang.
  (2004) An analysis on spatial variation of urban
  human thermal comfort in Hangzhou, China.
  Journal of Environmental Sciences, vol. 1. 2.
  332.
• Yannas, Simos. (2001) TOWARD MORE SUSTAINABLE
  CITIES. Solar Energy, vol. 70 issue 3, , p. 281.
• Zacharias, John Stathopoulos, Ted Wu, Hanqing.
  (2001) Microclimate and Downtown Open Space
  Activity. Environment Behavior, vol. 33. 2.
  296.

32
Hypothesis

• Increased wind velocity in early spring
  reduces thermal comfort in Risman Plaza.
