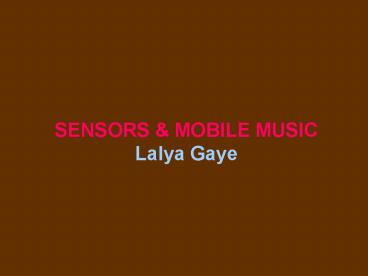

SENSORS MOBILE MUSIC Lalya Gaye
2
Music controllers Interfaces
Body-based Human body as start for design
Expressive qualities of human movements
The Hands, Waisvicz, STEIM, 1984
3
Music controllers Interaction
User movement - Choreographed body movement -
Traditional instrumental gesture - Novel gestures
Dark around the Edges, Winkler, 1997
Machover Yoyo Ma, Hypercello, 1991
The Hands, Waisvicz, STEIM, 1984
4
Music controllers Interaction
  • User movement
  • Full-handed gesture
  • - Empty-handed gesture

Unfoldings, Interactive Inst., 2003
Stranglophone, Sharon, ITP/NYU, 03
Lady glove, Bongers Sonami, 1991
5
Music controllers Interfaces
  • Environment-based
  • Interactive environments
  • - Reactive floors
  • Digital realm networked audio
  • Take advantage of the features of space
  • Interactive environments
  • many people together,
  • control of interaction parameters

Global String, Tanaka Toeplitz, 1998
Magic Carpet, MIT Medialab, 1996
6
Music controllers Interfaces
Wearables Musical jeans jacket (MIT Medialab,
1992) Tgarden (FoAM sponge,
2001) Expressive Footwear (MIT,
1997-2000) ensemble (Kristina Andersen,
2003) Intimate interfaces Body movement and
posture Theatrical vs. daily life dimensions
7
Music controllers Interfaces
  • Object-based
  • Starting with existing instruments
  • - augmented (hyperinstruments)
  • - digitalised (ex piano synth)
  • interface used as controller (ex MIDI keyboard)
  • Use metaphor of object

Machover Ma, Hypercello, MIT, 1991
Taku Lippit, ITP/NYU, 2002-03
8
Music controllers Interfaces
Object-based Repurposed everyday objects and
materials water, fabric, chemicals, vegetables

Daniel Skoglund, 8Tunnel2
Particles, Horio Kanta, 2003
MIDI Scrapyard Challenge, Brucker-Cohen
Moriwaki, 03-04
9
Music controllers Interfaces
Object-based Take advantage of the material
properties of objects f.e.x bendable, conducts
electricity, etc Take into consideration human
activities surrounding the objects build upon it
and / or break from it
10
Music controllers Output
Mechanical Guitarbot (Eric Singer et al.,
LEMUR, 2003-) Electroacoustic Spherical
speakers (Curtis Bahn) Tactile output
(haptics) Cutaneous Grooves (E. Gunther, MIT
Medialab, 2001)
11
Sensors in Ubicomp technology Computing where
needed, not other way around. Invisible in use,
in the fabric of everyday life, embodied
interaction.Connection to place and moment of
use. Sensors - in everyday environments (e.g.
context-awareness) - on people (e.g.
wearables) - on artefacts (Media cup - TecO)
Sensor fusion combining different data and
placements to gather context - sensor networks
12
Sensors in mobile music locative audio
Combining NIME and Ubicomp type of sensors use
Urban settings everyday rich environment,
familiar, unpredictable, dynamic, heterogeneous
Sensors on environments, users, objects
Interaction between - user and objects -
user and environment - user and user(s)
combinations and networks Possible uses,
interactions, issues and implications of
implementations?
13
Mobile music and locative audio Locative audio in
public space
Space annotation sensing proximity /
location HearThere (Rozier, MIT Medialab,
1999) Tejp / Audio tags (PLAY FAL, 2003-04)
14
Mobile music and locative audio Locative audio in
public space
Radio pirates sensing environmental
factors Bit Radio (Bureau of Inverse
Technology)
15
Mobile music and locative audio Mobile music
Mobile music sharing sensing others SoundPryer
(Mattias Östergren, Interactive Institute,
2001) TunA (Arianna Bassoli et al., Medialab
Europe, 2002) Push!Music (Håkansson et al.,
Viktoria Institute, 2005)
16
Mobile music and locative audio Mobile music
Mobile music making Music making away from
computer screen or performance setting in the
everyday Sensor technology GPS -gt situated
music making Ad hoc distributed networks
throughout the city -gt collaborative music
making etc
17
Mobile music and locative audio Mobile music
Mobile music making sensing user-environment
interaction Sonic City (Gaye et al., FAL
PLAY, 2002-04) Sound Lens (Toshio Iwai, 200?)
18
Mobile music and locative audio Mobile music
Mobile music making device as interface
between user and space Sound Mapping (Iain Mott
et al., Reverberant, 1998)
19
Mobile music and locative audio Mobile music
Mobile music making sensing user-user
user-device interaction CosTune (Nishimoto,
ATR, 2001) Sound Lens(Toshio Iwai,
200?) Malleable Mobile Music (Atau Tanaka, Sony
CSL, 2004)
20
Mobile music and locative audio Sound Walks
mapping audio world to physical paths
Sound-art installations Electric
walks (Christina Kubisch) Drift (Teri Rueb)
Walking through digital space Seven Mile
Boots (Beloff et al., 2003-04)
21
Mobile and locative sound Wearable audio
Personal instrument (Krzysztof Wodiczko,
1969)
22
Mobile and locative sound Output
Headphones vs Boombox vs Using everyday
objects SoundbugTM speakers piezos Flower
Speakers (LETS corporation, Japan, 2004)
23
Mobile and locative sound Output
Wearables Nomadic Radio (Nitin Shawney, MIT
Medialab, 1998) Sonic Fabric (Alice Santaro,
2002)
24
Demo DIY music controller
  • System set-up
  • Tracking other sensors
  • Micro-controllers
  • MIDI protocol
  • Interactive softwares

25
DIY music controller
Components - sensors potentiometer switch /
light proximity sensors - micro-controller
BasicX-24 - protocol MIDI - software Pd
26
Tracking other sensors
  • Contact-based tracking
  • Isometric
  • Pressure, switches, etc
  • Movement sensing
  • Rotation pots, goniometers, joysticks
  • Linear movement sliders, tension sensors, pads,
    tablets
  • Bending

Ref Human Movement Tracking Technology,
Mulder, A. Technical Report, NSERC Hand Centered
Studies of Human Movement project. Burnaby, B.C.,
Canada Simon Fraser University.
27
Tracking other sensors
  • Contact-based tracking
  • Inside-in
  • Emitter receiver on subject ? body-centred
  • Workspace in principle unlimited
  • ex flex sensors, biometric sensors
  • Inside-out
  • Sensor on subject external emitter
  • Workspace limited if source artificial, unlimited
    if source natural
  • ex accelerometers, gyroscope, compass

Ref Human Movement Tracking Technology,
Mulder, A. Technical Report, NSERC Hand Centered
Studies of Human Movement project. Burnaby, B.C.,
Canada Simon Fraser University.
28
Tracking other sensors
  • Contactless tracking
  • Outside-in
  • External sensor emitter on subject
  • Least obtrusive
  • Workspace limited
  • ex video tracking markers
  • Indirect acquisition
  • Deduction from audio output
  • Latency

Ref Human Movement Tracking Technology,
Mulder, A. Technical Report, NSERC Hand Centered
Studies of Human Movement project. Burnaby, B.C.,
Canada Simon Fraser University.
29
Tracking other sensors
  • Other sensors
  • Objects
  • More or less same as human tracking sensors
  • Environment
  • Light, sound, temperature, humidity, electricity,
    magnetism
  • Digital information
  • ex activity on internet

Ref Human Movement Tracking Technology,
Mulder, A. Technical Report, NSERC Hand Centered
Studies of Human Movement project. Burnaby, B.C.,
Canada Simon Fraser University.
30
Micro-controllers
  • Collecting sensor data and sending them to
    processor (e.g. PC) as serial data (e.g. MIDI
    signal)
  • Can also be used to trigger actuators (f. ex
    LED)
  • Common micro-controllers
  • BasicX-24
  • Basic Stamp II
  • PIC

31
(No Transcript)
32
MIDI protocol
  • MIDIMusical Instrument Digital Interface
  • Standardised serial communications protocol
    between synthesizers and other digital music
    devices
  • Controllers / receivers
  • Midi command status byte 2 data bytes
  • action (note on, note off, pitch bend, control
    change )
  • pitch
  • velocity (how loud)

33
Interactive music softwares
  • Common softwares
  • MAX/MSP
  • Pd (Pure Data)
  • Using MIDI signals
  • as control data

34
  • Reading sensor values with BX-24
  • connect sensor to ADC pins
  • power supply them with the BXs 5V DC output
    power
  • (! BX power 9V)
  • add SerialPort module for communicating with
    serial port
  • write routine for reading voltage on pins
  • download program to EPPROM

35
Option Explicit Dim voltIn As Byte Dim switch As
Byte Public Sub Main() voltIn 1 switch 1 Do
'potentiometer voltIn cByte(getADC(16))
'switch switch GetPin(17) Debug.Print
"voltIn" cStr(VoltIn) Debug.Print
"switch" cStr(switch) Call Sleep(0.05) Loop
End Sub
36
Sending values as MIDI signal
- convert data into MIDI scale (0-127) - create
buffer - adapt baud rate to MIDI speed - write
subroutine loop for sending MIDI - MIDI command
144 (note on) 128 (note off) - or on
velocity used as ID pitch used as sensor
value - download on EPPROM - sending out serial
data via MIDI adapter circuit and MIDI-USB
adapter
Ref Physical Computing, Tom Igoe.
http//www.tigoe.net/pcomp/code/archives/bx-24/000
249.shtml
37
Option Explicit Dim InputBuffer(1 To 12) As
Byte Dim OutputBuffer(1 To 10) As Byte Dim
midiCmd As Byte Dim vel As Byte Dim midiTaskVar(1
To 50) As Byte Dim voltIn As Byte Dim switch As
Byte
Ref Physical Computing, Tom Igoe.
http//www.tigoe.net/pcomp/code/archives/bx-24/000
249.shtml
38
Public Sub Main() voltIn 1 switch 1 Call
openQueue(Inputbuffer, 12) Call
openQueue(Outputbuffer, 10) Call OpenCom(1, 9600,
InputBuffer, Outputbuffer) Register.ubrr
14 midiCmd 144 CallTask "midiTask",
midiTaskVar Do 'potentiometer voltIn
cByte(cSng(getADC(16)) 127.0 / 1023.0)
'switch switch GetPin(17)
Call Sleep(0.05) Loop End Sub
Ref Physical Computing, Tom Igoe.
http//www.tigoe.net/pcomp/code/archives/bx-24/000
249.shtml
39
Sub midiTask () Do vel1 Call
putQueue(OutputBuffer, midiCmd, 1) Call
putQueue(OutputBuffer, voltIn, 1) Call
putQueue(OutputBuffer, vel, 1) vel2 Call
putQueue(OutputBuffer, midiCmd, 1) Call
putQueue(OutputBuffer, switch, 1) Call
putQueue(OutputBuffer, vel, 1) Call
Sleep(0.05) Loop End Sub
Ref Physical Computing, Tom Igoe.
http//www.tigoe.net/pcomp/code/archives/bx-24/000
249.shtml
40
Sending values as MIDI signal
Ref Physical Computing, Tom Igoe.
http//www.tigoe.net/pcomp/midi.shtml
41
  • Receiving MIDI data in Pd
  • C/pd/bin
  • pd midiindev 1
  • route data according to ID (vel)
  • use pitch as control values

42
(No Transcript)
43
Discussion Mobile music application using
sensorsPossible uses, interactions, issues and
implications of implementations? Props sensor
platform, soundbug, tell me Focus - sensor
positioning- physical interaction and relation
between sound, body and place- combining data
44
Links
  • DIY links
  • BX-24 http//www.basicx.com
  • Pd http//www.crca.ucsd.edu/msp/software.html
  • More micro-controllers etc ITP Physical
    computing
  • http//tigoe.net/pcomp/index.shtml
  • Book Physical Computing Dan Sullivan Tom
    Igoe
  • On iPaq Linux PDa (by Gunther Geiger)
  • http//gige.xdv.org/pda/

45
Links
Sensors Mobile Music Links New Interfaces for
Musical Expression http//www.nime.org Mobile
Music Locative Audio http//www.netzwissenschaf
t.de/mob.htm http//www.viktoria.se/lalya/tamabi0
5/ Ubiquitous Computing http//www.ubicomp.org/
Write a Comment
User Comments (0)
About PowerShow.com
