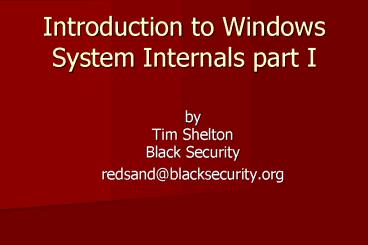

Introduction to Windows System Internals part I

1
Introduction to Windows System Internals part I

• by
• Tim Shelton
• Black Security
• redsand_at_blacksecurity.org

2
Outline

• Brief History of the Windows Operating Systems
• Unicode Explained
• Registry Basics
• Windows Services (services.exe)
• Startup Shutdown Procedures
• QA

3
Windows History Overview

• Microsoft formed its team of 20 developers in
  November 1988
• 4 core developers wrote key components
• Began a dream to write an Advanced Operating
  System
• Designed for Desktops and Servers
• Secure, scalable Multi-Processor design
• All new code base

4
Windows History Overview Cont.

• Microsoft announced its commitment to rigorous
  discipline
• Developers are required detailed documentation
• Developers are required peer code review
• Developers are required to unit test their code..

5
Windows History Overview Cont.

• Past Personal Computing, 16-32 bits, Windows
  9x code base, objective bringing computers to
  the consumer.Features usability and
  compatibility
• Present Enterprise Computing, 32/64 bits, NT
  code base, solid architectural foundation,
  objective reliability, performance, and to meed
  the demands for Server Processing.
• Future Managed Code (.NET Framework),
  objective World Domination (go figure!)
  Longhorn.

6
Commitment of the NT Architecture

• Reliability Crash proof Operating System
• Security Built into design from day one.
• Portability Multi-processor support, avoiding
  non-portable solutions, flexible hardware
  abstraction Layer
• Modularity Space to grow and needs to be
  fulfilled.
• Performance Microsoft is willing to sacrifice
  performance for all of the above.

7
Common Windows Internal Tools

• File Monitor filemon www.sysinternals.com
• List DLLs loaded within specific process'
  virtual address space listdlls
  www.sysinternals.com
• Kernel Debuggers windbg, kd Platform SDK and
  Windows SDK
• Live Kernel Debugging livekd
  www.sysinternals.com
• Object Viewer winobj www.sysinternals.com
• Process Explorer procexp replacement for
  taskmgr and much more! www.sysinternals.com
• And More! Visit the Platform SDK or
  www.sysinternals.com

8

• Add text output/ screen shots here and next few
  slides

9
(No Transcript)
10
Unicode and Language Independence

• Most internal text strings are stored and
  processed as 16-bit Unicode characters.
• Unicode is an international character set
  standard that defines unique 2byte values
  (maximum 65536 characters) for most of the
  world's known character sets.
• References www.unicode.org Or MSDN Documentation

11
Unicode and Language Independence Cont.

• Because most applications use 8-bit ANSI
  character sets, Windows functions that accept
  string parameters have two entry points a
  Unicode and an ANSI version. Ex CreateProcessA
  and CreateProcessW (found in kernel32.dll)
• Lesson learned Use Unicode for multi-lingual
  support.

12
Windows Registry

• Hives located in SystemRoot\Config\
• A Hive is a logical file system within a flat
  file. Keys directories Values files
• Registry is a collection of Hives.
• A Hive contains a collection of Bins.
• A Bin contains a collection of Cells.
• Each Cell is a unit of allocation containing raw
  data

13
Windows Registry Cont.

• Below are a few Example NT APIs available for
  managing the Windows Registry NtEnumerateValueKe
  y(KHANDLE, int) NtQueryValueKey(KHANDLE,
  VarName) NtLoadKey(KHANDLE, HiveFileName)
  more found in Advapi32.dll

14
Windows Registry Cont.

• A Hive is a file (two if you count the .LOG) -
  Primary holds the actual hive data - .LOG used
  when flushing the hive (crash recovery)
• Storage Mapping Types - Stable maps to the
  hive file - Volatile mapped into paged pool of
  memory, lost after reboot.
• Primary file grows in 256k increments to prevent
  fragmentation. First page (4k) is the registry
  header, followed by chained Bins

15
Windows Registry Cont.

• A Cell is the unit of storage allocation within
  a Hive.
• Always 8-byte aligned.
• Always reuse free cells if one with the same or
  greater exists.
• If size is bigger, then split it and re-enlist
  in free cell table.

16
(No Transcript)
17
Windows Registry Cont.

• Keys, Values, Security Descriptors, Indexes,
  etc. are all made up of Cells.
• Retrieving a value within a Key might involve
  several faults spread across the Hive file. -
  Solution Registry Hive Caching (Win2k), locality
  enforcement (XP/.NET) to help with performance.

18
Registry Hive Flush

• Most expensive operation, called externally by
  NtFlushKey/RegFlushKey, or anytime a value is
  written to the Hive. (SetValue, DeleteValue,
  CreateKey, DeleteKey, etc). Automatic Flush at
  Shutdown/Reboot
• Lazy Flush waits 5 seconds after write then
  walks the list of Hives looking for Cells marked
  as Dirty. Ignores Hives marked as
  NO_LAZY_FLUSH.
• During Flush, registry is marked as read-only
• No data is written to the Hive File until the
  Flush is completed. This may lead to a possible
  loss of data.

19
Registry Loading the Hive

• Loaded at boot time by Boot Loader (NTLDR) and
  the kernel (ntoskrnl.exe)
• Explicitly loaded by calling NtLoadKey/RegLoad
  Key - This requires Restore security
  privileges.
• Files are opened in exclusive mode and kept
  open by the kernel.
• Read Primary header and verify checksums, if
  failed - Physical integrity check, walk entire
  Hive and check each individual cell - Logical
  integrity check, walk the tree check every
  key/value.

20
Registry Hives Locations

• Two distinct User hives per account. Located in
  USERPROFILE - NTUSER.DAT Mounted under
  HKEY_USERS\SID roaming enabled (if roaming
  profiles are used) - UsrClass.DAT local (no
  roaming)
• Special hives similar to above always
  loaded - S-1-5-18 SYSTEM account - S-1-5-19
  Local Service - S-1-5-20 Network Service

21
Registry Review

• Registry is intended to maintain configuration
  data.
• Stored in a special, highly tuned flat file.
• Native APIs can be found within Advapi32
• Used by the kernel, drivers, internal system,
  applications, security, policies, and more

22
Services Explained

• What are services?
• Processes that run without the need for an
  interactive logon.
• This is the Windows equivalent of the UNIX
  daemon.

23
NT Services

• Started early during boot process by
  winlogon.exe
• Responsible for enforcing service load order and
  dependencies.
• Starts all service processes marked for load on
  boot.
• Manages all service processes - Only allows
  access to service via API - Access guarded by
  use of access checks.
• Can be configured to run under any account (such
  as LocalSystem).

24
NT Services

• Examples of common services - spoolsv.exe
  (Print Spooler running as LocalSystem only) -
  svchost.exe (Generic host, any account) -
  services.exe (Eventlog, Plug n Play running as
  NT Authority\SYSTEM privileges.)
• Services register with both a Service Name and a
  Service Description. - ex ALG vs. Application
  Layer Gateway Service

25
NT Services

• Configuration HKLM\SYSTEM\CurrentControlSet\Serv
  ices
• Follows the Service Programming Model -
  Requires ServiceMain and Handler (Ex) - Multiple
  services within each process must implement its
  own ServiceMain
• If service is its own executable, it must call
  StartServiceCtrlDispatcher in WinMain which will
  in turn call ServiceMain.

26
svchost.exe

• Individual services can be configured to run
  within svchost.exe - Initialized within
  configuration during Service Creation -
  SystemRoot\system32\svchost.exe k ltservice
  namegt - svchost Service list is static, instance
  must be added to HKLM\Software\Microsoft\Windows
  \Svchost
• When svchost begins, it will read the list of
  services and setup a generic ServiceMain routine.

27
Startup Procedure

• Files Required for Successful Boot

28
Startup Procedure

• Initially the Boot Sector will find and load
  Ntldr. Below are the steps of Ntldr
• When NTLDR runs, it switches the processor into
  32-bit flat memory mode (until this point the
  computer was running in real mode (just like your
  old 8086 or 8088 CPU).
• It then starts the appropriate mini-file system
  (e.g.FAT, NTFS), so that it can read the files
  from the disk.
• It will then read the Boot.ini file, and display
  the boot menu on the screen.

29
Startup Procedure

• Ntldr Continued
• If an OS other than Windows 2000 is selected,
  NTLDR then loads the bootsect.dos file and passes
  control to it, which then boots the other OS.
• If a Windows OS is selected, then NTLDR runs
  Ntdetect.com to gather information about the
  computer's hardware.
• Hardware includes Computer ID, Video Adapter,
  Keyboard, etc. Computer ID
• It is also in this step when you can choose to
  press F8 for troubleshooting and advanced startup
  options.

30
Startup Procedure

• Ntoskrnl begins the first of two phases
• Disable Interrupts
• Calls KiSystemStartup -gt HalInitializeProcessor
  -gt KiInitializeKernel (per cpu)
• Proceeds to call ExpInitializeExecutive which
  loads critical resource management interfaces.
  (Plug n Play, Security Monitor, Memory Manger)
• Phase two begins
• Ntoskrnl re-enables Interrupts and displays the
  Windows Boot Status Screen
• Ntoskrnl loads the HARDWARE Registry hive
• Ntoskrnl proceeds to initialize the necessary
  drivers

31
Startup Procedure

• This step begins with the starting of the Session
  Manager (Smss.exe)
• Smss, being a native application, can perform
  unique actions.
• Creation of Security Tokens
• Uses its own native API, unavailable to the rest
  of Windows
• Smsss first task is initializing the rest of the
  Registry Hive
• Smss then runs any programs defined in
  HKLM\SYSTEM\CurrentControlSet\Control\Session
  Manager\BootExecute
• Smss loads the Windows Subsystem (Win32k.sys)
• Smss then loads Csrss and Winlogon

32
Startup Procedure

• Winlogin and Csrss
• Winlogon then performs its startup steps such as
  creating the initial window station and desktop
  objects.
• Winlogon then loads Msgina.dll (or replacement)
  to handle WlxLoggedOutSAS, displaying the
  standard Windows logon dialog box.
• Winlogon creates the Service Control Manager
  (SCM) or services.exe
• Loads all the necessary services marked for
  auto-start
• Loads the Local Security Authentication Subsystem
  (Lsass)

33
Startup Procedure

• Winlogin and Csrss
• SCM deems boot success and updates Last Known
  Good Configuration located atHKLM\SYSTEM\Select\
  LastKnownGood to match \CurrentControlset

34
Startup Procedure

• Post Authentication
• Winlogon maps HKCU and sets the User Environment
  stored in HKCU\Environment
• Msgina loads executables within
  HKLM\Software\Windows NT\CurrentVersion\WinLogon\U
  serinit
• Userinit.exe processes user scripts and machine
  logon scripts
• If group policy specified, user quota loaded
  (SystemDirectory\Proquota.exe)
• Launches comma-seperated shell(s) specified in
  HKCU\Software\Microsoft\Windows
  NT\CurrentVersion\Winlogon\Shell (default is
  Explorer.exe)

35
Shutdown Procedure

• ExitWindowsEx()
• Csrss impersonates the caller and sends a Windows
  Message to a hidden window owned by Winlogon,
  telling it to shutdown
• Csrss traverses through each user process
  informing it of its intentions.
• Csrss calls ExitWindowsEx() once again within
  System space, informing csrss to kill any
  processes owned by SYSTEM.
• Winlogon calls NtSetSystemPowerState
• Sends shutdown I/O packets to all device drivers
  that have requested shutdown notification.
• Winlogon then sets the power status to the
  required request. (Shutdown, Reboot)

36
Questions?

• Now is the time to hit me with all you got!

37
Kill() Time()

• Windows Shattr Attacks
• Windows CreateRemoteThread Injection
• DLL Detach Injection
