Title: The ISIS Target Failure

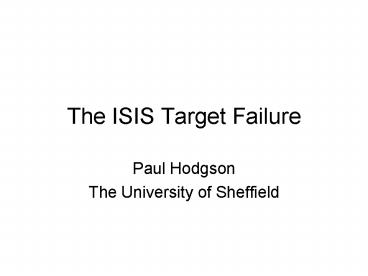

1
The ISIS Target Failure
  • Paul Hodgson
  • The University of Sheffield

2
The Failure
  • Target failed 21st December during a normal MICE
    shift
  • This initially showed as an inability to lower
    the target beyond a certain point
  • After repeated attempts to lower it the target
    eventually ceased to operate completely
  • Raising and lowering the target frame had no
    effect

3
Target Schematics
Collar added here
4
Target removal and inspection
  • Target removed from synchrotron 10th Jan
  • Hard to see shaft tip because inside bellows but
    some evidence of melting
  • Target transported to R52 for detailed inspection

5
The tip of the target was melted.
Estimate from photograph that target is 8.0 0.5
mm shorter
Target tip shorter but material concentrated in a
blob at tip no missing material
The Shaft was bent some 10º off axis
6
The Top Bearing
  • No dust on the upper surface of the top bearing.
  • No wear on the work surfaces of the top bearing
  • No wear on the upper shaft area

7
The Bottom Bearing
  • A small amount of wear on bottom part of shaft
  • Matching wear pattern on the bottom bearings
  • Collar fell out when bottom bearing removed

8
Summary of Observations
  • No dust on upper shaft and bearings
  • Some odd asymmetric wear on lower shaft/bearing
    not much wear though
  • Circular bearing stop collar was loose
  • Lower section of shaft was bent approx. 10º off
    axis
  • Bottom 8.0 0.5 mm of target tip melted
  • Abnormal shape of pulses during failure

9
Initial Comments and Questions
  • DLC coating failure was NOT the cause of failure
  • The jamming occurred due to the circular collar
    coming loose and sliding on the lower shaft
  • The link between the melting and failure is not
    clear
  • What caused the bending ? no record of
    mechanical damage during removal and inspection
  • What caused the melting of the target tip ?
    titanium melts at 1960K
  • Normal operation should not let this happen 3
    full pulses before ISIS trip T1100K

10
(No Transcript)
11
11
12
1429
12
13
  • Start-up after incident. Same depth and delay
    produces little beamloss. Target steered deeper
    but later into beam.
  • BL 200 50 mV
  • T 10.5 0.5 ms
  • D 29.0 0.3 mm
  • Delay and depth tweaked to increase beam-loss to
    desired value (300 mV)
  • BL 360 50 mV
  • T 7.0 0.5 ms
  • D 30.9 0.3 mm
  • The target is now going into the beam early and
    deep should be producing large beamlosses
    (1000 mV)
  • Start of shift .Target started deep and was
    raised out of beam
  • BL 450 50 mV
  • T 8.0 0.5 ms
  • D 38.0 0.3 mm
  • Main run until incident. Target was again raised
    out of beam until desired beamloss achieved. The
    delay was altered later in period by 1 ms.
    Presumably the beam was wandering a little. Last
    recorded pulse at 1429.
  • BL 300 50 mV
  • T early 8.0 0.5 ms
  • T late 9.0 0.5 ms
  • D 39.1 0.3 mm

14
14
15
15
16
16
17
  • Plots from the next MICE shift 19-12-08
  • Despite target pulsing at maximum reach only
    modest beamloss achieved
  • The effect of the incident permanent

17
18
29th Nov Incident
  • At 1435 something happened to the target
  • Last normal recorded pulse is 1429
  • ISIS log entry at 1435
  • Subsequent pulses needed to have the target 8 mm
    lower to produce the same beamloss
  • This is clear evidence of the time at which the
    target was melted

19
Conclusions
  • The target tip was melted during an incorrect
    procedure on 29th November 2008 (now not possible
    to do this)
  • The target was temporarily parked in the beam and
    the trip was inhibited in some way needs 12
    full pulses to melt
  • The target did not jam due to DLC coating failure
    no dust/wear on upper bearing (remember the
    previous R76 failure)
  • The target jammed because the circular collar
    came loose and slid up and down on the shaft,
    intermittently jamming
  • Not clear what caused the wear on the lower shaft
    could be from the detached collar or caused by
    the bend ?
  • Unclear if melting caused collar to detach but
    possible
  • Still unclear what caused the bending. Could the
    heating have also done this ?
