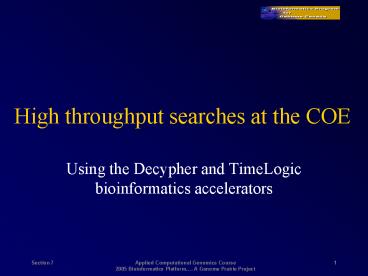

High throughput searches at the COE

• Using the Decypher and TimeLogic bioinformatics
  accelerators

2
Our Goals Sensitivity Selectivity
Sensitivity What proportion of the real hits are
reported? (More sensitive means more real hits)
Selectivity What proportion of the reported
hits are real? (More selective means less false
positives)
3
Why do we need all these searches?

• BLAST is optimized for finding protein similarity
  and strong DNA homology
• Sequence with frameshifts (e.g. ESTs) will not be
  aligned properly
• BLAST alignments do not span introns nicely
• Distant or short DNA homology may be missed
• Similarity between a sequence and a family of
  sequences may be a lot stronger than to any
  particular member of that family
• BLAST will not do global alignments (e.g. make
  sure an EST matches completely against a genomic
  segment)
• We need special systems to find these more
  difficult matches, requiring much more
  computation

4
Physical Machinery

• Timelogic system
• a Sun v880 server with 4 PCI cards containing
  reprogrammable hardware (a.k.a. Decypher, coe02)
• Paracel system
• a 24 CPU Linux cluster (aka BlastMachine, coe04)
• a 27000 specialized processor unit (a.k.a.
  GeneMatcher, coe05)

5
What can we speed up?
6
Acceleration General Principles

• Bottlenecks in the computation include
• Number of processing cycles available at one time
  (maxing out the processors)
• Getting data from disk or memory to the
  processing unit (causing processor to idly wait)
• Unnecessary processing instructions created by
  generically compiled software
• Accelerators try to reduce these bottlenecks to
  improve total throughput, not always
  time-to-completion of a single job.

7
Acceleration Solutions

• Parallelization, including one or more of
• All sequences from a batch have their own
  independent processors to run on (GeneMatcher
  Decypher)
• A single database input stream passes through all
  the processors (GeneMatcher Decypher)
• The database searched is broken down into parts,
  searched independently, then results are combined
  (Paracel BlastMachine)

8
Acceleration Solutions

• Just like 3D graphics cards use hardware to
  accelerate games, hardware can speed up
  bioinformatics.
• Hardware logic available includes
• ASIC, low-cost hardwiring with some flexibility
  in the logic using microcode (used by
  GeneMatcher)
• FPGA, expensive hardware whose logic is
  completely reconfigurable (used by Decypher),
  meaning it is never obsolete

9
Strengths Weaknesses Decypher

• Profiles Hidden Markov Models fastest by far
• TeraBLAST algorithm performs seed finding in
  hardware, alignment in software
• GeneBLAST allows introns in local alignment
• User must optimize input batch size to get best
  throughput (e.g. Magpie sends HMM 500 at a time)
• No job progress reporting

10
Strengths Weaknesses Paracel

• Smith-Watermans are fastest available
• Performs GeneWise searches to match HMMs to
  genomic data (intron spanning)
• Smart queuing system lumps together jobs that can
  run in parallel (no need to optimize input size)
• Runs cluster-accelerated software BLAST,
  PSI-BLAST, and MEGABLAST with nearly the exact
  output expected from a NCBI search

11
Strengths Weaknesses Paracel

• HMM Profile searches are moderately
  accelerated, but by default produce inverted
  results (HMMs vs. seq, not seq vs. HMMs)
• Sometimes large jobs can have RPC timeout issues
  for remote clients

12
Time comparison

• 21,000 ESTs against non-redundant nucleotide
  database using TeraTBLASTX on coe02
• 3 days 5 hours (13 seconds per EST)
• Sample EST vs. same database, using NCBI service
• 4.5 minutes without queue time (20x slower)
• 1000 proteins vs. Pfam using Decypher
• 1.5 minutes (0.09 seconds per protein)
• Sample protein vs. Pfam using cluster_at_WUSTL
• 16 seconds without queue time (175x slower)

13
Other uses of Smith-Waterman

• As we learn more about RNA interference, we see
  that microRNAs target genes with matches that
  BLAST cannot find due to short sequence length
  and gaps.
• SW and other dynamic methods will be important in
  identifying sites and minimizing off-target
  activity.

Kiriakidou M, et al. Genes and Development
18(10)1165-78.
14
Other Uses of Smith-Waterman

• Because only SW checks all substrings of the
  query, it is the only search method that can
  report a real Z-score (FastA also has an
  estimate)
• Z score is number of standard deviations the
  alignment raw score is from the distribution mean
  for this query against this particular database.
• Z scores are more useful than random expectation
  (e-value) scores for applications like EST
  clustering, because they measure how unique
  matches are. Kinases may have high e-value
  against each other, but low Z-score if there are
  many kinases in the database.

15
Okay, theyre fast. Now how do a I use them?

• Web interfaces for small jobs using standard
  parameters

http//coe04.ucalgary.ca
http//coe02.ucalgary.ca
Also through CBR Web site
16
Command line interface (CLI) why?

• All commands are launched from coe01, which
  remotely invokes the programs and saves output to
  a local file
• The command line lets you specify more options
  than the Web
• These searches can be automated
• Clients can be installed on your local machine
  too if you do a lot of searches

17
CLI Paracel BLAST (BlastMachine)

• The same command line invocation as NCBI
  blastall/megablast/blastpgp, but with pb
  prepended, and input must be from a file, not
  standard input (keyboard)
• pb blastall p blastp d nr i in.fasta o
  out.txt
• Running pb blastall will give command line usage

18
CLI BioView Toolkit (GeneMatcher)

• A command argument hierarchy exists, all starting
  with btk
• Syntax help is available for each level of the
  hierarchy by adding h1-4 to the end of the
  command, where 1 is terse, 4 is verbose
• btk h1
• btk search h1
• btk search tswx h2
• btk search tswx formatblast2 matrixblosum62
  evalue_threshold0.01 dbsetall_est_aa
  outputresults.txt queryquery.fasta

19
CLI TimeLogic Decypher

• The TimeLogic machine searches are invoked via
  network socket connection API
• By default, requesting a search will take a
  second and return you to the command line, with
  results to be picked up some time later with
  another command that fetches the output via a
  socket.
• To wait for results once a search is launched,
  use the versions of the CLI commands that end in
  _rt (Real Time), they behave more like standard
  search programs

20
CLI TimeLogic Decypher

• Launching Decypher jobs is based on filling in a
  search template
• Templates for most searches already exists, you
  just need to specify a few command line options
  to fill in missing template values (such as the
  query file name), or to override the template
  defaults (e.g. significance cutoff)
• The templates consists of plain text files with
  keyword/value pairs. The Keyword Reference Sheet
  is good to keep nearby to customize your search.

21
CLI TimeLogic Decypher

• Templates can be found on the coe01 file system
  in the folders DECYPHER/templates and
  DECYPHER/tmpl_newtargs
• Example usage
• dc_template_rt -template hmm_aa_vs_aa
• -targ pfam -sig evalue -thresh
  significance1e-10 -query query.fasta gt
  results.txt

22
CLI Database Uploads

• We try to provide up-to-date versions of the
  common public databases for these servers
• If you need to search another database my, you
  must upload the data to the appropriate server
  e.g.
• BlastMachine pb formatdb -n my -i db.fasta
• -p F -o T -t my database
• GeneMatcher btk db load namemy seqtypedna
  dst/fdf/coe05/gm0/0/nt srcdb.fasta -nt2aa
  -nt2codon
• Decypher dc_new_target_rt -template
  format_nt_into_nt -targ nt -source db.fasta -desc
  my database
• Remember, disk space isnt infinite! Remove the
  databases when you no longer need them.

23
CLI Database Availability

• Sequences NR, NT, DBEST, SwissProt, Human,
  Mouse, Arabidopsis
• HMMs Pfam, TIGRFam, SMART, SuperFamily
  (Structural Classification), Panther, CATH
• In-house constructed HMM libraries from NCBI
  Clusters of Orthologuous Genes (COGs) and Protein
  Identification Resource (PIR SuperFams)
• Profiles Prosite

24
Other functions

• Decypher can do multiple sequence alignments,
  build a HMM, then use the HMM to search for more
  homologs, then refine the MSA with new hits, etc.
  Like PSI-BLAST on steroids.
• Paracel Transcript Assembler for automatically
  clustering and assembling EST sequences, can
  optionally use the GeneMatcher
• Osprey (oligonucleotide design software) can use
  Decyphers profile searches to model
  oligonucleotide thermodynamics

25
Assignment

• Run sample data through the regular channels
• Run the same data through the Paracel and
  TimeLogic systems using the command line
  interface.
• Note the difference in speed
• Note the difference in database hit scores
