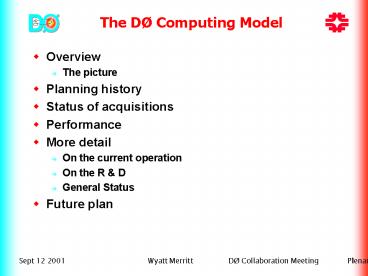

The DØ Computing Model

• Overview
• The picture
• Planning history
• Status of acquisitions
• Performance
• More detail
• On the current operation
• On the R D
• General Status
• Future plan

2
Overview

• The data handling system
• SAM ? ENSTORE ? Robot(s)
• The offline user computing systems
• dØmino - O (20 TB) disk
• linux analysis server(s) - O (2 TB) disk
• linux development machines - O (0.2 TB)
• build cluster
• ClueDØ
• remote linux machines
• non-development desktops
• Associated systems
• Fermilab production farm (raw data
  reconstruction)
• Remote production farms (simulation)
• Database servers

3
ClueDØ Server
High speed Network
4
Planning history

• Original plan January 97
• DØ Internal Review February 97
• External review Von Rüden Committee
• Mar 97, Oct 97, Jun 98, Jan 99, Jun 99
• Funding profile (DMNAG - Joint with CDF) approved
  97
• Plan updates
• January 99 for VR IV
• Global Computing Model reports (98-99)Addition
  of Analysis Servers to plan
• Plan implementation 97 - 01
• Run II Computing and Software Project
  co-leaders Computing Planning Board

5
Status of acquisitions

• Analysis cpu
• Dømino 192 proc O2000 complete (except add
  memory)
• Desktops responsibility of institutions
• Analysis Clusters/Servers - 1 purchased of (6?)
• Reconstruction cpu
• 200 processors acquired of 400 planned 40 Hz
  cap _at_ current reco cpu perf. 80 Hz _at_ target
  reco perf
• Disk storage
• 30 TB total - complete (plan was 15 TB)
• See allocation slide

6
Disk space in the offline systems
Total available disk space 30 Tbyte
3 Tbytes are on D0test, d0lxac1, d0lxbld 27
Tbytes are on D0MINO
( all units are Tbytes)
Allocated
Used
Available
Disk space on D0MINO
1
1
1
Scratch, releases other config.
6
variable
6
SAM cache
12
variable
12
DST/mDST
2.6
2.0?
4
Project disks
0.9
?
2
Tmp ( group space)
2
contingency
22.5
27
TOTAL
7
Status of acquisitions contd

• Robotic tape storage
• 1 ADIC robot (750 TB capacity) - complete
• 18 Mammoth II tape drives - will be retired
• 6 LTO drives - now
• 2 STK robots (600 TB capacity) - FY02
• 9 STK 9940 drives - FY02
• Post shutdown stopgap - use existing STKen w/ 4
  drives
• Database servers - complete
• 2 SUN systems w/ 600 GB disk

8
Performance

• Farm production stats
• dØmino cpu mem stats
• AC1 cpu mem stats
• SAM encp stats
• Disk usage stats
• Conclusion Chief needs
• More memory for Dømino
• More reliable tape drives
• More farm nodes
• More linux cpu
• Open questions - DB server upgrades?

9
Farm Production Statistics

• See web link from Main DØ Computing for weekly
  reportsWeek of 08/31 - 09/06800,000 evts
  proc / 140,000 from data collected in that
  week1.9 M events collected in that week
• Problems in this weekencp problem (code change
  from ENSTORE)disk failure on dØbbin (the farm IO
  server)several other problems as well...

10
The Current Operation

• Code release model
• Mapping activities to systems
• ClueD0 operation
• Remote farm operation
• Role of the ORB

11
The code release model

• Weekly test releases
• Production releases every three months
• Weekly subsystem coordinators meetingMinutes to
  d0rug mailing list
• Rules for interface changes
• Schedules for big disruptive changes (e.g. switch
  to KAI 4.0)

12
Mapping activities to systems

• Code development your Linux box, if possible
  d0mino is the backup solution
• Large sample processing a SAM station
• d0mino, lxac1, special farm allocation (gtr) ,
  (ClueD0 - in RD)
• Small sample processing create derived DS on
  SAM station, transfer to desktop
• Office/Web browsing use your desktop!
• Remote users new position to address needs

13
Mapping activities to systems

• Disk usage
• Home areas - backed up you can ask for up to
  250MB (possibility of more for good reason) BUT
  NFS-mounted - dont use for data files!
• TMP areas - not backed up. Code development and
  / or data files, allocated per institution. 37
  institutions are using it so far. A good place
  to start off if you are not working with a
  well-defined project.
• PRJ areas - not backed up. Code development and
  / or data files, allocated per project. 3 large
  pools commissioning, algorithm development,
  simulation, plus physics and ID groups and some
  smaller projects.
• Web pages - DØ Main Computing ( SAM Data Handling
  section) --gt General description of where data
  samples are stored in our system

14
ClueD0 Operation

• The current population is111 nodes with 138
  CPUs and a total memory of 37GB396 Users
• Rules for joining and policies can be found
  athttp//www-clued0.fnal.gov/clued0/http//www-
  clued0.fnal.gov/clued0/policies.html
• Current difficulties from the lack of Redhat 7.1
  builds are being actively worked on

15
Monte Carlo Production Status

• Current Software mcp07
• p07.00.05a Generator, DØgstar, Døsim
• P08.12.00 Døreco, recoanalyze
• 950 kevents generated at reco level
• Run IIB Simulation is a major effort
• Will move to p08.13.00 to remove memory leak
• Future Releases p09.10.00
• Problem running DØgstar under investigation
• Plate level available
• p10 certification will be available by the end of
  the month

16
The Offline Resources Board

• Charge Allocate offline resources according to
  the experiments priorities
• Project tmp disk
• Sample priorities for simulation on remote farms
• Partitions in SAM cache
• Batch queues
• Chair Nick Hadley
• Web Pagehttp//www-d0.fnal.gov/Run2Physics/orb/d0
  _private/orb_home.html
• Institutions which have no tmp disk allocation
  and have active users
• email to hadley_at_fnal.gov - 18 GB will be allocated

17
R D

• Analysis clusters - one in service
• ClueD0 servers ( a relocated analysis cluster) -
  software being tested networking strategy being
  developed
• Compute servers for dØmino (a user-accessible
  farm) - 2 nodes available for tests
• Remote farms for raw data reconstruction and
  analysis
• Remote desktop analysis

18
Institutional contributions

• Desktop seats
• Backup tapes
• Remote simulation capacity
• Disk for Dømino via budget code - issues
• How to allocate between project tmp?
• Lifetime for contribution?
• Unit of contribution 1 rack of disk
• Analysis cluster for Feynman via budget code
• Similar issues
• Analysis cluster for ClueDØ - all the above
  issues SAM bandwidth, networking, sysadmin, ...

19
General Status - Where are the limits/problems?

• Online
• Max rate tested 40 Hz to tape
• Max rate sustained for a shift, to date 25 Hz
  to tape
• Max rate expected with next iteration 60 Hz to
  tape
• Final limitation tape budget (FY02 400 TB
  )
• Running p 10 on the farms
• Processes raw data _at_ 23 sec/event
• Thanks to Alg Group - worked out of box on raw
  data
• Limits 2-3 Hz w/ current nodes cpu perf of
  reco Output size HUGE - writing too
  much tape, breaking DB model, using more than
  allocated network and disk resources all down the
  line

20
Expected Farm Performance
21
General Status - Where are the limits/problems?

• SAM/ENSTORE status
• Working for many months with servers on automatic
  recovery
• Not all features complete (pick events)
• 5 GB interfaces ? can deliver 150 MB/sec to
  dØmino
• Robot status
• Design rates met, but robustness severely limited
  by M II drive error rate - plan switchover by end
  of shutdown

22
Future Plan

• Major purchases still in FY02
• New robot and reliable drives
• New farm nodes
• More memory for dØmino
• Some linux cpu
• Continue RD for linux analysis strategies
• Hope to establish effectiveness and practicality
  of the three proposed models AC, CS, AC_at_DØ
• Operational improvements
• SAM personnel _at_ DØ
• RECO continue with current release schedules
  emphasize quality control and testing for
  releasespush on cpu, memory, output size issues
