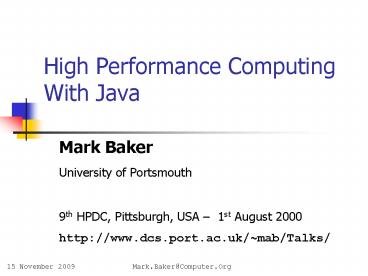

High Performance Computing With Java

1
High Performance Computing With Java

• Mark Baker

University of Portsmouth 9th HPDC, Pittsburgh,
USA 1st August 2000 http//www.dcs.port.ac.uk/
mab/Talks/
2
Contents

• Programming Paradigms
• Java for High Performance Computing
• The Java Grande Forum
• Java and Parallelism
• Existing Java Frameworks
• RMI and Object Serialization
• mpiJava A Java MPI-like interface
• MPJ A pure Java environments
• Summary and Conclusions

3
Motivation

• The limitations of sequential computers means
  that to achieve high performance applications
  need to exploit parallel or distributed systems.
• The obvious problem is therefore how to use these
  distributed resources in an efficient and
  effective manner.

4
Motivation

• To exploit a parallel or distributed platform
  mechanisms are required to move data back and
  forth between the processors.
• There are many different ways of doing this, but
  generally it via some means of message passing.
• This message passing can range from being hidden
  from the user (such as in distributed shared
  memory) or via explicit message passing (via
  library calls) within the application.

5
Programming Paradigms

• Two application programming paradigms for
  distributed-memory systems
• Shared memory
• Sequential programs with a global view of memory.
• Supported by
• Hardware (KSR- allcache and Standford DASH),
• Operating System (IVY/Munin/Midway/)
• High-level Software directives (SHMEM/OpenMP/HPF).

• Message passing
• Low-level protocols (Active/Fast messages/VIA).
• Application-level protocols (MPI/PVM) more
  later!!

6
Programming Paradigms

• Obviously the easiest programs to write are
  sequential ones!
• One would think that Distributed-Shared-Memory
  (DSM) would be the the programming paradigm of
  choice for parallel application developers!
• It is not!! the vast majority of parallel
  applications use the message passing programming
  paradigm.

7
Programming Paradigms

• Why not DSM!
• H/W solutions are complex and expensive.
• O/S solutions currently lack performance and
  scalability for a whole variety of reasons may
  be changing though!
• Software solutions require a large intellectual
  and development effort (compilers/RTL) still
  very difficult to map/solve irregular problems
  efficiently.

8
Programming Paradigms

• Why Message Passing?
• Originally considered difficult for a number of
  reasons, including
• Portability many different APIs
• Readability
• Formalism (deadlock/race-conditions/etc)
• An order of magnitude more difficult to produce
  efficient code than the sequential equivalent!
• Efficient coding of large applications reckoned
  to take a considerable fraction of the life of a
  parallel machine.

9
Programming Paradigms

• Why Message Passing?
• Even naïve attempts often produce faster and more
  efficient application codes than the equivalent
  DSM efforts.
• Introduction of the de facto Message Passing
  Interface (MPI) standard more words later.
• Standardising has meant that codes became
  portable, libraries, tools (debuggers, profilers,
  etc.), and other utilities could be developed
  with confidence and less risk.

10
Message Passing Programs

• To write parallel programs scientific programmers
  generally write applications in a high-level
  language such as C or FORTRAN, and include, by
  linking, a message passing library.
• The program is
• Written as source code
• compiled and linked
• Execution of the program by running a script file
  that stats the application on a set of named
  computers.

11
Recap.

• So we have established
• That we need distributed memory platform to
  achieve the high performance capabilities that
  applications need.
• We need a software infrastructure to pass data
  back and forth between remote processors.
• The most common way to get high performance is to
  develop message passing applications.
• Now onto Java, and where that fits into our story

12
High Performance Java

• Sounds like an oxymoron High Performance and
  Java!!
• A great deal of interest in the idea that Java
  may be a good language for scientific and
  engineering computation, and in particular for
  parallel computing.
• It is claimed that Java is simple, efficient and
  platform-neutral a natural language for network
  programming!!

13
Java Key Technical Ideas

• A Better Language
• Simplicity and C/C compatibility promote
  fluency
• GC and Threads allow software components
• Platform independence saves time
• Strong typing catches errors up front
• Declared exceptions forces coverage in code.
• Scalable Applications
• Threads for parallel speedup
• Dynamic linking allows simple apps to grow
• Range of implementations from JavaCard to HotSpot.

14
Parallel Programming

• These factors make Java potentially attractive to
  scientific programmers hoping to harness the
  collective computational power of Clusters of
  PCs/workstations, or even of the Internet.
• A basic prerequisite for parallel programming is
  a good communication API.
• Java comes with several
• Notably an easy-to-use interface to BSD sockets
• The Remote Method Invocation (RMI) mechanism.

15
Parallel Programming

• Interesting as these are, it is questionable
  whether parallel programmers will find them
  especially convenient.
• Sockets and RPC have existed as long as parallel
  computing, and neither of them has been popular
  in that field.

16
Missing From Java

• These communication models are optimized for
  Client/Server programming, whereas the parallel
  computing world is mainly concerned with
  "symmetric" communication, occurring in groups of
  interacting peers (SPMD).
• So, Java is missing a user-level message passing
  API (like MPI/PVM) more later.

17
Problems with Java

• High Performance application developers have
  found that Java has some critical areas that need
  addressing, these include
• Improved floating-point
• Complex arithmetic
• Multidimensional arrays
• Lightweight classes
• Operator overloading.

18
The Java Grande Forum

• The aforementioned aspects of Java means that
  there are some problems that hinder its use for
  large applications.
• Java Grande Forum was created to make Java a
  better platform for Grande applications-
  http//www.JavaGrande.org.
• Currently two working groups are exist
• Numeric complex and FP arithmetic,
  multi-dimensional arrays, operator overloading,
  etc.
• Concurrency/Applications performance of RMI and
  object serialization, benchmarking, etc.

19
The Goal of Java Grande Forum?

• Java has potential to be a better environment for
  Grande application development than any
  previous languages such as Fortran and C.
• The Forums goal is to develop community consensus
  and recommendations for either changes to Java or
  establishment of standards (frameworks) for
  Grande libraries and services
• These Language changes or frameworks are designed
  to realize best ever Grande programming
  environment.

20
Forum Goals

• Essential changes to Java Language
• In particular remove unrealistic goal that could
  and should get same answer on every machine
• Also things like the use of full precision and
  aggressive compiler optimizations.
• Allow operator overloading which has been
  abused but is natural (and essential) in
  scientific computing.
• Lightweight objects needed for complex types.

21
Forum Goals

• Matrices, rounding, interval arithmetic,
  exceptions (traps v flags), subscript checking,
  need for better garbage collection aimed at
  scientific contiguous data structure, role of
  compilers versus language.
• Most important in the near term encourage Sun
  to make a few key changes in Java to allow it to
  be a complete efficient Grande Programming
  Language.

22
Critical Needs for Numerics

• Numerics Java as a language for mathematics led
  by Ron Boisvert and Roldan Pozo from NIST.
• http//math.nist.gov/javanumerics/
• Changes in Java controversial handling of
  floating point arithmetic, which currently has
  goal of reproducible results, that leads to
  non-optimal accuracy.

23
Critical Needs for Numerics

• Lightweight classes and operator overloading
  enables implementation of complex as a class.
• Fortran rectangular multi-dimensional arrays
  Java naturally has arrays of arrays.
• High quality math libraries with agreed
  interfaces FFT, matrices and linear algebra,
  transcendental functions.

24
Other Needs of Java

• Distributed and Parallel Computing led by Dennis
  Gannon and Denis Caromel (INRIA, France).
• Performance of RMI (attractive Java distributed
  object model remote method invocation).
• Performance of Java runtime (the virtual machine
  VM) with lots of threads, I/O, memory use.
• Parallel computing interfaces including Java
  MPI-like bindings.

25
Java and Parallelism

• There are several forms of parallelism
• Fine grain functional parallelism as in the
  overlap of communication and computation
• Coarse grain distributed objects
• Fine grain data parallelism which is historically
  either implemented with high level language (HPF)
  or explicit user defined message passing (MPI)
  this gives "massive parallelism" as in
  parallelism over grid points or particles in
  scientific computing.

26
Java and Parallelism

• In a Nutshell, Java is better than previous
  languages for a) and b) and no worse for c)
• Automatically provides "task parallelism" which
  needs to be added in painful fashion for Fortran
• The Web integration of Java gives it excellent
  network classes and support for message
  passing.

27
Java and Parallelism

• Thus a Java plus message passing form of
  parallel computing is actually somewhat easier
  than in Fortran or C.
• Java has been integrated with PVM and MPI using
  either pure Java or with Java wrappers to
  existing implementations.
• Coarse grain parallelism very natural in Java
  with the use of RMI.

28
Java and Parallelism

• Data Parallel languages features are NOT in
  Java and have to be added extending ideas from
  HPF/HPC.
• Java has built in threads and a given Java
  program can run multiple threads at a time
• In Web use, allows one to process image in one
  thread, HTML page in another, etc.
• Threads can be used to do more general parallel
  computing but only on shared memory computers.

29
Recap

• We have identified that Java has possibilities as
  being a natural language with which to develop
  high performance applications.
• We have highlighted a number of current
  deficiencies (numerics and lack of a high-level
  message passing interface).
• We now review some Java message passing
  frameworks.

30
Java Based Frameworks

• Use Java as wrapper for existing frameworks
• (mpiJava, Java/DSM, JavaPVM).
• Use pure Java libraries
• (MPJ, DOGMA, JPVM, JavaNOW).
• Extend Java language with new keywords
• Use pre-processor or own compiler to create.
• Java (byte) code HPJava, Manta, JavaParty,
  Titanium.
• Web oriented and use Java applets to execute
  parallel task (WebFlow, IceT, Javelin).

31
Use Java as wrapper for existing frameworks.

• JavaMPI U. of Westminster
• Java wrapper to MPI
• Wrappers are automatically generated from the C
  MPI header using Java-to-C interface generator
  (JCI)
• Close to C binding, not Object-oriented
• JavaPVM (jPVM) Georgia Tech.
• Java wrapper to PVM.

32
Use Java as wrapper for existing frameworks.

• Java/DSM Rice U.
• Heterogeneous computing system.
• Implements a JVM on top of a TreadMarks DSM
  system.
• One JVM on each machine all objects are
  allocated in the shared memory region.
• Provides transparency Java/DSM combination hides
  the hardware differences from the programmer.
• Since communication is handled by the underlying
  DSM, no explicit communication is necessary.

33
Use pure Java libraries(I)

• JPVM U. of Virginia
• A pure Java implementation of PVM.
• Based on communication over TCP sockets.
• Performance is very poor compared to JavaPVM.
• jmpi Baskent U.
• A pure Java implementation of MPI built on top of
  JPVM.
• Due to additional wrapper layer to JPVM routines,
  its performance is poor compared to JPVM,
  (JavaPVM lt JPVM lt jmpi)

34
Use pure Java libraries(II)

• MPIJ Brigham Young U.
• A pure Java based subset of MPI developed as
  part of the Distributed Object Group
  Meta-computing Architecture(DOGMA)
• Hard to use

35
Use pure Java libraries(III)

• JavaNOW Illinois Institute Tech.
• Shared memory based system and experimental
  message passing framework.
• Creates a virtual parallel machine like PVM.
• Provides shared memory similar to Linda.
• Currently available as standalone software and
  must be used with a remote (or secure) shell tool
  in order to run on a network of workstations.

36
Extend Java Language

• Use pre-processor to create Java code.
• Own compiler to create Java byte code or
  executable code, but loose the portability of
  Java.
• Manta Vrije University
• Compiler-based high-performance Java system.
• Uses native compiler for aggressive
  optimisations.
• Has optimised RMI protocol (Manta RMI).

37
Extend Java Language

• Titanium UC Berkeley
• Java based language for high-performance parallel
  scientific computing.
• Titanium compiler translates Titanium into C.
• Extends Java with additional features like
• Classes which behave like existing C structs
• Multidimensional arrays
• An explicitly parallel SPMD model of computation
  with a global address space
• A mechanism for programmer to control memory
  management.

38
Extend Java Language

• JavaParty University of Karlsruhe
• Provides a mechanism for parallel programming on
  distributed memory machines.
• Compiler generates the appropriate Java code plus
  RMI hooks.
• The remote keywords is used to identify which
  objects can be called remotely.

39
Web oriented

• IceT Emory University
• Enables users to share JVMs across a network.
• A user can upload a class to another virtual
  machine using a PVM-like interface.
• By explicitly calling send and receive
  statements, work can be distributed among
  multiple JVMs.
• Javelin UC Santa Barbara
• Internet-based parallel computing using Java by
  running Java applets in web browsers.
• Communication latencies are high since web
  browsers use RMIs over TCP/IP, typically over
  slow Ethernets.

40
Communications in Java

• We noted earlier that in Java we can communicate
  between processes/objects with either RMI or
  Sockets.
• In the next section we briefly discuss RMI (and
  naturally object serialization) and its
  performance.

41
RMI and Object Serialization

• RMI
• Provides easy access to objects on remote
  machines.
• Designed for Client/Server applications over
  unstable and slow networks.
• Fast remote method invocations with low latency
  and high bandwidth are required for HPC.
• Object Serialization
• Provides the ability to read or write a whole
  object to and from a raw byte stream.
• Essential feature needed by RMI implementation
  when method arguments are passed by copy.

42
RMI

• A RMI carries baggage in the form of descriptors
  and data to support remote method invocations.
• Objects needs to be registered with the RMI
  daemon before they can have their methods
  invoked.
• RMI has reasonable performance for the initiation
  activities of Java applications, but is slow
  compared to Java Sockets for inter-process
  communications.

43
Problems with Object Serialization

• Does not handle float and double types
  efficiently
• The type cast which is implemented in the JNI,
  requires various time consuming operations for
  check-pointing and state recovery.
• Float arrays invokes the above mentioned JNI
  routine for every single array element.
• Costly encoding of type information
• For every type of serialized object, all fields
  of the type are described verbosely.
• Object creation takes too long
• Object output and input should be overlapped to
  reduce latency.

44
Costs of Serialization

• byte float
• t 0.043?s t 2.1?s
• ser ser
• byte float
• t 0.027?s t 1.4?s
• unser unser
• byte float
• t 0.062?s t 0.25?s (non-shared)
• com com
• byte float
• t 0.008?s t 0.038?s (shared)
• com com

45
Typical Costs of Serialization

• Cost of serializing and unserializing an
  individual float are one to two orders of
  magnitude greater than communication!

46
Object serialization comments

• Relatively easy to get dramatic improvements in
  performance customise implementation
  (non-standard then).
• Performance hit is due to marshalling and
  unmarshalling objects.
• Naïve implementation too slow for bulk data
  transfer.
• Optimizations should bring asymptotic performance
  in line with C/Fortran MPI.

47
Java Message Passing

• Mentioned that message passing was the most
  popular parallel programming paradigm.
• RMI/Sockets best for Client/Server computing
  paradigm (numerous reasons!)
• MPI is the most popular API for user-level
  message passing in parallel applications.
• What follows is a brief overview of MPI.

48
Message Passing Programs

• Usually the computers are identified by IP
  addresses and background processes manage the
  creation of remote processes.
• Generally, applications are based on the SPMD
  programming model.
• Each process is a copy of the same executable,
  and program behaviour depends on the identifier
  of the process.
• Processes exchange data by sending messages.

49
Message Passing

• Some of the early examples of message passing
  systems include Express, NX, PVM, P4, and
  Tiny/Chimp
• In reaction to the wide variety of non-standard
  messaging passing systems around at this time,
  the MPI Forum was formed as a consortium of about
  60 people from universities, government
  laboratories, and industry in 1992.

50
Message Passing Interface (MPI)

• MPI Version 1.0 was approved as a de jure
  standard interface for message-passing parallel
  applications in May 1994.
• The Forum continued to meet and in April 1997,
  the MPI-2 standard was published.
• MPI-2 includes additional support for dynamic
  process management, one-sided communication, and
  parallel I/O.

51
Message Passing Interface (MPI)

• Many implementations have been developed.
• Some implementations, such as MPICH (ANL/MSS),
  are freely available.
• Others are commercial products optimized for a
  particular manufacturers system, such as SUN or
  SGI machines.
• Generally, each MPI implementation is built over
  a faster and less functional low-level
  interfaces, such as Active Message, BSD Sockets,
  or the SHMEM interface.

52
MPI I

• The first release of the MPI standard specifies
  support for collective operations, and
  non-blocking sends and receives.
• Collective operations in MPI are those that have
  either more than one sender, or more than one
  receiver.
• Collective calls provide a more convenient
  interface for the application programmer and are
  often implemented using special, efficient,
  algorithms.

53
MPI I

• MPI supports broadcast, scatter, gather, reduce
  and variations of these such as all-to-all,
  all-reduce, and all-gather.
• MPI also implements a barrier synchronization,
  which allows all processes to come to a common
  point before proceeding.
• MPI I specifies standards for block and
  non-blocking sends and receives.

54
MPI II

• The second release of the MPI standard, MPI II,
  specifies additional standards for one-way
  communications, similar to the writes to shared
  distributed memory locations.
• It also specifies
• A standard way to create MPI processes
• Provide support for heterogeneous platforms
• Extended collective operations
• I/O operations
• Multithreading on individual computers.

55
Projects MPI and Java

• mpiJava (Syracuse/FSU)
• JavaMPI (Westminster)
• JMPI (MPI Software Technology)
• MPIJ (Brigham Young)
• Jmpi (Basknet)

56
Standardization?

• Currently all implementations of MPI for Java
  have different APIs.
• An official Java binding for MPI (complementing
  Fortran, C, C bindings) would help.
• Position paper and draft API Carpenter, Getov,
  Judd, Skjellum and Fox, 1998.

57
Java Grande Forum

• Level of interest in message-passing for Java
  healthy, but not enough to expect MPI forum to
  reconvene.
• More promising to work within the Java Grande
  Forum Message-Passing Working Group formed (as
  a subset of the existing Concurrency and
  Applications working group).
• To avoid conflicts with MPIF, Java effort renamed
  to MPJ.

58
MPJ

• Group of enthusiasts, informally chaired.
• Meetings in San Francisco (Java 99 and May 00),
  Syracuse, and Portland (SC 99).
• Regular attendance by members of Sun HPC group,
  amongst others.

59
The mpiJava wrapper

• Implements a Java API for MPI suggested in late
  97.
• Builds on work on Java wrappers for MPI started
  at NPAC about a year earlier.
• People Bryan Carpenter, Yuh-Jye Chang, Xinying
  Li, Sung Hoon Ko, Guansong Zhang, Sang Lim and
  Mark Baker.

60
mpiJava features.

• Fully featured Java interface to MPI 1.1
• Object-oriented API based on MPI 2 standard C
  interface
• Initial implementation through JNI to native MPI
• Comprehensive test suite translated from IBM MPI
  suite
• Available for Solaris, Windows NT and other
  platforms

61
Class hierarchy
62
Basic Datatypes
63
Minimal mpiJava program
import mpi. class Hello static public void
main(String args) MPI.Init(args)
int myrank MPI.COMM_WORLD.Rank()
if(myrank 0) char message
Hello, there.toCharArray()
MPI.COMM_WORLD.Send(message, 0, message.length,
MPI.CHAR, 1, 99) else
char message new char 20
MPI.COMM_WORLD.Recv(message, 0, 20, MPI.CHAR, 0,
99) System.out.println(received
new String(message) )
MPI.Finalize()
64
mpiJava implementation issues

• mpiJava is currently implemented as Java
  interface to an underlying MPI implementation -
  such as MPICH or some other native MPI
  implementation.
• The interface between mpiJava and the underlying
  MPI implementation is via the Java Native
  Interface (JNI).

65
mpiJava - Software Layers
66
mpiJava implementation issues

• Interfacing Java to MPI not always trivial,
  e.g., see low-level conflicts between the Java
  runtime and interrupts in MPI.
• Situation improving as JDK matures - 1.2?
• Now reliable on Solaris MPI (SunHPC, MPICH),
  shared memory, NT (WMPI).
• Linux - Blackdown JDK 1.2 beta just out and seems
  OK - other ports in progress.

67
mpiJava - Test Machines
68
The PingPong Program

• Increasing sized messages are sent back and forth
  between processes
• This benchmark is based on standard blocking
  MPI_Send()/MPI_Recv().
• PingPong provides information about latency and
  uni-directional bandwidth.
• To ensure that anomalies in message timings do
  not occur the PingPong is repeated for all
  message lengths.
• See ? http//www.dcs.port.ac.uk/mab/TOPIC

69
mpiJava performance
70
mpiJava performance -DM mode
100 Mbps
10 Mbps
71
mpiJava - CFD inviscid flow
72
mpiJava - Q-state Potts model
73
Some Conclusions

• mpiJava provides a fully functional Java
  interface to MPI.
• mpiJava does not impose a huge overhead on top of
  MPI in DM mode.
• Discovered the limitations of JNI - MPICH
  signals, seems have been solved in JDK 1.2.
• Careful programming needed with JNI.

74
Some Conclusions

• Tests show that the additional latencies are due
  to the relatively poor performance of the JVM
  rather than traversing more software layers.
• mpiJava is also providing a popular parallel
  programming teaching tool.

75
MPJ

• The Message-Passing Working Group of the Java
  Grande Forum has been working on a common
  messaging API.
• An initial draft for a specification was
  distributed at Supercomputing '98.
• The present API is now called MPJ.
• Version 1.3 of mpiJava will implement the new
  API.

76
Problems with mpiJava

• mpiJava wrappers rely on the availability of
  platform-dependent native MPI implementation for
  the target computer, some disadvantages
• 2-stage installation
• Get/build native MPI then install/match the Java
  wrappers.
• Tedious/off-putting to new users.
• Problems conflicts between the JVM and the
  native MPI runtime behaviour.
• mpiJava now runs on various combinations of JVM
  and MPI implementation.
• Strategy simply conflicts with the ethos of Java
  write-once-run-anywhere.

77
MPJ

• An MPJ reference implementation could be
  implemented as
• Java wrappers to a native MPI implementation,
• Pure Java,
• Principally in Java native methods to optimize
  operations (like marshalling arrays of primitive
  elements) that are difficult to do efficiently
  in Java.
• We are aiming at pure Java to provide an
  implementation of MPJ that is maximally portable
  and that hopefully requires the minimum amount of
  support effort.

78
Benefits of a pure Java implementation of MPJ

• Highly portable assumes only a Java development
  environment.
• Performance moderate may need JNI inserts for
  marshalling arrays.
• Network speed limited by Java sockets.
• Good for education/evaluation.
• Vendors provide wrappers to native MPI for
  ultimate performance?

79
MPJ

• We envisage that a user will download a jar-file
  of MPJ library classes onto machines that may
  host parallel jobs, and install a daemon on those
  machines technically by registering an
  activatable object with an rmid daemon.
• Parallel java codes are compiled on one host.
• An mpjrun program invoked on that host
  transparently loads the user's class files into
  JVMs created on remote hosts by the MPJ daemons,
  and the parallel job starts.

80
Design Criteria for an MPJ Environment

• Need an infrastructure to support groups of
  distributed processes
• Resource discovery
• Communications (not discussed here)
• Handling failure and fault tolerance
• Spawn processes on hosts

81
Jini as an Infrastructure

• Jini is the name for a distributed computing
  environment, that can offer network plug and
  play''.
• A device or a software service can be connected
  to a network and announce its presence.
• Clients that wish to use such a service can then
  locate it and call it to perform tasks.
• It seems that Jini will provide the appropriate
  infrastructure for MPJ.

82
Jini Technologies
83
Jini Architecture
84
A Jini Community
85
Lookup service

• Repository of available services.
• Stores each service as an extensible set of Java
  objects.
• Service objects may be downloaded to clients as
  required.
• May be federated with other lookup services.
• Lookup service interface provides
• Registration, Access, Search, Removal.

86
Discovery and Join

• Allow a Jini service (hardware or software) to
• Find and join a group of Jini services
• Advertise capabilities/services
• Provide required software and attributes.

87
Registering a Service
Server
Lookup Service
88
Jini Lookup
89
Acquiring compute slaves through Jini
Daemon
MPJ Process
mpjrun
90
Leasing in Jini

• Protocol for managing resources using a
  renewable, duration-based model.
• Contract between objects.
• Provides a method of managing resources in an
  environment where network failures can, and do,
  occur.

91
Distributed events in Jini

• Enables Java event model to work in a distributed
  network.
• Register interest, receive notification.
• Allows for use of event managers.
• Can use numerous distributed delivery models
• Push, pull, filter...

92
Transactions in Jini

• Designed for distributed object coordination
  Light weight, object-oriented.
• Supports nested transactions.
• Supports various levels of ACID properties
  (Atomicity, Consistency, Isolation, Durability).
• Implemented in Transaction Manager service.

93
MPJ - Implementation

• In the short-to-medium-term before Jini
  software is widely installed we might have to
  provide a lite version of MPJ that is unbundled
  from Jini.
• Designing for the Jini architecture should,
  nevertheless, have a beneficial influence on
  overall robustness and maintainability.
• Use of Jini implies use of RMI for various
  management functions.

94
MPJ Implementation

• The role of the MPJ daemons and their associated
  infrastructure is to provide an environment
  consisting of a group of processes with the
  user-code loaded and running in a reliable way.
• The process group is reliable in the sense that
  no partial failures should be visible to higher
  levels of the MPJ implementation or the user code.

95
MPJ Implementation

• We will use Jini leasing to provide fault
  tolerance clearly no software technology can
  guarantee the absence of total failures, where
  the whole MPJ job dies at essentially the same
  time.

96
MPJ Implementation

• If any slave dies, a client generates a Jini
  distributed event, MPIAbort() all slaves are
  notified and all processes killed.
• In case of other failures (network failure, death
  of client, death of controlling daemon, ) client
  leases on slaves expire in a fixed time, and
  processes are killed.

97
MPJ Implementation

• Checkpointing and restarting of interrupted jobs
  may be quite useful.
• Checkpointing would not happen without explicit
  invocation in the user-level code, or that
  restarting would happen automatically.
• A serialized object can be saved to disk and
  restarted.

98
MPJ - Implementation

• Once a reliable cocoon of user processes has been
  created through negotiation with the daemons, we
  have to establish connectivity.
• In the reference implementation this will be
  based on Java sockets.
• Recently there has been interest in producing
  Java bindings to VIA - eventually this may
  provide a better platform on which to implement
  MPI, but for now sockets are the only realistic,
  portable option.

99
(No Transcript)
100
MPJ Future Work

• On-going effort (proposal volunteer help).
• Collaboration to define exact MPJ interface
  consisting of other Java MP system developers.
• Work at the moment is based around the
  development of the low-level MPJ device and
  exploring the functionality of Jini.
• Looking at Security deeply!

101
Summary and Conclusions

• Using Java as a language for high performance
  applications has been shown to be possible and is
  in fact actually been used.
• It is possible to use Java for parallel
  applications from fine-grain ones to course-grain
  meta-problems.
• On going efforts within Java Grande to improve
  Java for scientific and engineering applications
• Implementation issues (numerics)
• Semantics (serialization, concurrency).

102
Summary and Conclusions

• MPJ a unified effort to produce a message
  passing interface with MPI-like functionality
  for Java.
• Jini can be used as the infrastructure to produce
  a runtime environment for MPJ.
• Java is being increasingly used to develop high
  performance applications.

103
Summary and Conclusions

• Java is however restricted and until some of the
  issues being addressed by the Java Grande forum
  are addressed and adopted by Sun it usage for
  high performance applications will be restricted.
