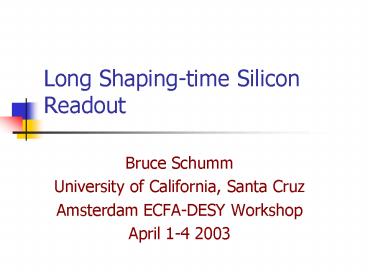

Long Shaping-time Silicon Readout

1
Long Shaping-time Silicon Readout

• Bruce Schumm
• University of California, Santa Cruz
• Amsterdam ECFA-DESY Workshop
• April 1-4 2003

2
Participants
Dave Dorfan, Christian Flacco, Alex Grillo,
Hartmut Sadrozinski, Bruce Schumm, Abe Seiden,
Ned Spencer, Lan Zhang
Also, a new post-doc (Gavin Nesom) will join the
effort in April
Potential external associates SLAC, LPNHE
Paris, CERN RD50
3
North American SD Tracker
4
Motivation - I
Agilent 0.5 mm CMOS process (qualified by GLAST)
Min-i for 300mm Si is about 24,000 electrons
Shaping (ms) Length (cm) Noise (e-)
1 100 2200
1 200 3950
3 100 1250
3 200 2200
10 100 1000
10 200 1850
5
Motivation - II
Use of long shaping-time read- out (low noise)
plus exploitation of duty cycle permits
development of very long, thin ladders
Additionally, limited readout and servicing may
lead to very limited material budget in forward
region (down to 100 mrad)
6
Scope and Funding
Work funded via a two-year, 90,000 grant
from the DOE Advanced Detector RD Program (Will
need to enter regular LC funding game afterwards)

• 9 months graduate student support
• Chip fabrication
• Long-ladder development (existing sensors)
• Electronics servicing to ladder

7
Detailed Scope
Given the duration and magnitude of the support,
our deliverables will be

• Characterization of long shaping-time analog
  characteristics of CMOS process
• Development of pulse development and electronic
  simulation for shaping-time and readout- scheme
  optimization
• Demonstration of noise level commensurate with
  readout of 1-2m ladder
• Demonstration of x100 suppression of IR heating
  loss
• Min-i readout of long ladder

8
Pulse Dev Simulation
Effects incorporated

• Landau fluctuations (SS_SimSIdE, Jerry Lynch,
  LBNL)
• Carrier (hole) diffusion / space-charge
  repulsion
• Lorentz angle
• Electronic noise
• Pulse digitization / reconstruction

9
Uncorrelated Sampling Check
10
Long Shaping-time Bail-out
Much of pulse simulation effort goes into
weighting- field calculation (pulse-development
Greens Fnc)
However, integral of total charge is

• e if electron hits strip
• 0 if electron misses strip

In t --gt infinity limit, this is all you need to
worry about!
11
Carrier Diffusion
Hole diffusion distribution given by
Offest t0 reflects instantaneous expansion of
hole cloud due to space-charge repulsion.
Diffusion constant given by
mh hole mobility
Reference E. Belau et al., NIM 214, p253 (1983)
12
Space-charge Effects
Model deposition as uniform line of charge of
radius b and linear charge density l.
After separation of electrons, holes,
distribution expands conformally
13
Time-Over-Threshold (TOT)
TOT given by difference between two solutions to
TOT/t
(RC-CR shaper)
q/r
Digitize with granularity t/ndig
14
Other Simulation Aspects
For now, assume mobilizing field that of
plane-biased diode (obscures details of field
near strips)
Lorentz Angle (holes) 36 mrad/T
Variable inputs

• Detector geometry (pitch, thickness)
• Magnetic field
• Track parameters
• Detector bias

15
Result S/N for 167cm Ladder
At shaping time of 3ms 0.5 mm process qualified
by GLAST
16
Pulse Simulation Goals
Questions to be answered

• Signal-to-noise for long ladders
• Optimal sensor geometry
• Evaluation of analog readout scheme (time-over
  threshold 2xTOT, direct analog, least-bit,
  etc. goal of lt7 mm resolution)
• Effect of large magnetic fields
• Effects of oblique angles of incidence
• Optimal detector bias

17
Hardware Qualification
Leakage Current (A)
18
Potential Associations
Aurore Savoy-Navarro (LPNHE Paris)
Have discussed development of full-scale
ladder, readout for testbeam run
RD-50 (CERN, Mara Bruzzi)
Standing request for expert consultation
(Lorentz angle, diffusion and mobility vs. B,
etc.)
Possible exploration of Czochralski sensors
(large area, but leakage current needs work for
now)
19
Next Six Months
Immediately begin SPICE-level optimization of
shaping time (assuming 1-2 meter ladder)
Have already begun qualifying GLAST 8-channel
cutoff structures for use in 2m ladder
April begin mechanical design and construction
of two-meter ladder
Submission of prototype ASIC in June-July
20
Longer Term

• Fall 2003 measure noise and power consumption
  characteristics
• Winter 2003 (likely) begin design of 2nd
  prototype chip based on accumulated experience
• Winter 2004 begin development of realistic
  prototype ladder, prepare for testbeam run
• Summer 2004 testbeam studies begin to develop
  scheme for back-end architecture

NOTE Project funded from DOE ADR program through
2003 afterwards, will need to switch to nominal
sources!
