Title: Chromatic Aberration, A closer look


1

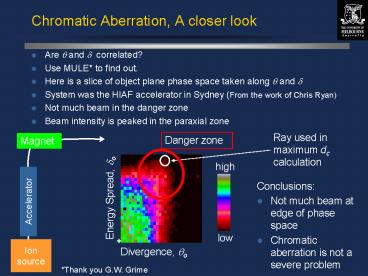

Chromatic Aberration, A closer look
  • Are ? and ? correlated?
  • Use MULE to find out.
  • Here is a slice of object plane phase space taken
    along ? and ?
  • System was the HIAF accelerator in Sydney (From
    the work of Chris Ryan)
  • Not much beam in the danger zone
  • Beam intensity is peaked in the paraxial zone
  • Conclusions
  • Not much beam at edge of phase space
  • Chromatic aberration is not a severe problem

Thank you G.W. Grime
2
Spherical Aberration, A closer look
  • Traditionally, spherical aberration is computed
    from the rectangular model (RM)
  • Rectangular model
  • B(z) 0 z lt 0
  • B(z) B0 0 lt z lt L
  • B(z) 0 z gt L
  • Results from this model agree with ray tracing
    codes that use B(r0 , z) measured at r r0
  • Detailed studies have been done by Glenn Moloney
  • Measured field profiles B(r , z) at several r
  • Provides 3-D profile of True Fringe Field (TFF)
  • Numerical raytracing from measured B(r , z)
    reveals different spherical aberration
    coefficients!

z
L
0
Coefficient RM TFFM (x/? 2)
-130 -130 (x/?? 2) -390
10 (y/? 3) -220 -190 (y/? 2?)
-390 2
3
Spherical Aberration, A closer look
  • Coefficients calculated from the TFF model give
    aberration figures of different shapes compared
    to the rectangular model
  • The figure is more intense in the paraxial region
    - good!

4
Ion Source Brightness Flux Peaking
  • Legge et al (1993) showed a 1 order of magnitude
    decrease in probe size required a 5 orders of
    magnitude increase in brightness for uniform
    model
  • True situation more complicated 1 order of
    magnitude decrease in probe size requires 2
    orders of magnitude increase in brightness

For 5 nA divergence is 2.5 times less than
uniform model so spherical aberration is reduced
by a factor of 16
2 MeV He
Current (pA)
5
Stray DC Magnetic Fields Parasitic aberration
Without magnet
With Magnet
  • Non-uniform stray DC fields are a problem
  • Shadows of a line focus on a fine grid should be
    straight line
  • Small bar magnet has severe effect
  • See large sextupole field component aberrations
  • Sources of stray DC fields in the MARC
    laboratory
  • Iron gantry and stairway over the beam line
  • Steel equipment racks
  • Gas bottles
  • Stainless steel beam tube itself!

6
Stray DC Magnetic Fields Aberrations of a beam
pipe
  • Type 316 stainless steel beam pipe through
    quadrupole lenses
  • 10 mm internal diameter
  • Beam diameter 6 mm
  • Grid shadow pattern reveals aberrations
  • See strong effect from different deflections of
    the beam pipe!
  • Effect here produced by a few cm length
  • What effect does 8 m have?

7
Stray AC Magnetic Fields Beam spot jitter
  • Stray AC field causes a shift in the virtual
    object position
  • The beam spot is scanned by the stray field in a
    complex fashion

object
lens
http//www.meda.com/fm3page.htm
8
Stray AC Magnetic Fields Beam spot jitter
  • Stray AC fields cause virtual movement of the
    object collimator
  • Used a 2-D scanwith y-coilsdisconnected
  • Gives position asa function of timein map of Cu
    x-rays

3 mm
9
Stray AC Magnetic Fields
  • It is good to have
  • High demagnification systems
  • Short systems
  • On the Melbourne system it is required that
  • Bstray lt 20 nT for xi lt 0.1 mm
  • Where
  • M Magnification 1/Demagnification
  • q beam particle charge
  • L Length of beam line
  • E beam energy
  • m beam particle mass

10
Stray AC fields in MARC laboratory Where from?
  • Field as a function of time tells the story
  • Start 6pm April 18 2000
  • Place MP2 beam line, MARC laboratory

To MARC lab 50 m
