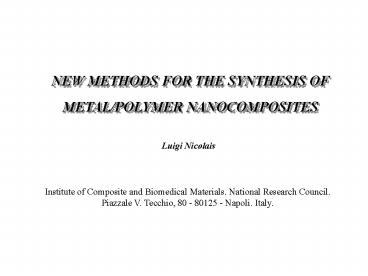

NEW METHODS FOR THE SYNTHESIS OF METAL/POLYMER
NANOCOMPOSITES
Luigi Nicolais
Institute of Composite and Biomedical Materials.
National Research Council. Piazzale V. Tecchio,
80 - 80125 - Napoli. Italy.
2
Self-assembled organic monolayers
3D-Superstructures
Fullerenes and endohedrals
Molecular machines
Eterofullerenes
Polyfullerenes
TECHNOLOGY
Cluster compounds
Metal and semiconductor clusters
Special carbon structures
Nano-rods and nano-wires
Multi-walled nanotubes
Carbon nanotubes
3
Biological Evolution
Nature has optimised the microstructure of the
tissues to fulfil the specific tissue function,
using a slowly but efficiently process of Trial
and Error (survival of the fittest)
4
COMPOSITE IMPLANT TECHNOLOGY
5
Natural Joints
Long bone
Vertebrae
Coupling through soft connective tissue

• Cartilage
• Ligaments
• Disc
• Synovial Fluids

disc
Temporo-Mandibular
Tooth-alveolar bone
MAIN
6
Tissue Reconstruction Scheme
Partially Degradable and Biodegradable Scaffolds
synthesis
in vivo implantation Bone Ligament/Tendon Interve
rtebral Disc Cartilage Vitreous
BIOACTIVE MATERIALS
in vitro culture
cell seeding
or
Osteoblasts Chondrocytes Fibroblasts Etc.
in vitro tissue growing through bioreactors
MAIN
TISSUE ENGINEERING
7
Tissue Engineering Approach
MAIN
8
Cell Proliferate on Polymer Scaffolds

CaCo2 undergo spontaneous enterocytic
differentiation 20 days of culture showing
microvilli on the apical side, tight junctions
and enzymatic activities of brush border
hydrolases
MAIN
9
MATERIALS FOR ADVANCED FUNCTIONAL APPLICATIONS
Available techniques for nanostructure handling
Self-Assembly
STM-Manipulation
Dielectrophoresis
Nanostructures
Nanocomposites
Characteristics
Characteristics
Polymer-embedding
Unique physic-chemical properties
Plastics functionalization
Unstable (aggregation, oxidation, etc.)
Nanostructure stabilization
Difficult handeling.
Easy handling, processing, and use.
10
METAL CLUSTERS AND CLUSTER COMPOUNDS
Clusters nano-scale metallic crystal fragments
Atomic metal cluster formation
Naked atomic metal clusters
Metal cluster compound
Alkyl group
Sulphur atom
Surface Au atoms
HR-TEM image of a metal cluster
Structure of metal-organic interface
11
THE ORIGIN OF NOVEL PROPERTIES
Quantum-size effects
Confinement
Surface effects.
3D-Periodic Table of Elements
Metal clusters behave just like atoms
Electron energies in a litium cluster
Electron states in a litium cluster
Examples of quantum-dot structures
12
SURFACE EFFECTS
High percentage of surface atoms
Full-Shell Magic Number Clusters
Number of shells
4
5
3
2
1
Number of atoms in cluster
M309
M55
M13
M147
M561
Percentage of surface atoms
92
63
52
45
76
Different nature of surface atoms
B
B
A
C
A
C
0
10
5
20
SEM-micrograph of 3D self-organized poly(methyl
methacrylate) particles
The percentage of different atoms changes with
size decreasing.
13
PROPERTIES OF MESOSCOPIC METALS
New magnetic properties
New catalytic properties
- Super-paramagnetism
- Super-catalytic effect
- Size-dependent ferromagnetism
New chemical properties
- New reaction schemes
- Stoichiometric heterogeneous reactions
- reactive noble metals, etc.
New transport properties
New optical properties
- Plasmon absorption
- Photo-luminescence, thermo-luminescence, etc.
New thermodynamic properties
Emission spectrum of Ag clusters irradiated at
254nm.
14
SURFACE-PLASMON FILTERS
Color filters or UV-absorbers with
Intensive coloration at very low filling
factors
Light fastness
Plasmon resonance mechanism
High transparency
Possibility to fabricate ultra-thin color
filters
Color can be modified using alloyed clusters with
different compositions (e.g., Pd/Ag, Au/Ag)
1/l f1/l1 (1-f1)/l2
15
HYDROGEN STORAGE SYSTEMS
Metal hydrides
Absorption/desorption curve
Metals reversibly absorb hydrogen producing
hydrides 2 Me H2 ? 2 MeH
H2(gas)
Metal cluster
Advantages
H
H
Fast absorption/desorption kinetic
H
Large amount of stored hydrogen
Dimensional stability
Reduction of decrepitation.
Unsatured polymer matrix (e.g., conductive
polymer)
Porous structure required for the nanocomposites.
Absorption mechanism
16
MAGNETO-OPTICAL DEVICES
The Verdets constant of polymers can be
significantly increased by filling with
ferromagnetic nanoparticles (e.g., Fe, Co,
Ni). Nano-scale particles are required for
transparency.
Optical modulator
Applications
Optical insulators
Optical modulators
Optical shutters.
Optical insulator
17
MICROWAVE ABSORBERS
Polymers do not absorb microwaves but filling
with metallic powders makes them high-absorbing
materials.
Microwave absorption mechanisms
Interfacial polarization
Magnetic loss (really effective)
HC
Single domine
Multi-domine
Pist n/r ? ?HdB (J/m3)
Super-para magnetic
Diameter
Applications
Antiradar varnishes
Hot-melts
Transparent EMI/RFI shielding materials
Microwave devices
Mechatronics
18
TRANSPARENT DIFFUSION BARRIER AND OXYGEN
SCAVENGER SYSTEMS
Active iron
O2 N2 CO2
?
?
Polymer matrix
?
?
?
?
?
?
Electrolytes
N2 CO2
Nano-structured active diffusion barrier
Oxygen removal systems for food packaging
Chemical reaction involved at metal-polymer
interface
4Fe 3O2 ? 2 Fe2O3
The presence of an electrolyte (e.g., NaCl-)
significantly increases the oxygen scavenger
activity because a corrosion mechanism becomes
involved.
Tortuosity represents an additional barrier effect
19
ULTRA HIGH/LOW REFRACTIVE INDEX MATERIALS
Optical plastics n ? 1.5-1.7
n2 2.8
Refractive index
n1 1.4
0
1
Metal
Non-linear behaviour of gelatin/Os nanocomposite
refractive index.
n ? f nplastic (1-f) nmetal
Applications
Plastic planar waveguides
Plastic optical fibers
Plastic lenses, prisms, etc.
Plastic optical fibers
20
POLARIZATION-DEPENDENT COLOR FILTERS
Drawn bar
Extruded bar
Draw die
The cold-drawing technology
Plasmon absorption dependence on the polarization
direction
100nm
100nm
Pearl-necklace like microstructure produced by
cold-drawing
Dicroic devices made by nanocomposite
21
SURFACE-PLASMON SENSORS
Vsp
Vsp
1,0
lmax f(d,n)
0,8
0,6
Absorbance
0,4
0,2
T
T
Tg
Tf
0,0
400
600
800
Polymer expansion above Tg and melting point
Wavelength (nm)
Optical fiber
- Fluid absorption
n
n
- Thermal expansion
Quartz window
d
d
Nanocomposite
Sample
Applications
- Liquid and gas sensors
- Thermo-chromic materials
- Bio-sensors
- Immuno-assay devices
22
FURTHER APPLICATIONS
Non-linear optical devices
Not-opaque ionizing radiation shielding
(X-rays, a-, b, g-rays, cosmic rays, etc.)
Dielectrics for electrical super-capacitors
Antistatic films
Photo-thermal converters
Electro-optical devices
Component of phthalocyanine-based solar cells
Heterogeneous catalysts with selectivity
defined by the polymer nature
High-density recording media.
23
NANOCOMPOSITE PREPARATIVE APPROACHES
Active metal preparation (chemical synthesis or
ball-milling)
Metal precursor synthesis
Surface passivation and isolation-purification of
the nano-sized powder
Polymer-precursor blending
Precursor decomposition (thermolysis, photolysis,
chemical reduction, etc.)
Polymer embedding process
Ex-situ synthesis
In-situ synthesis
24
NANOFILLER PREPARATION the bottom-up vs. the
top-down approaches
Regular nano-sized powders
Bottom-up
Top-down
Irregural sub-micronic powders
25
PREPARATION OF SUB-MICRONIC POWDERS BY
BALL-MILLING
Traditional Stirred Ball Milling
Milling
Cold welding
Bulk
Fine Powder
Owing to cold welding, mesoscopic metals are
difficult to be obtained by ball-milling.
26
SOFT-CHEMISTRY TECHNIQUES FOR METAL CLUSTER
SYNTHESIS
Metal clusters are obtained by precipitation from
oversaturated metal solutions produced by the
action of a mild reductant on a metal salt.
Reduction
n e-
5 mm
Men
Me
Nucleation-growth
Me
m Me
Mem
Mem1
Mono-metallic clusters
Noble metals Au, Ag, Pd, Pt, Os, Ir, Ru, Rh, Re,
Hg
1 mm
Easy reducible metals Cu, Pb, Cd, Sn, Sb, W
Light transition metals Co, Ni, Fe
SEM image of Co particle obtained using different
Co(OH)2/ethylen glycol ratios.
Poly-metallic clusters
Alloys, multi-layered clusters, ecc.
27
GOLD/POLYSTYRENE NANOCOMPOSITE PREPARATION
Colloidal gold solutions can be simply obtained
by alcoholic reduction of a gold salt in presence
of poly(vinylpyrrolidone) (PVP) as protective
agent.
Ligand-Exchange Reaction
-SR
-SR
RS-
m R-SH
-SR
RS-
RS-
PVP-embedded Au clusters
Thio-aurites
L.Nicolais et al. J. Mater. Chem. 13(2003)1038
Au clusters obtained by the exchange process
Au clusters embedded in polystyrene
Scheme of the synthesis process
28
IN SITU SYNTHESIS OF NANOCOMPOSITES
Metal mercaptide synthesis
Alcoholic thiol solution
R-S- Me2 ? Me(SR)2 ?
or alternatively
Alcoholic salt solution
Me 2 R-SH Me(SR)2 H2?
L.Nicolais et al., Eur. Physc. J. B 31(2003)545
Mercaptide
SEM-picture of Co(SC12H25)2 film.
Metal mercaptide thermolysis
Me(SR)2 ? Me R-S-S-R
Co(SC12H25)2
The R nature is selected on the basis of the
polymer processing temperature.
Co
Characteristics of the mercaptide precursor
Decomposition temperatures (120-230C)
compatible with thermal stability of most
technopolymers
High-solubility in polymers
A large number of metal mercaptides gives metal
as thermolysis product
29
METAL CLUSTER FORMATION
The LaMer model
I. Generation of metal atoms
Metal concentration
Me(SR)2 ? Me R-S-S-R
II. Atomic clustering
Nucleation concentration
Me Me Me2
Me2 Me Me3
..
..
Saturation
I
II
III
Men-1 Me Men
Time
III. Cluster growth
Men Me Men1
L.Nicolais et al., J. Mater. Chem. 13(2003)1-5
Cluster
30
LARGE-SCALE METAL/POLYMER NANOCOMPOSITE PRODUCTION
The in-situ synthesis allows large-scale
nanocomposite production by many traditional
techniques already used for thermoplastic polymer
processing.
Metal precursor
.
.
.
.
.
Posible metal/polymer nano-composite artifacts.
.
.
.
.
Metal/polymer nano-composite
Microstructure of a Co/PS nanocomposite produced
by extrusion
Extruder and brabender machines
31
CONCLUSIONS
The novel properties of nano-sized metals can
be used for plastic functionalization
A number of advanced functional devices can be
made by metal/polymer nanocomposites
Both ex-situ and in-situ metal cluster
formation techniques are being developed for
nanocomposite preparation
In situ synthesis allows large-scale production
of metal/polymer nanocomposites by the same
tecniques used for plastic processing.
